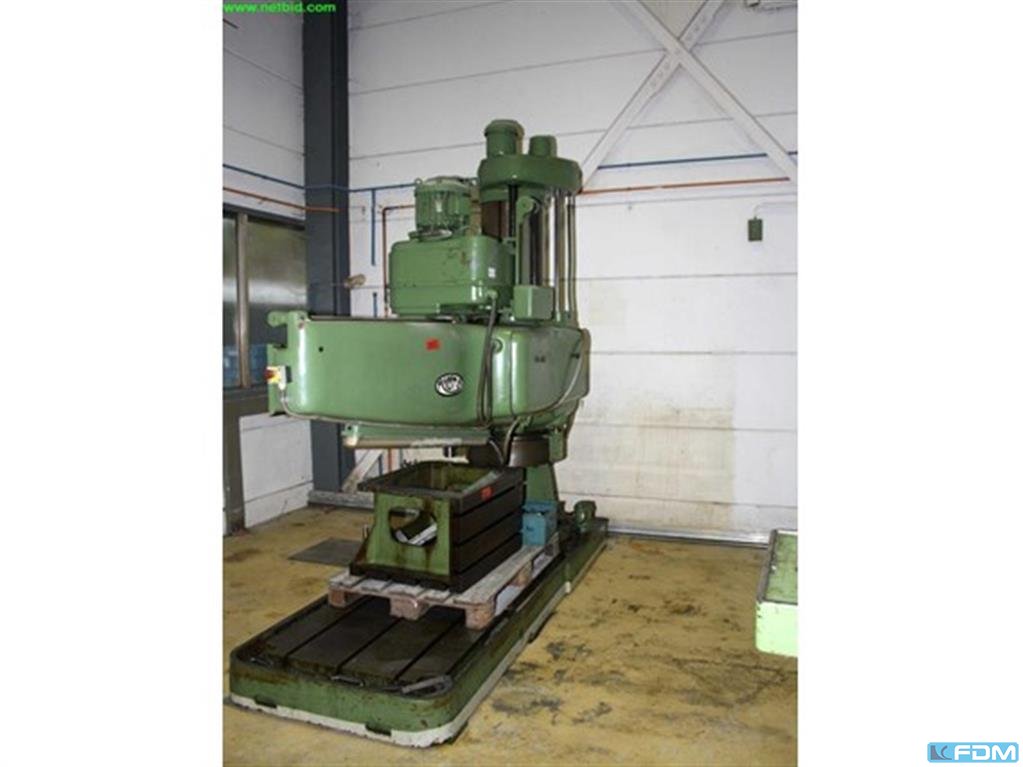

125452247 101

COLLET BU 1600 for sale
Drilling And Boring Machines


BOILER RADIAL drilling machine COLLET BU 1600 - 02-06-011 delivery time: immediate number: 02-06-011 manufacturer: Collet type: BU 1600 MACHINE data built: approx 1980 L x W x H: CA. 3500 x 1200 x 3000 mm weight: app ...
used machine

BOILER RADIAL drilling machine COLLET BU 1600 - 02-06-011 delivery time: immediate number: 02-06-011 manufacturer: Collet type: BU 1600

MACHINE data built: approx 1980 L x W x H: CA. 3500 x 1200 x 3000 mm weight: approx. 5000 kg

Very good condition specifications boiler - RADIAL - drill diameter drilling in steel: approx. Ã? 52 mm max drilling diameter in cast: approx. Ã? 60 mm tool holder: MK 5 speed range: approx. 20-1000 rpm projection: approx. 1600 mm column diameter: approx. Ã? 300 mm Quill stroke: approx. 300 mm Tischaufspannï¬?äche: approx. 800 x 600 mm Z - adjustment (motorized): approx. 1400 mm slide adjustment (motorized): approx. 1000 mm distance spindle - table: approx. 400-1800 mm of automatic drill bit feed: approx. 0.06 - 0.5 mm / Rev swivel & Turning areas: Jib turning range: 360 degrees boom Swivel range: +/-30 degrees head rotation range: 360-degree head Swivel range: +/-90 degrees accessories â?¢ 4 support elements (roll to roll) â?¢ crane suspension system â?¢ central lubrication â?¢ links & Rechtsla UF accessories on request price and other specifications on request
1980
Price
    request
125460774 210

WEINIG Unicontrol 6 CNC Spindeln for sale
Window production centre


Tenoning spindle: 1 St.Number of milling agregates: 5 St.Spindle diameter: 50 mmweight: 4300 kgWeinig Unicontrol 6 with CNC-spindle with full options/features!Cut-off saw-----------------motor: 3 KWspindle diameter 40 mm ...


Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
weight: 4300 kg
Weinig Unicontrol 6 with CNC-spindle with full options/features!

Cut-off saw
-----------------
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 2.800 Upm
tool diameter max.: 400 mm
horizontal adjsutment variable by control

length stop CNC controlled 3500 mm
------------------------------------------------------------

Tenoning spindle
---------------------------------
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 3.500 Upm
tool diameter max.: 320 mm
Usable length of spindle 320 mm
Adjjustment by CNC-axis axial variable max. 240 mm for IV 68-92
adjustment speed approx. 50 mm/sek.
Number of tool postion variable because of CNC axis

1. profiling spindle (turning direction in both directions)
--------------------
Clockwise running for rip-off free stormproofing
Switsch for turning in normal direction for normal milling
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 6.000 Upm
tool diameter max.: 232 mm
tool zero cycle 112 to 140 mm
Usable length of spindle 120 mm
Number of tool positions

2. Profilspindel
--------------------
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 6.000 Upm
Max. tool diameter with zero cycle 112 mm: 210 mm
Max. tool diameter with zero cycle 140 mm: 232 mm
usable spindle length: 320 mm
Adjjustment by CNC-axis axial variable max. 240 mm for IV 68-92
adjustment speed approx. 50 mm/sek.
Number of tool postion variable because of CNC axis

3. spindle: grooving aggregate from top, horizonal and vertical clocked
------------------------------------------------------------------
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 5850 Upm
adjustment way axial: 30 mm
adjustment way radial: 125 mm

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

4. profiling spindle
--------------------
profiling spindle vertical right
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 5850 Upm
tool diameter : 210 mm
usable length 160 mm, 3 tools
adjustment way radial: 100 mm
adjustment way axial: 115 mm

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

5. spindle: groowing aggregate from bottom side
--------------------

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

More features:

- equipment for stormproofing of presses sashes
- Automatic turnng of the work pieces with lammella conveyour
- PC-control / NEXUS:
- laser lighter for cut-off saw
- studio window equipment (not straight windows)
- double piece package
- bars support in profiling unit
- carriage for profiling small sashes smaller 500 mm

Option:
LEITZ IV 78/90 Holz und Holz-Alu

(techncial details according to manufacturer - without guarantee!)



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
125452240 101

COLLET BU 1600 for sale
Drilling And Boring Machines


BOILER RADIAL drilling machine COLLET BU 1600 - 02-06-006-shipping time: immediately number: 02-06-006 manufacturer: Collet type: BU 1600 MACHINE data year: ca. 1980 L x W x H: ca. 3500 x 1200 x 3000 mm weight: approx ...
used machine

BOILER RADIAL drilling machine COLLET BU 1600 - 02-06-006-shipping time: immediately number: 02-06-006 manufacturer: Collet type: BU 1600

MACHINE data year: ca. 1980 L x W x H: ca. 3500 x 1200 x 3000 mm weight: approx. 5000 kg

Very good general condition specifications boiler - RADIAL - drill diameter drilling in steel: approx. Ã? 52 mm max drill diameter in cast: approx. Ã? 60 mm tool holder: MK 5 speed range: approx. 14-710 RPM projection: approx. 1600 mm column diameter : approx. Ã? 300 mm Quill stroke: approx. 300 mm Tischaufspannï¬?äche: approx. 800 x 600 mm Z - adjustment (motorized): approx. 1400 mm slide adjustment (motorized): approx. 1000 mm distance spindle - table: approx. 400-1800 mm of automatic drill bit feed: approx. 0.06 - 0.5 mm / Rev Sweden NK & turning areas: Jib turning range: 360 degrees boom Swivel range: +/-30 degrees head rotation range: 360-degree head Swivel range: +/-90 degrees accessories â?¢ 4 support elements (roll to roll) â?¢ crane suspension system â?¢ central lubrication â?¢ winding - V orrichtung for cable accessories on request price and other specifications on request
1980
Price
    request
125460776 210

WEINIG Unicontrol 12 CNC - Video - for sale
Window production centre


Tenoning spindle: 2 St.Number of milling agregates: 10 St.Spindle diameter: 50 mm! MACHINE CAN BE INSPECTED DURING PRODUCTION Machine for sale in customer orders !# 6192 Weinig Unicontrol 12 CNC, with 2 tenoning spindle ...


Tenoning spindle: 2 St.
Number of milling agregates: 10 St.
Spindle diameter: 50 mm
! MACHINE CAN BE INSPECTED DURING PRODUCTION !

! Machine for sale in customer orders !

# 6192 Weinig Unicontrol 12 CNC, with 2 tenoning spindles and Vario table
..

Specifications Summary
(Possibly more included equpment please inquire)
..


Cut-off saw
..
cut-off saw electronically, horizontally adjustable: NC axis
Number of tools: 1 pcs.
Spindle speed: 3000-6000 r / min
Spindle diameter: 40 mm
Tool clamping length: 13 mm
Tool diameter max .: 400 mm
Motor power: 3 kW
Alignment laser for detecting the cut
Displacement axial: NC-axis integrated into control
Displacement axial: 150 mm

Aggregate for edge rounding of the bottom
..
Axial adjustment along with Ablängsäge
Spindle speed: 9000 U / min
Spindle diameter: 20 mm
Tool clamping length: 25 mm
Tool diameter max .: 130 mm
Motor power: 3 kW

Length stop CNC controlled
..
Length 3500 mm
Incl. Positioned cut-off saw integrated into control

1st tenoning spindle
..
Number of tools: variable, CNC-axis
Spindle length: 640 mm
Spindle stroke vertical: variable, CNC-axis
Spindle speed: 2800 U / min
Spindle diameter: 50 mm
Tool diameter max .: 380 mm
Engine power: 15 kW
With hydraulic tensioned outboard bearing
Complete counterprofile: Complete spindle length is countered


2. tenoning spindle
..
Number of tools: variable, CNC-axis
Spindle length: 640 mm
Spindle stroke vertical: variable, CNC-axis
Spindle speed: 2800 U / min
Spindle diameter: 50 mm
Tool diameter max .: 380 mm
Engine power: 15 kW
With hydraulic tensioned outboard bearing
Complete counterprofile: Complete spindle length is countered


Vario table with horizontal NC-axis


1. profiling spindle
..
Position: Right
Number of tools: variable, CNC-axis
Spindle length: 400 mm with counter bearing
Spindle stroke vertical: variable, CNC-axis
Spindle horizontal: variable, CNC-axis
Spindle speed: 7000 U / min
Spindle diameter: 50 mm
Tooling circle max .: 232 mm
Engine power: 11 kW
Radial adjustment: CNC axis
Axial adjustment: CNC axis

2. profiling spindle
..
Position: Right
Number of tools: variable, CNC-axis
Spindle length: 400 mm with counter bearing
Spindle stroke vertical: variable, CNC-axis
Spindle horizontal: variable, CNC-axis
Spindle speed: 7000 U / min
Spindle diameter: 50 mm
Tooling circle max .: 232 mm
Engine power: 11 kW
Radial adjustment: CNC axis
Axial adjustment: CNC axis

Grooving aggregate from above - before the final profile spindle
..
Position: horizontal top
Spindle speed: 9000 U / min
Spindle diameter: 40 mm
Spindle length: 40 mm
Engine power: 3.7 kW
Displacement axial: 30mm
Displacement radial: 125 mm
Radial clock to 8 positions by pneumatic gun
Axial adjustment with NC-axis


3. profiling spindle
..
Position: Right
Number of tools: variable, CNC-axis
Spindle length: 400 mm with counter bearing
Spindle stroke vertical: variable, CNC-axis
Spindle horizontal: variable, CNC-axis
Spindle speed: 6000 U / min
Spindle diameter: 50 mm
Tooling circle max .: 232 mm
Engine power: 11 kW
Radial adjustment: CNC axis
Axial adjustment: CNC axis


Profiling spindle - fitting spindle - at the machine end
..
Position: vertical right up
Spindle length: 160 mm
Spindle speed: 5850 U / min
Spindle diameter: 40 mm
Tooling circle max .: 210 mm
Engine power: 3.7 kW
Displacement axial: 115 mm
Displacement radial: 100 mm
Radial adjustment: CNC axis
Axial adjustment: CNC axis

grooving aggregate from top - in addition stand
..
Position: vertical right
Spindle length: 40 mm
Spindle speed: 5850 U / min
Spindle diameter: 40 mm
Tooling circle max .: 180 mm
Motor power: 3 kW
Displacement axial: 100 mm
Displacement radial: 80 mm
Radial clocked to 8 positions by pneumatic gun
Axial clocked to 8 positions by pneumatic gun

Grooving aggregate from bottom side - in addition stand
..
Position: horizontal bottom
Spindle length: 125 mm
Spindle speed: 5850 U / min
Spindle diameter: 40 mm
Tooling circle max .: 200 mm
Motor power: 3 kW
Displacement axial: 100 mm
Displacement radial: 100 mm
Radial adjustment infinitely variable NC axis
Axial clocked to 8 positions by pneumatic gun


Other features
..

Online-capable
equipment for stormproofing of already pressed sashes.
That means on the machine you can do the outside profiles on single pieces or
in pressed condition
Double piece package
Return conveyor for 1-man operation: turning system with collet
Studio window equipment
Electronic angle display for angular windows
Control: PC-Nexus
NC-axis for feed height adjustment
2 axially clocked feed rollers opposite profile spindle for manufacturing
narrow and short parts
Rung leadership and shoot Supports bar
pressure lineal from side is divided in sections
Automatic central lubrication
Vario table with horizontal NC-axis


Option:
used Oertli tools in different systems for single part production (that means
customer did the outide profile of the sahes on the single piece)


techn. details according to manufacturer - without guarantee!



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
125437000 101

Z 3050 X 16 for sale
Radial Drilling Machines


Radial drilling machine Z 3050 X 16 was built in 1989. It is a universal general purpose machine tool. Suitable for drilling, countersinking, reaming, chamfering and threading of medium and large parts. With proper equip ...
used machine

Radial drilling machine Z 3050 X 16 was built in 1989. It is a universal general purpose machine tool. Suitable for drilling, countersinking, reaming, chamfering and threading of medium and large parts. With proper equipment it is also possible to boring.

Technical data for the Z3050 X 16 drill:
- maximum drilling diameter: 50 mm
- maximum working range: 1600 mm
- maximum distance between spindle axis and column: 1600 mm
- the minimum distance between the spindle axis and the column: 350 mm
- horizontal travel of the spindle head on the arm: 1250 mm
- maximum distance from the spindle face to the working surface of the base plate: 1220 mm (1250 mm)
- minimum distance from the spindle face to the working surface of the base plate: 320 mm (350 mm)
- vertical arm displacement on the column: 580 mm
- arm lifting speed: 0.02 m / sec.
- arm rotation angle: 360 degrees
- cone spindle: Morsea Nr. 5
- spindle speed range: 25-2000 rpm.
- spindle speed: 16 items
- spindle feed range: 0.04-3.2 mm / rev.
- number of spindle feeds: 16 items
- spindle extension: 315 mm
- feed depth for rotation of the dial with a scale: 122.5 mm
- maximum allowable torque on the spindle: 490 Nm
- maximum permissible spindle feed pressure: 15680 N
- main engine power: 4 kW
- lifting power of the arm: 1.5 kW
- hydraulic lock motor power: 0.75 kW
- Coolant pump motor power: 0.09 kW
- Overall dimensions (L x W x H): 2500 x 1060 x 2655 mm
- machine weight: approx. 3500 kg (3900 kg with auxiliary column)
1989
7,125 €
  PL   request
125460503 109

PFAUTER P 630 for sale
Gear Hobbing Machine


Weight approx.: 15000 kgcontrol: SIEMENS S7 table diameter: 550 mmDimensions (l x w x h) approx.: 7000 x 2400 x 3000 mmhob turning speeds: 45 - 280 RpmDescription: PFAUTER P 630 Gear Hobbing Machine - diameter of table b ...
used machine

Weight approx.: 15000 kg
control: SIEMENS S7
table diameter: 550 mm
Dimensions (l x w x h) approx.: 7000 x 2400 x 3000 mm
hob turning speeds: 45 - 280 Rpm
Description: PFAUTER P 630 Gear Hobbing Machine
- diameter of table bore: 125 mm
- diameter of workpiece arbor: 36 mm
- biggest hob (diameter/length): 192 / 230 mm
- axial distance between cutter and workpiece (min/max): 50 / 425 mm
- taper: morse 5
- biggest cutter travel: 200 mm

feed:
- axial feed: 45 - 280 rpm
- radial feed: 0,10 - 1,60 mm/part rotation
- tangential feed: 0,14 - 2,24 mm/part rotation

ATTENTION: tools are not in scope of delivery!
- control has been changed in 2012 to SIEMENS S7!
- for further information see pcitures as well as PDF (German only!)
- machine: 4000 x 2200 x 3000 mm
- weight: aprox. 12000 kg

- control cabinet: 1200 x 1000 x 2400 mm
- weight: 800 kg

- hydraulic: 1000 x 1000 x 2000 mm
- weight: 700 kg
- 4 pallets 1800 x 1400 x 1000 mm
- weight pro pallet approx. 400 kg
1978
used machinery auction RESALE 23,000 €
  DE   request
125436696 102

TORNIO HAWK TC 150 M Cincinnati Machine for sale


LATHE HAWK TC 150 M Cincinnati Machine BRAND MODEL TC 150 150 200 YEAR Lathe Hawk HAWK-M complete with: Basic machine with CNC Fanuc 21i-TA Government Supply voltage 400V 50 Hz drip shavings, 12 positions VDI 30 turre ...


LATHE HAWK TC 150 M
Cincinnati Machine BRAND MODEL TC 150 150 200 YEAR Lathe Hawk HAWK-M complete with:
Basic machine with CNC Fanuc 21i-TA Government
Supply voltage 400V 50 Hz drip shavings, 12 positions VDI 30 turret to
5-7.5 KW-5500g "ASA spindle/1 '
Autocentrale to 3 jaw Chuck ø 52 mm. radial tool Kit Tools including: form B1, reduction sleeve.
For more information contact us at + 39 030 725026 from Monday to Friday
from 8:30 to 13:00 and from 14:00 to 19:00

Price
  IT   request
125447277 101

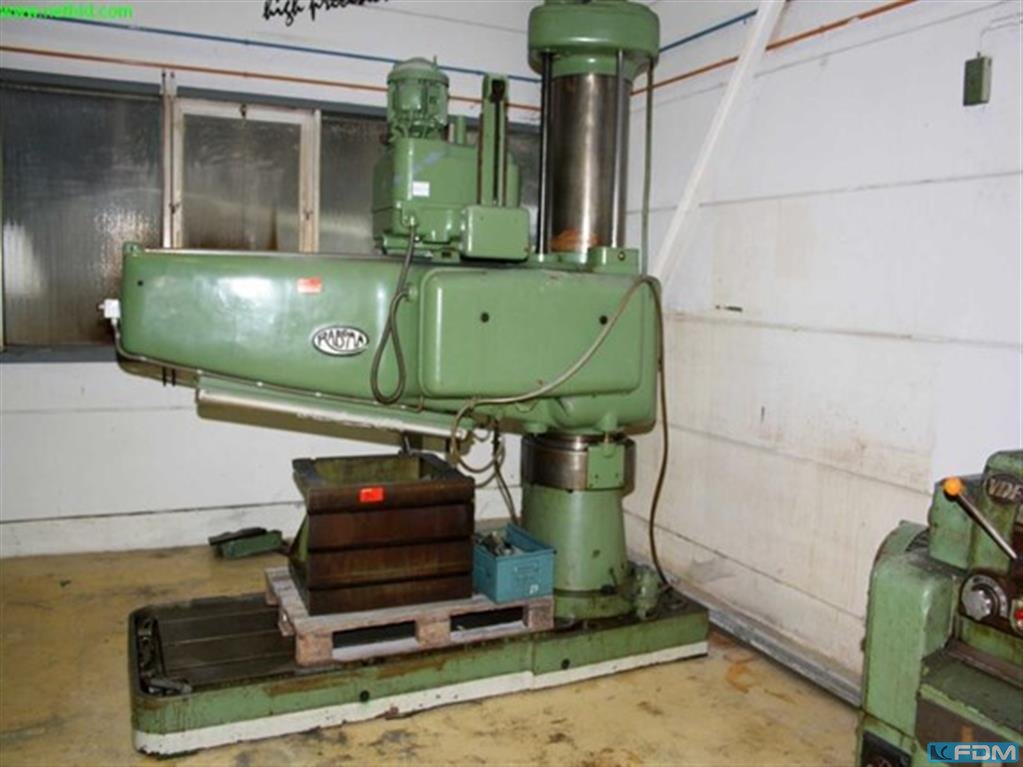

RABOMA 12RH1600 for sale
Radial Drilling Machine


bore capacity in steel (diameter): 80 mmarm length: 1600 mmworkpiece height max.: 1450 mmbore capacity in cast iron: 100 mmturning speeds: 11,2-1400 U/minspindle diameter: 115 mmspindle taper MT: 6 spindle stroke - max.: ...
used machine

bore capacity in steel (diameter): 80 mm
arm length: 1600 mm
workpiece height max.: 1450 mm
bore capacity in cast iron: 100 mm
turning speeds: 11,2-1400 U/min
spindle diameter: 115 mm
spindle taper MT: 6
spindle stroke - max.: 600 mm
surface area: 1950x1130 mm
Feed: 0,05-2,5 mm/U
total power requirement: kW
weight of the machine ca.: t
dimensions of the machine ca.: m



This ad was created with MODUL MWS - the software solution of LogoTech.
1970
Price
    request
125421723 101

WRS 25/08 for sale
Radial Drilling Machines


The WRS 25 radial drill was manufactured in 1992. Characteristic data for the WRS 25/08 drill: - size of the working table surface: 660 x 360 mm - size of the working surface of the base: 860 x 560 mm - dimensions  ...
used machine

The WRS 25 radial drill was manufactured in 1992.

Characteristic data for the WRS 25/08 drill:
- size of the working table surface: 660 x 360 mm
- size of the working surface of the base: 860 x 560 mm
- dimensions of the base: 1400 x 700 mm
- drilling diameter in steel: 25 mm
- drilling diameter in cast iron: 30 mm
- spindle speed: 65-2880 rpm
- the largest spindle travel: 160 mm
- number of mechanical spindle feeds: 6
- spindle distance from the table: 10-500 mm
- spindle distance from the base: 780-940 mm
- radial drilling range: 315-815 mm
- engine power: 3 KW
- Morse cone: MK3
- dimensions (length x width x height): 1460 x 700 x 2300 mm
- weight: 1100 kg
1992
3,248 €
  PL   request
125446744 102

DOOSAN PUMA 2600 LY for sale
CNC Turning- and Milling Center


turning diameter:376 mmturning length:1.280 mmcontrol: turning diameter over bed:780 mmbar material dia.:81 mmchucking diameter:254 mmspindle drive:22 kWturning speeds:4.000 1/miny-axis:+-50 mmturret (x-stations):12 Pos. ...
used machine

turning diameter:376 mm
turning length:1.280 mm
control:
turning diameter over bed:780 mm
bar material dia.:81 mm
chucking diameter:254 mm
spindle drive:22 kW
turning speeds:4.000 1/min
y-axis:+-50 mm
turret (x-stations):12 Pos.
total power requirement:42 kW
weight of the machine ca.:7,3 t
dimensions of the machine ca.: m

CNC lathe, live tooling, C-axis, Y-axis, chipconveyor, tooleye, incl. 4 pcs. driven tools ( 2 radial + 2 axial ) approx. 7.000 working hours
2012
Price
    request
125421642 103

POREBA ZFA 75 for sale
Hob milling machines


POREBA enveloping machine ZFA 75 was produced in 1967 by Fabryka Urz?dze? Mechanicznych "POREBA". The machine is designed for the production of gears with straight, oblique teeth and worm gears. During operation without  ...
used machine

POREBA enveloping machine ZFA 75 was produced in 1967 by Fabryka Urz?dze? Mechanicznych "POREBA". The machine is designed for the production of gears with straight, oblique teeth and worm gears. During operation without a steady handle, it allows for machining wheels with a maximum diameter of 800 mm, and when working with a steady support, the maximum diameter of the wheel is 450 mm.

Technical data :
The largest cut-out module:
- normally: 6 mm
- with reduced accuracy: 8 mm
The largest diameter of the gear being machined:
- with the support fixed: 450 mm
- without a steady: 800 mm
The largest diameter of a toothed wheel work with helical teeth:
- at a helix angle of 30 °: 500 mm
- at a helix angle of 60 °: 190 mm
The largest milling length for straight teeth: 275 mm
Range of distances between the workpiece axes and the milling cutter:
- the smallest 30 mm
- the largest 500 mm
Vertical milling cutter: 310 mm
The smallest distance from the table surface to the milling cutter axis: 200 mm
The largest diameter of the milling cutter: 120 mm
Diameter of mandrels for setting the cutters: 22, 27, 32 mm
Diameter of the hole on the table: 80 mm
The number of spindles of the milling spindle: 7
Range of rotation of the milling spindle: 47.5-192
Vertical cutter range for 1 turn of the workpiece: 0.5-3 mm
The range of radial feeds of the milling cutter for 1 turn of the workpiece: 0.1-1 mm
The range of axial feeds of the milling cutter for 1 turn of the workpiece: 0.25-1 mm
Main engine power: 2.8 kW
Machine dimensions: 2395 x 1210 x 1975 mm
Milling weight: 3800 kg

Equipment:
- a set of shift wheels for the guitar
- change wheels for the second guitar: 7 pcs.
- spindles: 5 items
- conical wheels: 2 pcs
- claw coupling
- tests: 5 items
- hook key
- DTR - technical and operational documentation

It is possible to buy additional equipment of the machine, i.e.:
- modular cutters with various modules, from 1-8: 100 pieces (additional fee, price: PLN 9990 net, visible in the last two photos)
1967
5,650 €
  PL   request
125442830 101

KOLB NKR 42 A for sale
radial drilling machine



Price
  DE   request
125128162 101

ELHA R 60 for sale
Radial Drilling Machine


Tool mount: MK5, stroke: 2000mm, rotational speed: 29-1450/min, including clamping cube.
used machine

Tool mount: MK5, stroke: 2000mm, rotational speed: 29-1450/min, including clamping cube.
1992
Price
  DE   request
125442613 110

REFORM SB 50 u. RB50 for sale
manual


manual for drilling-machine Reform SB50 from 1995and for radial-drill Reform RB50/12 and RB50/16 from 1996
used machine

manual for drilling-machine Reform SB50 from 1995
and for radial-drill Reform RB50/12 and RB50/16 from 1996
1995
Price
  DE   request
125128123 102

TORNOS DECO 26a for sale
Sliding headstock lathe


2000 Z1 C1 + C axis Step bar dia 20 bar without preparation maximum length processable by headstock 240 mm spindle speed 8000 spindle motor power kw 5.5 (7.5) Z1-X1-Y1-Y2-X2-X3-X4-Y4-Z3-Z4-C1-C2 10 axes 2 axes c, ...
used machine

2000
Z1 C1 + C axis
Step bar dia 20 bar without preparation
maximum length processable by headstock 240 mm
spindle speed 8000
spindle motor power kw 5.5 (7.5)
Z1-X1-Y1-Y2-X2-X3-X4-Y4-Z3-Z4-C1-C2
10 axes 2 axes c, 4 simultaneous contact tool
X1-Y1) (X2-Y2)
PORT COMPASS
number max driven tools 5x2
maximum number of tools to drill and cut 4
number motorized tours 8000
motorized power kw 1.5 (2.2)
(X3-Y3)
motorized number n 4
motorized 6000 rpm
motorized power kw 1.5 (2.2)
APPARATUS FRONT
(X4-Y4-Z4) (C + 4
DIAMETER 26 mm MAXIMUM WORKING
maximum machining headstock 240
maximum revolutions CONRO spindle 6000
maximum power 1.1 kw (3.7)
Control PNC - DECO
Motorized four radial positions on the bar pettine2
four front motorized positions to the bar
four front motorized positions against the mandrel
motorized three radial positions at the counterspindle
Charger SBF 532 bar
2000
Price
  IT   request
125373440 101

RF 30B for sale
RF 30 Radial drilling machine


Radial drilling machine Brand: RF Model: 30B Year: 2002 Voltage: 380 V three-phase Total electric power: kW Drilling capacity: 32 mm Maximum distance: 480 mm Overall dimensions: 112 cm x 100 cm x 177 cm Weig ...
used machine



Radial drilling machine

Brand: RF

Model: 30B

Year: 2002

Voltage: 380 V three-phase

Total electric power: kW

Drilling capacity: 32 mm

Maximum distance: 480 mm

Overall dimensions: 112 cm x 100 cm x 177 cm



Weight: 300 kg

Condition: Not tested


2002
used machinery auction RESALE 60 €
  BE   request
125085658 101

RÖPERWERK , DÜLKEN WEBO for sale
Radial Drilling Machines


Radial Ständerbohrwerk Manufacturer Röperwerk, Dülken Weight approx. 4-5t (estimated) the machine is still connected and capable of demonstration. Contact person Mr. Mueller see also our over 200 more d ...
used machine

Radial Ständerbohrwerk

Manufacturer Röperwerk, Dülken

Weight approx. 4-5t (estimated)

the machine is still connected and capable of demonstration.


Contact person Mr. Mueller see also our over 200 more deals at.

(Changes and errors in the technical data, information
and prices and subject to prior sale!)

Price
    request
125374359 201

MAGGI Junior 640 for sale
Radial saw Maggi Junior 640


Radial saw Brand: Maggi Model: Junior 640 Year 2012 Voltage: 380 V three-phase Power: 3 kW Diameter of the blade: 40 cm Overall dimensions: 160 cm x 150 cm x 160 cm State: tested Notes: the removal and loadi ...
used machine



Radial saw

Brand: Maggi

Model: Junior 640

Year 2012

Voltage: 380 V three-phase

Power: 3 kW

Diameter of the blade: 40 cm

Overall dimensions: 160 cm x 150 cm x 160 cm



State: tested

Notes: the removal and loading are the responsibility of the purchaser


2012
used machinery auction RESALE 300 €
  BE   request
124970844 102

OKUMA Genos for sale
CNC Turning Centers


CNC turning and milling center Machine type: Okuma Genos L 300 MYW 460 control: Okuma OSP P 300 LR with IGF one touch advanced Construction year: 2014 Spindle running hours: [h] approx. 152 TECHNICAL DATA:  ...


CNC turning and milling center

Machine type: Okuma Genos L 300 MYW 460 control: Okuma OSP P 300 LR with IGF one touch advanced
Construction year: 2014
Spindle running hours: [h] approx. 152


TECHNICAL DATA:

Main spindle maximum turning length: [mm] 450
Turning diameter: [mm]: 340
Swing diameter over bed: [mm]: 520
Maximum speed: [1/min]: 3800
Maximum torque [NM]: 451
Power: [kW]: 15 / 11
Bar passage: [mm]: 69 c axis: 0.001 degrees counter spindle

Maximum speed: [1/min]: 50-6000
Power: [kW]: 7,5 / 5,5
Bar passage: [mm]: 44 c axis 0.001 degree turret tool positions: 12
Number of driven positions: 12
maximum speed m tools [1/min]: 6000 max power m tools [kW] 7.0 procedures:

X-axis: [mm]: 170
W-axis: [mm]: 520
Y-axis: [mm]: 100 mm (+ 50 / - 50)

Space requirement (LxWxH): [m] the weight of machine: [kg]: 4020

Additional features:
-Conveyors - package incl. driven tool holder tool holder axial, radial - bar loading magazine LNS quick load servo 80 incl. 5 PCs.
Spindle reduction tubes - Collet Chuck Hainbuch Deadlength type FNH KA 65
-hydraulic Chuck Kitagawa B 210
-hydraulic Chuck Kitagawa B 206
-Workpiece ejector with spring, stroke 32 mm, to three-jaw Chuck N206
-Part of strainer with drip box - emulsion mist filter COBARON type COB-H13
-Cutting pressure and tool breakage detection (load-monitor)
-Auto power off function specially designed machine for unmanned operation, after execution of the processing automatically disconnects from the power supply

10 bar coolant pump collection tools supplied with 4 PCs. Dual external DrehstahIhalter type I, for radial built
Tools for Schaftquerschnitte 25 x 25 mm
(Machine with counter spindle)

6 PCs. Inside chisel holder for the inclusion of bushings or direct recording of drill rods type H40 (recording Ã? 40 mm) with internal or external coolant, bushings type C (for machines with spindle)

2pcs. Drilling and milling head, radial PRECI-FLEX, with
Arbor Collet ER32, 2,0-20,0 mm clamping range, coolant Ext.

1 Stck Bohr and milling head, radial PRECI-FLEX, with
Clamping Collet ER32, clamping range 2.0 20.0 mm,
Coolant external and Central

2 PCs. Drilling and milling head, axial PRECI-FLEX Collet Arbor
ER32, 2,0-20,0 mm clamping range, coolant Ext.

2 pieces drilling and milling head, axial PRECI-FLEX Collet Arbor
ER32, clamping range 2.0 20.0 mm, coolant external and Central

8 PCs. cutting holder for ISCAR blades, upper turret
(Blade width 26 mm)

Various adapters, size 20/25/32 PRECI-FLEX, Weldon, milling plug-in mandrel, clamping tongs recording long, etc.

We reserve us sale and error

154,999 €
    request
125366658 101

RABOMA 12Uh1250 for sale
Radial Drilling Machine


bore capacity in steel (diameter): 55 mmarm length: ca. 1250 mmworkpiece height max.: 1050 mmtool adaptor: MK 5 table-size: ca. 1200 x 980 mmfeeds - fine adjustment: 0,063 - 3,15 mm/minrevolutions per minute: 12,5 - 1600 ...
used machine

bore capacity in steel (diameter): 55 mm
arm length: ca. 1250 mm
workpiece height max.: 1050 mm
tool adaptor: MK 5
table-size: ca. 1200 x 980 mm
feeds - fine adjustment: 0,063 - 3,15 mm/min
revolutions per minute: 12,5 - 1600 U/min
distance work spindle /surface of the table: ca. 350 - 1400 mm
total power requirement: 6,00 kW
weight of the machine ca.: 2,5 t
dimensions of the machine ca.: 2 x 1 x 3,1 m
radial drill





This ad was created with MODUL MWS - the software solution of LogoTech.
1952
Price
    request
 page 1  >
You didn't find your wanted machine?   to all dealers(no registration necessary)
More models (2 or more machines):
(17)
sell machinery
Sell your machinery
to the price starting with only € 0.09 monthly per machine!
machinery sold

Sold machinery

Heavy Lathes POREBA TCA 160


Heavy lathe POREBA TCA 160 was produced in 1959 by the famous Polish FUM POREBA. Technical data of lathe POREBA TCA 160: Scope of work:-height of tusks: 800 mm -maximum turning diameter over bed: 1600 mm -maximum turning diameter over support: 1300 mm -eyepiece: fi 800 mm -maximum turning diameter in the pó?okularze: 250 mm -maximum turning length: 6000 mm -maximum weight of workpiece between centers in: 16000 kG -permissible cross section of the chip (turning steel Rr = 60 kG/mm2) on a single support: 30 mm2 -permissible cross section of the chip (turning steel Rr = 60 kG/mm2) on a single support: 50 mm2 -permissible force on the knife: 6000 kG -the maximum torque at the spindle: 630000 kg.cm -the maximum cross section 70 x 70 mm knife: Cap Headstock: -number of spindle speeds: 24 n -the exponent of the speed: 1.25 -spindle speed range: 1,12-224 RPM., 1,12-224 r/min, 0.85-170 RPM. -front spindle neck diameter: 260 mm -slot in the spindle of the cone metric: # 120 -reducing Bush metric cone Tip: # 120/80 -spindle bore diameter: 105 mm -diameter of the blade Cap: 1600 mm Suport, feeds the normal: -20 longitudinal feed range: 0,19-5,0 mm/Rev. -20 transverse feed range: 0,095-2.5 mm/Rev. -20 feed on the upper tray of the range: 0,095-2.5 mm/Rev. Suport, feeds 8-20 longitudinal feed range: 1.5-40 mm/Rev. -20 transverse feed range: 0.75-20.0 mm/Rev. -20 feed on the upper tray of the range: 0.75-20.0 mm/Rev. Suport, feeds minute:-20 longitudinal feed range: 12-320 mm/Rev. -20 transverse feed range: 6-160 mm/Rev. -20 feed on the upper tray with a range: 6-160 mm/Rev. Suport, feeds to thread (the main screws. train.):-35 thread jumping metrycz. about t. : 1-50 mm -jumping 35 inch threads range: 24-1/2 scroll/inch Suport, feeds for threading on the top tray:-25 thread jumping metrycz. about t. 0.25-7 mm -jumping 35 inch threads/inch scroll: the scroll 28-3/inch Feed rates associated to the rolling cones of gradients creating: 1:1.5 (d) 1:1000 -rapid traverse: 4000 mm/min. Konik: -barrel diameter: 200 mm -stroke sleeve: 600 mm -slot in the spindle sto?. meter.: # 80 -radial offset: +-30 mm Glasses: -diameter adjustment range normal: 200-600, 200-500 equipment, okular, 300-800 mm -adjustment range of diameters okular special equipment: 30-300, 50-400, 200-500 mm Pó?okular: -adjustment range pó?okulara diameter: 50-250 mm Drive:-main motor power: 40 kW -the engine speed: 750 RPM. -rapid feed motor power: 2.2 kW -the engine speed rapid feed rate: 3000 rpm. -oil pump motor power: 0.37 kW -engine oil pump: 1500 rpm. -performance oil pump: 25 l/min. Sizes and weights: -distance between centres: 3000-15000 mm -weight for length 6000 mm and 1 support: ok. 30000 kg -extra weight Prov difference length 1000 mm: 1200 kg -the weight of the additional bracket: 1500 kg

TORNIO HAWK TC 150 M Cincinnati Machine


LATHE HAWK TC 150 M Cincinnati Machine BRAND MODEL TC 150 150 200 YEAR Lathe Hawk HAWK-M complete with: Basic machine with CNC Fanuc 21i-TA Government Supply voltage 400V 50 Hz drip shavings, 12 positions VDI 30 turret to 5-7.5 KW-5500g "ASA spindle/1 ' Autocentrale to 3 jaw Chuck ø 52 mm. radial tool Kit Tools including: form B1, reduction sleeve. For more information contact us at + 39 030 725026 machinery and vision from Monday to Friday from 8:30 to 13:00 and from 14:00 to 19:00

Radial Drilling Machines WRS 25/08


Radial drilling machine WRS 25 produced in 1992. WRS drills specific data 25/08: -the size of the work surface: 660 x 360 mm -the size of the work surface: 860 x 560 mm -dimensions: 1400 x 700 mm -drilling capacity in steel: 25 mm -drilling in cast iron: 30 mm -spindle speed: 65-2880 RPM -the largest travel: 160 mm -the number of feed motor spindle: 6 -distance between the spindle from the table: 10-500 mm -distance between the spindle from the Base: 780-940 mm -radial drilling range: 315-815 mm -motor power: 3 KW -Cone Morsea: MK3 -dimensions (l x w x h): 1460 x 700 x 2300 mm -weight: 1100 kg

Hob milling machines POREBA ZFA 75


POREBA enveloping machine ZFA 75 was produced in 1967 by Mechanical Factory "MUNICH". The machine is designed for the production of gears with straight, oblique teeth and worm gears. During operation without a steady handle, it allows for machining wheels with a maximum diameter of 800 mm, and when working with a steady support, the maximum diameter of the wheel is 450 mm. Technical date: The largest cut-out module: -normally: 6 mm -with reduced accuracy: 8 mm The largest diameter of the gear being machined: -with the support fixed: 450 mm -without a steady: 800 mm The largest diameter of a toothed wheel work with helical teeth: -at a helix angle of 30 °: 500 mm -at a helix angle of 60 °: 190 mm The largest milling length for straight teeth: 275 mm Range of distances between the workpiece the axes and the milling cutter: -the smallest 30 mm -the largest 500 mm Vertical milling cutter: 310 mm The smallest distance from the table surface to the milling cutter axis: 200 mm The largest diameter of the milling cutter: 120 mm Diameter of mandrels for setting the cutters: 22, 27, 32 mm Diameter of the hole on the table: 80 mm The number of spindles of the milling spindle: 7 Range of rotation of the milling spindle: 47.5-192 Vertical cutter range for 1 turn of the workpiece: 0.5-3 mm The range of radial feeds of the milling cutter for 1 turn of the workpiece: 0.1-1 mm The range of axial feeds of the milling cutter for 1 turn of the workpiece: 0.25-1 mm Main engine power: 2.8 kW Machine dimensions: 2395 x 1210 x 1975 mm Milling weight: 3800 kg Equipment: -a set of shift wheels for the guitar -change tires/wheels for the second guitar: 7 pcs. -spindles: 5 items -conical wheels: 2 pcs -claw coupling -tests: 5 items -hook key -DTR-technical and operational documentation It is possible to buy additional equipment of the machine, i.e.: -modular cutters with various modules, from 1-8:100 pieces (additional fee, price: $9990 net, visible in the last two photos)

Manzoni 1222


LATHE HAWK TC 150 M Cincinnati Machine BRAND MODEL HAWK-150 YEAR 2002 About 150 M Lathe Hawk full TC: Basic machine with Fanuc 21i-TA Supply voltage 400V 50 Hz drip shavings, 12 positions VDI 30 turret to 5-7.5 KW-5500g "ASA spindle/1 ' Autocentrale to 3 jaw Chuck ø 52 mm. radial tool Kit Tools including: form B1, reduction sleeve. See images for specific datasheet. For more information contact us at + 39 030 725026 machinery and vision from Monday to Friday from 8:30 to 13:00 and from 14:00 to 19:00

Press 1222


IDRA DIE CASTING ALUMINUM Hydro BRAND MODEL OL320/ST About horizontal cold Chamber aluminum die casting Press. Are included: Cabinet, fairings, paintwork plc and keyboard, linear charger and Lubricator Jrobi proportional pressure and flow; second and third injection manual phase; pneumatic doors; No radial 3 Datasheet: 650 mm mould height 200 mm mould height Platen stroke 570 mm Central ejection stroke 120 mm 870x870 plans size mm Distance within the columns 570x570 mm Motor power 22 Kw power max Power injection 345 3450 closing Power central extraction KN KN 180 KN total weight 13.5 Ton press Overall dimensions 1905x5940x2588 h mm For more information contact us at + 39 030 725026 machinery and vision from Monday to Friday from 8:30 to 13:00 and from 14:00 to 19:00

Radial Drilling Machine ELHA R 60


Tool mount: MK5, stroke: 2000mm, rotational speed: 29-1450/min, including clamping cube.

Radial Drilling Machines Rogi MRD3207P


Auction name: Metalworking machines and workshop inventory in Mierlo and Bergeijk Online auction Start of auction: 04 May 2018 17:00 GMT +0200 (Western Europe (DST) Closing time: 22 May 2018 16:15 GMT +0200 (Western Europe (DST) The price list ...

Radial Drilling Machines MAS VR4A


Auction name: Tools and machines in Hoensbroek (1/2) Online auction Start of auction: 13 April 2018 17:00 GMT +0200 (Western Europe (DST) Closing time: 16 May 2018 16:00 GMT +0200 (Western Europe (DST) The price listed is an opening bid To  ...

Drills SORALUCE TR0-1250


Radial drilling machine. Drlling capacity: 40-50mm. Arm of 1250mm. Taper Morse 5.

Drills IRSASA RSE-32


High speed radial drilling machine. 1 fixed table. 1 tilting table. 1 extra table. Drlling capacity: 32mm. Speeds: 12. (102-2000)

Roboma 12 UH 2000 Radial Drill


Model : 12 UH 2000 Manufacturer : Roboma Spindle taper : Morse 5 Arm length : 2000 mm

Radial Drilling Machines M+A RB 50X16


Auction name: Partner auction BVA Auctions & Dechow | Steel construction and industrial installations (53354) Online auction Start of auction: 06 April 2018 10:00 GMT +0200 (Western Europe (DST) Closing time: 24 April 2018 10:00 GMT +0200 (Wester ...

MACCHINARI PER ELETTRONIC COLLAUDO


ELECTRONIC MACHINERY AND TESTING We are looking for expressions of interest to be received by the next 09/04/2018 at 12:00 For more information contact us at 0307751645 -axial components Bender; -component radial Bender; -# 2 card IEMME loaders/Unloa ...

Radial drilling machine WMW HECKERT BE 40/2


Dilling capacity steel/ cast iron: 45/ 60mm, swing: 300-1250mm, height adjustment: 750mm, rotational speed: 20-1200/min, angle table dimensions: 750x750mm.

Radial Drilling Machines Rogi MRD3207P


Auction name: Metalworking machines and workshop inventory in Mierlo and Bergeijk Online auction Start of auction: 16 March 2018 17:00 GMT +0200 (Western Europe (DST) Closing time: 29 March 2018 18:00 GMT +0200 (Western Europe (DST) The price ...

Radial Drilling Machines INVEMA FR 40 / 1300


Maximum reach: 1300 mm. Maximum diameter: Ø 40 mm. Cone: 4 CM Locking: Automatic. Power: 4 Hp. Weight: 2650 Kg.

Radial Drilling Machine MAS KOVOSVIT VO 80


Drilling diameter: 80-300mm, spindel axis mantle distance: 550-2565mm, bore pitch circle: 1984-6014mm, spindle head diameter: 110 h6 mm, spindle cone: MORSE 6, spindle diameter: 65mm, spindle stroke: 475mm, rotational speed: 9-1800mm, max. drilling force: ...

Radial drilling machine POLAMCO H. CEGIELSKI GRV-553


Drilling capacity in steel 60 mm Spindle overhang 1600 mm Throat 1700 mm Working area at base 1600x820 mm. Spindle speed 14-1600 rpm. Spindle taper MT5. Quill stroke 350 mm. Quill feed 0,05-2,5 mm/r.

Gear Hobbing Machines Stanko 5342


MODEL 5342 YOM:1965 Max. Diameter of Wheel:300-2000mm(12"-79") Max. Module:20 Diam. of Working Table:1800mm(71") Max. loading on Table: 10 ton -with vertical cutting 560mm(22") -with radial cutting: 760mm(30") Max. Tooth  ...

FACING CENTERING MACHINE TOVAGLIERI


TYPE: Hydraulic Maximum length: 3500 mm. Maximum diameter: Ø 250-300 mm. NUMBER of HEADS: 4 Weight: 20,000 Kg Notes: Cutter Ø 250 to 315 mm. Accessories: ISO 50 drilling heads with withdrawal (radial feed)

Radial Drilling Machine WAGNER SCR 160


X-travel: 1600mm, z-travel: 600mm, rotational speed: 25-2000/min, feed rate: 0.04-3.2mm/U, drilling diameter: 45mm, length: 2400mm, width: 1000mm, height: 2700mm, weight: 3t.

Double Miter Saws Emmegi Radial Star 550 TU / 5


Auction name: Partner auction BVA Auctions & Dechow | Auction | Emmegi CNC special saws (53221) Online auction Start of auction: 14 February 2018 16:30 GMT +0200 (Western Europe (DST) Closing time: 09 March 2018 12:00 GMT +0200 (Western Europe (D ...

Radial Drilling Machines KOVOSVIT MAS VO 50


Auction name: Machine building and repair company Boele B.V. at Oud-Alblas Online auction Start of auction: 23 February 2018 17:00 GMT +0200 (Western Europe (DST) Closing time: 12 March 2018 16:00 GMT +0200 (Western Europe (DST) The price list ...

Aggregates SIEMENS, MOOG, HYDAC, PFA


(1) Two Aggregates SIEMENS: power: 22kW (2) Aggregate SIEMENS: power: 11kW (3) Motor Pumpaggregate MOOG: power: 15kW, with radial piston pump MOOG RKP (4) Two Lift Table Aggregates PFAFF (5) Aggregate HYDAC: year of construction: 2017.

Gear Hobbing Machine PFAUTER PA 320 NC


Milling head diameter: 163mm, milling width: 230mm, rotational speed: 120-140/min, axial feed rate: 1-1000mm/min, radial feed: 1-600mm/min, milling and clamping spindle distance: 40-265mm, adjustment: 170mm, milling sledge adjustment: 90° max., control: S ...

Profile Grinding Machine PETEWE PFS30 CNC


Grinding wheel diameter: 125-200mm, grinding stroke height: 30-120mm, working surface: 440x320mm, travel path: 150x100mm, grinding head slewable radial/ lateral: ±15°/ ±9°, table slewable vertical/ radial: 30°/ 45°, grinding stroke: 0-75mm, rotational spe ...

Trapano radiale Invema DC13 65x1600 CN Sinumerik 805


Radial drill Invema DC13 65x1600 CN Sinumerik 805 Technical data: Drilling distance max 1600 mm Solid drilling max 65 mm Full thread max 50 M Sliding sleeve 80 mm 260 mm spindle travel Morse taper of 5 Speed 25 – 2000 RPM Spindle motor power kW 5 ...

Radial Drilling Machine STANKO 2M55


Column diameter: 315mmm, drilling sledge travel: 1300mm, rotational speed: 20-2000/min, feed rate: 0.056-2.5mm/U, spindle: MK 5, connected load: 4kW, length: 2665mm, width: 1030mm, height: 3430mm, weight: 4.7t.

Radial Drilling Machines MAS VO50/1250


Maximum drilling capacity in steel 50 mm Maximum drilling diameter in steel cantilever 120 mm Maximum drilling diameter in steel with the leadership of 200mm Maximum distance spindle axis to the leadership mantle 1250 mm Minimum Distance spindle axis  ...

Air Filtration Plant REMBE EX-GO-VENT


filter surface: 6400cm², size: DIN 800x800, operating temperature: 59.85°C max., burstoverpressure at 22.85°C: 0,08-0.12at, torque: 20Nm, vacuum pressure: 0.05bar max., including Radial Fan REITZ RGE 031-056021-00: Inlet temperature: 20°C, inlet pressure: ...

Radial Drilling Machines Rogi MRD3207P


Auction name: Metalworking machines and workshop in Mierlo and Bergeijk Online auction Start of auction: 29 November 2017 17:00 GMT +0200 (Western Europe (DST) Closing time: 12 December 2017 18:01 GMT +0200 (Western Europe (DST) The price listed ...

Drills Kovosvit VO 63


Radial Drilling , drilling dia. 63 mm

Radial Drilling Machines MAS VR8


drilling diameter in steel 80 mm 60kg/mm2 Drilling capacity in cast iron for strength 25kg/mm2 110 mm Distance spindle axis mantle column Max. 3150 mm Min 530 mm Distance spindle axis clamping surface base Max. 2832 mm Min 782 mm Distance spindle axis ...

Radial Drilling Machines MAS VR6A


Type VR 6A Producer Mas Max. drilling diameter 63/80 mm Max. vertical arm adjustment 950 mm Max. motion of milling head on arm 1613 mm Dimensions l x w x h 3240x1300x3900 mm Machine weight 5800 kg Main motor output 5.5

Radial Drilling Machines MAS VR4A


VR 4A/1250 Producer Mas Max. drilling diameter 50 mm Max. vertical arm adjustment 750 mm Taper in spindle 4 Morse Main motor output 4 kW Dimensions l x w x h 2250x1055x2970 mm Machine weight 2700 kg

portable radial drill MAS VRM50A


The largest diameter bore "full coverage" in the steel strength of 588 MPa, 50 mm The biggest thread in steel strength 588 MPa M48 Distance from spindle pole jacket from 1170 to 2070 mm Radius of pitch circle of holes drilled from 1370 to 2270 mm Dist ...

Radial Drilling Machines MAS VR8A


Type VR 8A Maximum of hole drilled into steel of 600 MPa in strength 80 mm Maximum of a hole drilled into grea iron of 250 MPa in strength 110 mm Maximum vertical displacement of the arm 1100 mm Max./min spindle reach 2515/500 mmTaper in spindle Morse ...

Radial Drilling Machines MAS RFH100


type: RFH 100 x 3000 make: Csepel capacity at boring steel: 100 mm capacity at boring cast iron 120 mm taper in spindle: MK 6 distance column to drilling spindel: 540.. 3000 mm vertical adjustment of arm: max. 1260 mm distance column to drilling sp ...

Radial Drilling Machines MAS VO80P1


Radial drill VO80 P1 producer KOVOSVIT year of manufacture 1987 Max. drilling diameter in steel 80 mm max. diameter drilling in cast iron 110 mm Clamping table area 2565x1380 mm Morse taper 6 Max. spindle travel 475 mm max. distance from the spi ...

Drill-Grinding Machines Mas VR4A radial / 2423


Auction name Machinefabriek Heerlen in Hoensbroek Public online auction. Start of auction: 31 October 2017 17:00 GMT +0200 (Western Europe (DST) Closing time: 21 November 2017 16:00 GMT +0200 (Western Europe (DST) The price listed is an  ...

Sawing Machines Emmegi Radialstar 550 TU/ Doule miter


Auction name Emmegi CNC Special Saws (52896) Public auction. Start of auction: 12 October 2017 10:00 GMT +0200 (Western Europe (DST) Closing time: 10 November 2017 13:00 GMT +0200 (Western Europe (DST) The price listed is an opening bid ...

Drill-Grinding Machines Mecof 25PR,380V radial


Auction name Tool manufacturer Cupedo & Zn at Berkel and Rodenrijs Public online auction. Start of auction: 16 October 2017 17:00 GMT +0200 (Western Europe (DST) Closing time: 23 October 2017 18:01 GMT +0200 (Western Europe (DST) The pric ...

Invema DC13 65x1600


Radial drill Invema DC13 65x1600 CN Sinumerik 805 Technical data: Drilling distance max 1600 mm Solid drilling max 65 mm Full thread max 50 M Sliding sleeve 80 mm 260 mm spindle travel Morse taper of 5 Speed 25 – 2000 RPM Spindle motor power kW 5 ...

Radial Drilling Machine TAI PIIN TPR-1230


Column diameter: 300mm, column surface-spindle center distance: 330-1210mm, spindle head travel: 880mm, base surface-spindle end distance: 467-1360mm, arm elevating height: 620mm, spindle stroke: 270mm, rotational speed: 44-1500/min, main motor power: 3HP ...

Griggio Radial short saw GR640


Auction name Woodworking machinery and workshop inventory at Rijssen (2/2) Public online auction. Start of auction: 04 October 2017 17:00 GMT +0200 (Western Europe (DST) Closing time: 19 October 2017 16:00 GMT +0200 (Western Europe (DST)  ...

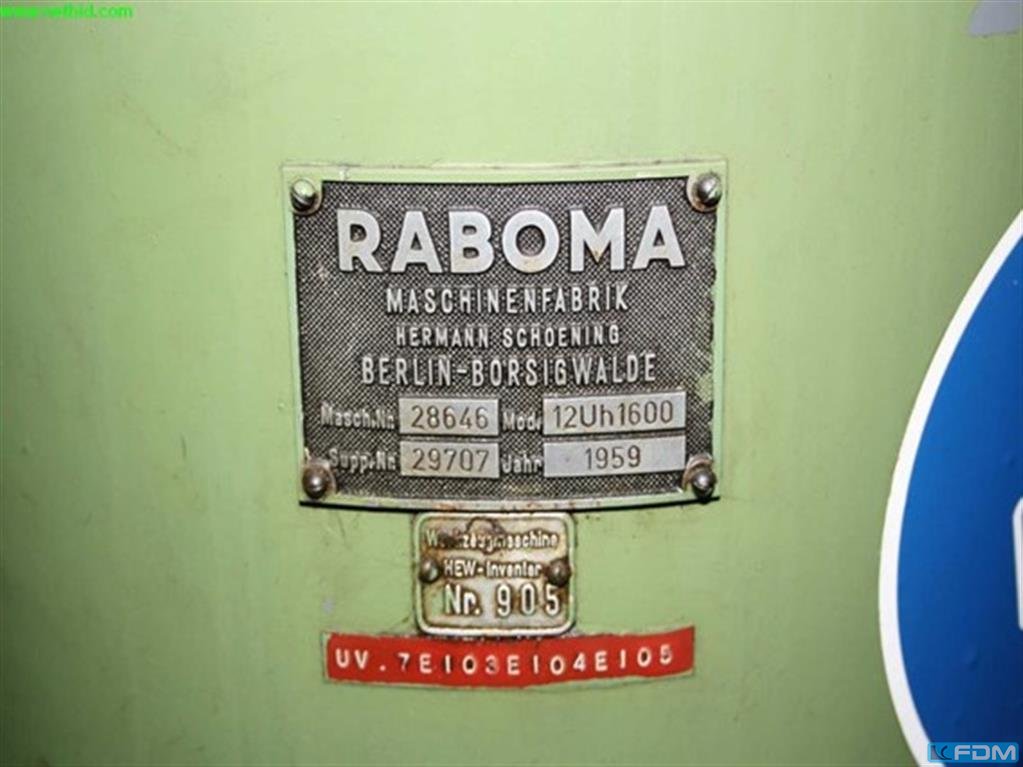

Radial Drilling Machine RABOMA 12 V 1000


Weight: 3.5t.

Drilling And Boring Machines Mas Radial drill, model VO 50/1400


Auction name Metal processing company Nijsten in Maastricht Public auction Online of goods arising from bankruptcy. Start of auction: 16 August 2017 16:00 GMT +0200 (Western Europe (DST) Closing time: 23 August 2017 15:50 GMT +0200 (Western Europe ...

Radial Drilling Machines Richmond Envoy


OVERVIEW: Brand: Richmond Model: Envoy Application type: Drilling Machine type: Drilling machine Availability: Immediately Location: United Kingdom GENERAL DATA: Measurements width: 1000 mm Measurements depth: 2200 mm Measurements height: 2800 ...

Mas Radial VO50/ 2675


Auction name: Machinefabriek Moors in Mill (1/2) Public online auction of metalworking machines due to restructuring and relocation of business processes Machinefabriek Moors, including: Global Challenger CNC Cutter Bank, FPT CNC Bedfreesmachine, Spinn ...
Get the latest machine offers by email: order newsletter
