press machine used for sale

Equipped with 3 crimp sets; unused

Specifications: Capacity: 160 t Passage between stand: 1100 mm Working area, max.: 1100 x 350 mm Piston stroke: 400 mm Flow speed: 6.2 mm/s Return speed: 6.8 mm/s Motor power: 5.5 kW Width: 1640 mm Depth: 1000 mm Height: 2550 mm Weight, approx.: 1300 kg Equipment: - Laterally movable cylinder via rack, pinion and handwheel - Spacious work area - Height-adjustable table - Torsion-resistant design with welded steel -Manometer - Fine adjustment of pressure - Additional hand pump

Specifications Maximum pressure: 9 tons Pressing force: 2.76 kg/cm² Bale size: 650x500x580 mm Power supply: 400V/4kW Year of construction: 1996 Productivity: approx. 3 bales/hr Machine is fully functional, after technical supervision.

Unused, crimping range 15-63mm, maximum aperture 75mm, 53.5 mpa, force 500 T, 3000W

Here are the technical data of the offered machine: Technical data + information: • No-load speed up to 40 mm/sec • Opening speed up to 40 mm/sec • Starting press speed 5–15 mm/sec • Table size/heating plate size 600 × 600 mm • Plunger size/heating plate size 600 × 600 mm • 2 heating plates, electrically heated, up to 250 degrees – as OPTION • Total size approx. 2000 × 1000 × 2800 mm height • OIL temperature monitoring • Automatic lubrication • Free positioning of the plunger • SICK/LEUTZE light barriers 14.1 mm on the front • Circulating oil cooling • Pressure holding valve 0 to 1800 sec. • Rear monitored door • Pressure adjustment from 30 T to 120 T • Travel limitation either by pressure or position • Programming set-up mode, single stroke (adjustable via rotary switch) • Control panel permanently installed in the wall  ...

General overhauled, new seals etc.

Equipped with 10 crimp sets; unused

FEINTOOL GKP F 160 hydraulic press was built in Switzerland. The automatic fine blanking press combines several workpiece machining stages into one precise process and significantly saves time and effort. As a result of fine blanking, parts with a maximum thickness of 6 mm obtain a characteristic even surface and accurately defined edges that cannot be achieved with other machines. The FEINTOOL GKP-F hydraulic punching press features a robust, stable construction and a total force of 160 tonnes. Offered with the machine a sheet metal feeder with a maximum thickness of 6 mm and a width of 210 mm allows for completely automatic machining. The automatic punching press underwent extensive modernisation in 1999. The total weight of the GKP-F 160 press is 9000 kg. Technical data of the FEINTOOL GKP F 160 fine blanking press - maximum sheet metal thickness: 6 mm - maximum sheet metal wi ...

used cabinet press Manufacturer: Maschinenfabrik Bermatingen GmbH & Co. Type: DIXI 18 S Year of construction: 2013 Serial No.: 116398 Specifications: Pressing force: 18t Engine: 4 kW Connection voltage: 400/50 V/Hz Cycle time: 22 s Pressing time: 12 s Insertion opening: W x H 107 x 62 cm Height from floor: 98 cm Bale ejected: W x H x D approx. 110 x 70 x 70-80 cm Bale height adjustable Bale weight: 120 – 180 kg depending on the material to be pressed Machine width: 152 cm Machine depth: 95 cm Machine height: 197 cm Weight: 850 kg (Subject to errors in the technical data)

used cabinet press Manufacturer: Maschinenfabrik Bermatingen GmbH & Co. Type: DIXI 25 S Year of construction: 2012 Serial No.: 1113653 specifications: Pressing force: 25 t Filling opening: 1,200 x 670 mm (W x H) Height from the ground: approx. 940 mm Split egg filling opening: 1,070 x 260 mm Bale size: 1,200 x 800 x max. 800 mm Bale weight: up to 250 - 320 kg Drive power: 5.5 kW Cycle time: approx. 24 sec. Pressing time: approx. 13 sec. Binding: 4-fold - vertical with poly strap Machine dimensions: 1,600 x 1,300 x 3,170 mm (W x D x H) Machine weight: 2,180 kg Transport height: 2,240 mm (Subject to errors in the technical data)

used cabinet press Manufacturer: Maschinenfabrik Bermatingen GmbH & Co. Type: DIXI 25 S Year of construction: 2012 Serial No.: 1113652 specifications: Pressing force: 25 t Filling opening: 1,200 x 670 mm (W x H) Height from the ground: approx. 940 mm Split egg filling opening: 1,070 x 260 mm Bale size: 1,200 x 800 x max. 800 mm Bale weight: up to 250 - 320 kg Drive power: 5.5 kW Cycle time: approx. 24 sec. Pressing time: approx. 13 sec. Binding: 4-fold - vertical with poly strap Machine dimensions: 1,600 x 1,300 x 3,170 mm (W x D x H) Machine weight: 2,180 kg Transport height: 2,240 mm (Subject to errors in the technical data)

used cabinet press Manafacture: HSM Type: 155.1 VL Year of construction: 1998 Machine no.: 6118.114. 01217M Serial no.: 6118.01217 specifications: Pressing force: 18 t Filling opening: 1,100 - 590 mm Filling space - 1100 - 700 x 1130 mm Bale size: 1,100 x 700 x 950 mm Bale weight: 110 - 200 kg Drive power: 4 kW Binding: 4-fold - vertical Output: 4 - 8 bales/hour Machine dimensions: 1,450 x 926 x 2,270 mm (W x D x H) Machine weight: 940 kg (Subject to errors in the technical data)

Machine number: 2810292 Operating voltage: 380 V Connection: 1.5 kW Max. pressing force: 250 kN Projection: 190 mm Plunger strokes: 120/min Plunger adjustable: 5 mm Stroke adjustable: 4 - 60 mm Table dimensions: 550 x 430 mm incl. straightening device from the manufacturer REBENDER

used cabinet press Manafacture: HSM Type: VL 155.2 Year of construction: 08 / 2003 Machine No.: 6114.734. R Serial No.: 240141893 specifications: Pressing force: 16 t Filling opening: 1,100 - 590 mm Filling space - 1100 - 700 x 1130 mm Bale size: 1,100 x 700 x 950 mm Bale weight: 110 - 200 kg Drive power: 4 kW Binding: 4-fold - vertical Output: 4 - 8 bales/hour Machine dimensions: 1,450 x 926 x 2,270 mm (W x D x H) Machine weight: 940 kg (Subject to errors in the technical data)

used cabinet press Manafacture: HSM Type: VL 155.2 Year of construction: 10 / 2004 Machine No.: 6114.734. S Serial No.: 250143017 specifications: Pressing force: 16 t Filling opening: 1,100 - 590 mm Filling space - 1100 - 700 x 1130 mm Bale size: 1,100 x 700 x 950 mm Bale weight: 110 - 200 kg Drive power: 4 kW Binding: 4-fold - vertical Output: 4 - 8 bales/hour Machine dimensions: 1,450 x 926 x 2,270 mm (W x D x H) Machine weight: 940 kg (Subject to errors in the technical data)

Safety distance: 100 mm Run-time travel: 60 msec Table dimensions: approx. 210 x 160 mm incl. installed punching tool

Specifications Maximum pressure: 36 tons Pressing force: 46.75 tons/m² Duct cross-section: 700x1100 x reg mm Bale weight: 380 kg Power supply: 400 V/ 15 kW Year of construction: 2009-2010 Number of ties: 4 vertical Dimensions of the tailgate: 1030x1100 mm Weight: approx. 3.9 tonnes Bale tying: manual

Machine number: 2-0095 Compressive force: 28 kN Stroke: 12 mm Safety distance: 100 mm Delay travel: 0.06 s Table dimensions: approx. 190 x 150 mm with pneumatic punching tool mounted

Includes: transport box 1230x810x1030mm, various accessories.

Year of delivery: 1994 Factory number: 035-021/73 Nominal force: 100 kN Permissible delay time: 118 ms Safety distance hand control tool: 190 mm Table dimensions: 500 x 400 mm Passage: approx. 100 mm incl. A thermoforming device with foot pedal

Hydraulic Hose Press; Crimping range: 15-63mm, Max aperture: 75mm, Voltage: 380V, Wattage: 3000W, Pressure: 53.5 Mpa Packing size: 780x540x1350 Weight incl. packaging: 280 kg Unused.

Machine number: 2-0537 Compressive force: 28 kN Stroke: 60 Table dimensions: 200 x 160 mm Plunger: 60 x 35 mm

Compressive force: 28 kN Stroke: 12 mm Safety distance: 100 mm Run-time travel: 0.06 s Table dimensions: approx. 200 x 160 mm with pneumatic punching tool mounted

This WEMHÖNER Variopress Basic 1000S was manufactured in 2018. Ideal for efficient laminating processes, this machine ensures consistent performance. Consider the opportunity to buy this WEMHÖNER Variopress Basic 1000S laminating press. Contact us for more information.

Laminating press manufactured in 2001. This WEMHÖNER KT-F-1E features a pressing area of 5,750 mm x 2,200 mm, with pressing plates measuring 2,600 mm and 2,620 mm in length. The machine accommodates thicknesses from 6 mm to 40 mm and operates at a pressure of approximately 40 kg/cm². If you are looking to get high-quality laminating capabilities, consider the WEMHÖNER KT-F-1E machine we have for sale. Contact us for further details.

Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Weight of machine approx.: 6,2 ton

Press capacity: 50 ton Throat depth: 265 mm Stroke: 250 mm Daylight: 400 mm Table surface area : 700 x 450 mm Slide area: 550 x 300 mm Table height over floor: 850 mm Approach speed: 32 mm / sec Working speed: 6,3 mm / sec Return speed: 42 mm / sec Required power: 4 kW Dimensions L x W x H: 1290 x 1160 x 2085 mm Weight of machine approx.: 1,75 ton

Press capacity: 45 ton Ram stroke adjustable: 20 - 80 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 300 mm Free frontal opening L-R: 710 mm Table surface area : 700 x 450 mm Slide area: 700 x 360 mm Hole in table: 600 x 100 mm Number of strokes: 80 - 400 s.p.m. Required power: 10 kW Height over floor approx.: 2900 mm Weight of machine approx.: 7,2 ton Control: Siemens S7

Press capacity: 80 ton Ram stroke adjustable: 4 -60 mm Slide adjustment: 0 - 80 mm Shut height (stroke down, adjustment up): 310 mm Free frontal opening L-R: 800 mm Table height over floor: 1150 mm Table surface area : 780 x 640 mm Slide area: 800 x 460 mm Hole in table: 690 x 170 mm Number of strokes: 30 - 300 s.p.m. Required power: 21 kW Height over floor approx.: 2900 mm Weight of machine approx.: 12 ton Control: Siemens S5

Press capacity: 35 ton Ram stroke adjustable: 6 - 50 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 250 mm Free frontal opening L-R: 430 mm Table surface area : 410 x 410 mm Slide area: 307 x 187 mm Hole in table: 170 x 110 mm Number of strokes: 60 - 300 s.p.m. Weight of machine approx.: 2,4 ton

Capacity: 250 ton V ? Ring nominal force: 30 - 125 ton Counter ram nominal force: 30 - 125 ton Ram stroke: 67 mm Table surface area : 560 x 600 mm Slide area: 560 x 560 Number of strokes: 80 s.p.m. Weight of machine approx.: 14.000 kg

automatic baler Manafacture: PAAL Type: PACOMAT IS Year of construction: 1993 specifications: Pressing force: 35 t Specific pressing force: 5.51 kg/cm² Duct format: 700 x 700 mm Filling opening: 800 x 650 mm Drive power: 18.5 kW Throughput: 80 m³/h with additional manual feed hopper Wire passage seen in the direction of pressing on the left side

Code: 0377 Brand: COLOMBO R Model: PCA.S Automatic continuous-cycle hot-pressing line for the production of panels, furniture, doors, paneling, sandwich panels, and various Sturdy supporting structure Composition: 4-roll gluing machine OMMA- Width 1400 mm Disc transfer conveyor Preparation table Press COLOMBO 5500 x 1400 mm - n° 8 pistons - diameter 150 Solid steel platen Top-down pressing Pressure 4 kg/cm² Automatic unloading with photocell devices Work surface height 800 mm Closing times are reduced to 1–2 seconds and opening times to 2–3 seconds Overall dimensions press mm 5960 x 1900 x 2320 h Complete line length 22 mt Installation of the line does not require any foundation

Pressure switch for sale, with original packaging

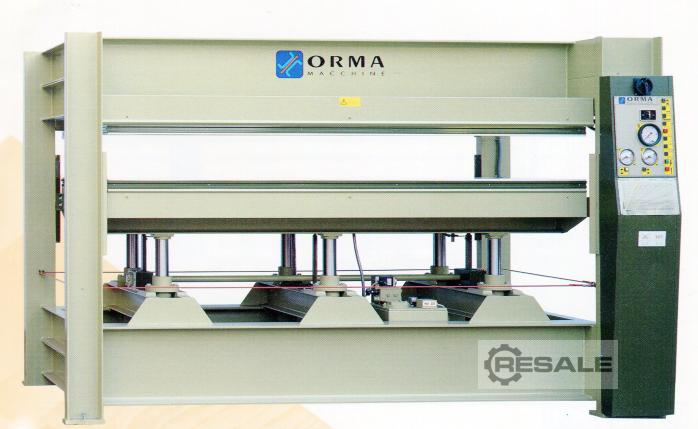

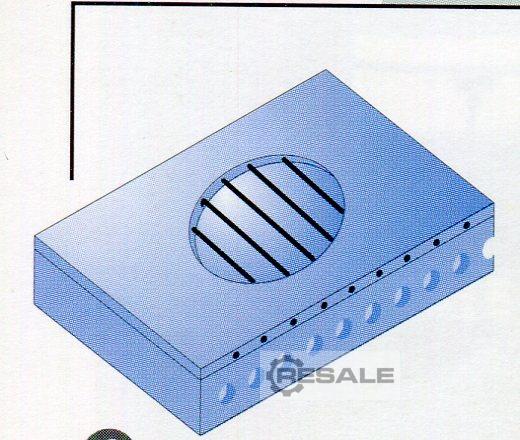

Code: 0378 Brand: ORMAMACCHINE Model: NPC 6/90 E - CE Standard Hot press with electric platens for veneering, panels, furniture, custom-made furnishings, wooden doors, kitchens, bathroom furniture, composite materials, plastics, and various - CE Standard Technical data: Platen dimensions 2500 x 1300 mm Total thrust 90 tons N° 6 cylinders Cylinder diameter 70 mm Stroke 400 mm Pressure 3 kg/cm² Motor 2 Hp Electric Platens: Max temperature up to 120° C, max working pressure 7 kg/cm². Platen made of a 12 mm aluminium plate which resistances are inserted in underneath a chipboard support with reinforcement tubes inside Perimeter emergency rope Double rack system Lateral guides on platens for a perfect movement further safety feature of the pressing platen Overall dimensions mm 3060 x 1650 x 1850 h Weight kg 3400

Press Schüco Model 290124 Type 2 Specifications: •pneumatic • Operating pressure max. (bar): 8 • Weight max. (kg): 80 • Enclosed tool: included (see photos)

Press 400x500 make ZDA Type 100660 manualy operated electrical heated plates Clamping force 1540 kN

Rotary indexing table with 12 stations Automatic ejector three pressing stages Pressure capacity 1,000 KN Stroke 12-120 mm Stroke rate 30-60 1/min Plunger adjustment 80 mm Total weight 9,500 kg

Press for paper or plastic Pressing pressure 5 tons 400 V 16 A Length 80 cm Width 80 cm Height 2 m

Hand screw press, used Balancier, used Typ/ type: PSHZ 25/I Presskraft / rated pressure: 25 t Hub/ stroke: 250 mm Tischgrösse/ table size: 400x 500 mm Ram: 200 x 500 mm Tischöffnung / hole in table: 140 mm Weight/ weight: 0,9t

Universal stamping machine Max impact power 50 KN Total stroke 80 mm Stroke sequence per hour 1500 Pneumatic Data

Inv. Num. : 6700 Type: 3000 kN Producer: Loire Created: 1992 GO 2008 Parameters: Control system: SIEMENS SIMATIC OP17 Compressive force: 3000 kN Table length: 2495 mm Table width: 1505 mm Maximum distance between the table and the ram (when the ram is low): 1200 mm Stroke: 800 mm Working speed: 64 mm/s

Inv. Num. : 6701 Type: 4000 kN Producer: Hydraulico Created: 1977 Parameters: Control system: SIEMENS SIMATIC OP Compressive force: 4000 kN Stroke: 800 mm Table height: 680 mm

Nominal force: 2500 tons Slider stroke: 600 mm Slide strokes per min: 11 Distance between table and slider: 1500 mm Capacity of the main drive: 220 kW Table size: 2000x4500 mm Machine dimensions: 5910x8700x10355

Extraction system / briquetting press Extraction system 11 KW Briquetting press 7 KW

Hot press Adkins OM 1000 Government machine Baujar 2015

Stock Number: 3785 ECCENTRIC PRESS Manufacturer: PMB, Type: EPFT 100 Machine NO.: 004301, Year of manufacture: 2002 Specifications: Table size 780 x 590 mm Stroke length 8-120 mm Number of strokes per minute 55 Projection 300 mm Operating height 395 mm Total power 7.5 kW Pneumatic clutch. Gear ratio. Hydr. Overuse protection. Weight: 5500 kg
