precision lathe used for sale

Auction-ID: A1-50076-463

Workshop cabinet incl accessories lathe chucks and tool holders Auction-ID: A1-50076-280

already disassembled, including cabinet with accessories Auction-ID: A1-50076-5

Cabinet with lathe accessories including chucks and chisel holders Auction-ID: A1-50076-279

Workshop cabinet 7 drawers with lathe accessories Auction-ID: A1-50076-290

HDM 1000 wood lathe, announced capacity of approximately 100 cm between points, sold with a large set of accessories. The set includes a wooden workbench with storage drawers, several turning scissors and gouges, various accessories and a Tormek SuperGrind 2000 water grinder with accessories. Set for wood turning, shaping and finishing work. Used equipment. Auction-ID: A3-46129-39332

already disassembled Auction-ID: A1-50076-3

Already disassembled Auction-ID: A1-50076-10

Style 510x1250 with VDI40 changer Auction-ID: A1-50076-369

With 3 claw, 4 claw, tool holders, machine feet Auction-ID: A1-50076-1001

faceplate diameter: 5000 mm swing diameter: 8000 mm turning height: 4000 mm ram head dimension: 360 x 360 mm faceplate turning speed range: 0,6 - 60 U/min workpiece weight: 160 t main drive motor: 2x 70 kW control: FANUC total power requirement: - kW weight of the machine ca.: 85 t dimensions of the machine ca.: -- m The machine will be overhauled and modernised (upon order) and fitted with: - Fanuc CNC control system (latest model) - New electrical system - New hydraulic components: pumps, lubrication systems, hoses, valves, etc. - All assemblies and sub-assemblies will be cleaned, inspected and replaced where necessary. - 2 rams supports on the crossbeam CROSS-RAIL TOOL HEAD (ARM TOOL CARRIAGE) - Axial ram travel (Ram stroke) — 2500 mm - Horizontal carriage travel — 3400 mm - Swivel angle / Tiltability — 15 - 45° - Cross-rail travel (Arm travel) — 3600 mm - Saddle travel —  ...

faceplate diameter: 4000 mm swing diameter: 4300 mm turning height: 2060 mm workpiece weight max.: 18000 kg faceplate turning speed range -stepless-: 1,02 - 92 U/min rapid traverse of cross-rail: 2500 mm/min slide adjustment: 2400 mm main drive motor: 60 kW Control: Fanuc 0iTF total power requirement: 75 kW weight of the machine ca.: 62,8 t dimensions of the machine ca.: 6,6 x 5,8 x 5,4 m Overhauled/modernized in 2026 - Complete replace of hydraulic & lubrication installation - New ball screws installed - Replace of electric installation and of command - Mechanical elements retrofitted and grinding of guideways (adjustment of the geometrical parameters of the machine according to ISO 3655) equipped with: - CNC control FANUC 0iTF - FANUC Drives and Motors The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Stock No.: 4028 CNC LATHE SWISS TYPE Manufacturer: Maier, Type: ML 32D Proline Serial No.: 06-503, Year of manufacture: 2006 Specifications: Size Diameter 32 Main spindle speeds 6000 Main Spindle 5.5 effect Sub-spindle 3.7 kw Gengen Spindle 6000 C Axis Headspindle 5 C acshen sub-spindle 5 X-1 axis                            X2 Ashes                          X3 Ash                          Z1 Ash                           Z2-Acshe                           Z3 Ash                           Y-axis                            Rapid traverse 32 Control system MAIER PRO - FANUC 31iTA Axis Controlled 9 Opreation time 36749 Cutting time 9315 Tool holder 1 5 pc. 16x16 mm - 4 pc. Red. Tool  ...

Stock No.: 4026 CNC LATHE SWISS TYPE Manufacturer: Maier, Type: ML 26D Proline Serial No.: 05 385, Year of manufacture: 2005 Specifications: Size Diameter 26 Ma. Turning length (fixed guide bush) 320 Main spindle speeds 0-8000 Main Spindle 5.5 effect Sub-spindle                        Sub-spindle max dia. 26 C Axis Headspindle 5 Rapid traverse 32 Control Maier Pro - GE Fanuc Axis Controlled 9 Stanglademagazin FMB 3200 - NO. R-826374 – 2010

The machine is in good technical condition; it can be tested by prior arrangement.

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

turning diameter over bed:2600 mm turning diameter over slide rest:2200 mm turning length:5000 mm faceplate:2050 mm number of spindle speeds:0,7 - 70 rpm total power requirement:ca. 22 kw Height of centres: 1350 mm Distance between centres: 5000 mm Swing over cross slide: 2600 mm Spindle power: 30 HP Spindle speed: 0,7 - 70 rpm Longitudinal swift Control on the carriage Chuck: diam. 2050 mm

turning diameter:570 mm turning length:1000 mm dimensions of the machine ca.:3,25 x 2,03 x 1,95 m Tool disc turret for 8 tools with VDI 30. Not for power tools machine manual, technical documentation; Accessories: 3-jaw chuck, various tool holders Video is available

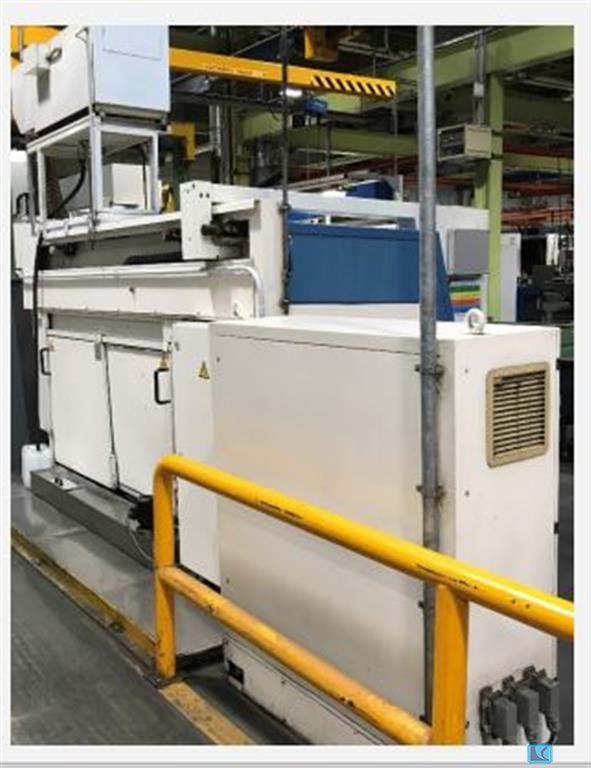

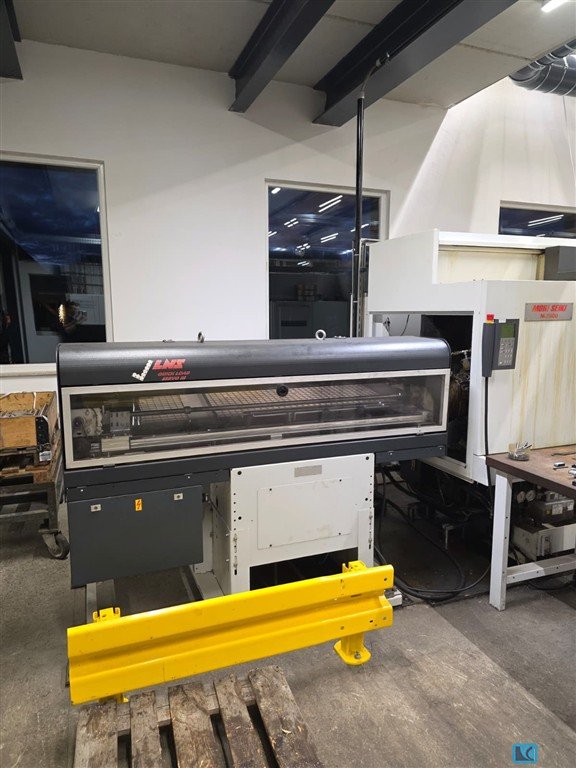

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter over bed:350 mm turning diameter over slide rest:240 mm turning length:800 mm Spindle RPM:40 - 2000 in 8 Stufen 1/min total power requirement:3 kW Spindle bore:26 mm tailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 m weight of the machine ca.:1,9 t Very well maintened center lathe with accessories - 3-jaw, 4-jaw chuck - tailstock with center - 1 boring head - RAPID quick tool change device with 3 holder - saddle mounted steady rest - collant device - set of collets appr. 75% size B 32

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:570 mm turning length:- mm control:- Diameter of rotation above the bed slide:360 mm Maximum width:2.000 mm revolutions per minute:max. 2500 U/min :11 kW max. longitudinal feed:7,5 m/min max. transverse feed:7,5 m/min rapid traverse longitudinal:12 m/min rapid traverse cross:15 m/min Pinole diameter:95 mm Pinolenhub:220 mm Pinolen intake: MK 5 weight of the machine ca.:2,97 t dimensions of the machine ca.:3,8m x 1,3m x 2m m Technical description: - Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc - Machine bed - made of perlite casting GG-26 - high stiffness due to strong ribbing - Bed slides - guideways hardened and ground - automatic lubrication of the bed rail - Reitstock - manual - Quick clamp - Operator station - two movable handwheels on the operator panel - a movable handwheel - Control - "Siemens 828 D" CNC control - Siemens "Comfort" (in ...

turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t swing diameter max. over bed cover:570 mm spindle bore:79 mm chuck diameter:200/250 mm rapid power traverse in X-and Z direction:20/24 m/min numbers of tools:12 C-axis

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

turning diameter:1600 mm turning length:6200 mm spindle bore:130 mm turning speed range:5 - 710 U/min turning diameter over bed slide:1250 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus, diameter 630 mm 3 x fixed liners (1200 / 570 / 400 mm) Coolant system and chip conveyor Miscellaneous accessories

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter over bed:240 mm turning length:450 mm total power requirement:0,5 kW weight of the machine ca.:120 kg dimensions of the machine ca.:1500 x 600 x 1200 mm centre height:120 mm spindle bore:21 mm revolutions per minute: 75 - 2980 U/min

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVA weight of the machine ca.:7,8 t dimensions of the machine ca.:6610 x 2280 x 2235 mm work height max.:1060 mm greates pass round over bed:305 mm spindle bore:82 mm Documents:vorhanden

turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment
