faceplate diameter: 4000 mm
swing diameter: 4300 mm
turning
height: 2060 mm
workpiece weight max.: 18000 kg
faceplate
turning speed range -stepless-: 1,02 - 92 U/min
rapid traverse of
cross-rail: 2500 mm/min
slide adjustment: 2400 mm
main drive
motor: 60 kW
Control: Fanuc 0iTF
total power requirement: 75
kW
weight of the machine ca.: 62,8 t
dimensions of the machine
ca.: 6,6 x 5,8 x 5,4 m
Overhauled/modernized in 2026
-
Complete replace of hydraulic & lubrication installation
- New
ball screws installed

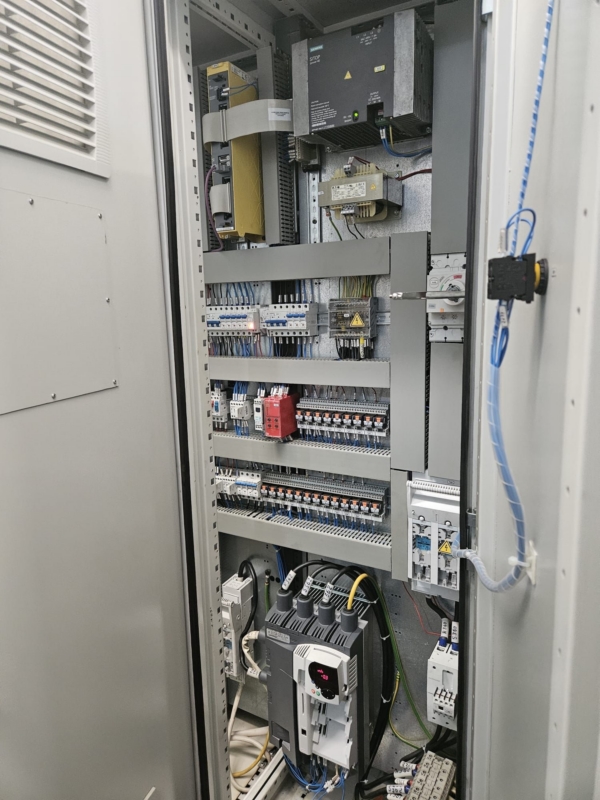

- Replace of electric installation and of
command
- Mechanical elements retrofitted and grinding of
guideways
(adjustment of the geometrical parameters of the machine
according to ISO 3655)
equipped with:
- CNC control FANUC
0iTF
- FANUC Drives and
Motors
