pfeifer used for sale

Code 71144 Description Horizontal table borer Make PFEIFER Model F 80 / 100 Serial number 2342 Year 1982 Spindle 100 mm Spindle taper 50 ISO Spindle out (W) 500 mm Table 1000 x 850 mm Cross (X) 1200 mm Longitudinal (Z) 800 mm Vertical (Y) 800 mm Distance table-spindle 0 x 800 mm Speeds 18 steps Spindle speeds 14 – 1500 rpm 16 Feeds 0,03 – 6,0 mm/rev Rapids 2500 mm/rev Rapids all directions ( X-Y-Z-W-B) Motor 7,5 kW 380 Volts Accessoiries X-Y-Z axis are BALLSCREWS Tool clamping Pendant control Condition Machine is in very good condition

Offer 25516 Technical data: - Load capacity 3000 kg - Projection 1800 mm - Heel height approx. 3200 mm - Swivel radius approx. 360 ° - Column diameter approx. 380 mm - Column height / lower edge of the boom approx. 3700 mm - Height of the boom approx. 400 mm - Total height approx. 4250 mm Hoist - Load capacity 3000 kg - Drive 400 V / 1.0 / 1.8 kW. - Lifting speed approx. 0.75 / / 3.0 m/min - Operation of the chain hoist via handheld remote control - Movement of the electric chain hoist motorized via hand-held remote switch - Swivelling of the boom by hand - Total weight column-boom chain hoist approx. 800 kg

Spindle diameter 100 mm x-travel 1600 mm y-travel 895 mm z-travel 800 mm Table area 1200x1000 mm Table load 4000 kg Spindle stroke 600 mm Speed 14-1500 rpm Feed 1.7-2400 mm/min Rapid traverse 2500 mm/min Total power requirement 9.7 kW Machine weight approx. 12 t Guide paths hardened Tool holders ISO 50 Machine is energized, Schematic

Sheet metal clamp, sheet metal claw, beam clamp, beam claw, sheet metal gripper, material gripper, material gripper -Sheet metal claws -Span: 1 to 30 mm -Load capacity: 2000 kg -Number: 1x terminal available -Weight: 10 kg

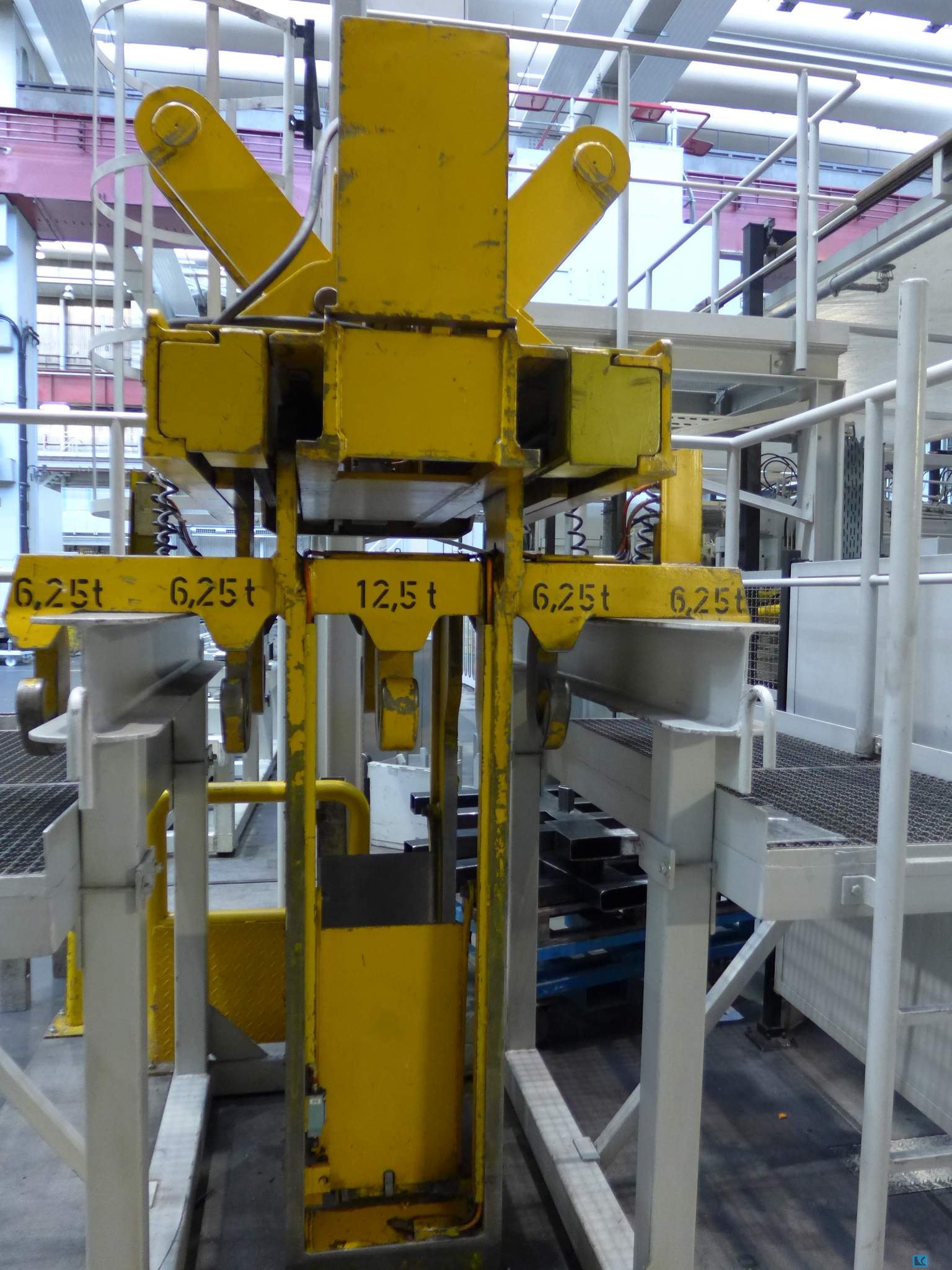

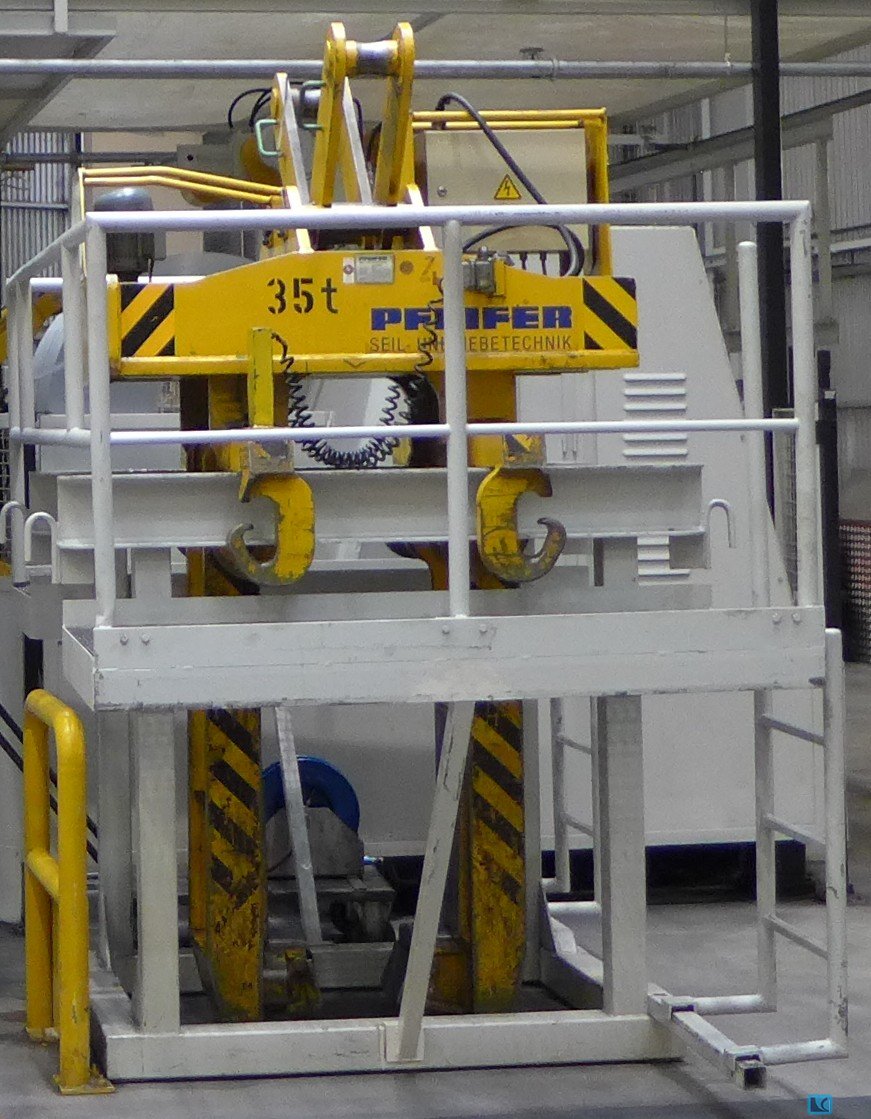

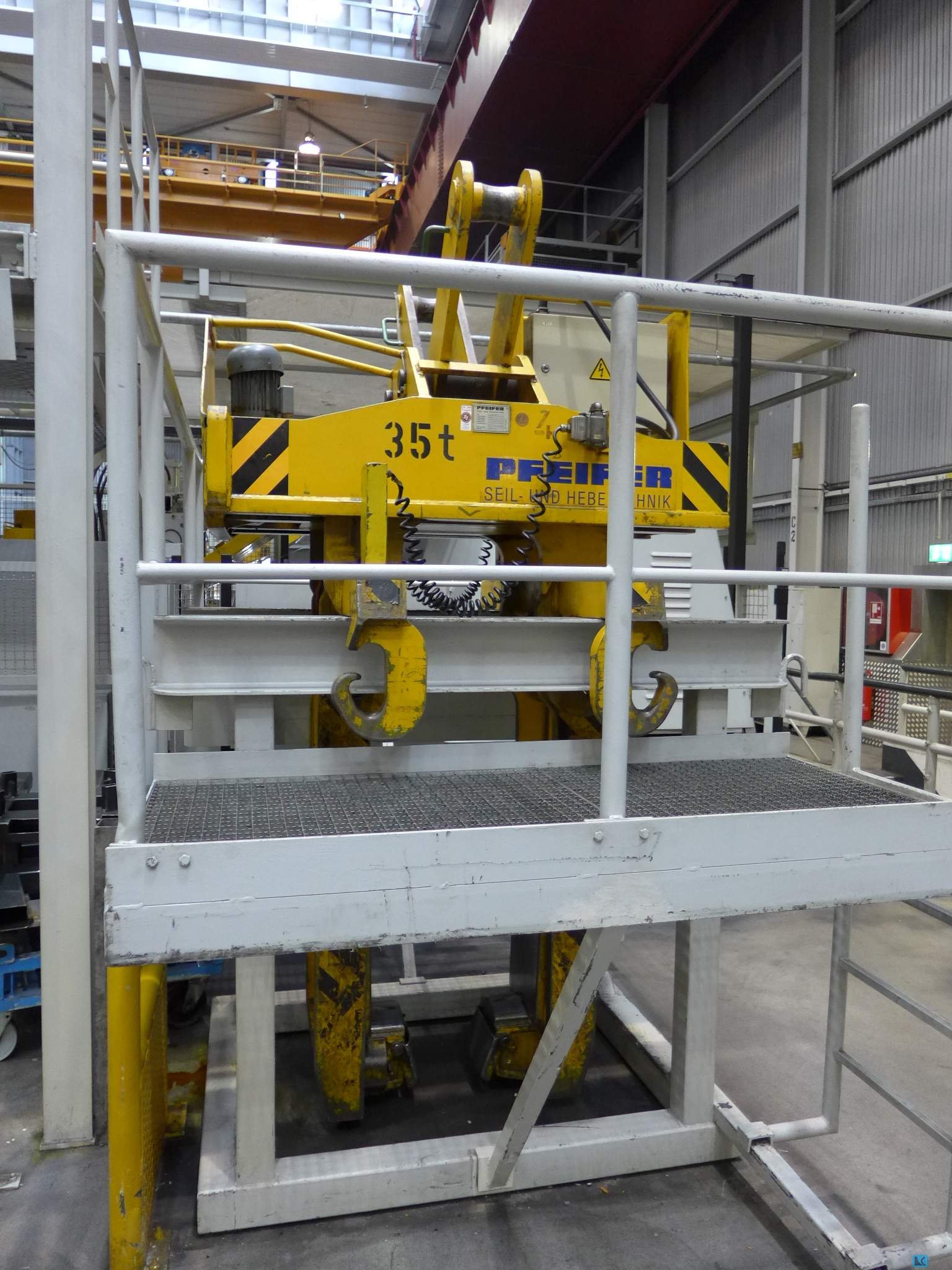

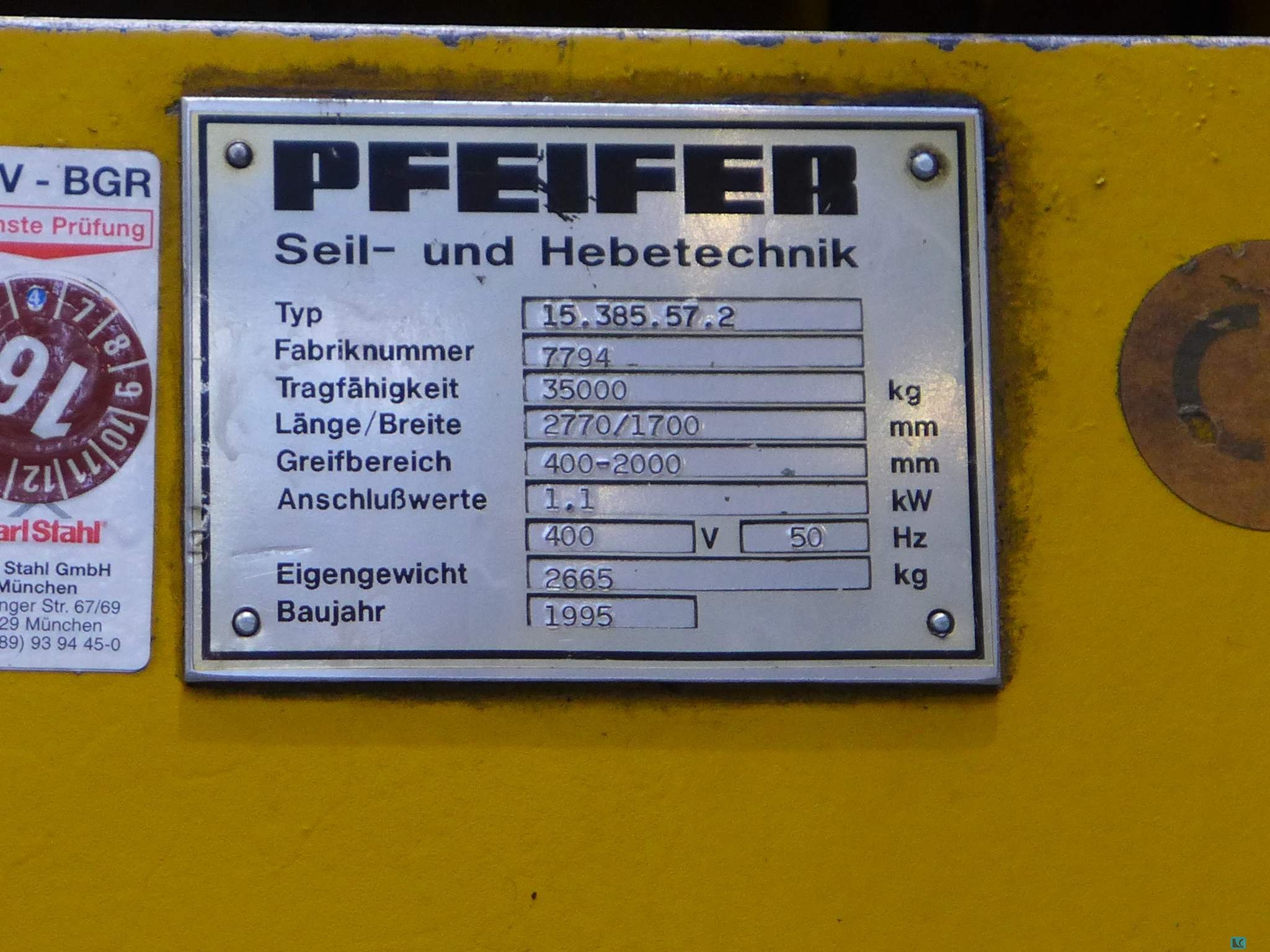

TONGS:. - capacity:35000 kg - Gripping range:2000 mm - Tare weight:2665 kg ELECTRICAL SPECIFICATIONS:. - total power consumption:1.1 kW - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:2770 mm - space requirements width:1700 mm

TECHNICAL SPECIFICATIONS Manufacturer: PFEIFER Seil- und Hebetechnik GmbH Description: Two-crane crossbeam, crane crossbeam, pipe crossbeam Type: 270092 Year of construction: 2015 Load capacity: 40,000 kg Weight: 3,150 kg Working length/gripping range: 1,920 - 7,250 mm SPECIFIC COMMENT - Variable anchor points - Ideal for transporting heavy concrete segments - Last inspection in accordance with BetrSichV 09/2023

Key data: 80 mm, 1700 mm, 1800 mm

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

Inv. Num. : 7631 Type: F80 Produzent: Pfeifer Erzeugt: 1976 Parametern: Maximale Drehzahl der Spindel: 1000 1/min Verfahrwege X-Achse: 1700 mm Verfahrwege Y-Achse: 1800 mm Verfahrwege Z-Achse: 1800 mm Verfahrwege W-Achse: 710 mm Spindeldurchmesser: 80 mm

arm length: 5500 mm total column height: 3600 mm weight max. in kg: 2000 kg height: 4100 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m K9F 0902 The techn. Information is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to prior sale, Our terms of sale apply exclusively. About us More than 400 of our own machines in the warehouse More than 12,000 m² of storage space, crane capacity 70 t More than 1000 items Accessories for your workshop If you want to sell machines, systems or your company, then contact us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 330 mm turning dia. in gap: 400 mm turning length: 600 mm centre distance: 750 mm spindle turning speed range: 20 - 1000 U/min spindle bore: 25 mm 3-jaw chuck: Röhm, Ø 200 mm dimensions of the machine ca.: 2000 x 800 x 1500 mm weight of the machine ca.: 1200 kg Fixed bezel Turning bezel Turning center point Three-jaw chuck Röhm, Ø 200 mm, incl. inner and outer jaws Quick-change tool holder Original Multifix size B with 2 change holders Spindle brake Tailstock quill MK3 Machine feet Lathe chuck guard Chip guard Work light The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25429 Technical data : - Load capacity 1 t - Crane attachment eye in the middle - Suspension height approx. 500 mm - 2 adjustable stop eyes adjustable 1000 to 2500 mm - Adjustable distance 150 mm - Truss cross-section W 100 x H 100 mm - Overall dimensions approx. L 2650 x W 170 x H 500 mm - Weight approx. 70 kg

weight max.: 32 t clamping width: 4000 mm total power requirement: - kW weight of the machine ca.: 1 t dimensions of the machine ca.: 4 x 0,6 x 0,5 m Adjustable spreader beam for 32-tonne cranes - Central crane attachment point - Additional/alternative crane attachment points on the outer sides - 2 individually adjustable load attachment points Spreader beam length: 4000 mm Spreader beam width: 300 mm Weight: 980 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
