Modula Lift ML50D Vertical Storage Lift
Modula are automatic vertical carrier storage systems based on the
concept of vertical storage and saving floor space.
You can store any type of material safely, cleanly and efficiently,
saving up to 90% of floor space.
The Modula are the result of more than 30 years of experience of an
Italian company with high-tech products

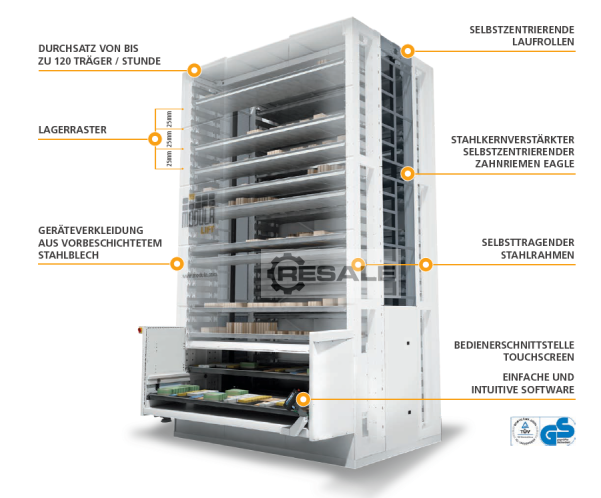

• Minimal energy consumption
• Automatic weight monitoring during beam retraction
• Dynamic storage location assignment of the carriers in the device
according to the heights of the stored goods
• Equipment frame made of galvanized steel profiles
• Vertical drive with steel-core reinforced Eagle timing belt
• Extractor guide system with 6 HDPE rollers per side
• Management of the carriers with differentiated payload
Manufacturer: Modula
Year of Make: 2013
Model: Modula Lift ML 50D
Height: 7350 mm
Beam width: 4100 mm
Beam depth: 857 mm
Strap height: 120 mm
Carrier Net payload: 500 kg
Gross total payload: 70000 kg
Device Dimensions: Internal Dispensing (W x D) 4517 x 3165 mm
Device K51227004 dimensions: External dispensing (W x D) 4517 x 4058
mm
User interface: Console with touchscreen technology 10.4" (Copilot)
Throughput: up to 120 carriers / hour (depending on configuration)
Height steps: 200 mm
Bearing pitch: 25 mm
Number of shelves: 60
Product video
Dismantling and removal by buyers
Dismantling and removal also possible by our assembly team (5000,-
€)
