mitsui seiki used for sale

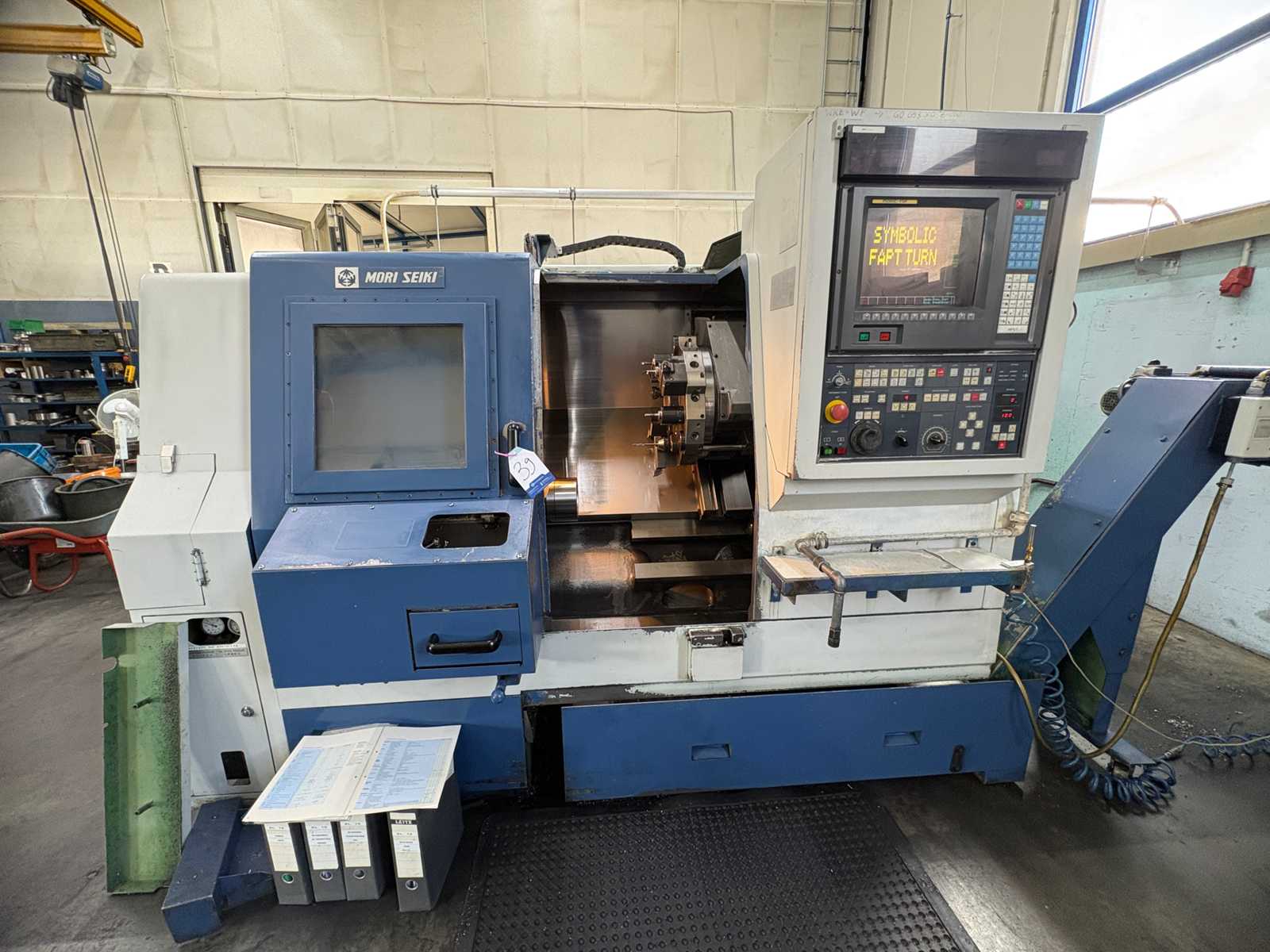

Mori Seiki CL 20 BT Lathe Turning diameter 380 mm Turning length 330 mm Circumferential diameter over bed 470 mm Circumferential diameter over bed carriage 380 mm Rod diameter 51 mm Speed range - spindle 45 ~ 4,000 rpm Spindle nose JIS A2-5 Spindle bore 61 mm Spindle bearing diameter 80 mm Turret head (x-fold) 12 Shaft diameter 20 mm Shaft diameter of the drills 32 mm Rapid traverse X-axis 15 m/min Rapid traverse Z-axis 20 m/min Drive power - spindle motor 7.5 kW Total power requirement 19 kVA Dimensions approx. 1.7 x 1.7 x 2.2 m Auction-ID: A7-47048-16

Serial Number: 324 Operating Voltage: 380 V Frequency: 50 Hz Connection: 20 kVA Control: MORIC-T5F Circumference Diameter over Bed: 450 mm Circumnavigation Diameter over Turret: 300 mm Center Width: 595 mm Standard Diameter: 160 mm Max. Turning Length: 525 mm Travel X-Axis: 222 mm Travel Z-Axis: 560 mm Spindle Speed: from 50 to 5000 rpm Spindle Bore: 52 mm Front Bearing Inner Diameter: 90 mm Number of Tools: 12 max. 6 stations for driven tools Shaft cross-section of the lathe bits: 20 mm Shaft diameter for boring rods: max. 32 mm Spindle speed of the driven tools: 100 - 2000 rpm Rapid traverse X-axis: 12,000 mm/min Rapid traverse Z-axis: 15,000 mm/min Feed speed in X-axis: 0.00001 to 250 mm/min Z-axis: 0.00001 to 350 mm/min Tipping feed speed X- and Z-axis: 1260 mm Tailstock Travel: 450 mm quill diameter: 75 mm quill travel: 80 mm the machine is equipped with a tailstock, as well as a 12 ...

Turning diameter max. 390 mm Turning length max. 572 mm Control MSD 501 Circumferential diameter over bed 700 mm Circumferential diameter over face slide 560 mm Distance between tips 725 mm Standard turning diameter 248 mm max. turning diameter 1: 390 / 2: 260 mm Main spindle: Speed range - main spindle 35 - 3,500 min/-1 Drive power - main spindle 18.5 / 15 kW Spindle nose JIS A2-8 Spindle bearing diameter 130 mm Spindle bore 86 mm Usable rod diameter 62 mm Travels: x-axis 1: 238 / 2: 173 mm z-axis 1: 650 / 2: 650 mm Tool turret: Number of turrets 2 Number of tool positions 10 + 8 pos. Number of driven tool stations - pos. Switching time 0.3 sec Shaft diameter 25 mm Shank diameter of the drills max. 50 mm Tailstock: Tailstock travel 500 mm Quill diameter 110 mm Tailstock mount MK 5 Quill stroke 150 mm Feeds: Rapid traverse X1/2: 18 m/min Rapid traverse Z1/2: 24 m/min Feed  ...

Mori Seiki DuraVertikal 5080 3Axis Machining Center (11/2006) Manufacturer: Mori Seiki Type: auto_awesome Source language: English 587 Table length 1350 mm Table width 600 mm Number of T-profiles 6 T-profile width 18 mm Max. table load 1000 kg Longitudinal travel (x-axis) 1050 mm Transverse travel (y-axis) 530 mm Travel (z-axis) 510 mm Max. tool diameter 125 mm tool weight 8 kg Spindle nose bt 40 Distance spindle nose table 150 - 660 mm By 0 rpm Until 10,000 rpm Voltage 50 Hz 3x 400 volts Spindle performance 22 kW Total power requirement 58 kVA Machine weight approx. 8,030 kg Length 2,500 mm Width 2,350 mm Height 2,700 mm Give feedback Translation results available Year of manufacture: 11/2006 Condition: used, good, in production I Auction-ID: A7-47048-26

max. turning diameter 356 mm Turning length 510 mm Control M 720 BM MAPPS II Circumferential diameter over bed 923 mm Circumferential diameter over carriage 755 mm Standard turning diameter 275 mm Rod diameter max. 65 mm Main spindle: Spindle nose A2-6 Speed range - spindle max. 5,000 min/-1 Drive power - spindle motor 15 / 11 kW Spindle bearing diameter 120 mm Spindle bore 73 mm max. usable rod diameter 65 mm C-axis 0.001 ° Sub-spindle: Spindle nose A2-5 Speed range - spindle max. 6,000 min/-1 Drive power - spindle motor 11 / 7.5 kW Spindle bearing diameter 85 mm Spindle bore 43 mm max. usable rod diameter ( - ) mm C-axis 0.001 ° Travels: Travel of counter spindle B: 624 mm Travel - x 260 mm Travel - z 590 mm Travel - y 100 (+/-50) mm Tool turret: Turret head (x-fold) 12 powered stations 12 pos Shaft diameter 25 mm Shaft diameter for drill rod max. 50 mm Speed range of the ...

MORI SEIKI MH 40 FANUC horizontal machining centre X-axis travel: 560 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Pallet size: 400 x 400 mm Table Rotation (B-Axis): 360° (with minimum division 1° or 0.001°) Spindle Mount: BT-40 Spindle Speed: 6,000 rpm Tool Changer (ATC): 40 Total machine weight: approx. 9,500 - 10,500 kg Floor Dimensions (W x D): Approx. 2,300 x 4,200 mm Height 2350 mm Auction-ID: A7-47195-21

Table dimensions: 900 x 500 mm X-axis travel (longitudinal): 600 mm Y-axis travel (transverse): 430 mm Z-axis travel (vertical): 460 mm Spindle-table nose distance: 150 - 610 mm Maximum permissible load on the table: 500 kg Table configuration: 4 T-slots (18 mm x 100 mm center distance) Spindle attachment: BT 40 Maximum speed: 12,000 rpm Spindle motor power: 22 / 18.5 kW Front bearing inner diameter: 85 mm Number of tools in stock: 30 stations Attachment type: BT 40 Max. tool diameter (adjacent): 80 mm Max. tool diameter (non-adjacent): 125 mm Max. tool length: 300 mm Max. tool weight: 8 kg Tool change time (chip-to-chip): 3.2 seconds Fast feeds (X, Y, Z): 32,000 mm/min Maximum working feed: 16,000 mm/min Axis motor power (X/Y): 2.1 kW Z axis motor power: 4.4 kW Numerical Control: MORI-FANUC (Models MSC-518 / MSC-501) Memory: 320 meters Functions: Helical Interpolation, Cutting Force Con ...

X-axis travel: 800 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Distance between table table top and spindle nose: 150 - 660 mm Table dimensions: 1,100 x 600 mm Maximum load capacity: 1,000 kg Configuration: 6 x 18 mm T-slots Rotational speed: 14,000 rpm Spindle attachment: MAS BT-40 (Taper 7/24 No. 40) Bearing inner diameter: 65 mm Motor power (30 min/cont.): 22 / 18.5 kW Cooling: Refrigerator for spindle cooling included Fast feeds: 42,000 mm/min Feed in JOG: 0 - 1,260 mm/min Positioning accuracy: 0.005 mm (over the entire stroke) Positioning repeatability: ± 0.001 mm Magazine capacity: 30 positions Attachment type: MAS BT-40 (90° tie rod shank) Maximum tool diameter: 80 mm (125 mm with empty adjacent slots) Maximum tool length: 300 mm Maximum tool weight: 8 kg Tool change time (chip-to-chip): 2.6 seconds (1.0 s tool-to-tool) CNC monitor: 10.4\" TFT colour active matrix Program mem ...
