mimatic used for sale

ratio: 1:47 revolutions per minute: 3.500 U/min taper ISO: 50 weight: 4,5 kg used milling accessory high-speed head: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Brige Type Milling Machine Manufacturer NICOLÁS CORREA Model FP 30/30 ATC Year 2000 CNC HEIDENHAIN TNC-426 Table surface 3.000 X 1.250 mm Max weight allowed on table 10.000 kg. Longitudinal Traverse (X Axis) 2.500 mm Transversal Traverse (Y Axis 2.000 mm Vertical Traverse (Z Axis) 800 mm Distance Between Columns 1.740 mm. Rapid Traverse X Axis 15.000 mm/min Rapid Traverse Y , Z Axis 12.000 mm/min Max. Working Feed 7.500 mm/min Taper ISO-50 Direct Output Head Speed 5.000 r.p.m. Main Motor Power 22 kW Speed Ranges 2 Internal coolant (12 Bar) INCLUDED Automatic tool changer INCLUDED Positions at tool magazine 30 Soluble Oil Lubricant Tank With Filter Paper + Magnetic INCLUDED External Electrospindle 18.000 rpm + Coolant INCLUDED 90º angle head MIMATIC INCLUDED Double rear chip conveyor INCLUDED Portable handwheel HEIDENHAIN HR-410 Machine Weight 25.500 kg. Large ...

Description: Cabinet with sliding door 4 pieces cross beams with stations for Toolholder VDI 40 content consist of 40 pieces toolholder VDI 40 of misc. manufacturers like mimatic, WNT and Zürn 2 pieces driven tool holder (1x straight and 1x angled) suitable e.g. for Okuma lathes 38 pieces static tool holder with misc. Interfaces like boring bar, drill chuck and square cross Transportdimensions: 1.200 x 800 x 2.100 mm, ca. 240 kg Approx. Onsite Dimension. (l x w x h): 1,000 x 500 x 1,950 mm, weight approx.: 220 kg

Description: Cabinet with sliding door 4 pieces cross beams with stations for Toolholder VDI 40 content consist of 40 pieces toolholder VDI 40 of misc. manufacturers like mimatic, Eppinger, Zürn, Holex 2 pieces driven tool holder (1x straight and 1x angled) suitable e.g. for Okuma lathes 38 pieces static tool holder with misc. Interfaces like boring bar, drill chuck and square cross v Transportdimensions: 1.200 x 800 x 2.100 mm, ca. 240 kg Approx. Onsite Dimension. (l x w x h): 1,000 x 500 x 1,950 mm, weight approx.: 220 kg

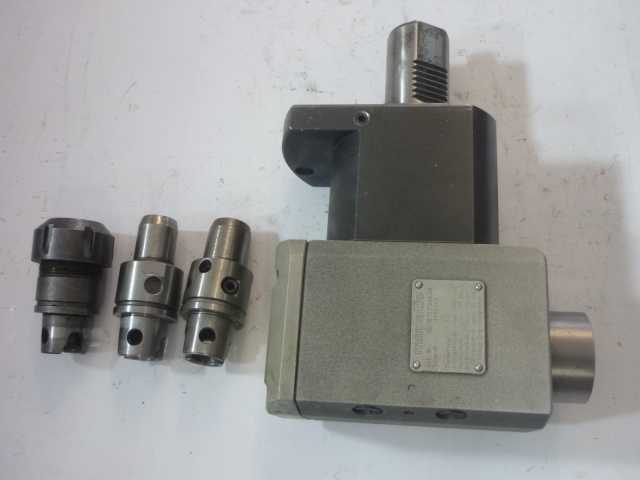

Description: 20 pieces Toolhodler VDI 40 from different manufacturers like mimatic, Eppinger and Zürn 5 pieces driven tool holder: 3 pieces angled and 2 pieces straight 15 pieces static tool holder with misc. Interfaces like boring bar, square cross and drill chuck The driven tools are suitable e.g. for Okuma lathes Transportdimensions: 800 x 600 x 400 mm, ca. 75 kg Approx. Onsite Dimension. (l x w x h): 800 x 600 x 400 mm, weight approx.: 60 kg
