milling machine used for sale

CONTROLS   CNC controls MAZATROL SMOOTH X BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1 WORKING RANGE TURNING   turning diameter (max): 658 mm   bar diameter (max): 80 mm   worpiece length max.: 1519 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   drive power: 30 kW   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 4000 /min   drive power: 26 kW   c-axis: yes X/Z SLIDE   Z-axis travel: 1585 mm   X-axis travel: 615 mm   Y-axis travel: 250 mm   rotating range B-axis up to: 210 °   rapid traverse Z: 50000 mm/min   rapid traverse X: 50000 mm/min   rapid traverse Y: 40000 mm/min X/Z SLIDE   rotating range B-axis up to: 0.0001 °   - rotation speeds (max): 12000 /min   - drive power: 24 kW TOOL MAGAZINE   number of positions: 72   tool diameter max.: 90 mm   - with free neighbour positions: 125 mm   t ...

CONTROLS   CNC controls MITSUBISHI M720BM BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   live positions: yes   number of c-axes: 2 WORKING RANGE TURNING   swing diameter (max): 700 mm   turning diameter (max): 350 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   spindle bore diameter: 90 mm   c-axis: yes X/Z SLIDE   - rotation speeds (max): 6000 /min TOOL MAGAZINE   number of positions: 24 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7500 kg ATTACHMENTS (TURNING)   chip conveyor: yes   coolant unit: yes   hydraulic system: yes   European CE standards: yes Machine in a good condition The spindle guides need to be replaced. Machine equipment (1500.- CHF (below)): - 1x double face and longitudinal turning tool holder - 3x face and longitudinal turn ...

Okuma Multus U 3000Year of manuf. : 2022 Control : Okuma OSP-P300 SA Turning diam. : 650 mmTurning length : 1000 mm____________Description:Main spindle:Technology:Motor spindleSpeed:4,200 rpmPower:22 kWTorque:427 Nmspindle bore:91 mmHollow clamping cylinder:86 mmC-axis:High precision packageChuck:SMW KNCS-N 275-86 K8Sub spindle:Technology:Motor spindleSpeed:5,000 rpmPower:22 kWTorque:420 Nmspindle bore:80 mmHollow clamping cylinder:77 mmC-axis:High precision packageChuck:SMW BHD-FC 210-52-3Tool carrier X/Y/Z/B:Technology:Milling spindleSpeed:12.000 rpmPower:22 kWTorque:120 NmTool holder:HSK 63Y-axis:250 mm (+/- 125 mm)B-axis:240°Tool magazin:Number of stations:80Equipment:Measuring systems:Direct in X/Y/Z axis (glass scales)Chip disposal:Chip conveyorCoolant supply:IKZ system, 70 barCoolant temperature control:Deltatherm E4Chip rinsing:working area, manual gunAccuracy package:C-ax ...

Index R 200Year of manuf. : 2009 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2009Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of station ...

Mazak Integrex i-100H SYear of manuf. : 2023 Control : Mazak Mazatrol SmoothAi Turning diam. : 600 mmTurning length : 850 mm____________Description:In General:Year of manufacture:2023Control system:Mazak Mazatrol SmoothAiMax. machining diameter:600 mmMax. machining length:850 mmMain spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Chuck:3-jaw chuckClamping cylinder:Hollow clamping cylinderSub spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Tailstock function:YesTool carrier (X/Y/ZB):Technology:Travelling column with milling spindleX-axis:535 mmY-axis:210 mmZ-axis:900 mmB-axis:-30° / +210°Milling spindle speed:20,000 rpmPower:24 kWTool magazin:Technology:Shelf magazineNumber of stations:250Tool changer:Double gripperEquipment:Chip disposal:Chip conveyorCoolant s ...

SMEC NS 2000 MYear of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mmTurning length : 243 mm____________Description:Work areamax. turning diameter:288mmmax. machining length:243mmX-axis:175mmZ-axis:350mmMain spindleChuck diameter:210mmMax. bar diameter:67mmSpindle bore diameter:76mmDrive power:10.5/20 kWmax. torque:213 NMmax. speed:4,500 rpmTailstockQuill diameter:65mmQuill stroke:80mmAxial force:4,312 NCenter point adapter:MT4Tool turretNumber of tool stations:12Tool holder:BMT45Powered tools:YesMax. speed:5,000 rpm

Nakamura NTJ-100Year of manuf. : 2015 Control : Fanuc 31i-B Turning diam. : 175 mmTurning length : 678 mm____________Description:In General:Year of manufacture:2015Control system:Fanuc i 31-BTurning diameter:175 mmMax. turning length:678 mmSpindle:Technology:Motorised spindleSpeed:4,500 rpmPower:11 kWBar capacity:65 mmC-axis:0.001°Clamping cylinder:Hollow clamping cylinderChuck:Collet chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmPower:7.5 kWBar capacity:51 mmC-axis:0.001°Clamping cylinder:Semi-hollow clamping cylinderChuck:Collet chuckTool carrier I (X/Y/Z/B):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:330 mmY-axis:80 mm (+/- 40 mm)Z-axis:1,040 mmB-axis:182° (+/- 91°)Tool carrier II (X/Y/Z):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:127 mmY-axis:65 mm (+/- 32.5 mm)Z-axis:678  ...

Condition: unchecked Item is sold as is Weight may be ggbfs. Deviate. Machine must be dismantled by the buyer and transported out of the hall area. It cannot be guaranteed that a forklift is on site. Auction-ID: A1-46354-61

Various sizes; white lacquered; FSC Auction-ID: A1-46266-402

Condition: unchecked Item is sold as is Weight may be ggbfs. Deviate. Machine must be dismantled by the buyer and transported out of the hall area. It cannot be guaranteed that a forklift is on site. Auction-ID: A1-46354-62

Cobalt milling machine set, 20 pieces High quality HSS M42 - 8% Coabalt milling cutters. Supplied in a beautiful wooden storage box. Technical specifications of the HBM 20-piece HSS - 8% cobalt cutter set. The set consists of the following keyway cutters: 3 - 4 - 5 - 6 - 8 - 10 - 12 - 14 - 16 - 20 mm. The set consists of the following end mills 3 - 4 - 5 - 6 - 8 - 10 - 12 - 14 - 16 - 20 mm. Condition: never used / new (5) Auction-ID: A7-46460-613

Auction-ID: A1-46501-2133

Oertli high-performance folding cutter with indexable inserts Z3 Auction-ID: A1-46501-2146

Bosch professional (blue) L-Box GKF 600 Professional 220 Incl. various milling cutters in a set incl. various accessories see pictures Auction-ID: A1-46501-808

Profile milling system for tongue and groove connections e.g. parquet, wall cladding,... Auction-ID: A1-46501-2064

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW weight of the machine ca.:130 mit Zubehör t z-travel:1.250 Ram mm w-axis:1000 Spindel mm ram stroke:1250 mm dimension of the ram:450 x 450 mm bore spindle stroke:1000 mm bore spindle turning speed range:920 1/min powered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table:3000 x 3500 mm Rotary-table: CNC-IOS 40 NC mm stepless adjustable, relative to diameter:Index 4x 90° -360000 Winkel =0,001 Grad mm travel - cross:Längs 1230 mm table load of rotary table max.:40 Tonnen clamping plate:3 x 8000 x 2000 mm CNC Ram-Type Floor Boring and Milling machine, dismantled and stored The headstock sliding guides were recoated and scraped.

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm,  ...

spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

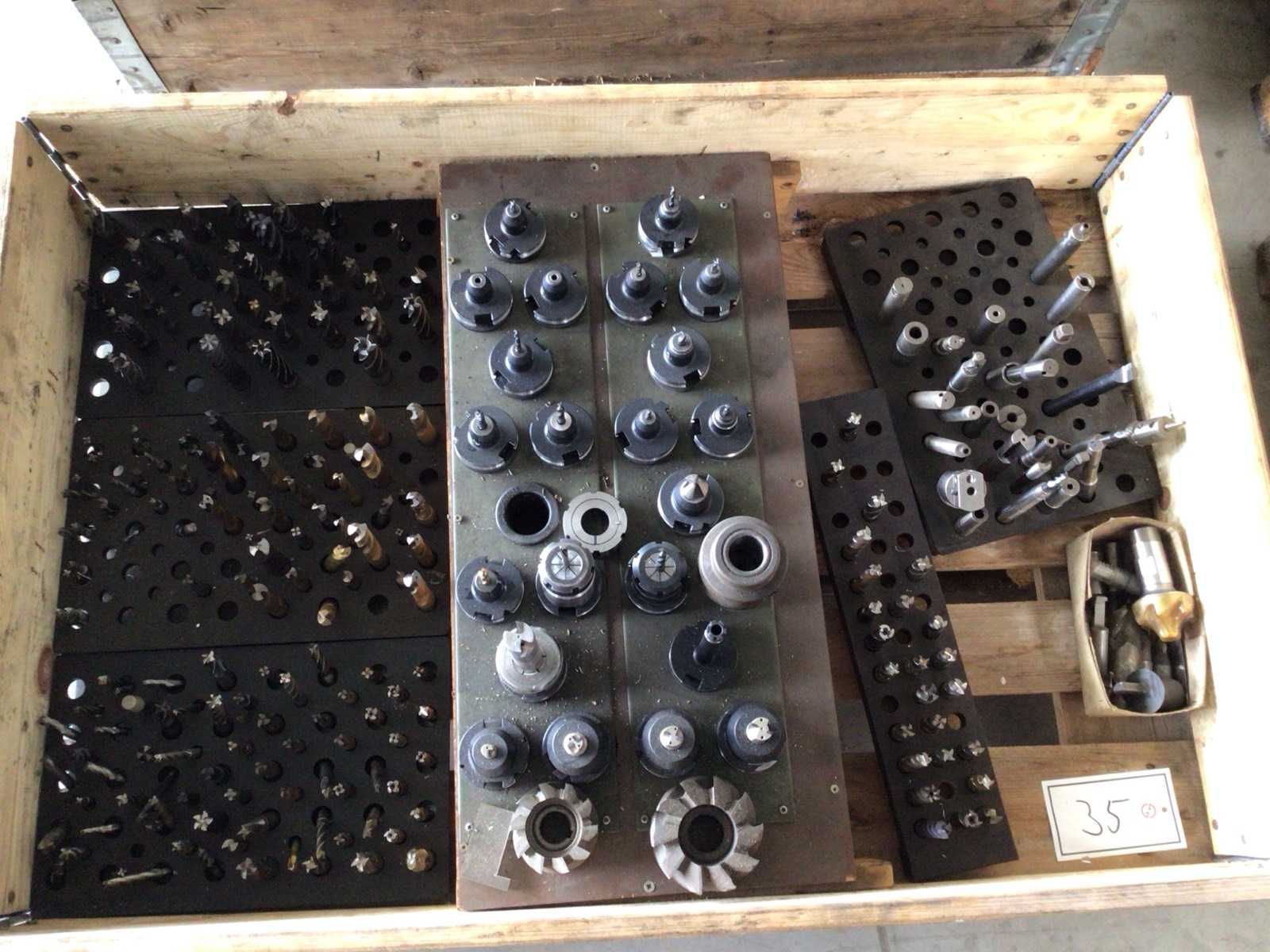

23x different SK40 mounts partially equipped, different drills, different milling cutters solid carbide Auction-ID: A1-46607-35

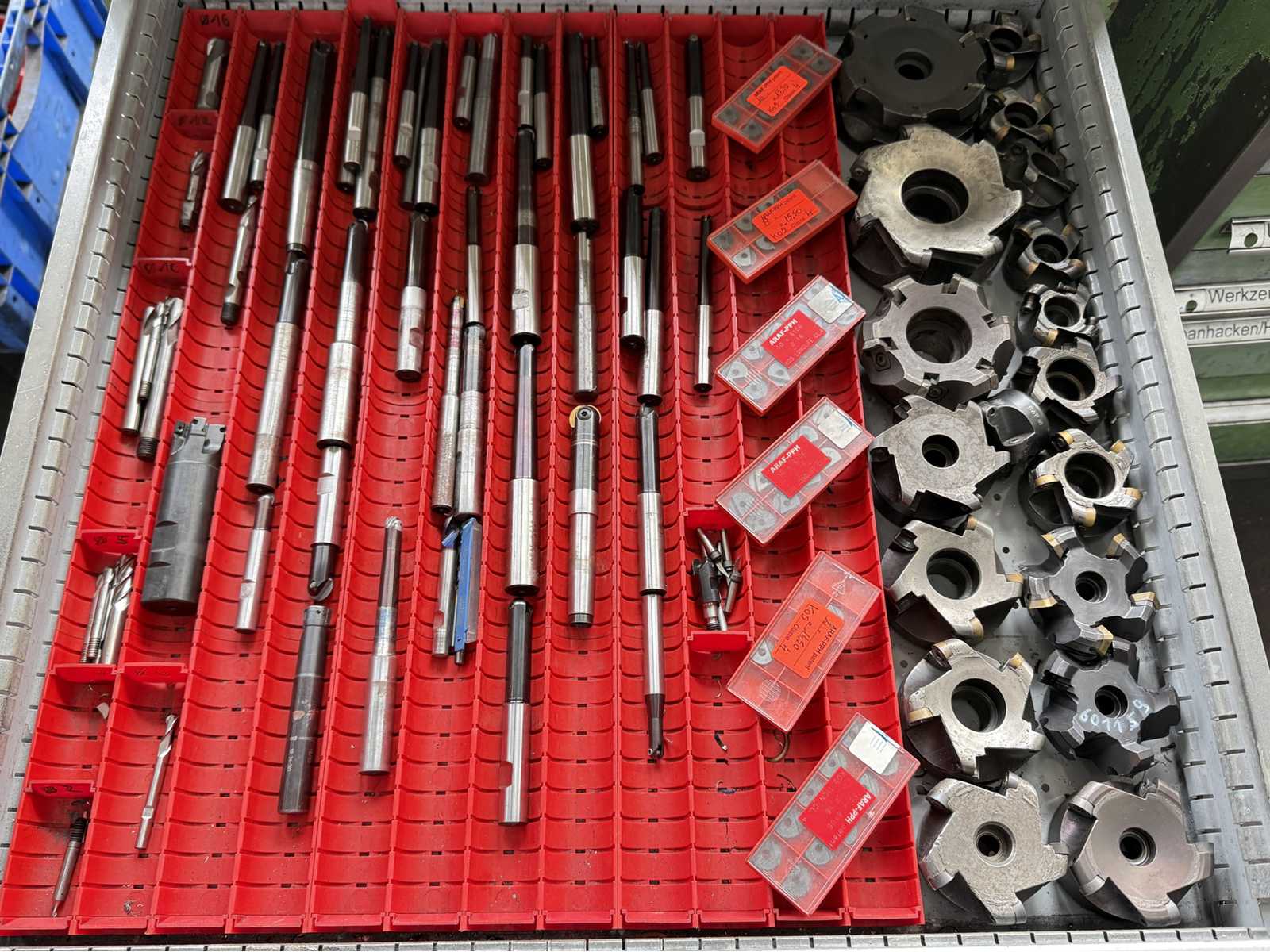

Various face milling cutters and indexable insert milling cutters in different sizes and designs; see photos for more details Auction-ID: A7-46619-303

Range of disc cutters in different sizes and designs; for more details see photos of the nameplates Auction-ID: A7-46619-295

TIG Welding Machine, Electric Welding Machine KESTRA Type TIG 350 AC/DCE Welding MachineFabr. No. 09720693 Year of construction approx. 1985Power 350 Amp. = 60 % EDExsetting range 3 steps and fine adjustmentCurrent type AC / DCNet connection 400 volts, 50 Hz, 32 Amp. Plug- 4 meter hose package with TIG torch- 2 stroke / 4 stroke welding device- Water-cooled- Gas pressure reducing valveSpace requirement L x W x H 1050 x 560 x 900 mmWeight 250 kgThe welding test gives good results when welding stainless steel with

TIG welding machine, electric welding machine DALEX type TGKW 55 (AC-DC)Series No. 532521 year of construction approx. 1975Power 225 Amp. = 60 % ED 125 Amp. = 100 % EDEsetting range 2.8 to 225 ampereCurrent type direct current and alternating current (AC-DC)Mains connection 380 volts, 50 Hz- Power setting via 5 coarse steps and fine adjustment via rotary potentiometer infinitely variable- 2-stroke and 4-stroke welding device- Remote controller with rotary potentiometer for fine adjustment- Digital display for ampere- TIG hose package 4 meters- Welding gas pressure reducing valve-
