Profile Bending Machines MG Limpet coil forming and rollin

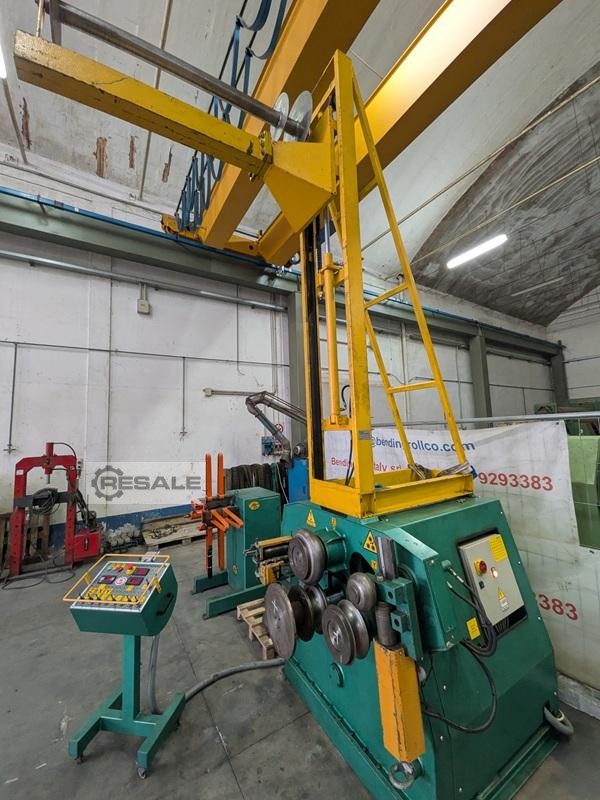

Limpet coil roller machine hydraulic

To form half round pipe from flat metal strip and bending into wanted radius with spiral continuous.

Manufacture MG srl
Year 2002
-Shafts output 80 mm

-Interchangeable set of molds to form half pipe 60 mm , 90 mm , 115 mm

-Coil holder for the reel metal strip with guide-way bench uncoiling and alignment the steel strip to the rolling machine

-Pinching lower central roll adjustable to form the half pipe
-Digital position readout to determine the bending diameter of the bending, the pitch of the spiral, the shape of the half tube forming
-hydraulic arm movable in 3 directions to set the pitch for continuous coil rolling
-Upper vertical support hydraulic operated to hold in position the formed diameter and collect the spiral from diameter 700 to diameter 3000 mm

-Operator console electric with push buttons and digital position readouts for the coil length, the bending radius and the forming load.
-Service manuals and operation books along with the machine.
