Universal CNC Bending Machines MG 2000x6 mm CNC plate roll

Sheet width: 2000 mm Plate thickness: 6 mm Daylight opening: 10 mm 4 ROLL HYDRAULIC PLATE BENDING MACHINE MODEL M2006P _NC EASY COMMAND 15” -MATR. C072/25 MACHINE NEW
PLATE BENDING ROLL PLANETARY DESIGN DOUBLE PINCH PRE-BEND BRAND MG SRL ITALY
CNC_PROGRAMMABLE AUTOMATIC PLATE ROLLING

Capacity:
-Width of plate: 2000 mm
-Thickness of plate rolling 6 mm
-Thickness of plate pre-bending 4 mm

Rolls dimensions:
-Surface length mm. 2050
-Top roll  mm. 160
- Lower roll  mm. 140

Configuration installed:
• Surface hardening of the four rolls, smooth finishing suitable for stainless plates rolling
• Dual pre-pinch, plate edges pre-bend automatic programmable
• Conical bending hydraulic attachment - hardened contrast pad.
• Power driven rolls rotation top/bottom gearbox axial direct drive hydraulic each roll.
• Calibration system for re-rolling of welded shells rounding.

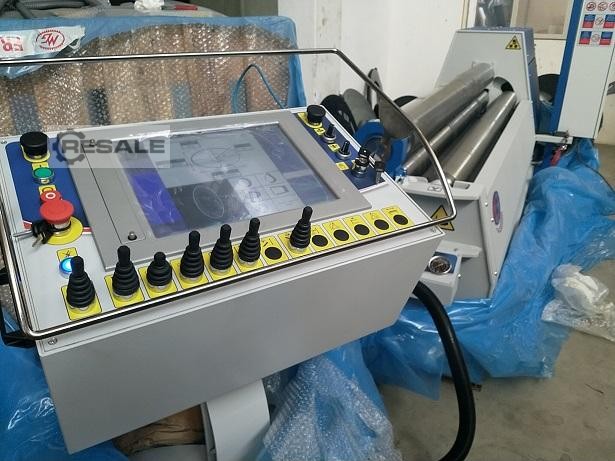

• Console electric independent with centralized commands joysticks and CNC screen readout.
• Opening front side hydraulic drop-end to unload closed shells.
• Variable working speed fast – slow .
• Safety installation with emergency stop.
• Instruction manuals for operation and service.
•
• NC controller on touch screen 15” , 5 axis programmable teach-in, virtual infinite programs memory on hdd and USB
digital readout of the axis for manual, semiautomatic and fully automatic programmable.
Network local connect for remote monitoring.

seller offer No. resale plate roll CNC 2000x6mm
