machining center used for sale

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/min Spindle power:26/20 kW max. torque on the spindle:340/262 Nm tool taper:HSK-A 100 tool change unit:120 (2x60) Pos. Pallet changer 2x:630 x 630 mm table load capacity:800 kg weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle  ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

x-travel:2000 mm y-travel:1600 mm z-travel:1140 mm b-axis:0.0001° x 360° ° number of pallets:4 table surface area:1000 x 1450 mm max. table load:6.000 kg turning speed range:4 - 10000 U/min power capacity at 100 % load:40 kW kW tool taper:HSK100 DIN69893A machine weight ab.:63.000 kg space required L x W X H:12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers

x-travel:450 mm y-travel:450 mm z-travel:450 mm weight of the machine ca.:14 t size of pallet:320 x 320 mm number of spindles:2 Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site Workpiece positioning stations can be rotated manually with hydraulic workpiece clamping 60 bar Pneumatic support control on the workstation Automatic swing gate Extended coolant layer 70 ba ...

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

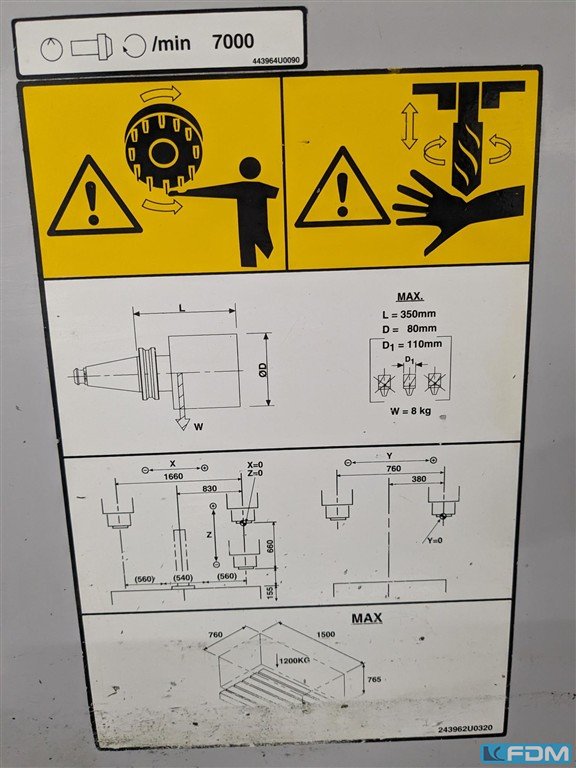

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.100 mm y-travel:900 mm z-travel:1.250 mm tool length:750 mm rapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daN feed capacity Z - max.:17.000 N spindle taper:SK50 max. workpiece weight:1500 kg revolutions per minute:10.000 U/min pallet table size:630 x 630 mm tool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:600 mm y-travel:410 mm z-travel:520 mm tool change unit:16 turning speeds:8000 1/min control:SIEMENS 810 shopmill table surface area:840 x 420 mm rapid traverse X- and Y-axis:36 m/min rapid traverse Z-axis:20 m/min taper ISO:SK 40 spindle drive:15 kW weight of the machine ca.:2,5 t space requirements approx. LxWxH:2,2 x 2,3 x 2,3 m vertical machining center, el. handwheel, no chipconveyor, approx. h "machine on", approx. h "spindle on"

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

x-travel:1.500 mm y-travel:700 mm z-travel:610 mm control:HEIDENHAIN iTNC 530 table-size:1.400 x 700 mm tool taper:SK 40 numbers of positions in the tool changer:48 fach spindle turning speed - stepless:15000 1/min rapid traverse:36 m/min table load capacity:700 kg spindle drive:25 kW total power requirement:30 kVA weight of the machine ca.:9,1 t dimensions of the machine ca.:3,7 x 2,65 x 2,9 m vertical machining center, 20 bar internal coolant supply with paper filter, 3D-touchprobe, chipconveyor, el. handwheel meter readings: approx. 43.600 h "machine on", approx. 20.000 h "spindle on",

x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:HEIDENHAIN iTNC 530 table load capacity:800 kg tool taper:HSK 63 turning speeds:16.000 1/min spindle:35 / 25 kW table-size:770 mm max. torque on the spindle:160 / 223 Nm tool change unit:120 (2x60) Pos. weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis), milling head horizontal, internal coolant device (10-80bar), oilmist-suction, electromech. tool-length measuring device GROB, chipconveyor, 3D touch probe, KINEMATICOPT, BLUM laser, el. handwheel, hour meter: approx. 82.000 h "machine on", approx. 48.800 h "spindle on"

x-travel:500 mm y-travel:400 mm z-travel:330 mm control:FANUC 31i B5 tool change unit:21 fach rapid traverse in x-y-z axis:54 m/min taper ISO:BT 30 turning speed range::10.000 1 / min spindle drive:11 / 3,7 kW max. table load:300 kg surface area:600x 400 mm Dimensions (L/W/H):1,6 x 2,1 x 2,25 m rapid traverse:48 m/min total power requirement:11 kVA weight of the machine ca.:2,1 t vertical CNC-milling-drilling machining center, Infrared Touch probe, el. handwheel, autom. door on right side, no internal Coolant Supply, Approx. 65.500 hours "machine on", approx. 8.200 hours "machine run"

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000 + HCN 6000-II, 2008), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply, accessories for both machines: 18 pallets, approx. 300pcs. toolholders, miscellaneous devices for workpiece-clamping...

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000-II + HCN 6000, 2005), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply,

x-travel:410 mm y-travel:610 mm z-travel:500 mm turning speeds:15000 1/min tool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mm table load:100 kg tool change unit:48 Pos. total power requirement:35 kVA weight of the machine ca.:7,4 t dimensions of the machine ca.:4,15 x 3,8 x 3,28 m 5-axis simultaneously machining center, NC-round-swivelling table, C-axis 360°, B-axis +30/-120°, chipconveyor, 3D touchprobe, internal coolant supply 20bar, el. handwheel, kinematicsopt, meter readings: approx. 9.600h "machine on", approx.3.500h "spindle on"

x-travel:2300 mm y-travel:1200 mm z-travel:600 mm turning speeds:30-10.000 1/min max. torque on the spindle:254 / 159 Nm control:HEIDENHAIN TNC 430 tool taper:SK 40 tool change unit:60 Pos. spindle:40 / 25 kW fixed working table:surface area:1.100 x 1.100 mm rotary table:1.100 x 1.100 mm rapid traverse:30 m/min total power requirement:69 kVA weight of the machine ca.:20 t universal machining center with indexing head (2,5°), NC-rotary table, max. table load 1.500kg, internal coolant supply 30 bar, paper filter, el. handwheel, chipconveyor, automatic doors, flush gun, no touch probe available, approx. 81.400 h main swich on approx. 72.200 h control on approx. 26.700 h program running on machine under power , for functional testing

x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30000 1/min tool taper:HSK E50 control:HEIDENHAIN iTNC 530 tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, el. handwheel, laser, prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe), mode 4, oilmist suction, spindle chiller, no internal coolant supply, approx. 141.300 hours "machine on", approx. 64.500 hours "spindle on" in total machine in good condition (test report available)

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

travel -x axis:1000 mm travel -y axis:500 mm travel -z axis:610 mm turning speed range:8000 1/min weight:5,5 to. control:HEIDENHAIN iTNC 530 tool change unit:24 Pos. Tool bore:SK 40 table-size:1.200 x 500 mm max. table load:850 kg total connected load:37 kW space requirements approx. LxWxH:2,65 x 2,1 x 2,9 m vertical machining center, internal coolant supply, direct measuring system, prepared for 3D-touchprobe (without touchprobe), chioconveyor approx. 21.200h "machine on", approx. 1.300h "spindle on"

x-travel:2600 mm y-travel:1100 mm z-travel:900 mm table surface area:3200 x 1100 mm rotary table diameter:1050 mm table load:1,2 t control:Heidenhain iTNC 530 ergoline 19" turning speeds:20 - 10.000 1/min taper ISO:SK 50 max. torque on the spindle:288 / 187 Nm tool change unit:60 Pos. rapid traverse:40 m/min spindle:44 / 32 kW weight of the machine ca.:25 t dimensions of the machine ca.:6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, internal Coolant 40 bar, coolant tank 600 l, Swarf Conveyer Rotoclear airblast through spindle, 3D Touch probe HEIDENHAIN TS 649, mode 4, prepared for 3D quick set (software yes, hardware no), new milling spindle in 2022 at 25.584h approx. 60.000 h machine ON, approx. 31.000 h Programm ON in total

x-travel:8500 mm y-travel:2000 mm z-travel:1500 mm rapid travel x/y/z:25 m/min table-size:10.000 x 1.350 mm table load:max. 5 t/qm universal head:orthogonal 1° x 1° tool taper:SK 50 milling head speed:4.000 1/min power capacity:37 kW max. torque on the spindle:900 Nm internal coolant system feed:15 bar control:HEIDENHAIN iTNC 530 Tool changer:60 Pos. total power requirement:75 KW dimensions of the machine ca.:12,7 x 5,2 x 4,6 m weight of the machine ca.:35 t universal travelling column - universal machining center, orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer) 3D touch probe M&H 20.41, dividing wall for 2 table machining, internal air blast, 15bar high pressure pump, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, handwheel HR 410, controlled security fence, miscella ...

x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

x-travel:2200 mm y-travel:2200 mm z-travel:1400 mm spindle taper ISO:50 spindle diameter in front bearing:110 mm spindle turning speed range:45 - 6000 U/min pallet table size:1000 x 1250 mm pallet worktable capacity:6000 kg feed range:1 - 60000 rapid traverse:60 m/min spindle drive motor:27 kW dimensions of the machine ca.:15 x 8,5 x 5,7 m total power requirement:133 kVA weight of the machine ca.:50 t Machine with SIEMENS 840 D control - full B-axis - palette changer for 3 palettes - tool changer for 244 tools - coolant through spindle - max. workpiece swing 2200 mm

Horizontal BAZ DMG MORI NHX-4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar - 900 litre tank - paper belt filter Chip conveyor Preparation Renishaw 3D - Probe

x-travel:1800 mm y-travel:1600 mm z-travel:1400 mm B-axis (table):360° size of pallet:1000 x 1250 mm workpiece swing dia.:2100 mm workpiece weight:3500 kg spindle taper ISO:50 spindle drive motor:37 kW spindle turning speed range:25 - 10000 U/min feed range:40/50 m/min rapid power traverse circular:10 U/min total power requirement:90 kVA weight of the machine ca.:43 t dimensions of the machine ca.:11 x 9 x 4,5 m Machine with SIemens 840 D control for 4 axis - full B-axis - palette changer - tool changer for 150 tools - coolant device with coolant through spindle - chip conveyor

x-travel:630 mm y-travel:630 mm z-travel:630 mm pallet size::400 x 500 mm spindle taper::HSK 63 spindle turning speed - stepless:10 - 16000 U/min total power requirement:55 kW weight of the machine ca.:11 t Machine with SIEMENS 840 D control for 4 axis - digital drives - palette changer 4-fold - tool changer 160-fold - coolant device with coolant through spindle - full B-axis - chip conveyor - hydr. workpiece clamping

x-travel:1100 mm y-travel:900 mm z-travel:1250 mm b-axis:360 000 x 0,001 ° milling head speed:1 - 10000 U/min spindle taper: ISO:50 rapid traverse:60 m/min pallet size::630 x 630 total power requirement:37 kW weight of the machine ca.:25 t with CNC control SIEMENS 840 D autom. toolchanger 165 pockets twin pallets 630 x 630 mm max. pallet load 1500 kg through spindle coolant chip conveyor and coolant attachment make KNOLL

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: CHIRON Type: FZ 12 KW HS Year of Make: 2007 Serial Number: 253-57 Machine Type: CNC Vertical Machining Center Control: Siemens Sinumerik 840D Powerline Operating voltage: 3/N/PE 400 V Frequency: 50/60 Hz Control voltage: 230/24 V Power: 51 kVA Rated current: 73 A Fuse: 80 A Machine weight: approx. 7,500 kg Travel X: approx. 550 mm Travel Y: approx. 300 – 400 mm Travel distance Z: approx. 425 mm Spindle speed: up to approx. 12,000 – 15,000 rpm (HS version) Configuration Siemens 840D CNC control Double clamping system / pendulum machining Automatic tool changer Chip conveyor Cooling lubricant system Extr ...

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders.
