Mazak VQC 15/40 Vertical Machining Center

Germany1986ID 170191696

Germany1986ID 170191696

usedVerified seller
Request price Directly to the seller

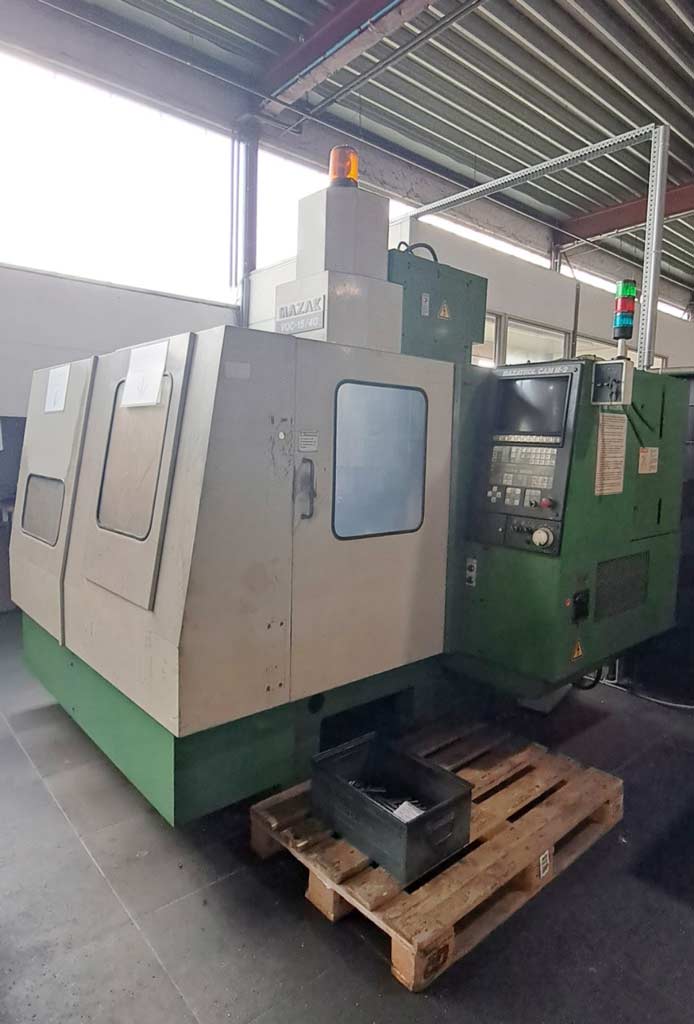

Mazak VQC 15/40 Vertical Machining Center
1 / 4

Technical data

· ID 170191696
Source: seller information

Used machinery

Condition
used
Year of manufacture
1986
Location
Deutschland

Identifikation

ManufacturerMazak

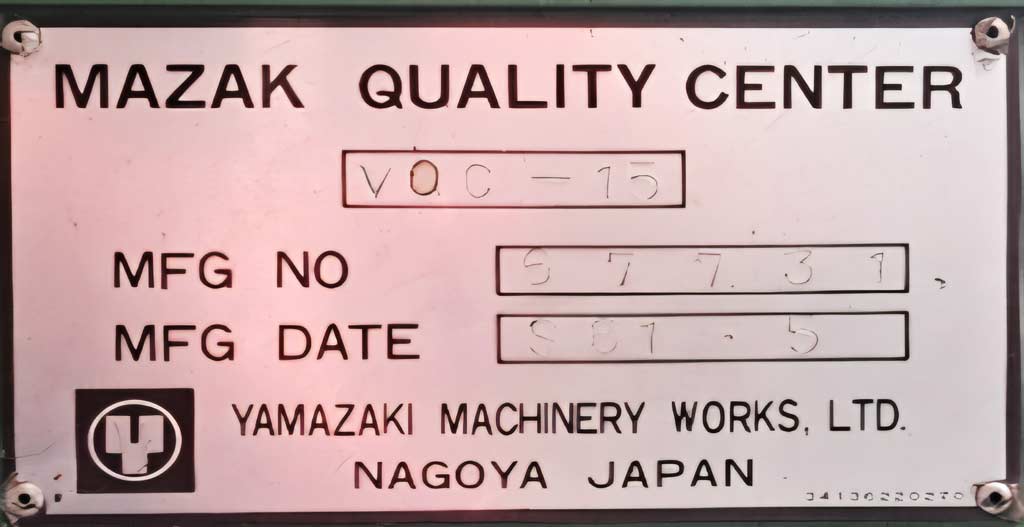

ModelVQC 15/40
Item numberINNO32375

Technik

Quantity1

Description

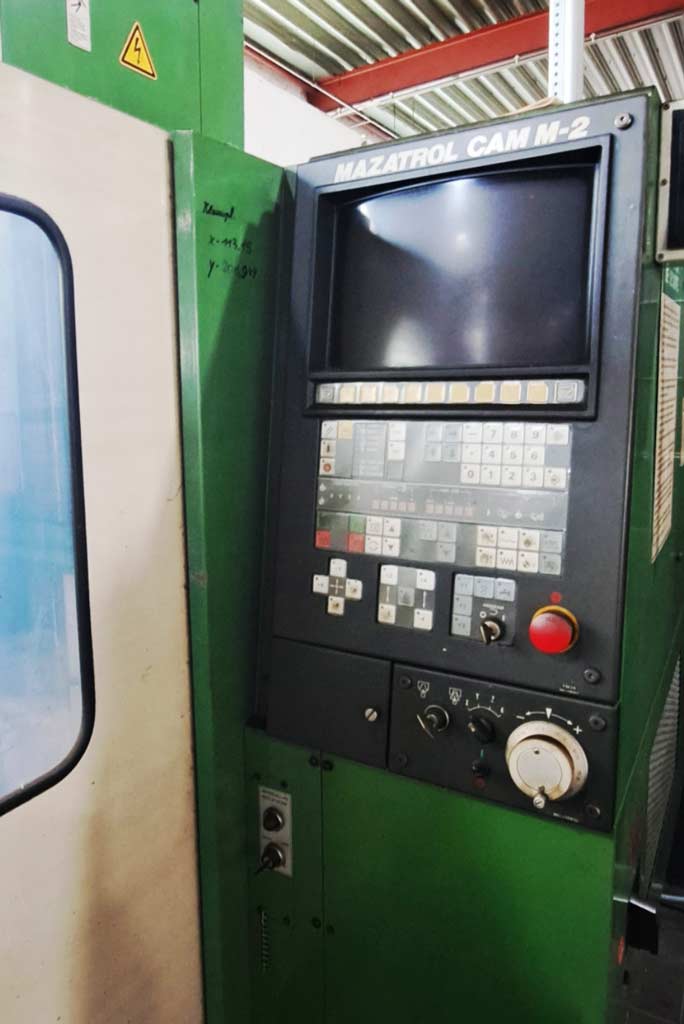

A vertical CNC machining center is offered. X/Y/Z-axis travels: 560mm/410mm/381mm, spindle speed: 60-6000rpm, drive power: 3.7/5.5kW, table size: 410mm × 900mm, max. table load: 300kg, tool shank: ISO 40 (MAS-BT40), rapid traverse X/Y/Z: 24/24/18m/min, control: Mazatrol CAM M-2. Equipped with original parameter lists. Weight: approx. 4200kg, overall dimensions X/Y/Z: approx. 2300mm/2000mm/2641mm. The program is missing because the machine has been disconnected from power for several years. Documentation available. Inspection possible by appointment.

Inquire about this machine

Your inquiry goes directly to the seller of this machine.

Fields marked with an asterisk are required.

An amount is optional. In the “Send price proposal” dialog you can also send your proposal as a message only.
Further details (optional)
Note on “Save details for 30 days”
Your contact details (title, name, email, phone, company, street, postcode, town, country and the “dealer” indication) are stored in cookies in this browser for 30 days so that the form is already filled in for your next inquiry. If you untick the box and send an inquiry, the stored details will be deleted.

When you submit, your inquiry is forwarded to the seller. More information can be found in our privacy notice.
