lynette used for sale

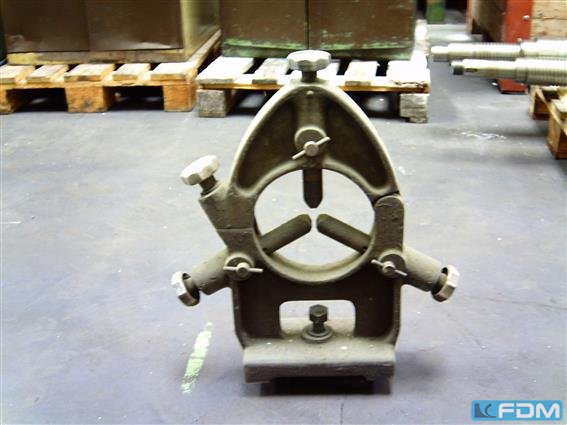

Bezel, stick, lynette -Max. Passage: Ø 160 mm -Tip height: 220 mm -Edition: gray cast iron -technical drawing with the photos -Dimensions: 450/100/H500 mm -Weight: 33 kg

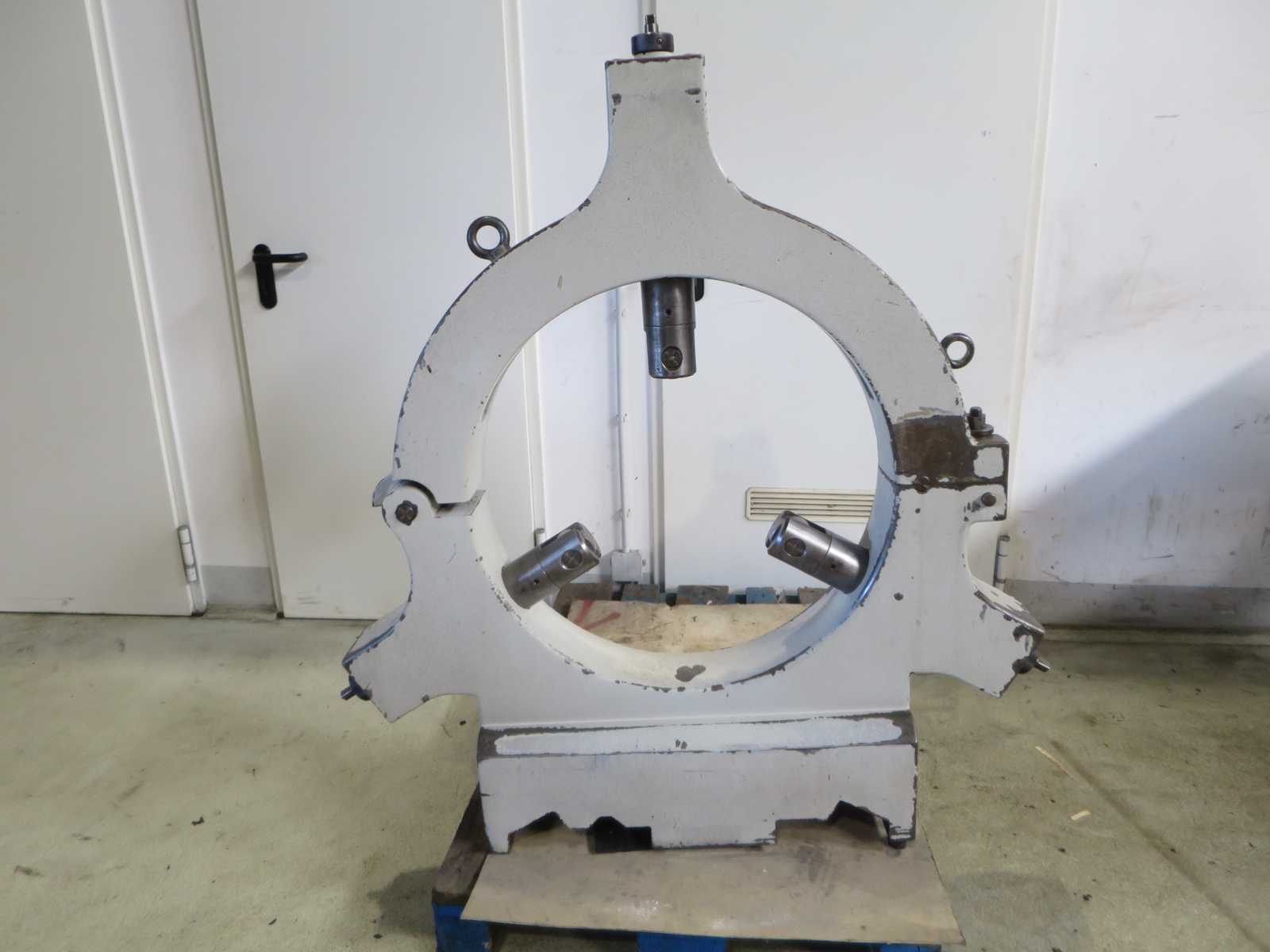

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: Ø 210 mm -Plating: brass -Tip height: 280 mm -Drawings with the photos -Price: per piece -Number: 1x available -Dimensions: 570/75/H645 mm -Weight: 33 kg

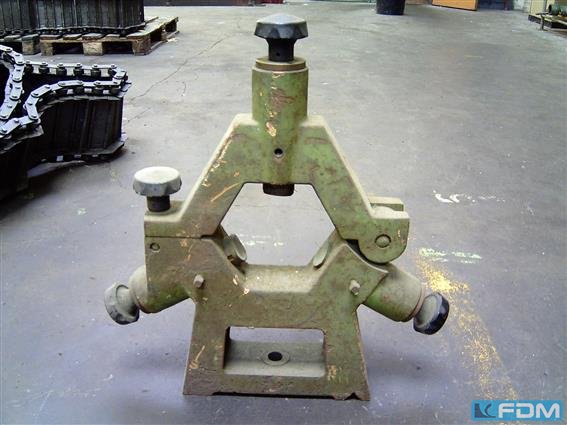

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: Ø 120 mm -Edition: ball bearings -Hole spacing: 350 mm -Tip height: 210 mm -Drawing with the photos -Dimensions: 395/85/H400 mm -Weight: 14 kg

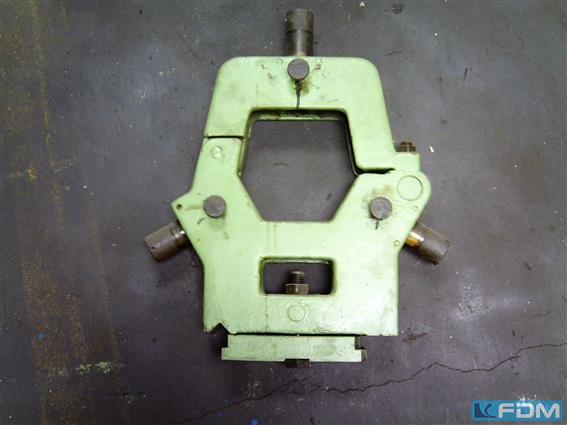

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: Ø 140 mm -Plating: brass -lower quill is missing -Tip height: 230 mm -Drawings with the photos -Price: per piece -Number: 1x available -Dimensions: 510/480/H110 mm -Weight: 22 kg

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: 130 mm -Plating: brass -Hole spacing: mm -Tip height: 95 mm -Drawings with the photos -Price: per piece -Number: 2x available -Dimensions: 380/350/H110 mm -Weight: 15 kg

Moving steady rest, moving steady rest, steady rest, lynette -Bezel: traveling -Top height: approx. 192 mm -Plating: brass -Dimensions: see photos / technical drawing -Quantity: 2x bezel available -Price per piece -Dimensions: 220/60/H325 mm -Weight: 2.4 kg/pc.

Key data: 324 mm, 600 mm

CNC lathe GILDEMEISTER CTX 420 linear V 3 With control Heidenhain ELTROPILOT 4290 Year of construction: 2003 Max. rotatable diameter: 324 mm Max. rotatable length: 600 mm Max. circulation diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4500 rpm With the following accessories: Slide protection with interior lighting 12-speed turret with 12 driven stations 50 tool holders VDI 40 5 driven tools VDI 40 1 pc Hydraulic Lynette Tailstock with quill Conveyor Hydraulic jaw chuck Forkardt 0 250 mm Foot switch for jaw chuck + tailstock adjustment Coolant device 210 l ( 20 l/min ) 6 bar Operating instructions

NARDINI - AM 400 A incl. 2-axis/digital display - Turning diameter over bed 850mm - Turning diameter over support 500mm -Spindle bore 120mm -Turning length 1000mm -Three-jaw chuck - ROTAS 500 D7tarmg -Lynette -5x multifix inserts -Feed protection Dimensions: LxWxH 3.7x1.6x2 meters /Weight 4400Kg

workpiece weight: 279 KG length: ca. von Bett bis Lynette mm : 189 € . max: durchlass 369 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cycle-controlled lathe WEILER E 40 With Siemens Sinumerik SL 1 cycle control Year of construction: 2013 Spindle bore: 66 mm Center width: 1000 mm Circulation O above bed : 435 mm Circulation O over face slide: 200 mm Center height: 210 mm Speed range: 1 – 3500 rpm infinitely variable With the following accessories: Slide protection with interior lighting 4-fold PARAT tool holder 20 PARAT tool holders 3 jaw chucks RÖHM Duro T 200 1 pc Rotating Lynette 0 160 mm Tailstock with extendable drill quill Coolant device Chip drip tray Operating instructions

We have a very wide range of accessories for Kellenberger - Santiago &-Miwatecmaschinen. Grinding wheel flanges new u. - used. Chuck flange recordings MK 5 SK 50 for magnetic Chuck, three & four-jaw Chuck. Running with Center points, and fixed. Three-jaw four-jaw &-special Chuck. Magnetic clamping plates, cross - ring - Sternpolteileung. Truing devices, RADIUS &-inclined dressing Lynetten 2 & 3 jaw

Key data: 500 , 1500 , 500

Technical description: Turning diameter over bed 500mm Turning diameter via support 325mm Turning diameter in bridge 630mm Center width 1500mm Bed width 330mm Spindle nose CAMLOCK Gr.8 Spindle bore 80mm Speed levels 15 Speeds 24 – 1600 rpm Metric threads 66 0.5-28mm Inch thread 66 1-56 Module thread 33 0.5-3.5 Diametrical Pitch 33 8-56 Longitudinal feeds 0.072-4.038mm/U Cross feeds 0.036-2.019mm/rev Tailstock MK5 Tailstock pinole stroke 120mm Motor power 380V 5.5KW Weight Approx. 1900kg Equipment: Digital display 3 axes with glass measuring rods. Quick-change steel holder system Multifix compatible Gr.B with 4 pockets, removable bed bridge, lining protection with electr. Locking, foot brake, coolant system, fixed stop, halogen work light, 3-jaw chuck, 4-jaw chuck, clamping disc, lynettes, tips, hardened and ground bed guide tracks, hardened and ground gears, ti ...

Description WEILER flatbed lathe E70/2 Good general condition, geometry fine. Equipped with Forcardt lining, incl. lynettes. Details Machine No. 48° Year of construction 1995 Operating voltage 400 V Control voltage 24 / 230 V Connected load 28 kW Rated current 45 A Frequency 50 Hz NUM Control

turning diameter over bed: 1000 mm turning diameter over slide rest: 710 mm turning length: 7000 mm max. workpiece weight between centres: 10000 kg spindle turning speed range: 1,8-400 U/min tailstock quill taper metric: 80/1:10 tailstock - quill dia: 170 mm tailstock - travel of quill: 200 mm Tailstock quill travel speed: 2150 mm/min main drive motor: 37 kW longitudinal feeds:: 0,125-48 mm/U face feeds: 0,4 der Längsvorschübe weight of the machine ca.: 17 t dimensions of the machine ca.: 11x1,9x2 m machine was mechanically and electrically overhauled in the last years. - taper turning function - 3 lynettes - misc. center points for tailstock - set of change gears The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
