24 PICANOL PCB boards from PICANOL looms composed of: 3 x PICANOL AISQ-B/2C-1 ref. BE151623, 1 x PICANOL AISQ-B/4C-1 ref. BE151624, 4 x PICANOL GDLP-2 ref. BE152373, 1 x PICANOL J-1 ref. BE152379, 2 x PICANOL DTS-1 ref. BE153319, 4 x PICANOL AIS-C/HP/4C-4 ref. BE153947, 2 x PICANOL AISE/HPT280/TI/6C-4 ref. BE153951, 3 x PICANOL CPUE-3 ref. BE154114, 3 x PICANOL AUT-S/EP2C-3 ref. BE154180, 1 x PICANOL SUP-3 PH600S ref. BE205734
Working width: 2100mm, weft insertion system: flexible rapier, max. weft colors: 8, max. machine speed: approx. 320rpm, max. weft insertion rate: approx. 650m/min, dobby: Stäubli type 2600, max. dobby capacity: 20, max. warp beam diameter: approx. 800mm. Machine dimensions X/Y/Z: approx. 3950mm/1950mm/1850mm, machine weight: approx. 3200kg. Inspection possible by arrangement.
Working width: 2500mm, needle beam stroke: 60mm, max. stroke frequency: 1200/min, drive motor power: 22kW, number of needle boards: 6, length: 1100mm, width: 3800mm, height: 2020mm, weight: 5.2t. Without electronics, spare parts: needle beam, gearbox, bearing housing, bearings, and others. An on-site inspection is possible.
wire diameter range 1,5-7 mm mesh width 15-80 mm line wire distance 15-80 mm working width 2100 mm mesh width automatic 200 mm output - strokes/min 22
3 Dilo needle looms are offered. 1) Pre-needling and finish-needling machine Dilo, DILOOM OD-II HVL 55, year of manufacture: 2000, number of needle boards: 2, working width: 5500mm, max. stroke frequency: 1000strokes/min, needle beam stroke: 60mm, needle board width: 200mm each, needle distribution range: approx. 3000-5000needles/m. 2) Double needle loom Dilo, DI-LOOM OUG-II S50, year of manufacture: 2000, working width: 5000mm, number of needle boards: 4, needle beam stroke: 60mm, max. stroke frequency: 1200strokes/min, needle density: approx. 18000needles/linear m. 3) Pre-needling and finish-needling machine Dilo, DI-LOOM OD II 55, year of manufacture: 1998, working width: 5500mm, needling system: Downstroke, number of needle boards: 2, needle beam stroke: 60mm, max. stroke frequency: 1200strokes/min, needle board width: 200mm each. Inspection possible by appointment.

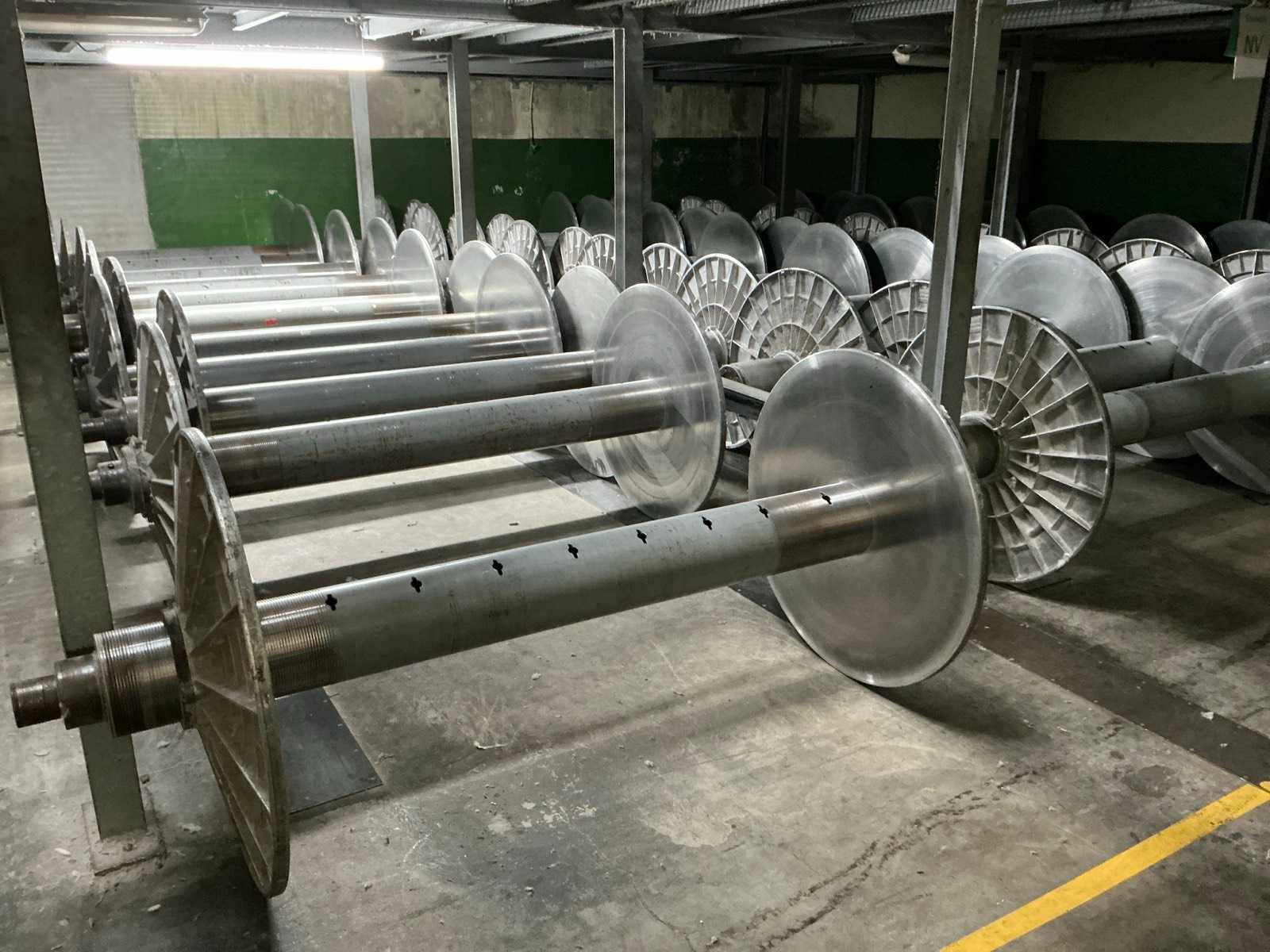

Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-21

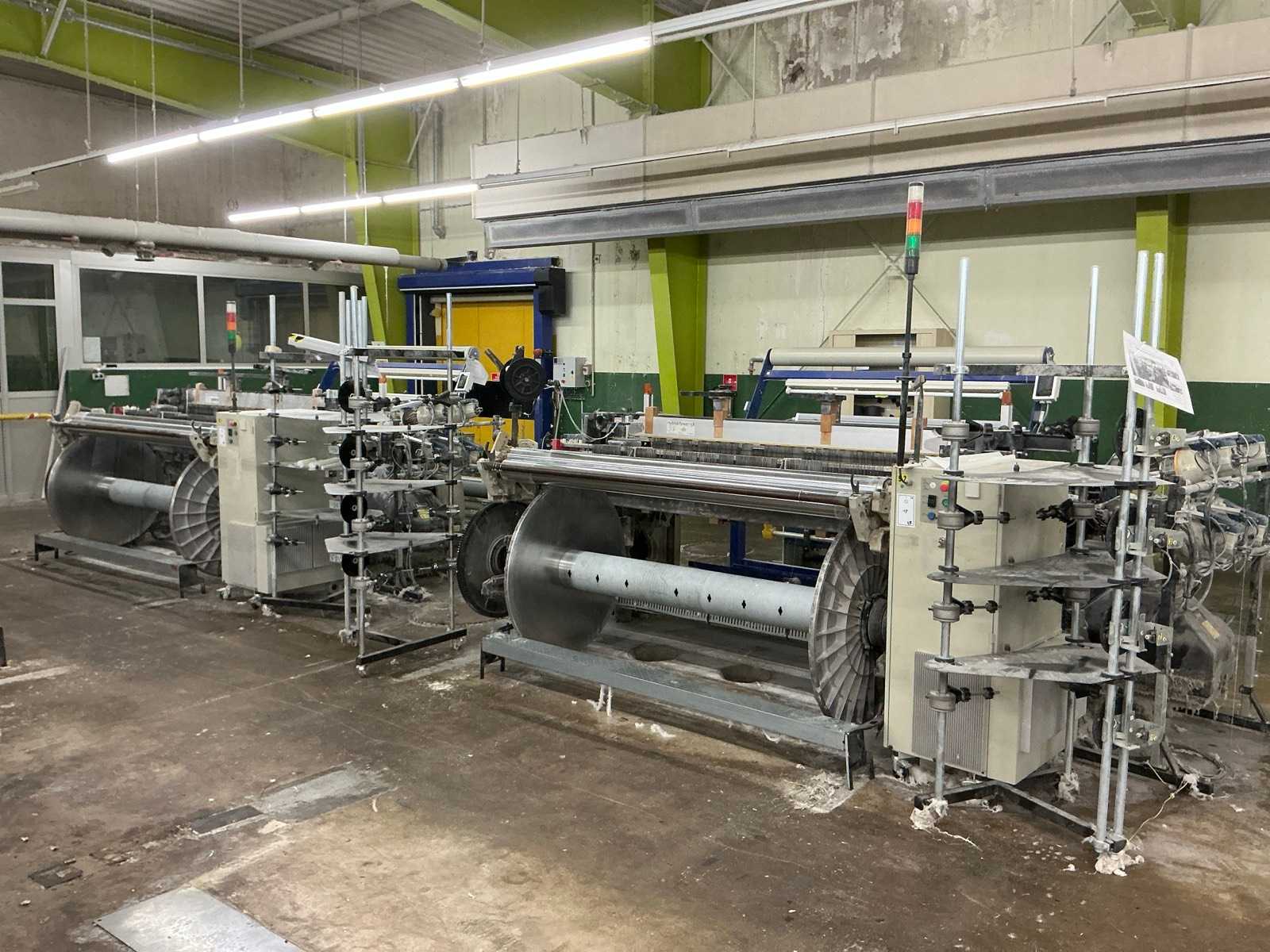

Quantity: 3 Year: 2011 Manufacturer: PICANOL N.V. Model: OMP800-4-P Machine number checked: 303906 and 303833 Weight: 3100 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Equipment: Pneumatic loom with microprocessor control and touch screen. Grid insertion by main and auxiliary injectors. 4 color selection. Stäubli type 1781 crowd formation, maximum capacity 10 frames, with 7 levers and 4 eccentrics. Grob Chain Breaker. ETU regulator, e-leno selvedges, electronic unwinder, central lubrication and SUMO drive. Auction-ID: A1-48824-14
Quantity: 2 Year: 2014 Manufacturer: PICANOL N.V. Model: OMNIplus Summum-4-P Machine No.: 327850 and 327849 Working width: 1900 mm Weight: 2800 kg per machine Maximum speed: 1100 rpm Training: SUMO, 380-460 V Equipment: Pneumatic loom with Picanol BlueBox platform and color touch screen. Grid insertion by main and auxiliary injectors, 4-color selection, Smart Argus detector and automatic repair PRA II Plus. Stäubli type 1781 crowd formation for 10 frames. Electronic unwinder, ETU regulator, e-leno selvedges and ELSY Plus devices. GROB KFW 5601 chain breaker with 6 electrodes. Vertical support for 8 coils and 4 weft measuring heads. Without frames and without a warp beam. Auction-ID: A1-48824-19
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-42
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-24
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-20
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-26
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-39

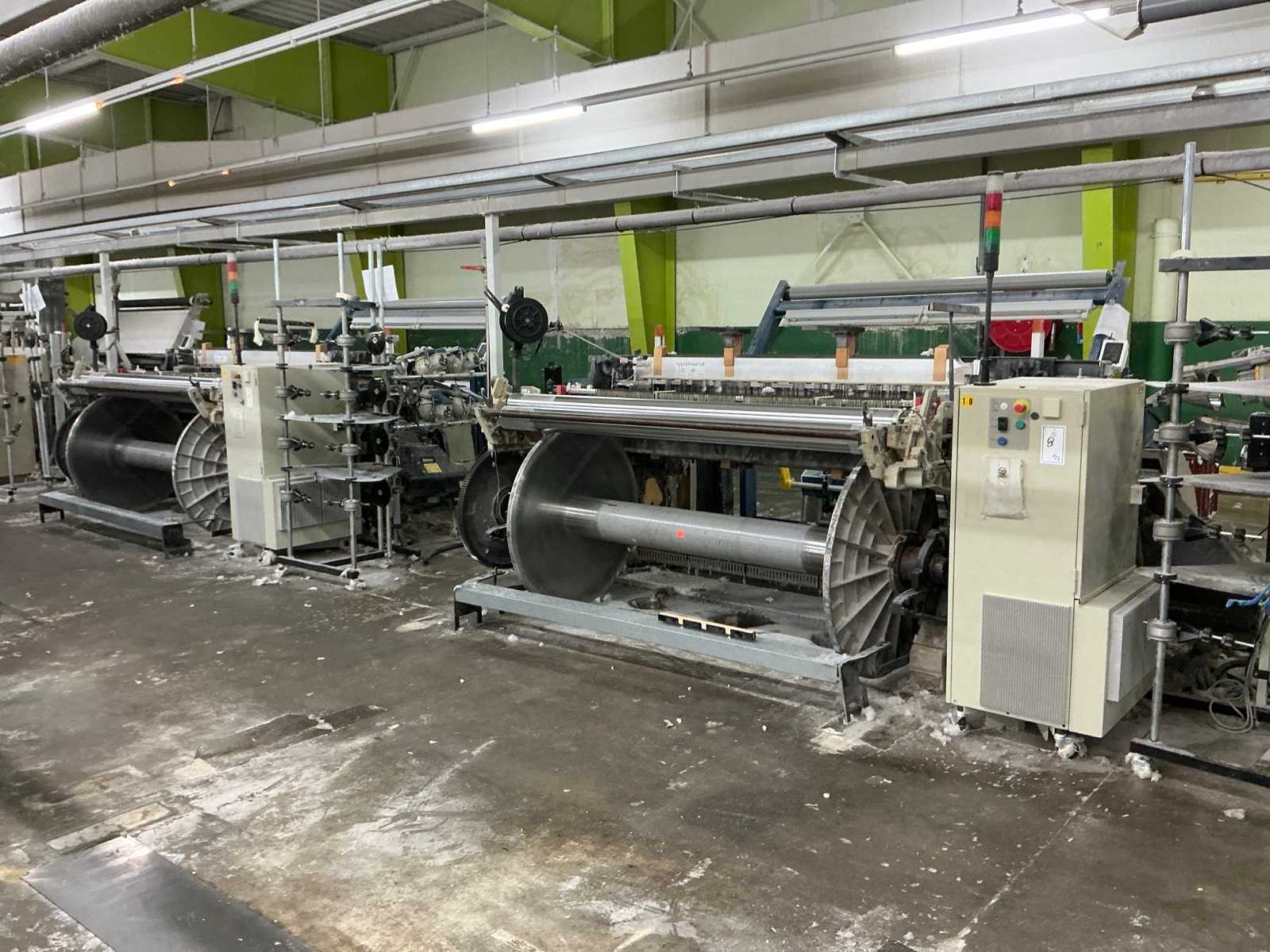

Quantity: 3 Year: 2011 Manufacturer: PICANOL N.V. Plate model: OMP800-4-R Document description: OMNIPLUS800-4-R 190 Machine No.: 304874, 304871 and 304539 Weight: 3000 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Maximum speed: 1000 rpm Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor control and touch screen. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Stäubli electronic dobby type 2881, frame for 16 frames with 10 hooks. GROB unwinder, ETU regulator, e-leno rotary selvedges and central lubrication. GROB KFW 5601 chain breaker with 6 electrodes. Beam supports for flanges up to 1000 mm. Auction-ID: A1-48824-15

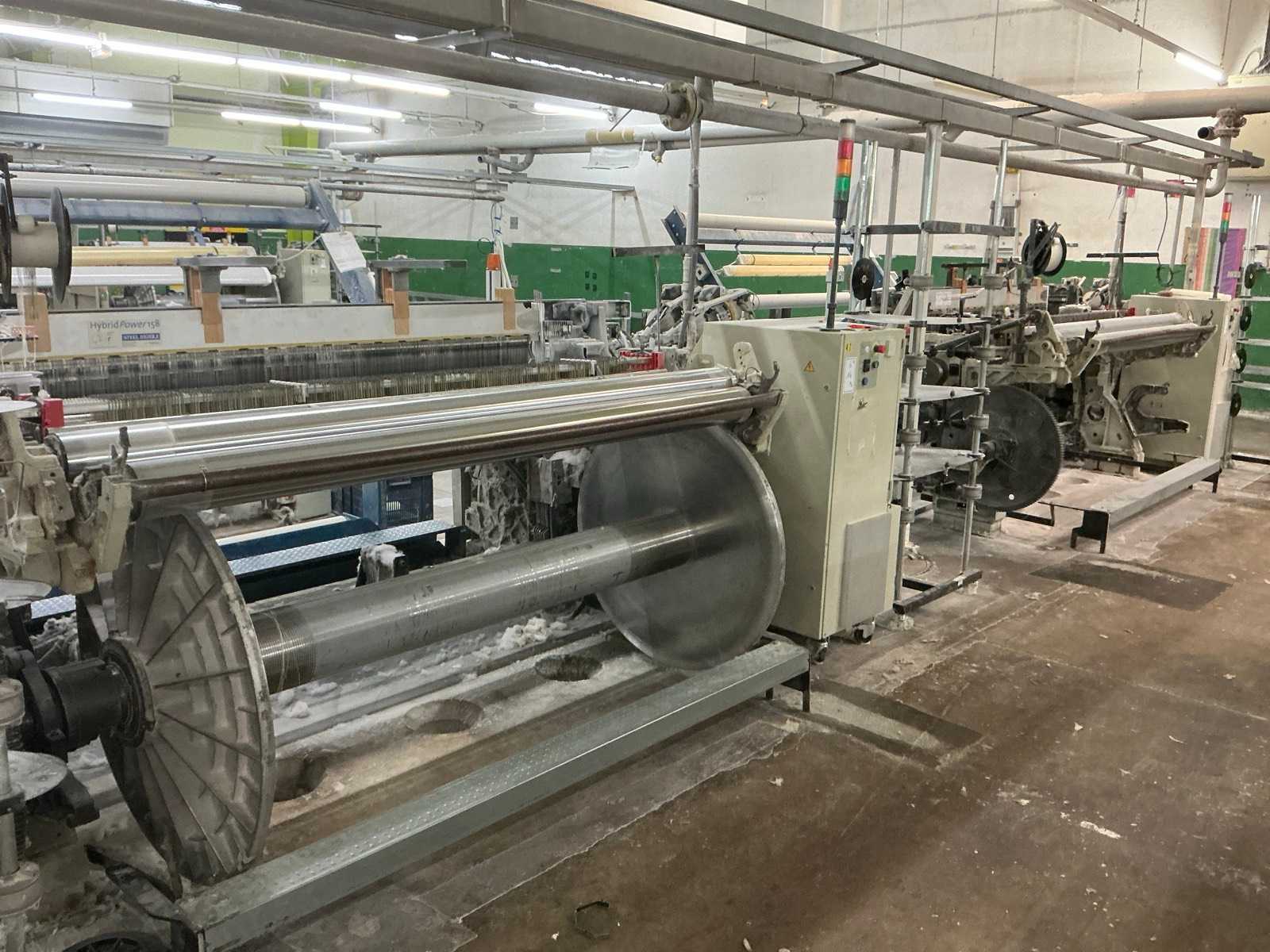

Quantity: 2 Year: 2011 Manufacturer: PICANOL N.V. Model: OMP800-4-P Document description: OMNIPLUS800-4-P 190 Machine No.: 303830 and 303832 Weight: 3100 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Equipment: Pneumatic loom with microprocessor control and touch screen. Grid insertion by main and auxiliary injectors. 4 color selection. Stäubli type 1781 crowd formation, maximum capacity 10 frames, with 7 levers and 4 eccentrics. Grob KFW 5601 Electric Chain Breaker. ETU electronic regulator with programmable variable dimming. E-leno rotary selvedges. Electronic unwinder, central lubrication and SUMO drive. Auction-ID: A1-48824-8
Quantity: 2 Year: 2011 Manufacturer: PICANOL N.V. Model: OMP800-4-P Machine number: 303831 and 303821 Weight: 3100 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Equipment: Pneumatic loom with microprocessor control and touch screen. Grid insertion by main and auxiliary injectors. 4 color selection. Stäubli type 1781 crowd formation, maximum capacity 10 frames. Grob chain breaker, ETU regulator, e-leno selvedges, electronic unwinder, central lubrication and SUMO drive. Without frames and without a warp beam. Auction-ID: A1-48824-17

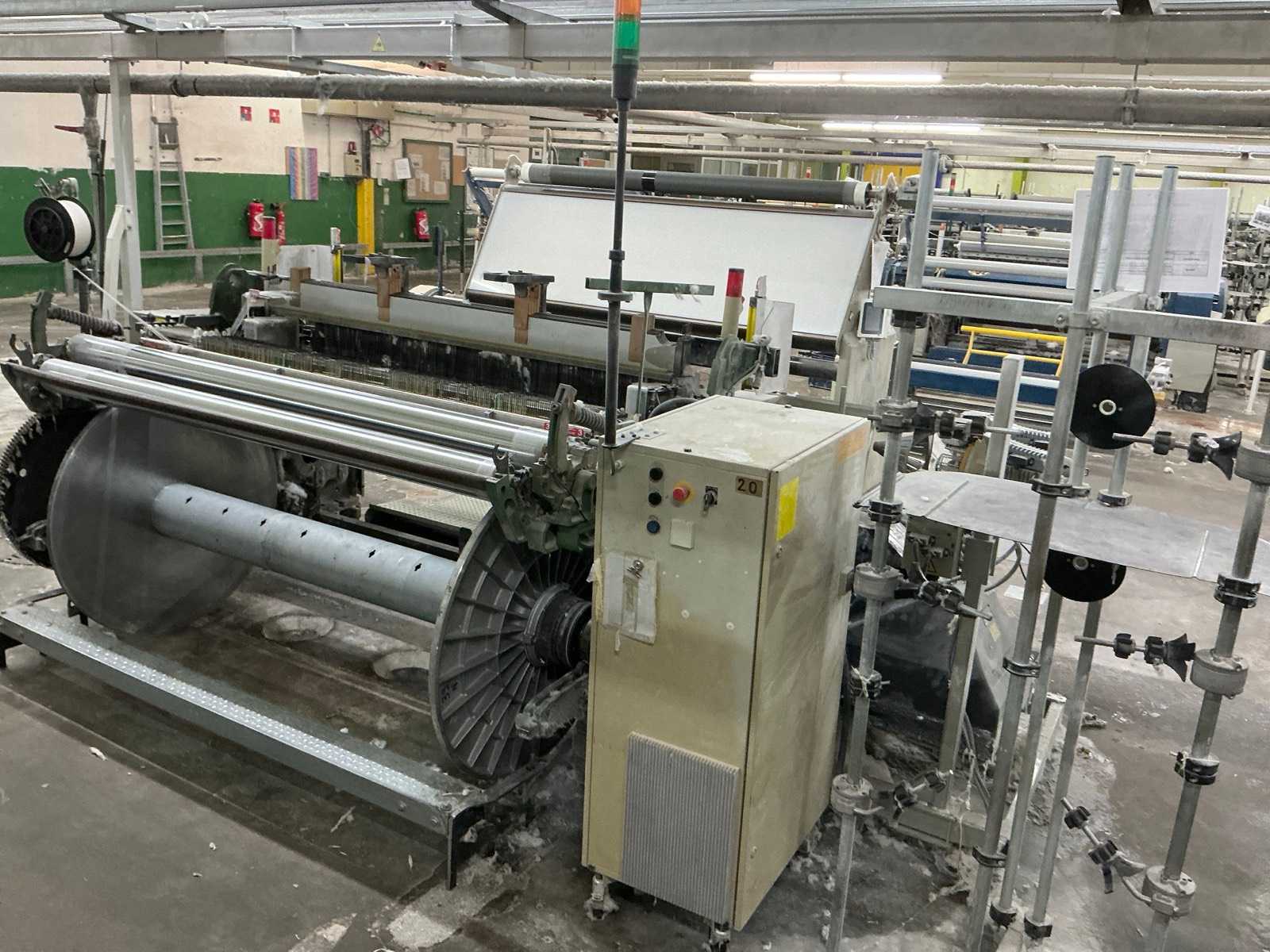

Quantity: 3 Year: 2001 Manufacturer: PICANOL N.V. Plate model: OMP-4-P Designation: OMNIplus-4-P 190 CM Machine No.: 255490, 255514 and 255262 Width: 1900 mm Weight: 3100 kg per machine Maximum speed: 980 rpm Power supply: 380 V, three-phase, 50 Hz Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor and display control. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Suspension for 10 frames. PICANOL unwinder with DC motor, electronic regulator with variable deduction and rotating selvedges. GROB KFW 2400 chain breaker with 6 electrodes. Central lubrication and adaptation for independent reel. Auction-ID: A1-48824-11
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-38
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-40
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-41
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-25
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-23

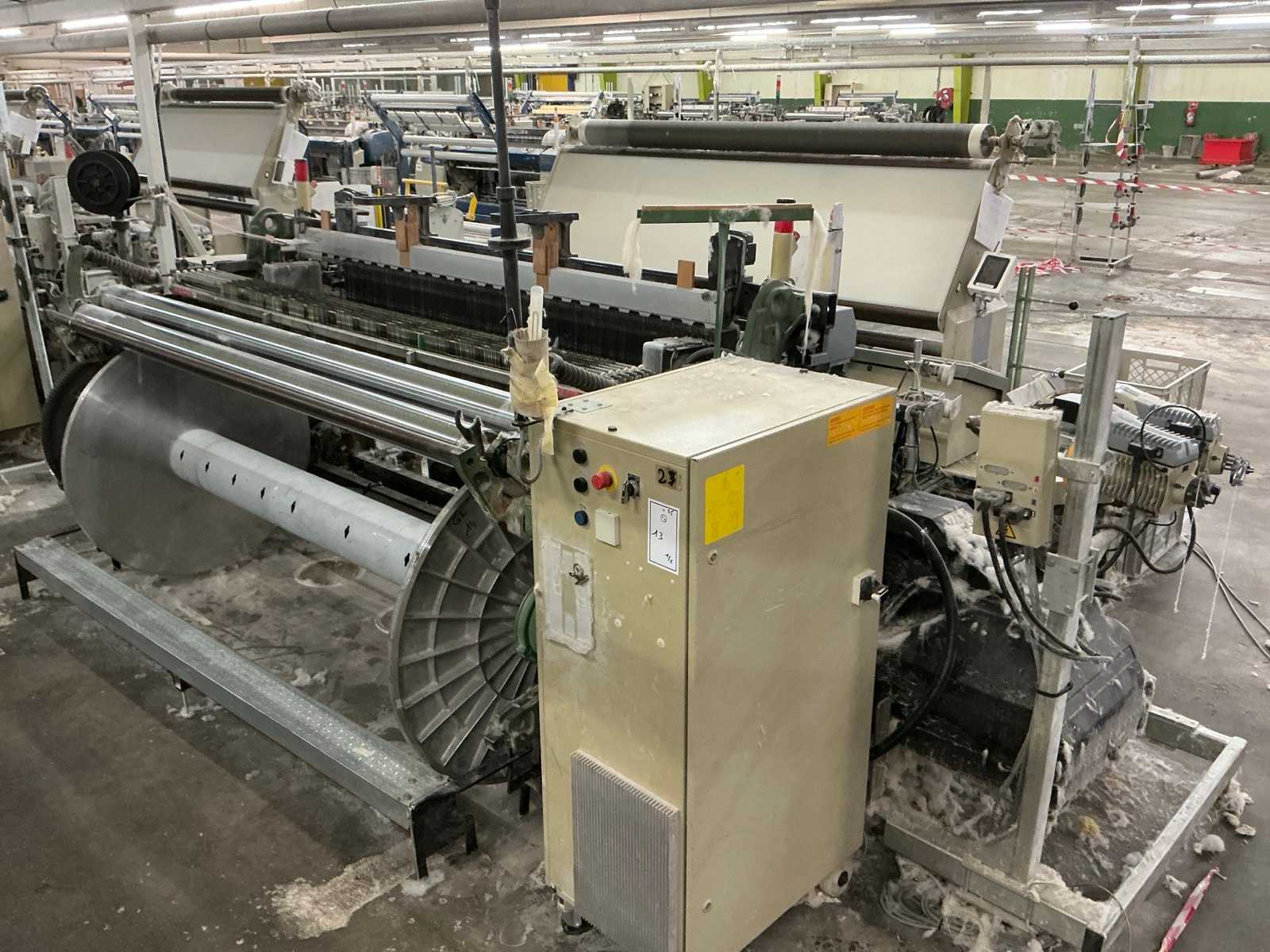

Quantity: 3 Year: 2011 Manufacturer: PICANOL N.V. Model: OMP800-4-R Designation: OMNIPLUS800-4-R 190 Machine No.: 304645, 304872 and 304873 Weight: 3000 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Maximum speed: 1000 rpm Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor control and touch screen. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Stäubli electronic dobby type 2881, frame for 16 frames with 10 hooks. GROB Superior Unwinder, 400 V, 0.37 kW. GROB KFW 5601 chain breaker with 6 electrodes, ETU regulator, e-leno rotary selvedges and central lubrication. Auction-ID: A1-48824-16

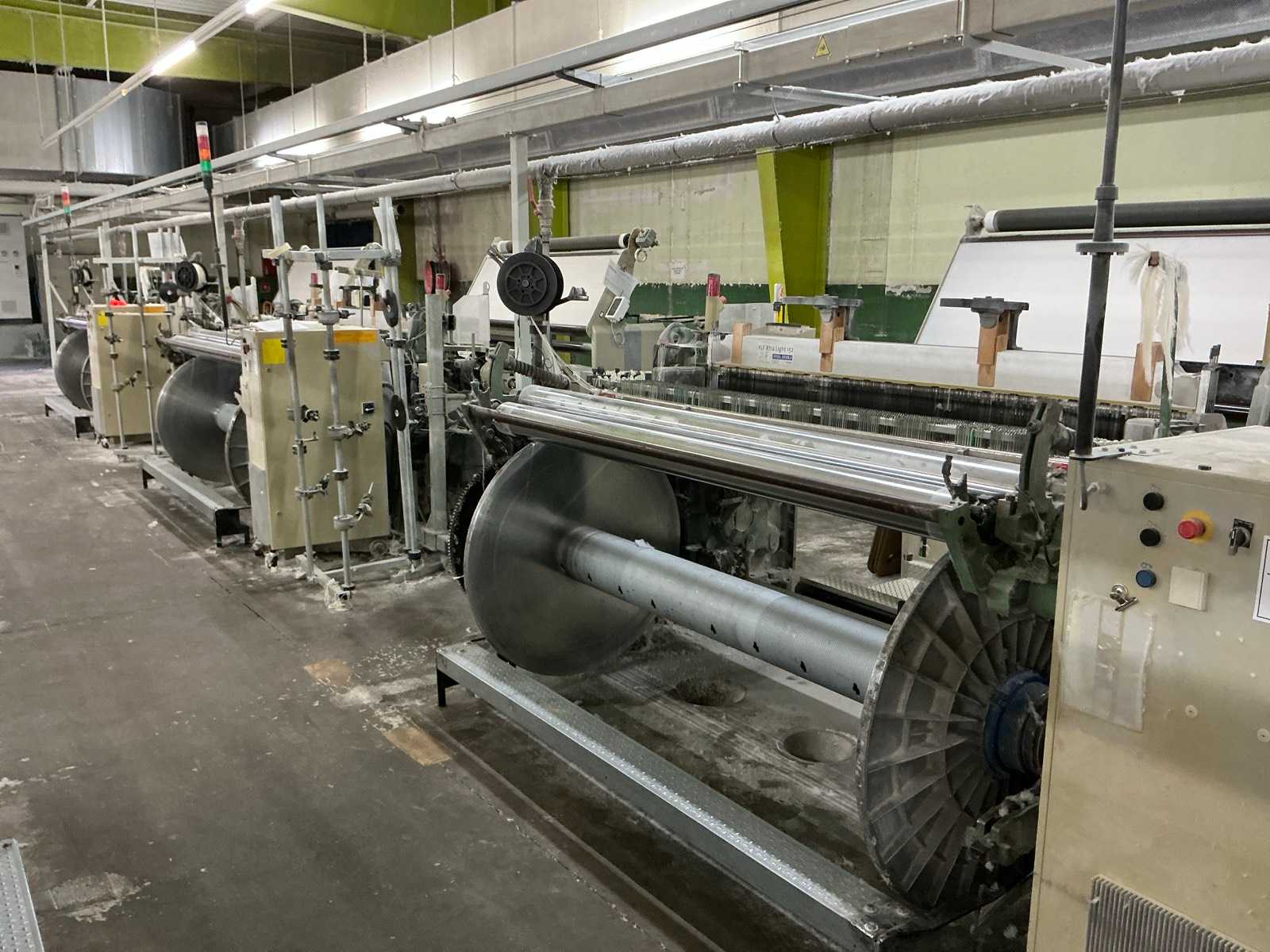

Quantity: 3 Year: 2011 Manufacturer: PICANOL N.V. Model: OMP800-4-P Legible machine numbers: 303819 and 303820 Weight: 3100 kg per machine Reedwidth: 190, unit not shown Warp beam position: 12 Equipment: Pneumatic loom with microprocessor control and touch screen. Grid insertion by main and auxiliary injectors. 4 color selection. Stäubli type 1781 crowd formation, maximum capacity 10 frames. Grob chain breaker, ETU regulator, e-leno selvedges, electronic unwinder, central lubrication and SUMO drive. Auction-ID: A1-48824-18
Quantity: 3 Year: 2001 Manufacturer: PICANOL N.V. Plate model: OMP-4-P Designation: OMNIplus-4-P 190 CM Machine No.: 255491, 255496 and 254552 Width: 1900 mm Weight: 3100 kg per machine Maximum speed: 980 rpm Power supply: 380 V, three-phase, 50 Hz Equipment: Pneumatic loom with microprocessor control. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Suspension for 10 frames. PICANOL unwinder with DC motor, electronic regulator, rotary selvedges and chain breaker GROB KFW 2400 with 6 electrodes. Central lubrication and adaptation for independent reel. Auction-ID: A1-48824-12

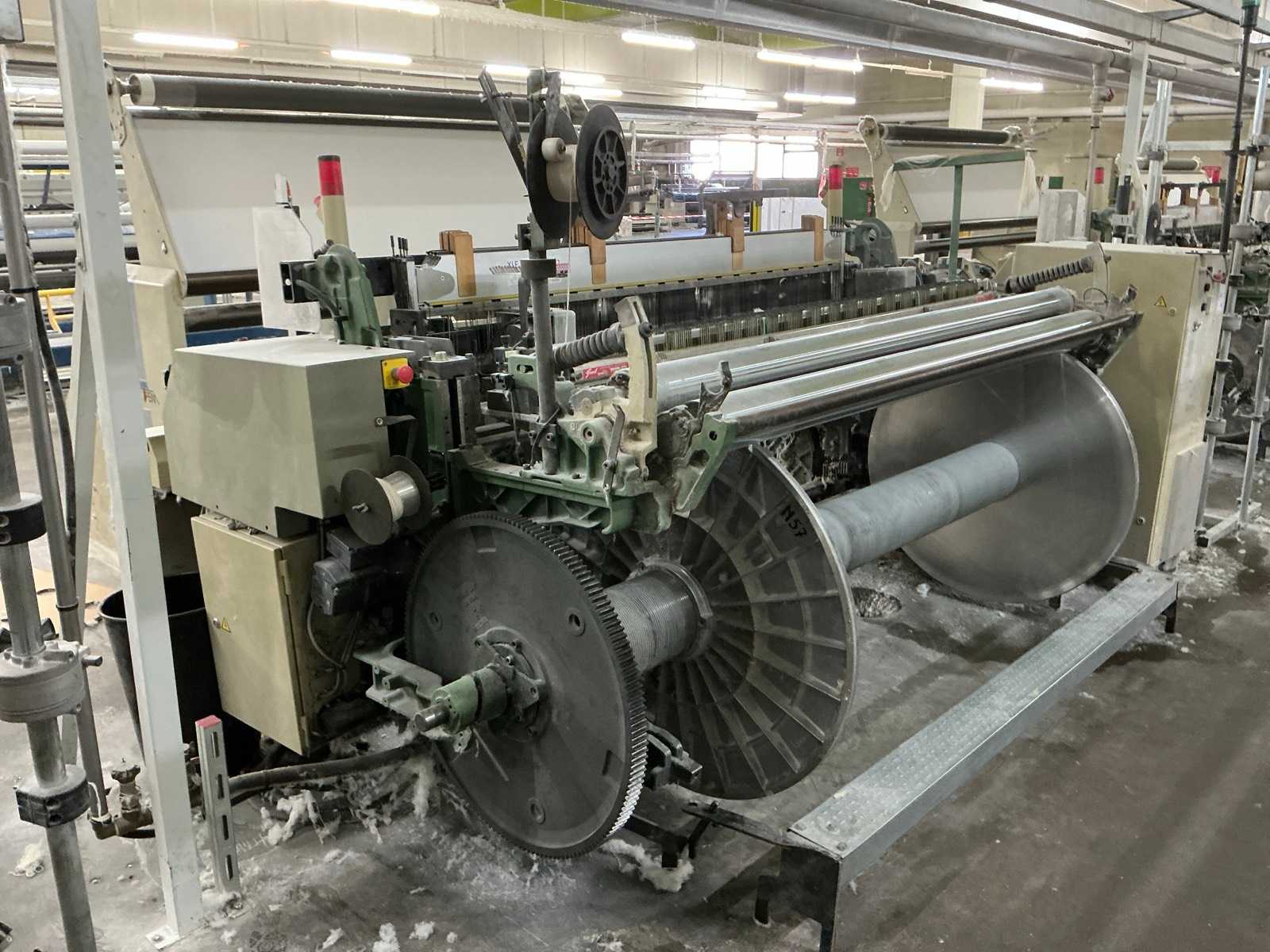

Quantity: 2 Year: 2001 Manufacturer: PICANOL N.V. Plate model: OMP-4-P Designation: OMNIplus-4-P 220 CM Machine number checked: 255492 Width: 2200 mm Weight: 3400 kg per machine Maximum speed: 910 rpm Power supply: 380 V, three-phase, 50 Hz Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor and display control. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Suspension for 10 frames. Stäubli type 1761 external cam mechanics, with 10 levers and 6 eccentrics. PICANOL unwinder, electronic regulator, rotary selvedges and chain breaker GROB KFW 2400 with 6 electrodes. Without frames. Auction-ID: A1-48824-13
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-37
Internal width 1900mm Diameter 1000 mm approx Auction-ID: A1-48824-22
Quantity: 3 Year: 2001 Manufacturer: PICANOL N.V. Plate model: OMP-4-P Document description: OMNIplus-4-P 190 CM Machine number: 254994, 254995 and 254749 Width: 1900 mm Weight: 3100 kg per machine Maximum speed: 980 rpm Power supply: 380 V, three-phase, 50 Hz Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor and display control. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Suspension for 10 frames. DC motor unwinder, variable driving electronic regulator and left/right rotating selvedges. GROB KFW 2400 chain breaker with 6 electrodes. Permanent central lubrication. Fabric winding separated from the machine, with adaptation provided for an independent winder. Auction-ID: A1-48824-9
Quantity: 3 Year: 2001 Manufacturer: PICANOL N.V. Plate model: OMP-4-P Designation: OMNIplus-4-P 190 CM Machine number checked: 254751 and 254771 Width: 1900 mm Weight: 3100 kg per machine Maximum speed: 980 rpm Power supply: 380 V, three-phase, 50 Hz Training: SUMO, 380-460 V Equipment: Pneumatic loom with microprocessor and display control. Weft insertion by main and auxiliary injectors, 4-colour selection and automatic PRA 1p repair. Suspension for 10 frames. PICANOL unwinder with DC motor, electronic regulator with variable dimming, rotary selvedges and chain breaker GROB KFW 2400 with 6 electrodes. Permanent central lubrication and adaptation for independent reel. Auction-ID: A1-48824-10
