lathe drive tool used for sale

length:650 mm width:600 mm height:800 mm weight approx.:50 kg Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

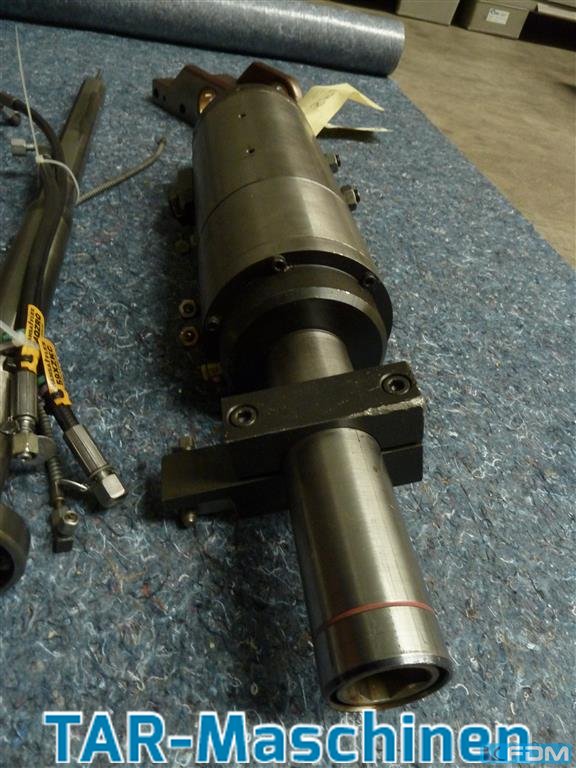

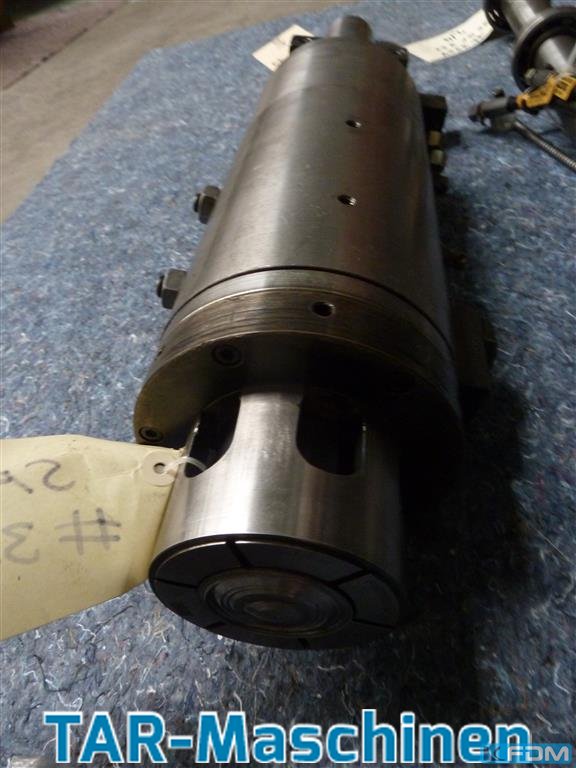

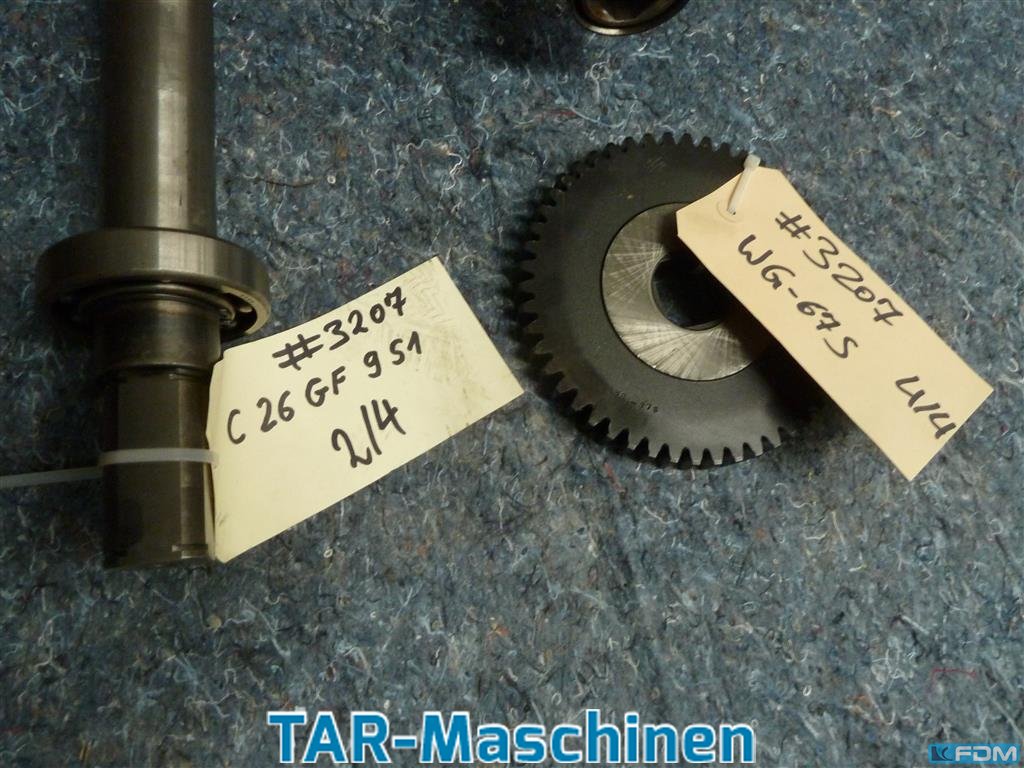

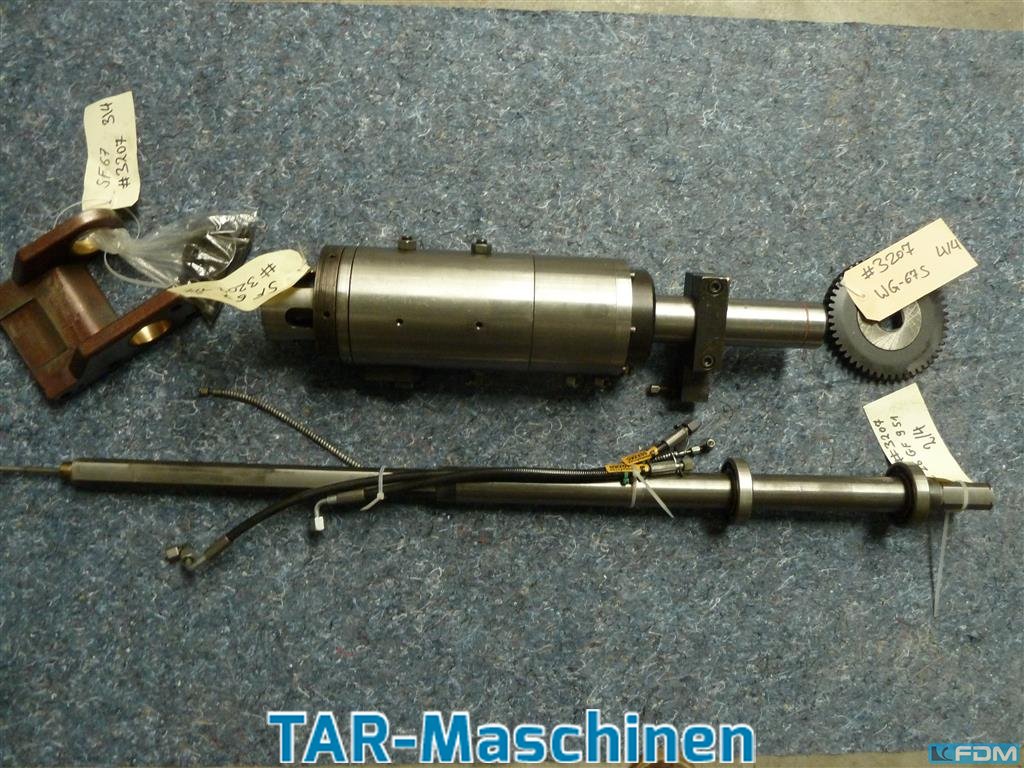

Article: pickoff with shaft Manufacturer: Schütte pickoff with shaft for Schutte multi spindle automatic lathe SF67 pickoff C26GF pickoff shaft C26GF9S1 gear WG-67S holder B73GF1S1 Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

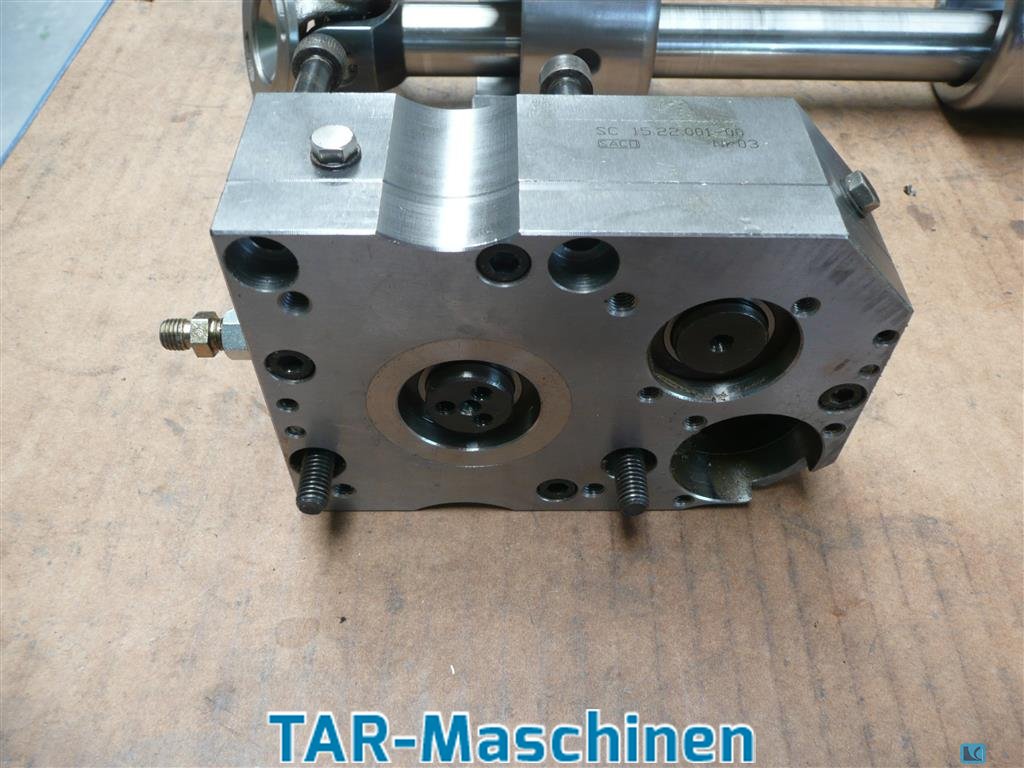

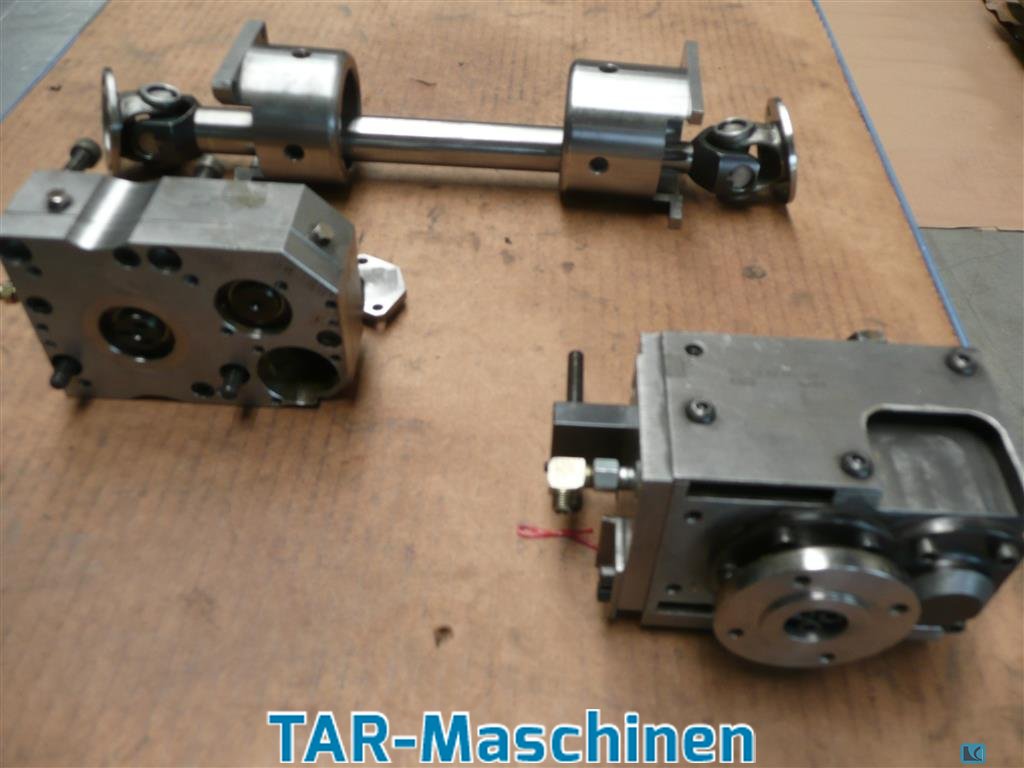

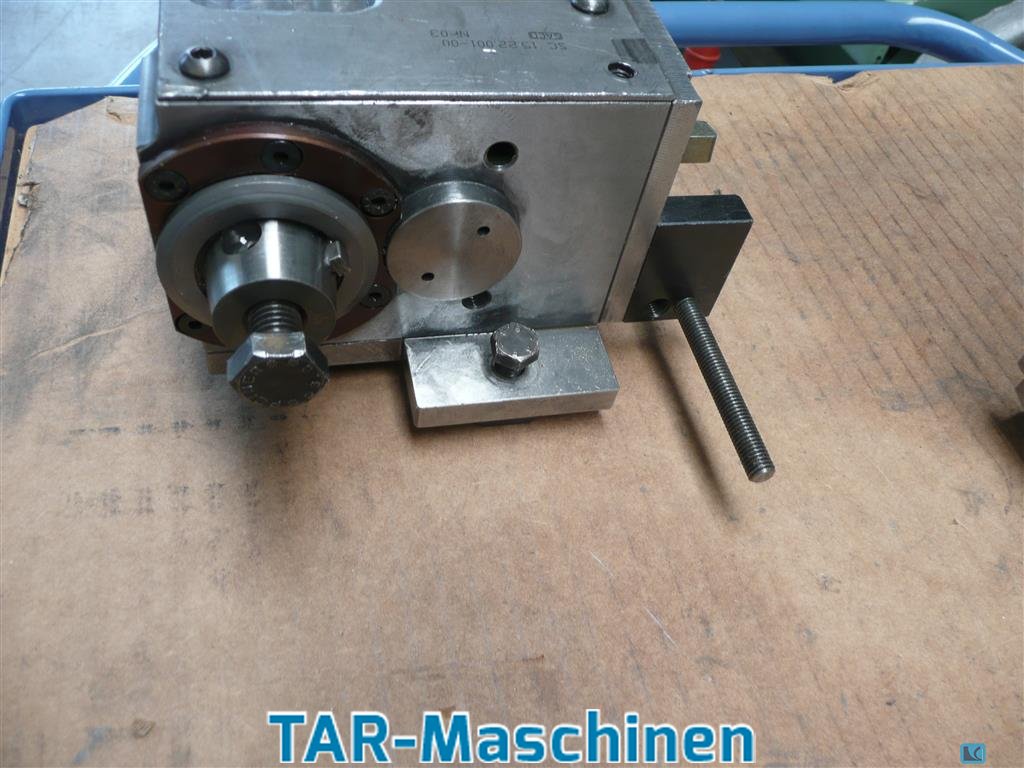

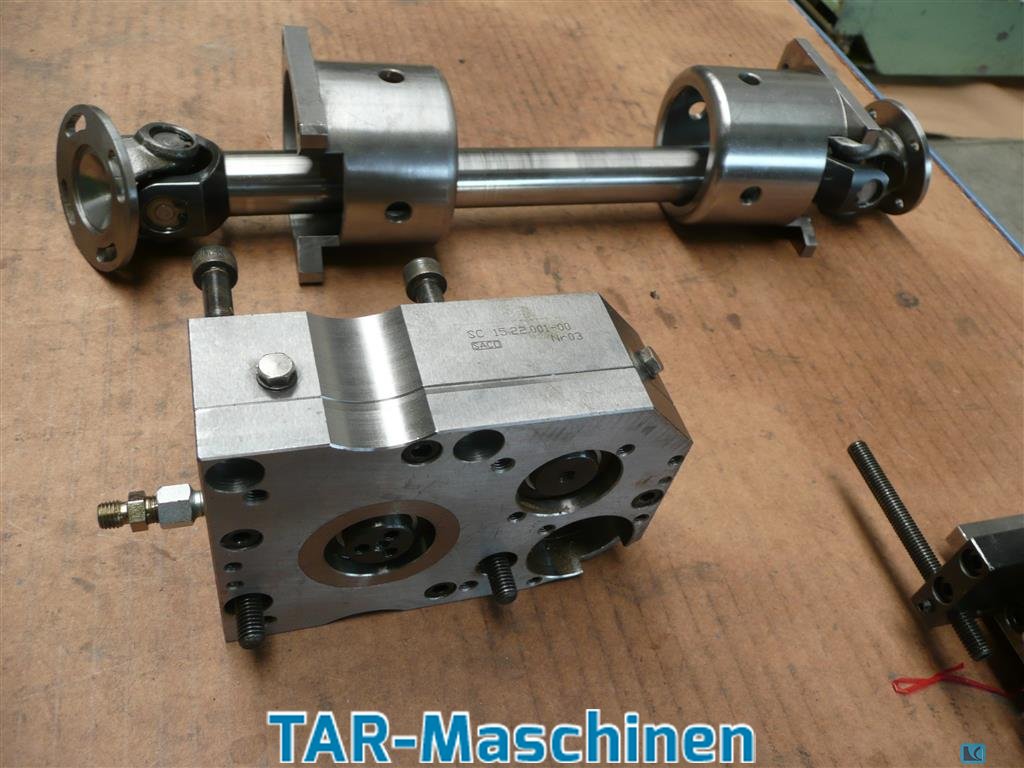

polygon turning unit for Schutte AG20, used 1 polygon turning unit type Saco SC 15.22.001-Nr.3 1 cardan shaft type Saco SC 15.52.188.00 1 gear box SC 15.22.001-Nr. 3 Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

HBM Drill Sharpener, Drill Grinder From 3 to 13 mm In just three simple steps, you can ensure that blunt, worn drills are extremely sharp again. The grindstone at the drill grinder consists of diamond and is therefore extremely hard. That way you always achieve the desired results quickly. You can be sure of a good result, especially with HSS drills. In this way, this device is perfect for use in industrial workshops. Furthermore, the sharpener is suitable for use on just about any type of drill. So it is a flexible tool.

Kelch KENOVA set line V346CYear of manuf. : 2024 ____________Description:Technical Data:Toollength (max.):600 mmTool-ø (max.):400 mmElectric connection:230V/50HzAirpressure:6 barIn general:Control system:Kelch EASY 10Display:24 TFTTaper:High-precisionspindle UWS-II SK50Handling:CNCEquipment/Accessory:Positionsensor:Direct ScalesTurningcentermeasuring:Incidentlight camTool adapters:HSK63Dataoutput:LabelprinterFurther Accessory:Autofocus (CNC-Drive in C-Axis)

Technical data: 2000 overtaken Turning diameter over bed: 1350 mm Turning diameter via slide: 1250 mm Sheet: 1350 mm Clamping on the flat disc: 300-900 mm Turning length: 5000/6000 mm

Technical data: Turning diameter over bed: 1260 mm Turning diameter at opening: 2700 mm Turning diameter at the pit: 3800 mm Turning diameter via slide: 900 mm Turning length: 4000/5000 mm

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm

Technical data: The machine is completely overhauled in 2011 with new electrics, new wiring, including new control SIEMENS Sinumerik 840D max. circulating and turning diameter: 2,000 mm max. turning height: 1,500 mm Sheet disc diameter: 1,600 mm max. table load: 11.20 to. Cross-beam adjustment: 1,170 mm

Wood Turning Lathe Precision device for professional users, with grey cast iron variable speed control high degree of spindle concentricity Spindle can be fixed all 15° LCD speedometer One hand operation of the tailstock and tool rest with quick-release mechanism Voltage: 230V / 50 Hz Engine power: 735W (S1 100%) Tip height: 160 mm Top width: 510 mm Speed ranges: 250-750 m-1, 550-1650 min-1, 1300-3850 min-1 Spindle stock rotation: 180 degrees Headstock thread: M33 DIN800 Morsekonusaufnahme: MK2 / MT2 Quill stroke: 63 mm Weight: 52 kg Dimensions: 1035 x 305 x 449 mm G & HM-D510F

Technical data: Diameter over bed: 1550 mm Diameter over slide: 1600 mm Turning length: 5500 mm Max cross travel: 400 mm

Machine according to DIN 8605: lathe with increased accuracy. Top width: 700 mm Tip height: 170 mm Swing over bed: Ã? 340 mm Swing over cross slide: Ã? 190 mm Bed width: 260 mm Longitudinal slide displacement: 600 mm Cross slide displacement: 220 mm Upper carriage displacement: 110 mm Plan carriage length: 410 mm Plan slide width: 150 mm Bed slide length: 380 mm Turning tool cross section: 20 x 20 mm Distance turning Center - upper carriage: 34 mm Range of the upper carriage (support): 60 / 120 ° Main spindle: Spindle connection DIN 55029 (camlock): S 5 spindle bore: Ã? 50 mm Internal cone according to DIN 7178: 1:22 spindle diameter in front bearing: Ã? 70 mm Maximum Chuck diameter: Ã? 200 mm Faceplate diameter: Ã? 200 mm Spindle speeds: 40-3000 rpm Speed: Stepless mechanical speeds: 4 Main drive: Power at 40% ED: 5,3 kW Maximum nominal torq ...

CYL1640GS lathe with suffragefree speed control, NEW! with Fagor 3-axis position display, Schneider Elektronik. peak height 205 mm. Tip width 1000 mm. Turning diameter over bed 410 mm, over support 258 mm. Spindle bore 52 mm, 16 spindle speeds 0 - 2600 rpm, Reitstockpinolenkonus MK4, tailstock pinole stroke 100 mm, spindle nose D6, bed width 274 mm, Laengsvorschuebe 0.08-1.15, cross-forecourt 0.006-0.92, thread cutting: metric 0.5-7, whitworth 4-56TPI, engine power 5.5 kW. Weight approx. 1400 kg. Mass 2280 x 1120 x 1700. Hochier: running and fixed luenette, 3-axis position display, quick-change steel holder with 5 inserts, 3 jaw lining, four-jaw sheet chuck, flat disc, plan-mounted disc, cone-turning device, cooling agent device, halogen work lamp, spaenewanne, splash protection, running and fixed koer tip, instructions in English New

Heavy duty lathe Waldrich Distance between centers: 12000 mm Turning diameter: -Over bed: 2000 mm -Over cross slide: 1640 mm Weight of work piece: max 40 ton Spindle speed range, stepless: 1,5-92,5 rpm Year of manufacturing: 1960

Technical data: with stand, 50 Hz, DAB ED 25% Engine: 3 Capacity: 1.75 A Capacity: 736 W Voltage: 380 V

AUTOMATIC HYDRAULIC HORIZONTAL COPY LATHE Type BULLERI 110 / 4 MANDRINS N. 4 DISTANCE BETWEEN MANDRINS mm.320 MAX. WORKING DIAMETER mm.315 MAX. ADMITTED LENGTH mm.1200 MAX. WORKING LENGTH mm.1000 ROTATION SPEED rpm 4850 N.02 CUTTER MOTOR CUTTER MOTOR POWER Hp 7,5 each one HYDRAULIC PUMP MOTOR POWER Hp 1,5

Tip height: 300 mm centre distance: 1500 mm gr. Turning diameter over bed: 625 mm spindle bore: 105 mm spindle retainer: Gr. 8 mm taper of tailstock Quill: 5 MK spindle speed: 6.6-2000 RPM elect. Supply: 400 V, 15 kW space: 4400 x 2050 x 1820 mm weight: 5200 kg

Swing: 530mm. Swing over carriage: 320mm. Distance between centers: 2000mm. Spindle: 60mm. Equipped with chuck. Equipped with DRO Fagor. Motor power: 10cv.

New lathe. Distance between centers: 1500mm. Swing: 510mm. Swing over carriage: 320mm. Swing over gap: 760mm. Spindle hole: 80mm. CE protections and certificate. Equipped with chuck and steady rest.

Rebuilt lathe. Distance between centers: 750mm. Swing over bed: 500mm. Swing over carriage: 220mm. Spindle nose: 40,5mm. Motor power: 10cv. Equipped with universal chuck of 250mm. CE Protections in chuck and carriage and CE european certificate for second hand machines. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Distance between centers: 4500mm. Swing: 825mm. Swing over carriage: 600mm. Swing over gap: 1250mm. Spindle: 80mm. 16 speeds (9-500rpm) Equipped with chuck of 500mm. Equipped with conical device.

Rebuilt lathe. Distance between centers: 1000mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 1000mm. Motor power: 12,5cv. Spindle nose: 51mm. Equipped with universal chuck of 250mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: Steady rest. Optional: CE back guard

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 575mm. Swing over carriage: 300mm. Motor power: 12,5cv. Spindle nose: 51mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 2000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

see picture

see pictures

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 3000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 1500mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Control Siemens

various accessories

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 2000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 3000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Control SIEMENS 805 TECHNICAL DATA: WORK AREA / DIMENSIONS Swing over bed [mm] 820 Swing over facing slide [mm] 515 Displacement of the plan slide [mm] 520 Displacement of the upper support [mm] 250 Turning length [mm] 2000 Tip height on flat railway [mm] 400 Bed width [mm] 560 Bed sleigh length [mm] 800 Facing slide width [mm] 320 Plan valve length [mm] 1005 Upper support width [mm] 200 Turning tool cross section according to DIN 770 hxb [mm] 40 x 25 MAIN SPINDLE Spindle nose according to DIN 55 027 [Gr.] 11 Spindle diameter in front bearing [mm] 170 Spindle bore [mm] 128 Inner taper of main spindle [metr.] 136 MAIN drive infinitely adjustable three-phase motor (AC motor) Power 60% / 100% ED [kW] 46/37 Torque max 60% / 100% ED [NM] 5,300/4.260 Torque max 60% / 100% ED [NM] 5,300/4.260 Total speed range [min-1] 6.3 1,600 Transmission levels 2 Speed rang ...

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 4000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 5000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 6000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

CNC Control Traub System TX 8D C-axis/ Driven tools Bar feeder Stamag DN42 Collector of the finished parts Chip conveyor Internal liquid cooling Very good condition Max. bar diameter 42 mm Turning length 220 mm Hydraulic chuck Chuck- max. turning dia. 140 mm Max. turning diameter 140 mm Max. turning diameter over bed 390 mm Spindle boring 42 mm Number of turret heads- 3 -1st turret 12 tools -2nd turret 12 tools -3rd turret 4 tool Tool holders VDI 30 X axis travel 200 mm Z axis travel 300 mm Spindle speed 5600 rpm Max. bar length 4200 mm Max. working bars in dia. 42- 7 Total power requirement 34 kW Interlocking cover Total dimensions: 7400x1900x2400 mm Weight 4500 kg

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 3000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Machine is used for the processing of pipe and pipe components, including thread cutting in terms of the single and mass production. Diameter range of processable pipes: 70-290 mm Max diameter of processable work-piece: -Over stand: 800 mm -Over support: 450 mm Diameter of spindle hole: 300 mm Max turning length: -With bevel ruler: 800 mm -W/O bevel ruler: 420 mm Amount of spindle speeds: 12 Limits of spindle rotation frequency: 8-355 turn/min Amount of longitudinal and cross support servings: 32 Limits of: -Longitudinal servings: 0,064-1,025 mm/turn -Cross servings: 0,034-0,458 mm/turn Step limits of cuttable: -Metric threads: 1-12 mm -Inch threads (amount of threads for 1): 2-24 Max turn angle of bevel ruler: +- 10 degrees Overall machine dimensions: -Length: 3600 mm -Width: 1860 mm -Height: 1525 mm Machine weight with electric equipment: 9050 kg

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 4000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rotary and thread cutting machine EBOSA M34 - see pictures
