lathe drive tool used for sale

Auction-ID: A1-50750-78

turning diameter:1390 mm turning length:14000 mm weight of the machine ca.:13 t More information can be found in the Appendix.

number of spindles:8

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

turning diameter:360 mm turning length:520 mm total power requirement:20 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3 x 2 x 2 m

turning diameter:360 mm turning length:520 mm total power requirement:20 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3 x 2 x 2 m

total power requirement:40 kW Out of valve production

CNC Control, Numeric Control, from GILDEMEISTER GDM 65/2AGILDEMEISTER Type Eltropilot EP20 GD-2ABead 1989Order: 150 299Ser. No.: 0.854.183Power supply: 220 VAC 50 HzRack with 20 module spaces - 11 built-in modulesDimensions W x H x D 480x 260 x 220 mmWeight approx. 7 kgThe control comes from a lathe Gildemeister GDM 42/2A. Further components from the Gildemeister can be found under stock numbers: 60343, 60346, 60347; used

weight of the machine ca.:2,5 t spindle passage:65 mm

turning length:400 mm total power requirement:45 kW weight of the machine ca.:4 t dimensions of the machine ca.:3,58 x 1,91 x 2,05 m spindle passage:45 mm

turning diameter:500 mm turning length:1000 mm weight of the machine ca.:7,3 t dimensions of the machine ca.:6,5 x 4,45 x 2,21 m

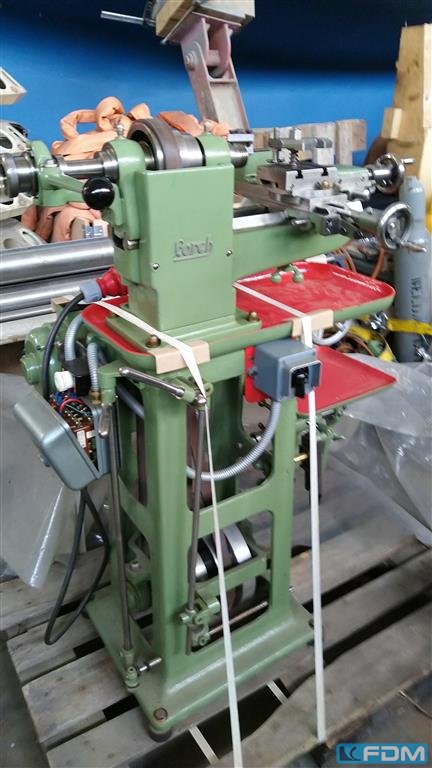

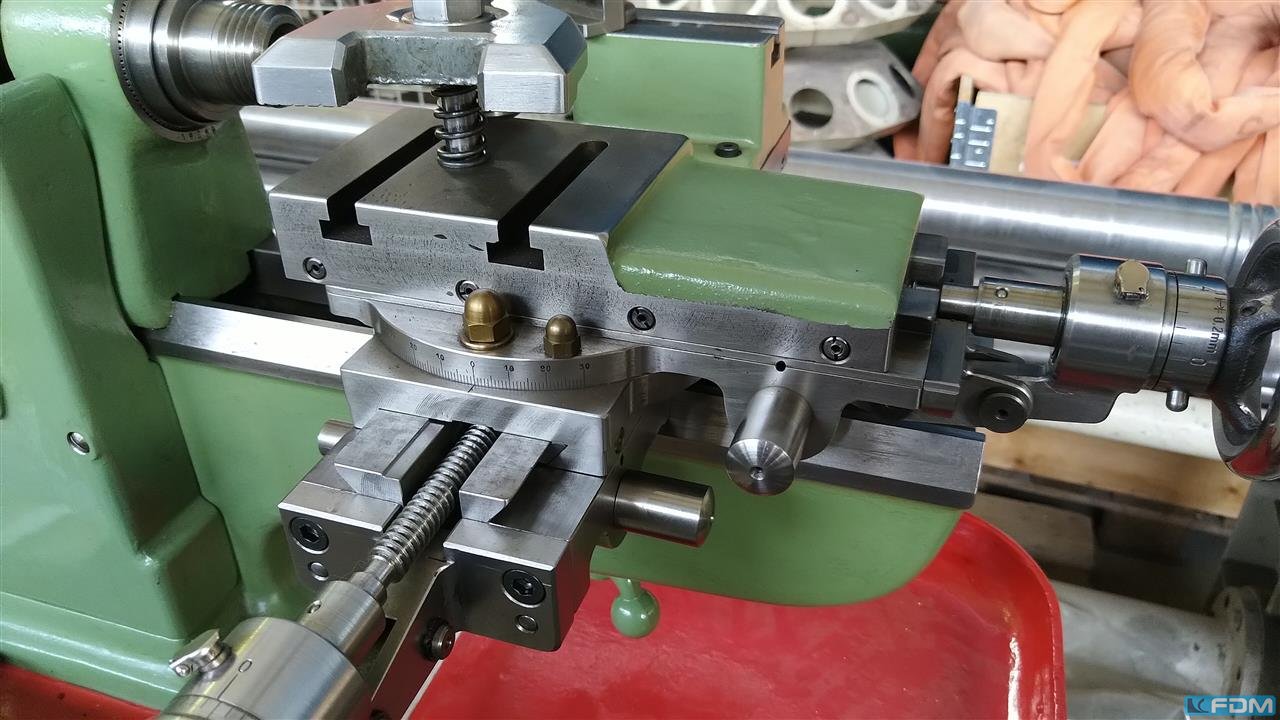

turning diameter over bed:100 mm turning diameter over slide rest:70 mm turning length:80 mm total power requirement:1,0 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,7 x 0,6 x 1,2 m facing lathe with manual feed, various accessories

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

turning diameter:650 mm turning length:1.500 mm chucking diameter:400 mm Spindle diameter at the front bearing: 180 mm Spindle bore: 132 mm Max. speed: 1,800 rpm Fixed Lynette Operating hours: 38,500 Approx. spindle hours: 1/3 of operating hours

turning diameter over bed:340 mm turning diameter over slide rest:190 mm turning length:700 mm spindle bore:50 mm shaving-spindle speed range:40 - 3.000 U/min dimensions of the machine ca.:2 x 1 x 1,6 m total power requirement:6 kW weight of the machine ca.:1,2 t

turning length:800 mm total power requirement:380 V weight of the machine ca.:1400 kg dimensions of the machine ca.:2200 x 1200 x 1300 m centre height:160 mm chucking diameter:150 mm

turning diameter over slide rest:280 mm turning length:4000 mm total power requirement:7,8 kW weight of the machine ca.:6 t dimensions of the machine ca.:5,9 x 1,9 x 1,40 m

weight of the machine ca.:3 t

turning length:140 mm dimensions of the machine ca.:4 x 2 x 1,9 m

turning diameter over bed:340 mm turning diameter over slide rest:190 mm turning length:700 mm spindle bore:50 mm spindle turning speed range:40 - 3000 U/min total power requirement:6 kW weight of the machine ca.:1,0 t dimensions of the machine ca.:2 x 1 x 1,6 m

turning diameter over bed:930 mm turning diameter over slide rest:630 mm turning length:6000 mm turning dia. in gap:1250 mm spindle bore:95 mm turning speed range:8 - 800 U/min total power requirement:25 kW dimensions of the machine ca.:9 x 2 x 1,9 m faceplate 2 steadies coolant attachment taper turning attachment

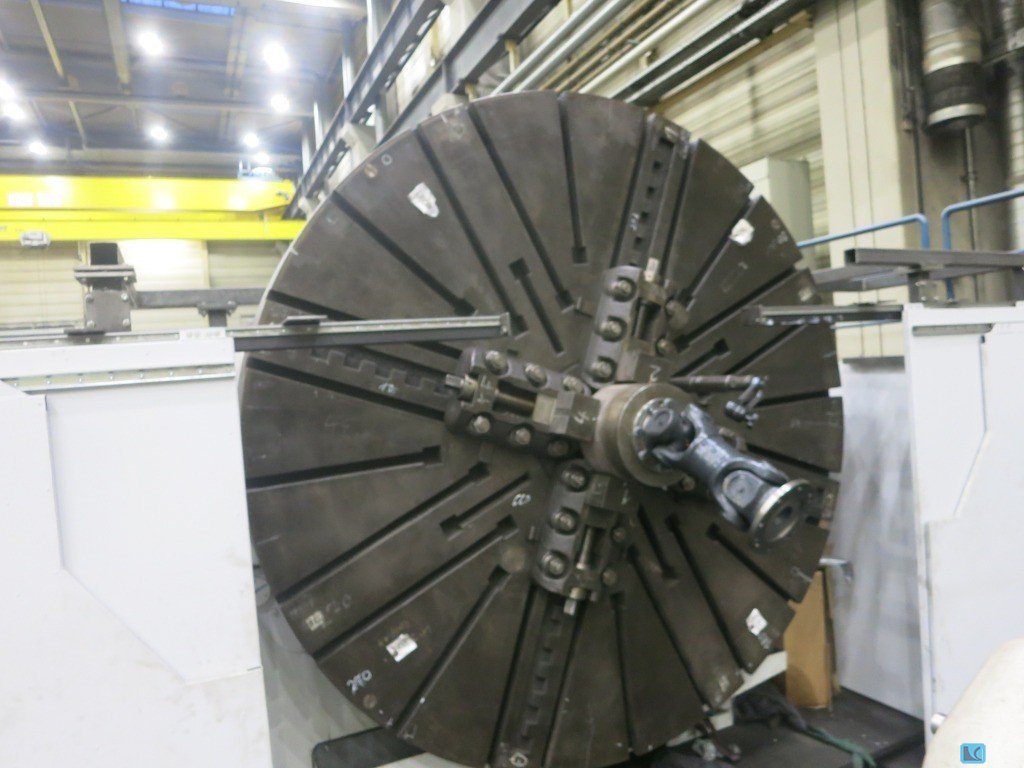

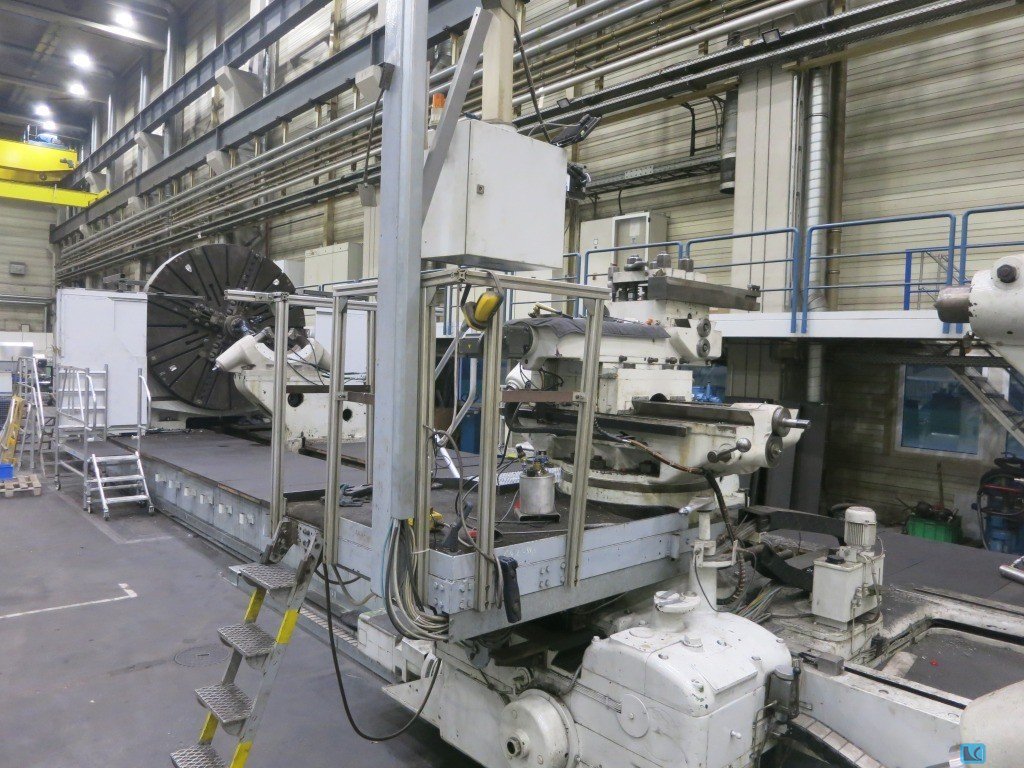

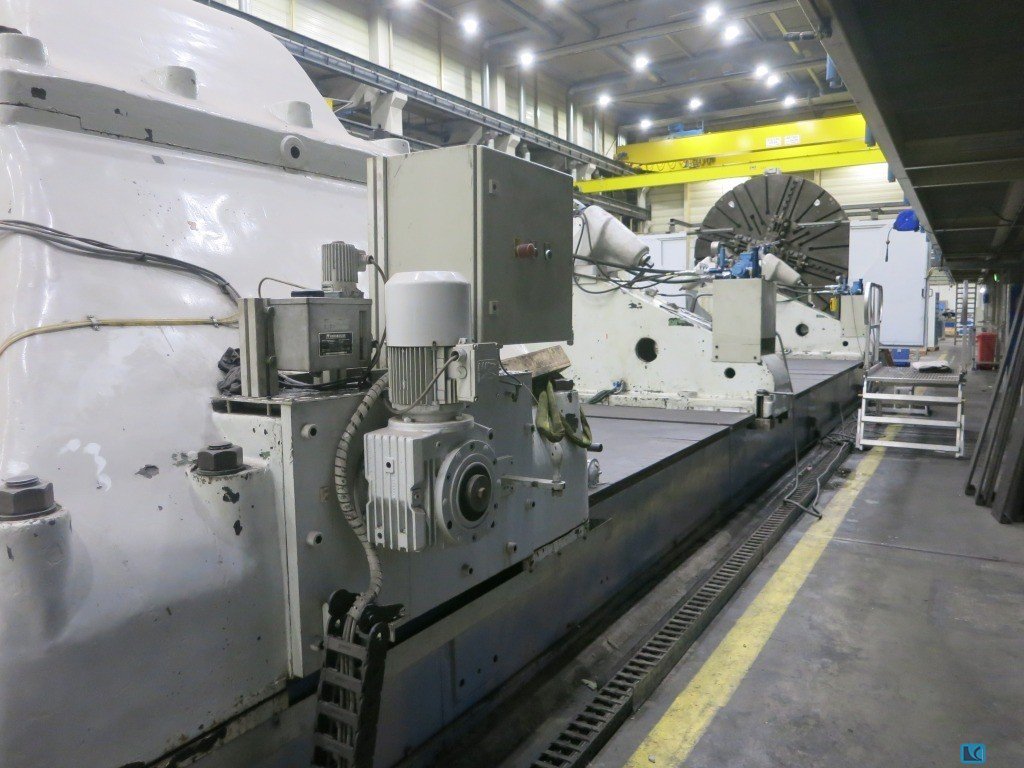

turning diameter over bed:3800 mm turning diameter over slide rest:3200 mm turning length:12000 mm faceplate turning speed range -stepless-:2 - 200 U/min max. workpiece weight:90.000 kg bed width:4000 mm 2 steadies

Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Offered for sale is a CNC lathe with tool turret. Technical specifications: Machine operating hours: approx. 20000h, main spindle bearings replaced at approx. 16000 machine operating hours. Control system: Heidenhain CNC control. Equipped with tool turret, tailstock, various clamping tools, tool holders, collets and additional tools as well as chip conveyor. Inspection possible by arrangement.

Technical data: Complete retrofit year 2008 CNC Fagor 8055T Working diameter 4,200mm Table diameter 4,000mm Table speed 55rpm Z axis travel 1,500mm nr.02 RAM capto C8 tool holder Maximum workpiece height 2,000m main motor power 182 Kw nr.01 chip evaders permissible weight on the table 50 ton Machine in excellent condition available unless sold.

Technical data: Complete retrofit year 2002 CNC Fagor 8065T Working diameter 3,400mm Table diameter 3.200mm Table speed 59 rpm Z axis travel 1,500mm nr.02 RAM capto C8 tool holder Maximum workpiece height 1,640m main motor power 75 Kw nr.01 chip evaders Weight allowed on the board 16 ton Machine in excellent condition available unless sold.

Tornio verticale Morando KR 50-65 usato, retrofittato a nuovo Tornio dotato di: Modalità di tornitura; Modalità di fresatura/foratura con asse C per posizionamento tavola in continuo; Utensili motorizzati. Dati tecnici: CNC: Siemens 840 SL Diametro plateau: 5000 mm Potenza motore mandrino: 120 kW Diametro tornibile: 6500 mm Diametro max passaggio fra i montanti: 7000 mm Portata mandrino: 100 ton Altezza di tornitura: 4000 mm Corsa verticale della traversa: 3800 mm Dimensioni macchina completa di protezioni: 12000x7500x11000(h) mm

Parallel Lathe WABECO D6000E Between points: 600 mm Maxi Ø on bench: 270 mm Maxi Ø over saddle: 170 mm Spindle speed: from 45 to 2300 RPM Multifix turret type A Concentric 3-jaws chuck Ø 100 mm (NEW) Year of construction: 1998 (machine very little used) Spindle speed by variator Tailstock CM2 Scale 2 axes EAE type Mikronel 220 L Supplied with one clamp tie rod Accessories: 5 tool holders + different thread wheels Voltage: 220 V mono Dimensions (L x W x H): 1500 x 900 x 1700 mm Weight: approx 200 kg

NC Lathe Gildemeister Nef 500 BJ 1996

Röhm 20641, KFM 130/2, Power Chuck 130 MO KFM 2-Jaws, ZA110 Overall diameter: 130 mm PF003850 Number of Jaws: 2 Jaw Stroke: 5.5 Inner diameter: 46 mm Width: 63 mm Manufacturer's specifications for technical data: Max. actuation force: 5 kN Max. total clamping force: 11 kN max. speed: 3950 rpm rpm min^-1 at that time new price approx. 4500€ You can find more power chucks - new and used - in our shop! International shipping costs on request!

Lathe Hempel Semi-automatic stencil lathe Hempel Type: CH 4 Turning length 400 mm max. turning diameter 100 mm Spindle motor 4 kW, 2800 rpm. Hydraulic pump motor 0.85 kW Infinitely adjustable hydraulic feed Automatic workflow – clamping the scantlings, forwarding and rewinding the front support with the turning steels, finishing turning through the forming steels on the rear supports and clamping the finished turned part Weight approx. 725 kg

turning diameter over bed: 1700 mm turning diameter over slide rest: 1320 mm turning length: 8000 mm spindle turning speed range: 1 - 500 U/min spindle bore: 105 mm workpiece weight max.: 18000 kg Control: FANUC total power requirement: . kW weight of the machine ca.: 28 t dimensions of the machine ca.: 12 x 2,9 x 2,4 m CNC-Control FANUC 18-T Faceplate mit 4-Backen 1 Steady Tailstock The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Distance between centers: 3000mm, swing over bed/cross slide/in bed gap: 630mm/350mm/880mm, spindle bore: 77mm, speed: 1600rpm, power: 7.5kW, tailstock: MT5, quill stroke: 250mm. Machine dimensions X/Y/Z: approx. 5050mm/1300mm/1450mm, weight: approx. 3500kg. Includes three-jaw chuck, fixed and travelling steadies, as well as a quick-change tool holder. An on-site inspection is possible.

CONTROLS   CNC Teach In Controls SIEMENS BASIC FUNCTIONS   design principle: flatbed   number of spindles: 1 WORKING RANGE TURNING   swing diameter (max): 720 mm   turning diameter (max): 380 mm   bar diameter (max): 108 mm   worpiece length max.: 1500 mm MAIN SPINDLE   spindle revolutions (min): 0 /min   spindle revolutions (max): 1200 /min   number of gears: 3   spindle bore diameter: 108 mm X/Z SLIDE   traverse velocity Z (max): 5000 mm/min   traverse velocity X (max): 5000 mm/min   rapid traverse Z: 5000 mm/min   rapid traverse X: 5000 mm/min   tool fixture: Steel Holder TAILSTOCK   distance betw. centers (max): 1500 mm   sleeve stroke: 200 mm   sleeve diameter: 120 mm   taper: MK 6 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4050 mm   space requir ...

Base machine CTX 200E with driven tools, C-axis and 1x back working. Includes DATAPILOT software package TurnPlus, cooling unit for control cabinet, hinge belt chip conveyor, discharge height: 1100mm including coolant tank, tool holder set for universal disc turret with tool holders for external machining, boring bar holders, tools with cylindrical shank holders, sealing plugs, reducing sleeves. Bar gripper, axial complete, workpiece pick-up device, tool spindles 3x axial for drilling/milling/tapping, 1x radial for drilling/milling/tapping, 1x for saw blades, collet chuck complete for main spindle, collet chuck complete for counter spindle, 17x DIN collets 173E round Ø 3-40mm, 2x DIN collets 173E, hex SW 7 and 12mm, 2x DIN collets 173E, square SW 8mm. Bar loading magazine IEMCA BOSS 542/32, guide channel set LW 13, additionally for IEMCA BOSS 542, 13x guide jaws for bar loading magazine ...

Klaaßen SDM15-5 turning machining centre, The top lathe we offer has the following in the basic configuration Technical parameters: ▪ SDM 4-5 CNC 4-Panel Bed Precision Lathe - Z-travel (slide longitudinal)= 5,000 mm (6,000 with TAE3) X-travel (face slide transverse)= 1,000 mm Y-axis (vertical movement)= 350 mm Maximum workpiece Ø = 1,500 mm Circulation diameter over face slide = 1,500 mm - Center width = 4,500 mm (5,500 with TAE3) ▪ CNC machine designed as a 4-lane tip lathe with full drive-over of the Bezels and superstructures - - - Cross slides and face slides restrict the diameter range by lateral arrangement on the lathe bed. As a result, there is no accompanying Diameter restriction above the face slide/tool carrier. Cross slide unit can be fully attached to the steady rests, HSSL and tailstock. This significantly reduces the set-u ...

turning length: 1500 mm turning diameter: 560 mm turning diameter over slide: 350 mm turning speeds: 25-220/220-1500 U/min swing diameter over bed slide: 350 mm turning dia. in gap: 785 mm quill travel: 185 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 quill:: 5 MK weight of the machine ca.: 2420 kg. range L-W-H: 2840 x 1150 x 1610 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - Foot pedal with brake function according to CE - Protective device for quick-change tool holder - LED machine light - Initial filling with Shell Tellus 46 - Clamping disk 450 mm - 2 centering points - Frequency converter - Digital speed display - Slip clutch - Rapid traverse longitudinal and planar - Coolant system - Quick-change ...

turning length: 1500 mm turning diameter: 410 mm swing diameter over bed slide: 255 mm turning dia. in gap: 580 mm spindle bore: 52,0 mm turning speeds: 30 - 3000 U/min bed width: 250 mm spindle taper: 55029 D 1-6 taper in tailstock: 4 MK quill travel: 120 mm total power requirement: 5,5 kW weight of the machine ca.: 1400 kg. range L-W-H: 2530 x 1000 x 1450 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - 3-jaw steel chuck PO3-200 mm / D6 - Clamping disk 350 mm - Fixed steady rest - passage diameter max. 135 mm - Follow-on steady rest - passage diameter max. 65 mm - Foot pedal with brake function according to CE - Quadruple tool holder - Protective device for quadruple tool holder - Micrometer longitudinal stop - Turret stop with fine adjustment - Frequency converter - Initial filling with Shell Tellus 46 - Coolant system - Slip clutch - Thread gauge - LED machine ...

turning length: 1000 mm turning diameter: 420 mm swing diameter over bed slide: 255 mm turning dia. in gap: 580 mm spindle bore: 52.0 mm turning speeds: 45 - 1800 U/min bed width: 250 mm spindle taper: DIN 55029 D 1-6 taper in tailstock: 4 MK quill travel: 140 mm total power requirement: 3.0 / 4.5 kW weight of the machine ca.: 1220 kg range L-W-H: 2070 x 900 x 1600 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck DK11-200 mm / D6 - Clamping disk 350 mm - Fixed steady rest - passage diameter max. 135 mm - Follow-on steady rest - passage diameter max. 65 mm - Coolant system - Quadruple tool holder - Protective device for quadruple tool holder - Micrometer longitudinal stop - Slip clutch - Turret stop with fine adjustment - Thread gauge - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Initial filling with Sh ...

turning length: 3000 mm turning diameter: 660 mm turning dia. in gap: 900 mm turning diameter over slide: 460 mm turning speeds: 25 - 1600 U/min quill:: 5 MK quill travel: 235 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 weight of the machine ca.: 3.300 kg. dimensions: 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick- ...

turning length: 1000 mm turning diameter: 400 mm turning dia. in gap: 560 mm spindle bore: 52,0 mm turning speeds: 45 - 2.000 U/min bed width: 210 mm spindle taper: 55029 D 1-5 taper in tailstock: 4 MK quill travel: 100 mm total power requirement: 2,0 / 2,4 kW weight of the machine ca.: 810 kg. range L-W-H: 1.890x800x1.600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 90 mm - Follow-on steady rest - passage diameter max. 70 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake f ...

turning length: 1000 mm turning diameter: 380 mm turning dia. in gap: 490 mm spindle bore: 51,0 mm turning speeds: 70 - 2000 U/min bed width: 185 mm spindle taper: 55029 D 1-5 taper in tailstock: 4 MK quill travel: 120 mm total power requirement: 1,5 / 2,2 kW weight of the machine ca.: 575 kg. range L-W-H: 1920 x 800 x 1660 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disc 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake  ...

turning length: 3000 mm turning diameter: 800 mm turning dia. in gap: 1000 mm turning diameter over slide: 540 mm turning speeds: 25 - 1600 U/min quill:: 5 MK quill travel: 235 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 weight of the machine ca.: 3820 kg. dimensions: 4800 x 1320 x 1580 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Cable routing via energy chain - 3-jaw chuck PS3-315 mm / D8 - Clamping disc 500 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 100 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Rapid traverse lengthwise and facewise - Slip clutch - Coolant system - Quick-change tool holder with 4 inserts - Protective device for qu ...

turning length: 1000 mm turning diameter: 360 mm turning dia. in gap: 480 mm spindle bore: 51,0 mm turning speeds: 70 - 2000 U/min bed width: 185 mm spindle taper: 55029 D 1-5 taper in tailstock: 4 MK quill travel: 110 mm total power requirement: 1,5 kW weight of the machine ca.: 540 kg. range L-W-H: 1920 x 750 x 1600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake functi ...

turning length: 1000 mm turning diameter: 420 mm swing diameter over bed slide: 255 mm turning dia. in gap: 580 mm spindle bore: 52.0 mm turning speeds: 30-550 / 550-3000 U/min bed width: 250 mm spindle taper: 55029 D 1-6 taper in tailstock: 4 MK quill travel: 140 mm total power requirement: 5.5 kW weight of the machine ca.: 1145 kg. range L-W-H: 2090 x 1050 x 1600 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - 3-jaw steel chuck PO3-200 mm / D6 - Clamping disk 350 mm - Fixed steady rest - passage diameter max. 135 mm - Follow-on steady rest - passage diameter max. 65 mm - Foot pedal with brake function according to CE - Quadruple tool holder - Protective device for quadruple tool holder - Micrometer longitudinal stop - Turret stop with fine adjustment - Frequency converter - Initial filling with Shell Tellus 46 - Coolant system - Slip clutch - Thread gauge - LED ...

turning length: 1000 mm turning diameter: 360 mm swing diameter over bed slide: 220 mm turning dia. in gap: 502 mm spindle bore: 52,0 mm turning speeds: 70 - 2.000 U/min bed width: 185 mm spindle taper: 55029 D 1-5 taper in tailstock: 3 MK quill travel: 100 mm total power requirement: 1,5 / 2,2 kW weight of the machine ca.: 575 kg. range L-W-H: 1825 x 750 x 1600 mm Scope of delivery - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Face plate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 60 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disc 280 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gear ...

Turning length: 705mm, turning diameter: 230mm, travel X1/X2: 165mm/195mm, travel Y: 100mm, travel Z1/Z2: 700mm/702mm, bar passage: 51mm, speed: 6000rpm, tool positions: 2x12. Machine dimensions X/Y/Z: approx. 5100mm/2200mm/2500mm, weight: approx. 8400kg, control: Fanuc 31i-B, operating hours: 1565h, spindle hours: 506h. Includes transformer, chip conveyor, filter system, and cooling unit. The cabin door window is broken. Documentation available. An on-site inspection is possible.
