lathe drive tool used for sale

Key data: 800 mm, 4000 mm

Description Seiger SLZ 800E cycle lathe incl. milling unit Details Machine no. 4443 Year of construction 2008 Control Siemens Sinumerik Turning diameter 800 mm Turning length 4,000 mm Face plate 800 mm, 4 jaws Face plate 500 mm, 4 jaws 3-jaw chuck 400 mm Lynette up to 450 mm (2 different) Accessories various jaw sets powered tool Permissible workpiece dimensions: between tips without setting stick 2,000 kg with a setting stick 2,200 kg with two sets 2,500 kg flying in the face plate 750 kg Machine dimensions incl. cladding 2,000 mm + Tip Wide x 2,750 mm x 2,000 mm incl. documentation

ED 300ECO Metal Lathe Motor 400W (S1) 230V 50Hz Dimensions in mm 760x230x254 Center width/height 300mm / 90mm Rotary spindle speed 50-2500 rpm Spindle bore 20mm Spindle mount MK3 Tailstock Cone MK2 Travel longitudinal slide 275mm Traverse travel cross slide and top slide 70mm Quill path 5mm Thread Metric in mm/r 0.5-2.5 max. tool holder 8mm Weight 48kg G&HM ED300Eco_2

chucking diameter: 250 mm greates pass round over bed: 500 mm swing diameter over slide rest: 290 mm centre distance: 850 / 1350 mm weight of the machine ca.: 2700 KG dimensions of the machine ca.: 2900 x 1953 x 1825 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 2000 mm : 980507 x-axis: 7000 mm z-axis: 10000 mm : 65 mm total power requirement: 15 kW weight of the machine ca.: 3,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Combined copying milling machine - lathe MICHÄL KÄMPF

Workbench parallel Lathe WABECO 10200 Between points: 500 mm Maxi Ø on bench: Ø 200 mm Maxi Ø over saddle: Ø 120 mm Spindle diameter: Ø 26 mm Spindle speed: from 10 to 1000 RPM (on electronic dimmer) Square/ tilting turret 3-jaws chuck Ø 100 mm Year of construction: 2001 Tailstock CM2 Longitudinal auto feeds Supplied with the gears (see photo) Supplied without the table Voltage: 220 V mono Dimensions (L x W x H): 1200 x 300 x 450 mm Weight: approx 100 kg

Center height: 280mm, center width: 2000mm, turning length: 2000mm, turning diameter over bed/face slide: 570mm/340mm, spindle bore: 63mm, speed: 2500rpm, quill stroke: 160mm, quill diameter: 70mm, power requirement: 15kW. Machine dimensions X/Y/Z: approx. 3850mm/1850mm/1750mm, weight: approx. 3500kg. On-site inspection is possible.

Colchester Univ. Lathe Master 2500 Center height 180 mm Center width 600 mm Bore (passage) 40 mm RSF 2-Axis Digital Display Type Z-550 incl. accessories

Vertical turning lathe SEDIN 1512 CNC CNC control- Eastern origin Table diameter: 1120 mm Max work-piece: -Diameter: 1250 mm -Height: 1000 mm -Weight: 3200 kg Table speeds range per 1 min: 5-250 Tool dimensions: 25×40 Max horizontal travel of the vertical ram: 775 mm Max vertical travel of the vertical ram: 700 mm Max horizontal travel of the horizontal ram: 630 mm Max vertical travel of the horizontal ram: 1000 mm Max turning angle of the vertical ram: 45 degree Cross rail: -Travel: 660 mm -Speed: 400 mm/min Main motor power: 30 kW Overall dimensions: 2750×2975×4100 mm Machine weight: 15700 kg

Turning diameter over bed: 500mm, turning diameter over face slide: 250mm, center distance: 2000mm, spindle bore: 58mm, speed: 1400rpm. The feed of the machine is defective. On-site inspection is possible.

BACCI horizontal copying lathe mod. TC4O - 4 working positions -Cabin - Wheelbase 180 mm. - Complete with manual

A center lathe with 2-axis digital readout is offered. Tool holder, coolant supply and transparent guard. Inspection possible by prior arrangement.

SEDIN 1516 CNC Vertical Turret Lathe CNC control- Eastern origin Turning diameter: 1600 mm Table diameter: 1400 mm Max workpiece height: 1000 mm Max table loading: 5000 kg Max horizontal ram travel: 630 mm Max horizontal carriage travel: 975 mm Max vertical ram travel: 700 mm Max vertical carriage travel: 1000 mm No of feed carriages: 16 Carriages feed range: 0,07-12,5 mm/rev Distance between table and ram: 0-1225mm Fast stroke: 2000 mm/min Main motor power: 30 kW Speeds range: 4 - 200 rpm Dimensions: 3190x3360x4100 mm Weight: 18200 kg

Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible.

A CNC lathe is offered. Equipped with three-jaw chuck, tool turret and hydraulic unit. Control: TRAUB SYSTEM TX 8. Inspection possible by prior arrangement.

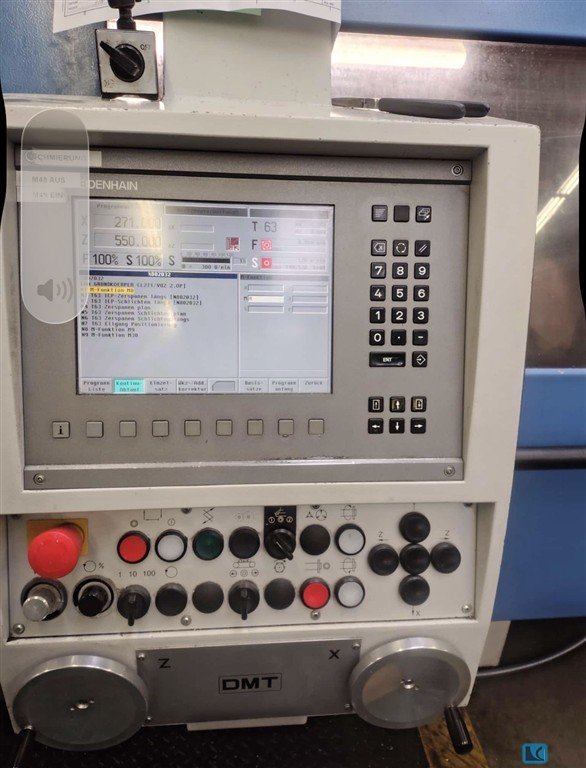

A lathe with CNC control is offered. Equipped with three-jaw chuck, tailstock, tool holder, cutting fluid supply and machine enclosure. Control: HEIDENHAIN. Inspection possible by prior arrangement.

Turning diameter over bed/cross slide: 500mm/280mm, max. workpiece length: 1500mm, travel X/Z: 280mm/1430mm, spindle bore: 82mm, speed: 2200rpm, rapid traverse X/Z: 6m/10m/min, quill diameter: 75mm, quill stroke: 150mm, bed width: 400mm, chuck diameter: 250mm. Machine dimensions X/Y/Z: approx. 3350mm/1750mm/1650mm, weight: approx. 2700kg, control: Fanuc Series 0i Mate-TC. Documentation available. On-site inspection is possible.

A CNC lathe with bar feeder is offered. Equipped with an IRCO Breuning PROFImat bar feeder and KNOLL 400 S - 1/200 chip conveyor. Control: INDEX C200-4D / Siemens SINUMERIK 840C. Condition: in need of repair, maintenance required. Hoses and guide channels of the bar feeder are defective. The emergency stop currently cannot be reset. The oil pressure/air pressure switch trips the circuit breaker. Inspection possible by appointment.

A compact CNC lathe is offered. Control: Siemens. Condition: defective. Turret enable signal is missing. Inspection possible by appointment.

Manufacturer: Citizen Model: M32 V Year of Manufacture: 2003 Mass: 3200 kg The machine comes with an automatic bar feeder and oil mist filter. Find more here - .ucymachines/ Contact us at - sales@ucymachines

control: Heidenhain centre distance: 1400 mm weight of the machine ca.: 3,6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Turning diameter over bed/slide: 520mm/340mm, turning length: 850mm, speed: 3500rpm, spindle bore: 70mm, chuck diameter: 315mm, bar capacity: 70mm. Machine weight: approx. 7500kg, control: OSP 500L. Documentation available. On-site inspection is possible.

Turning diameter: 320mm, turning length: 1000mm, spindle clearance: 80mm, speed: 3150rpm, travel X/Z: 265mm/1000mm. Machine dimensions X/Y/Z: approx. 5500mm/2400mm/2400mm, weight: approx. 7000kg, control: Traub System TX-8. Including a tool set, three-jaw chuck and bar chuck with collets. Documentation available. On-site inspection is possible.

engine lathe, year 2004, CNC 8050 TC. Used machine. More info & price on IndustrialBuyer.

3-jaw wedge rods lathe chuck FORKARDT TYPE F+160No. 1659 181Identical to Forkardt, SMW or RöhmDiameter: 160 mmInner diameter: 45 mmChuck flange: Short taper DIN 55022 Size 61 Set of chuck jaws consisting of basic jaws and hard top step jaws for turning1 set of chuck jaws consisting of basic jaws and soft top step jaws for turning- central adjustmentWeight: 11 kggood condition; used

CNC lathe, year 2001, CNC PC - Fusion - CNC. Used machine. More info & price on IndustrialBuyer.

Hydraulic copying device SAUTER type KMC 8001Copier turning device, copying turning device for lathesThe copying device comes from a lathe.Connections for oil supply and oil returnCopying stroke: approx. 140 mmRadial travel at 60 Construction: 120 mmRequired operating pressure: approx. 25 barOil volume flow: max. 7 litres/min. Drive power of the lathe: max. approx. 15 kWSpan cross-section: max. 3.5 mm²Copy carriage stroke: approx. 125 mmDistance of lathe chisel to the stylus: 800 mmDead weight Copier: approx. 100 kggoods

engine lathe, year 1996. Used machine. More info & price on IndustrialBuyer.

CNC bar-fed lathe, year 1996, CNC 0 - TT. Used machine. More info & price on IndustrialBuyer.

engine lathe, year 2008, CNC 4802. Used machine. More info & price on IndustrialBuyer.

INDEX - V 300 Y/B Stock number 1039-9419 Country of origin Germany - incl. 24 pos. Pallet circulation system Schnaithmann - Incl. ball screw as spare part - Incl. 39x driven tools - Incl. 39x tool holders Technical details: Circumferential diameter max. 450 mm Chuck diameter 400 mm Control Siemens 840D (Index) Main spindle: Max. speed 4,200 min/-1 Drive power - main spindle ( 35.5 / 56 ) kW Max. torque ( 340 / 550 ) Nm C-axis 0.001 ° Tool turret: Number of tool positions 2x 12 pos powered stations 2x 12 pos VDI 30 tool system Max. speed of the applied Tools 6,000 rpm. Drive power - operated. Tools 9.5 kW Max. torque 40%: 19 Nm Y - axis +/- 90 mm B-axis +270° / -90° Travels: x-axis 730 mm z-axis 340 mm y-axis +/- 90 mm B-axis +270° / -90° Feeds: Rapid traverse X: 40 / Z: 30 m/min Pallet changer: Number of pallets 24 pos. Pallet s ...

CNC lathe, year 2006, CNC 21i-TB. Used machine. More info & price on IndustrialBuyer.

2022 TORNOS SWISS CNC SWISS-TYPE LATHE CNC: FANUC 31iB Maximum spindle speed: 10,000 rpm Bar capacity: up to 25.4 mm The TORNOS SWISS GT 26-6 is a compact, high-speed CNC turning center intended for precision production of small-diameter components. Its twin-spindle arrangement allows machining to be transferred between the main and counter spindle, reducing the number of separate operations required for many parts. The machine is equipped for both conventional Swiss-type work with a motorized guide bush and applications where machining without the guide bush is preferred. Machining Capacity Maximum material diameter: approximately 25.4 mm Typical part length with rotating guide bush: up to 220 mm Main spindle: 0–10,000 rpm Counter spindle: 0–10,000 rpm Main spindle power: 8.2 kW, up to 10.5 kW Counter spindle power: 8.2 kW, up to 10.5 kW Maximum torque  ...

turning diameter:1390 mm turning length:14000 mm weight of the machine ca.:13 t More information can be found in the Appendix.

number of spindles:8

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

turning diameter:360 mm turning length:520 mm total power requirement:20 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3 x 2 x 2 m

turning diameter:360 mm turning length:520 mm total power requirement:20 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3 x 2 x 2 m

total power requirement:40 kW Out of valve production

weight of the machine ca.:2,5 t spindle passage:65 mm

turning length:400 mm total power requirement:45 kW weight of the machine ca.:4 t dimensions of the machine ca.:3,58 x 1,91 x 2,05 m spindle passage:45 mm

turning diameter:500 mm turning length:1000 mm weight of the machine ca.:7,3 t dimensions of the machine ca.:6,5 x 4,45 x 2,21 m

turning diameter over bed:100 mm turning diameter over slide rest:70 mm turning length:80 mm total power requirement:1,0 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,7 x 0,6 x 1,2 m facing lathe with manual feed, various accessories

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

turning diameter:650 mm turning length:1.500 mm chucking diameter:400 mm Spindle diameter at the front bearing: 180 mm Spindle bore: 132 mm Max. speed: 1,800 rpm Fixed Lynette Operating hours: 38,500 Approx. spindle hours: 1/3 of operating hours

CNC Control, Numeric Control, from GILDEMEISTER GDM 65/2AGILDEMEISTER Type Eltropilot EP20 GD-2ABead 1989Order: 150 299Ser. No.: 0.854.183Power supply: 220 VAC 50 HzRack with 20 module spaces - 11 built-in modulesDimensions W x H x D 480x 260 x 220 mmWeight approx. 7 kgThe control comes from a lathe Gildemeister GDM 42/2A. Further components from the Gildemeister can be found under stock numbers: 60343, 60346, 60347; used

turning diameter over bed:340 mm turning diameter over slide rest:190 mm turning length:700 mm spindle bore:50 mm shaving-spindle speed range:40 - 3.000 U/min dimensions of the machine ca.:2 x 1 x 1,6 m total power requirement:6 kW weight of the machine ca.:1,2 t

turning length:800 mm total power requirement:380 V weight of the machine ca.:1400 kg dimensions of the machine ca.:2200 x 1200 x 1300 m centre height:160 mm chucking diameter:150 mm
