lathe 8000 used for sale

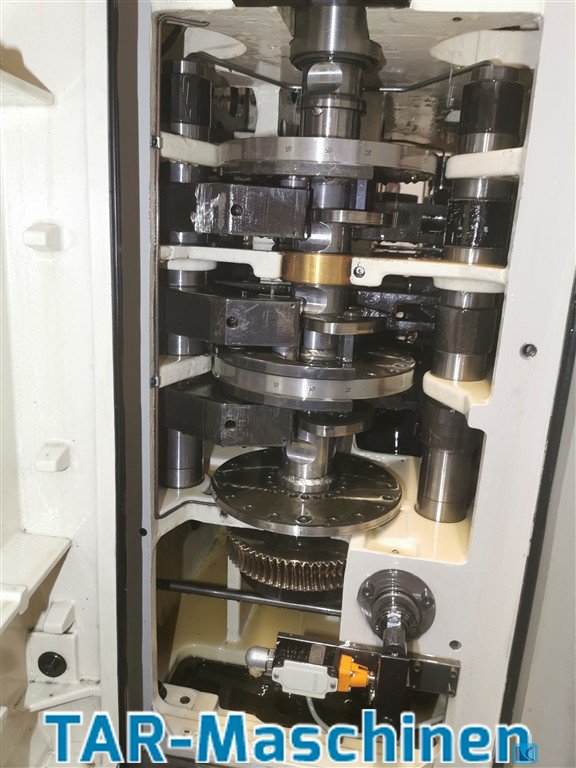

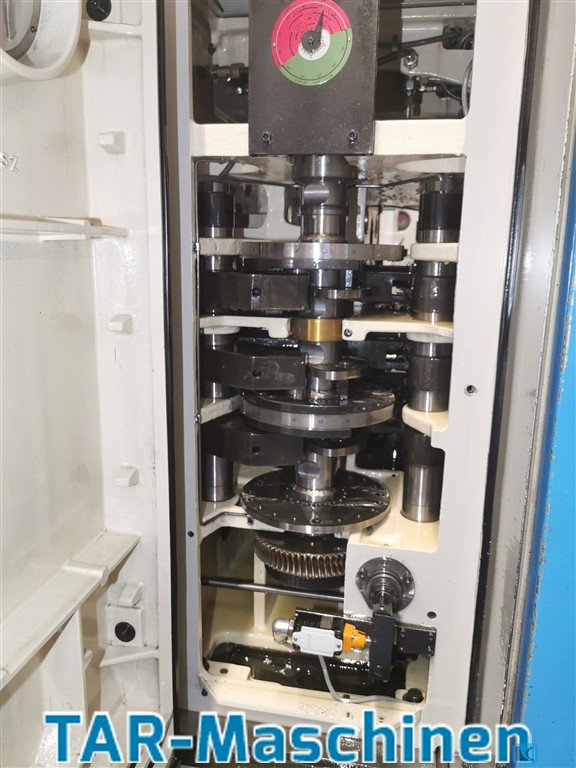

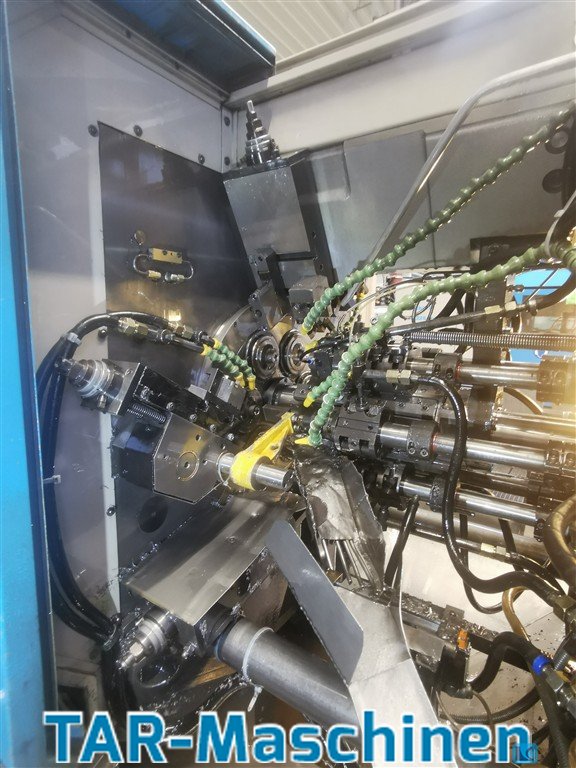

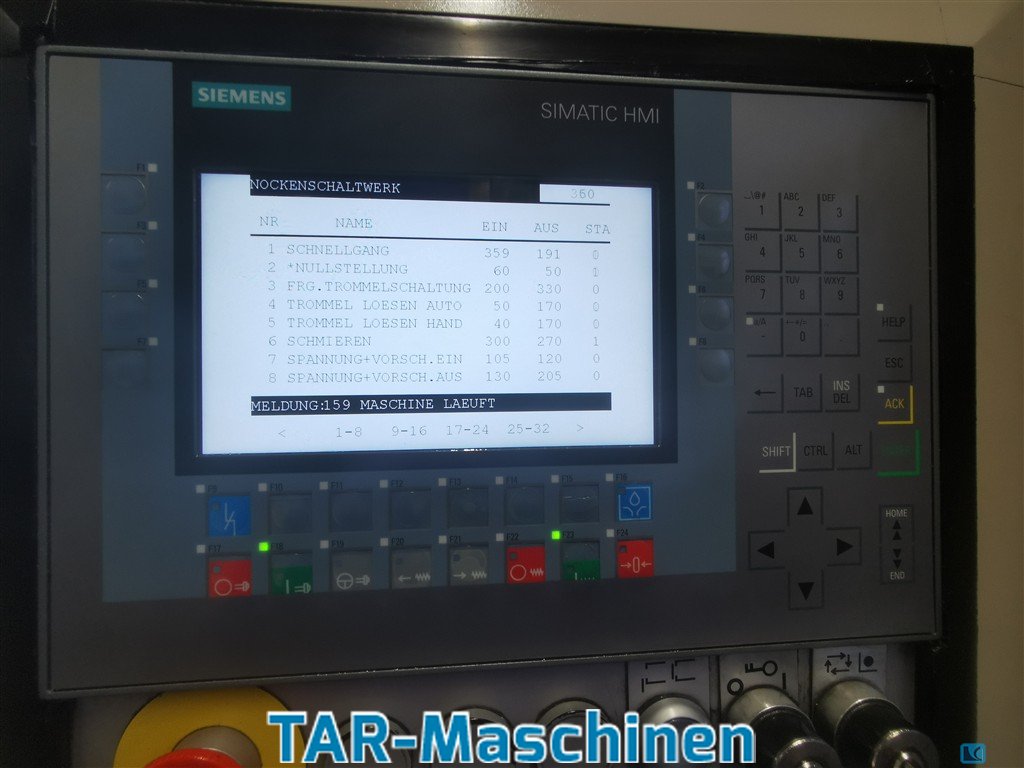

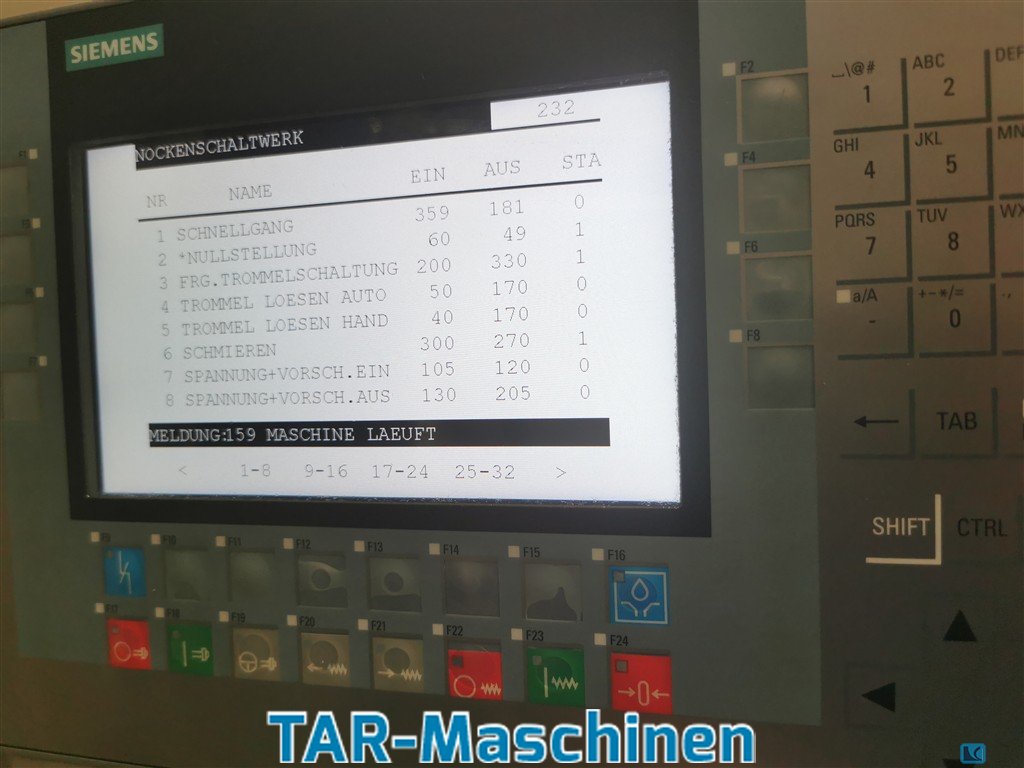

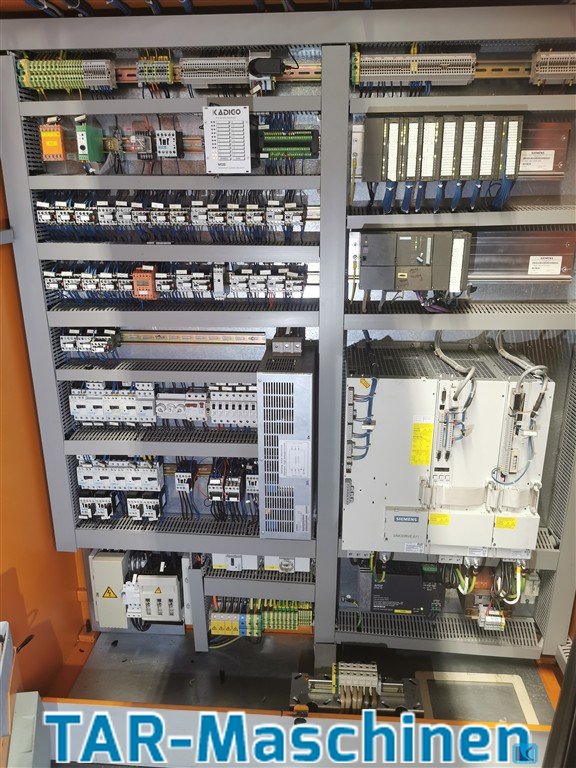

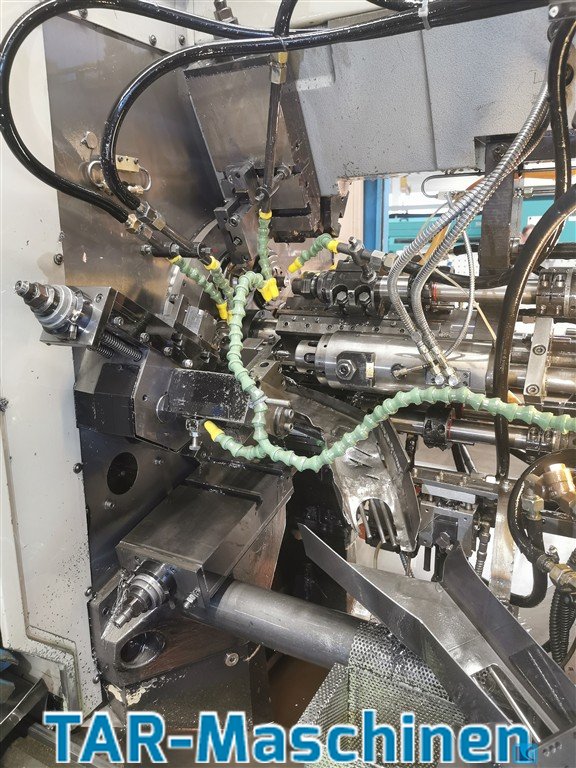

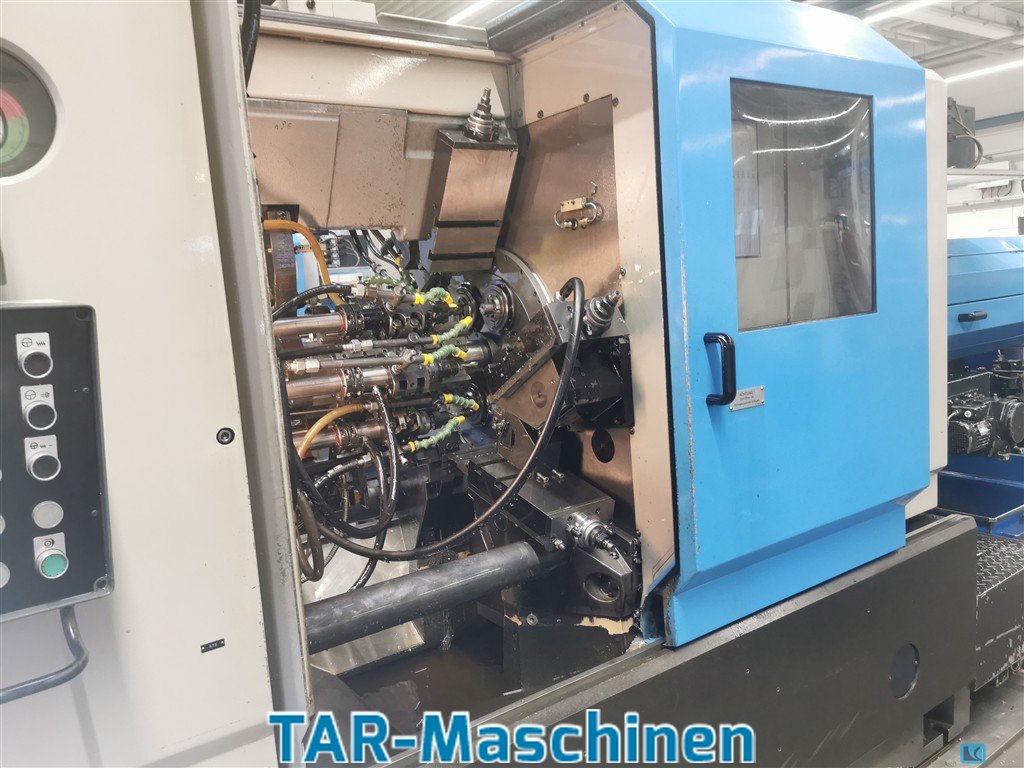

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Technical data Manufacturer: WEILER Model: Commodor B Machine Type: Lead and Pull Spindle Lathe Turning diameter over bed: 380 mm Turning diameter over slide: 190 mm Center width: 750 / 1000 mm Spindle bore: approx. 56 mm Spindle speed: 25 – 2000 rpm Connected load: 4 kW Voltage: 380 V Weight: approx. 1300 – 1500 kg Configuration Lead and pull spindle Tapping function (metric / inch) 3-jaw chuck Additional chuck Multifix tool holder Tailstock Coolant Setup Chip tray Note Technical data was taken from the nameplate and machine documentation. Specifications may vary depending on the version.

Working space: Max. swing diameter: 300 mm Max. turning diameter: 160 mm Max. turning length: 250 mm Main spindle: Speed range: 60 – 6,000 rpm Main drive power: 5.5 KW Spindle nose: A2 – 5 inches Spindle bore: 50 mm Bar work up to a diameter of max. 40 mm Tool turret: Special version: 12-speed Travels: Turret travel: x – axis: 100 mm z – axis: 290 mm Travel speed: Rapid traverse: x/z – axis: 30 m/min Feed range: 0 – 5,000 mm/min Tailstock: Tailstock travel: 364 mm Quill tip: MK 4 Quill stroke: 75 mm
