CNC Milling Machines KOLB TECHNOLOGIE STUDIO LINE M
metal working machines / milling machines / CNC Milling Machines
TOP Seller
Manufacturer: KOLB TECHNOLOGIE
Model:STUDIO LINE M
Type of machine:CNC Milling Machines
item-No.: 170372076
Quantity: 1
Date: 26.10.2026
Year of manufacture: 2010
Location:
Germany
88255 Baienfurt
Auction Price:19,500 EUR
Seller-item-No.:250
Go to auction:
End of auction: 25.11.2026 - 11:00
X-travel:
11500 mm
Y-travel:
1550 mm

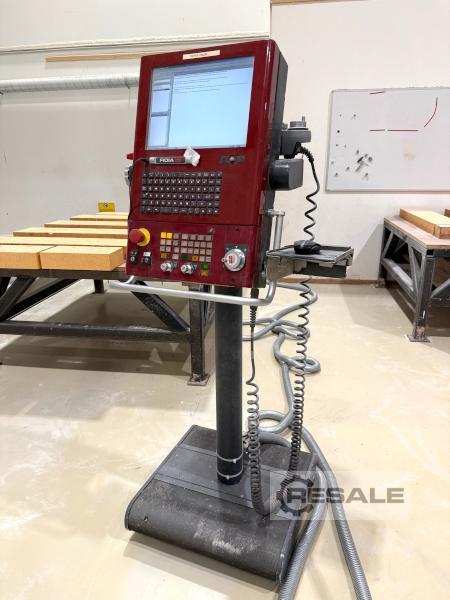

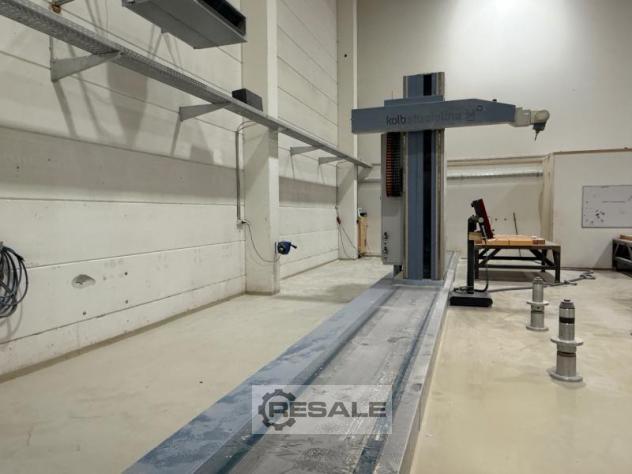

CNC control FIDIA with handwheel, travels: X-axis approx. 11,500 mm,

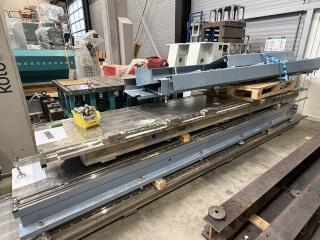

Y-axis approx. 1,550 mm, Z-axis approx. 2,250 mm, clamping table
length x width x height 2 pieces each approx. 2,000 x 2,000 mm, table

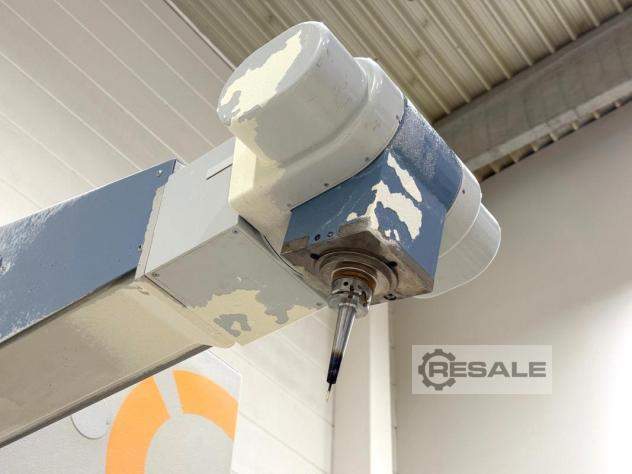

load max. 1,000 kg, milling spindle spindle power S1 / S6 approx. 7.4
kW / 12 KW, spindle speed 16,000 rpm, tool holder HSK 50A, B- and
C-axis +/- 210° / +/- 104°, Feed speed X, Y, Z axis up to 16 m/min,
axis acceleration m/s², machine space requirement approx. 14,000 x
2,600 x 3,650 mm without tables, total weight approx. 13,500 kg; NOTE:
Fully functional condition, machine is already dismantled and stored.
The machine is already at another location at Kartonstraße 2, D-88255
Baienfurt. Freely loaded FCA D-88255 Baienfurt.
