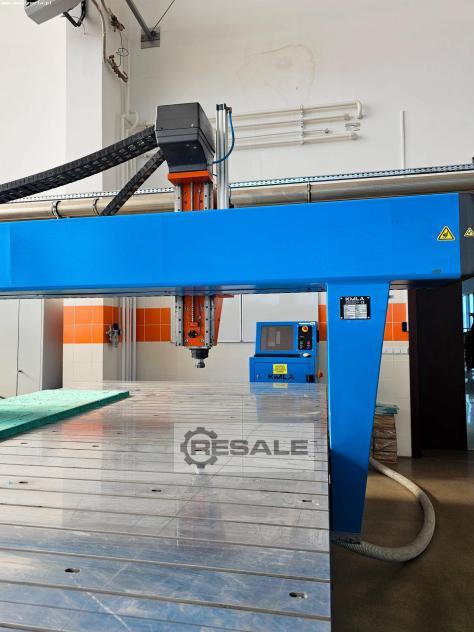

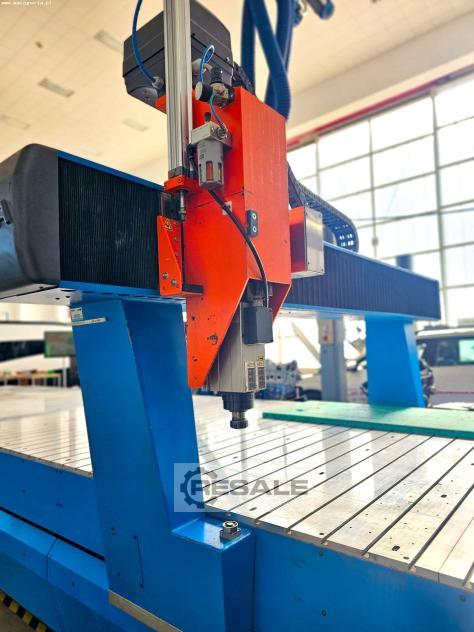

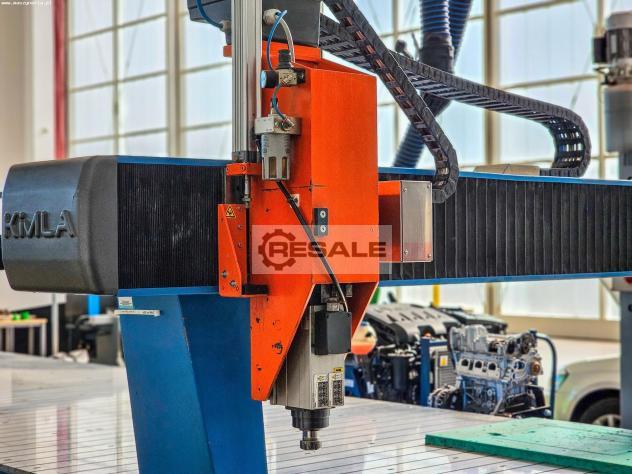

KIMLA BPF 2070 CNC router was built in 2010 in Poland by POLCOM
Przemysław Kimla. The machine is used for precision machining of
parts made of such materials as wood, plastics and aluminium. The
machining process is performed on a large work table with a length of
7050 mm and a width of 2085 mm by means of a reliable, high-speed
spindle. Process stability, on the other hand, is ensured by an
extremely rigid design that effectively eliminates any vibration and
oscillation during even the most intense challenges. All this is
complemented by an industrial CNC controller with easy-to-use PC-CAM
software. The BPF 2070 CNC milling machine weighs 6000 kg.
Technical specifications of the KIMLA BPF 2070 milling machine
- machinable materials: wood, plywood, polycarbonate, polymer plates,
aluminium, etc.
- feed in the X/Y/Z axis: 2085/7050/500 mm

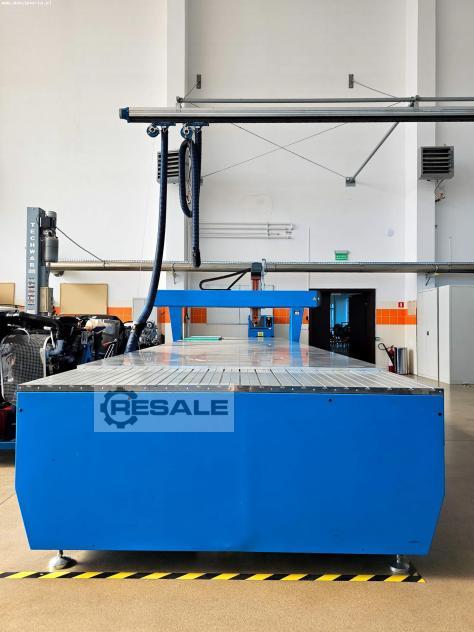

- work area (L x W): 7050 x 2085 mm

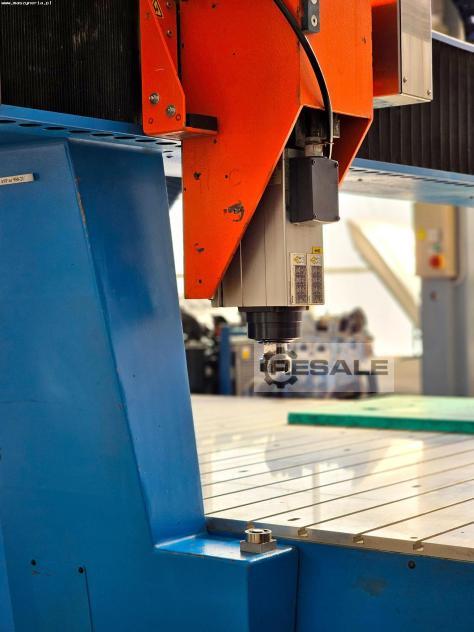

- maximum spindle rotational speed: 24000 rpm
- minimum spindle M6151405 rotational speed: 2400 rpm
- spindle drive power: 7 kW
- tool change: manual
- gantry dimensions (W x H): 3160 x 2170 mm
- compressed air pressure: 8 bar
- total power: 13 kW
- power supply: 400 V; 50 Hz
- weight of the KIMLA BPF 2070 machine: 6000 kg
Equipment of the KIMLA CNC router
- industrial CNC controller
- software: PC-CAM

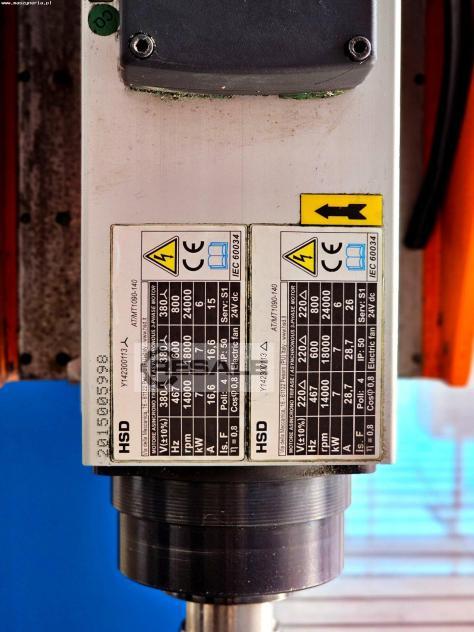

- spindle: ELTE 7 kW
- aluminium work table with T-slots
- ER32 collet
Poland
