kieserling albrecht used for sale

Machine type: Kieserling seven-roll straightening machine Working range: Tubes from Ø 15 mm to Ø 75 mm Rods Ø 20 mm to Ø 65 mm Direction of passage: from right to left Speed: approx. 50 m/min Make Kieserling & Albrecht Type: WRUN 1A Location: Solingen Length 2,400 mm Width 2,000 mm Height 1,900 mm Weight 4,600 kg Country of origin: Germany

Machine Type: Kieserling Nine-Roll Straightening Machine Working range rods Ø 5 mm to Ø 30 mm Flow direction: from right to left Speed approx. 40 m/min Made by Kieserling & Albrecht, type WRUW 1 Length 2,060 mm Width 1,450 mm Height 1,500 mm Weight 3,700 kg Country of origin: Germany Delivery time by arrangement Other: The machine is currently being completely overhauled by our specialist company. The pictures show a machine we have just delivered. The one offered here will be in equivalent condition at the time of delivery!

Technical data: -Compressive force 100 t -Throat 320 mm -Wide stand below the Guide 400 mm -Table size approx. 850 x 610 mm -Discontinued diarrhea hole in the table 335 / 300 mm -thickness of the table clamping plate 90 mm -gr. Height approx. 300 mm -Plunger area 600 x 335 mm -Adjustable height of the RAM 80 mm -Stroke adjustment 10-130 mm -Emissions er hub in the RAM 32 mm -Speed continuous operation approx. 56 / min -Drive 400 V / 11 kW -Space requirement approx. B H 1900 x 2800 X 2200 mm -Weight approx. 9000 kg Starring:-UVV press backup controller PREVENTA -Hydr. + pneumatically actuated clutch -LUTEX auxiliary braking system -Central lubrication

pressure: 100 t throat: 330 mm stroke: 10-130 mm no. of strokes: 56 Hub/min ram - range of adjustment: 80 mm table surface area: 830x600 mm ram surface: 250x130 mm table height: 870 mm tool hole in ram: 50 mm weight of the machine ca.: 11 t dimensions of the machine ca.: BxTxH 2100x1900x3000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine type: Two-roll straightening machine Working range: from Ø 4 mm to Ø 32 mm Direction: From left to right Speed: 24m/min Make Kieserling Type WRPF 20/30 Year of construction: Refurbished in 2023

bushing cut-off diameter range 22 mm number of dies 4 number of stations (incl. cut off) 5 output - pieces/min 105 shaft length under head 155 mm cutting length 175 mm press power 250 to

Inquiry number 390223 Machine Type Kieserling Four Hammers Sharpening Machine Working range round fishing: from Ø 15 mm to Ø 115 mm / folding fishing: from Ø 20 mm to Ø 120 mm Flow direction: Automatic loading at the front Speed up to 100 mm/sec Make Kieserling / Type AVS 63 Year of construction 1981 Overhaul in 2024 Location NRW Length approx. 2,500 mm Width approx. 930 mm Height approx. 1980 mm Weight approx. 5,280 KG Country of origin: Germany Delivery time by arrangement Delivery terms ex works

Machine Type: Kieserling Six-Roll Pipe Straightening Machine Working range Ø 5 to Ø 45 mm Flow Direction: Right to Left Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 35 Year of construction Refurbished in 2023 Location: Solingen Weight approx. 2,000 kg with substructure and drives Country of origin: Germany Delivery terms ex works

Machine type: Kieserling VRM 20 Flow Direction: Right to Left Target speed with 3-speed manual transmission, m/min 37.5 / 50 / 75 Main operation 1.5KW Make Kieserling, type VRM 20 Location: Solingen NRW Length 2,200 mm Width 500 mm Height 1,700 mm Weight approx. 600Kg Country of origin: Germany Delivery condition Ex-works Solingen, free loaded truck

Machine Type: Kieserling Six Roll Straightening Machine Working range from Ø 18 mm to Ø 100 mm Flow direction: from left to right Speed 37.5 / 50 / 75 m/min. Make Kieserling, type VRM 75 Location Solingen Length 1,970 mm Width 980 mm Height 1,900 mm Weight approx. 3,900 kg Country of origin: Germany Delivery time approx. 12 weeks Other: The machine is completely overhauled by our specialist company.

Machine Type: Kieserling Six-Roll Pipe Straightening Machine Working range Ø 3 to Ø 20 mm Flow Direction Right to Left Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 000 Weight approx. 800 kg Country of origin: Germany Delivery time approx. 8 weeks

CONTROLS   PLC SIEMENS S7-1200 FEEDSTOCK TUBE   external diameter min.: 20 mm   external diameter max.: 170 mm MACHINE CHARACTERISTICS SWAGING   force: 1000 kN   stroke rate (max.): 560 /min PRODUCT (PROFILE, TUBE)   length min.: 4000 mm   lenght max.: 12000 mm complete line including hammer and tube handling min. end diameter: 12 mmmax. end diameter: 110 mmlength of the conical tool part: 190 mm (for hammering)work feed speed: 0-100 mm/secrapid speed: 200 mm/secproduction output: approx. 260 pcs/h

Machine Type: Kieserling Six-Roll Straightening Machine Working range Ø 6 to Ø 60 mm Flow Direction Left to Right Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 60 Weight approx. 3,800 kg Country of origin: Germany Delivery time approx. 12 weeks

FEEDSTOCK TUBE   external diameter min.: 20 mm   external diameter max.: 170 mm MACHINE CHARACTERISTICS SWAGING   force: 1000 kN   stroke rate (max.): 560 /min PRODUCT (PROFILE, TUBE)   length min.: 4000 mm   lenght max.: 12000 mm complete line including hammer and tube handling min. end diameter: 12 mmmax. end diameter: 110 mmlength of the conical tool part: 190 mm (for hammering)work feed speed: 0-100 mm/secrapid speed: 200 mm/secproduction output: approx. 260 pcs/h (application dependent)

Machine Type: Kieserling Six Roll Pipe Straightening Machine Working range Ø 5 to Ø 45 mm Flow Direction Left to Right Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 35/45 Location Solingen Weight approx. 2,800 kg Country of origin: Germany Delivery time approx. 12 weeks Delivery condition ex works Other: Important: the machine is currently being overhauled by our company. The pictures show a machine we have just delivered. The one offered here will be in equivalent condition at the time of delivery!

Machine Type: Kieserling Nine-Roll Straightening Machine Working range tubes and rods Ø 5 mm to Ø 30 mm Flow direction from right to left Speed 40 m/min Make Kieserling, type WRUW 1 Location Solingen Length 1,600 mm Width 1,400 mm Height 1,600 mm Weight 3,700 kg Country of origin: Germany Delivery time approx. 4 weeks Other: The scope of supply of the machine includes the complete finishing for loading and removing the straightening material, consisting of: pre-bearing with roll-off slope, infeed channel with pusher, discharge channel with ejector, roll-off slope, collection belt trough.

Machine Type: Kieserling Seven-Roll Straightening Machine Working range tubes from Ø 15 mm to Ø 75 mm, rods Ø 20 mm to Ø 65 mm Flow direction from right to left Speed approx. 50 m/min Make Kieserling, type WRUN 1A Location Solingen Length 2,400 mm Width 2,000 mm Height 1,900 mm Weight 4,600 kg Country of origin: Germany Delivery time approx. 12 weeks Other: The machine is currently being completely overhauled by our specialist company. The pictures show a machine we have just delivered. The one offered here will be in equivalent condition at the time of delivery!

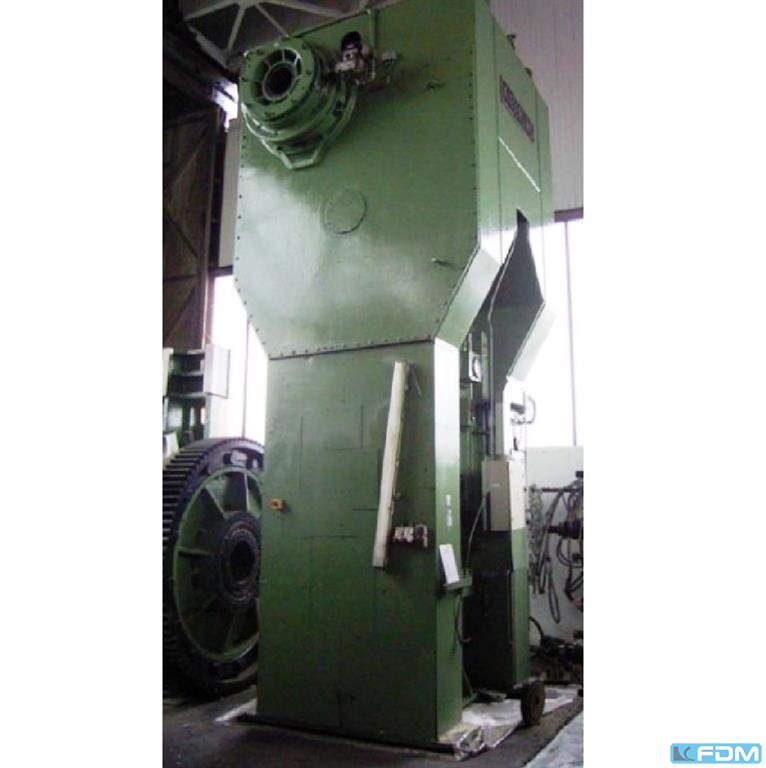

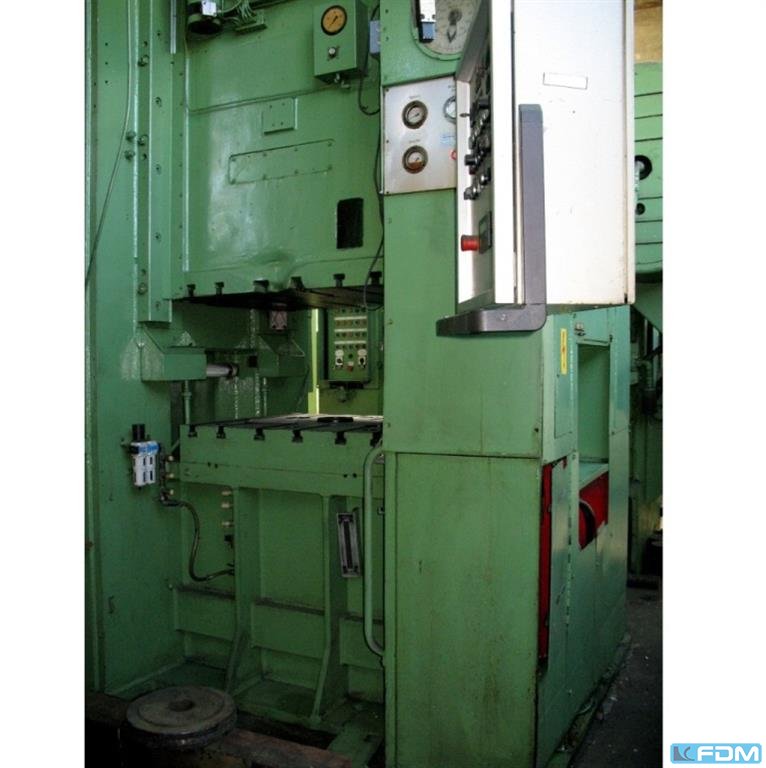

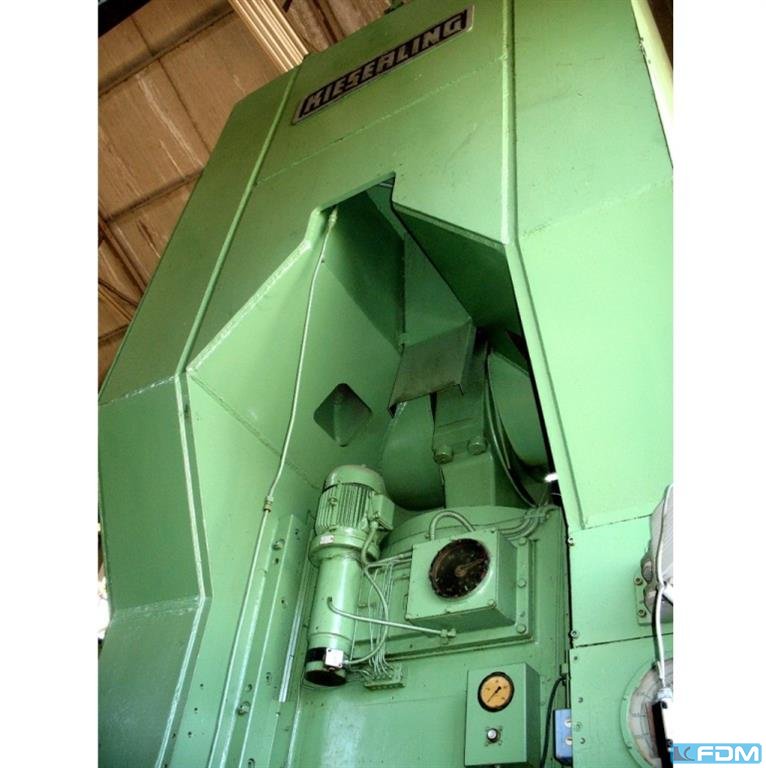

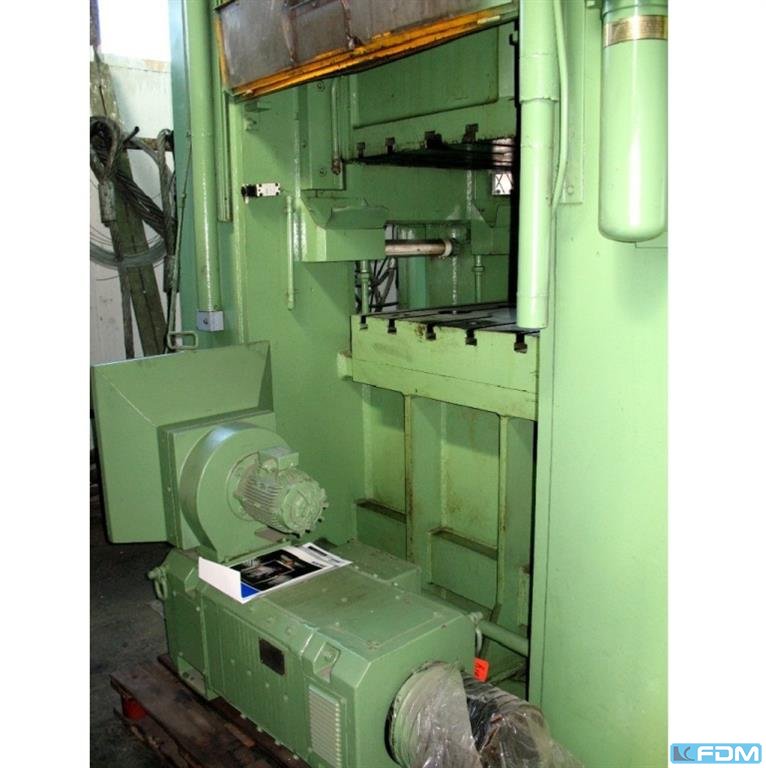

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

Tool holder: MK 2 Drilling capacity: 18 mm Speed range, infinitely variable: 200 - 3600 rpm Spindle stroke: 95 mm Table size: 310 x 220 mm Outreach: 215 mm Column diameter: 75 mm Engine power: 0.55 / 1.1 kW Connection: 380 V / 16 A Weight: 95 kg Dimensions LxWxH, approx.: 700 x 450 x 880 mm Facilities: - Stepless speed adjustment - Drilling depth stop - Speed display - Drilling chuck Albrecht 3-16 mm Note: The column sinks into the table.

Prec. Fine boring machine make OVERBECK type Zetto 03Machine -No: 1131 Year 1972Drilling capacity: 0.2 - 1.5 mmgr. span of drill chuck: 1.5 mmSpindle diameter: 12 mmCone of the drill spindle: 20Stroke: 25 mmProjection: 180 mmDistance spindle - table top: 65 - 130 mmDistance spindle - base plate: 150 mmstepless speeds: 0 - 12000 rpm.Drive power: 0.17 kWOutside dimensions approx: 250x500x650 mmWeight approx: 40 kgWith- Three-jaw chuck 0 - 1.5 mm Albrecht- Three-jaw chuck 0 - 3.0 mm- without transformer- magnifying glass with lightingvery little used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Wörner series drilling machine 4 units in circular arc alignment Built in 1958 MK2 spindle - speed change by Keilreinemscheibenwechsel Shaped casting table - drilling units height adjustable max wide table/spindle: approx. 500 mm - and rotatable with clamp. Drilling units throat depth: 280 mm Coolant system on each drilling unit; 1 x Unit TIBO 13 with Albrecht Chuck 0-13 mm left/right rotation Stroke: 0-100 mm with drill depth - fine adjustment screw Rpm: 560-3500 RPM motor 0.55 kw 50 Hz 380V 3 x units UNIVA 16 MK 2 recording left/right rotation speed: 540-3600 RPM (gear reduction speed unit is missing) Engine power: 0.55 kw 50 Hz 380V -of which a unit of UNIVA with automatic speed switching for tapping saturation (return 1.5 fold) speed: 350-2300 RPM (gear reduction speed unit is missing) Engine power: 0.4/0,35 kw 50 Hz 380 v 900/14540 U/min Stroke: 0-100 mm wit ...

Table drill, table drilling machine ALZMETALL type AX 3 T Fabr. No. 3826 Year of construction 1983 Drilling capacity 30 mm Spindle holder MK 3 - long quill Spindle speed 250 - 1600 rpm 5 steps projection 250 / 290 mm Pinol stroke 120 mm Table size 400 x 300 mm Distance spindle-table top max. 700 mm Column diameter 115 mm Motor power 0.75 kW Mains connection 380 Volt, 50 Hz - Spindle speed via 5 V-belt stages - Drill head height adjustment via hand crank approx. 450 mm (column extends downwards through the table top) - Emergency stop button quick-change drill chuck ALBRECHT 1-13 mm Space requirement L x W x H 900 x 600 x 1400 mm Weight 185 kg good condition; used

bore capacity in steel (diameter): 28 mm x-travel: 400 mm y-travel: 285 mm turning speeds: 45-4000 U/min total power requirement: 3,6 kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: LBH 2,0 x 1,4 x 2,1 m - POS+MAT table - ALBRECHT tool quick change system - Vices The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

L + Z Lathe COLCHESTER Type Master 2500 Masch. No. 5/0007/03953 Year of construction approx. 1985 Distance between centers 635 mm Center height above bed 165 mm Center height above support 105 mm Spindle bore 42 mm Spindle speed 30 - 2500 rpm. 16 steps Feed longitudinal and plan Tailstock inner cone MK 3 Chuck flange Camlock D1 4? Drive power 3.7 kW Mains connection 380 V 50 Hz - 3-jaw wedge bar chuck RÖHM, type Duro 200 mm- 3 pieces quick-change steel holder PARAT with - 1 piece rotating centering jib - 1 piece drill chuck ALBRECHT 1 to 13 mm with MK 3 holder - 6 pieces machine feet- Coolant device in the machine base - Splash guard on the back of the machine- Machine light Space requirement L x W x H 1700 x 880 x 1200 mm Weight approx. 850 kg good condition; used

Machine type: Bronx six-roll straightener 6CR 4BW incl. saw and roller tables Working range: Tube: from Ø 15 mm to Ø 54 mm Make Bronx, similar to Kieserling, type: Bronx 6CR 4BW

Morse taper sleeve, tool holder, Morse taper, Morse taper, taper sleeve, adapter, drill chuck holder, drill chuck holder, taper mandrel, MT insert shank -Manufacturer: Albrecht, drill chuck holder -Hoffmann: Art.-No .: 342600 3/24 -Morse taper: MK3 -Drill chuck: B24 -Dimensions packaging: 165/30 / H30 mm -Weight: 0.5 kg

Overview This whole brewery, including a complete can filling line, a complete glass filling line, and other extensive brewing equipment was built up in 2015. Most of the equipment is from 2017, is still installed and can be visited. CANNING ROOM Canning line, Wild Goose MCE-250 4-head + accessories, conveyor belts, flow meters, labelling machine, date coder, air compressor,stare parts, etc. CCT tank, 20 HL IFIND CCT tank, 30 HL, Staes   CIP installation CMC-KUHNKE SEAM Scanner + Laptop 1 2020 Labeller, self-adhesive, CDA VIDE /ROOF Glycol tank, pipes, pumps (3), control unit, etc. Kaeser airboxcenter, compressor, airdryer, oil/water seperator, etc. 3x Chillers Cool Tower ICS Cool Energy Small air compressors, pump, storage racks, etc MALT STORAGE Air compressors, storage racks, pipes, etc. MALT GRINDER Complete with all pipes, transportsysteem, blowers, etc. BREWERY Brewhouse Johan Alb ...

Fuse circuit breaker, for busbar mounting, 3 pieces ALBRECHT JUNG GmbH & Co KG MBSL 125 ( MBSL125 ) Size: 00 In: 125 A Ia: 750 A Ue/Ui: 660 V AC used, tested ! Dimensions ( single switch disconnector ): 175 x 110 x 155mm
