juice filling line used for sale

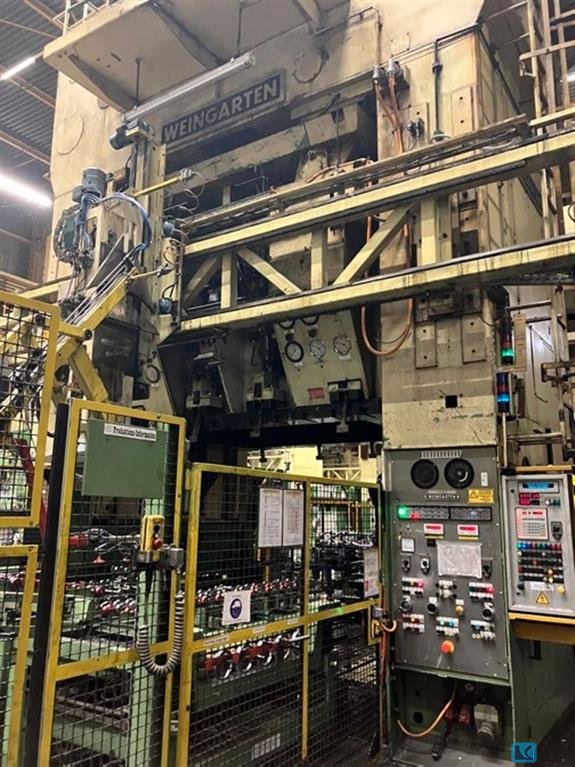

Total force (nominal):800 to Clamping surface (left-right):x mm Clamping surface (front-back):x mm table surface area:3200 X 2200 mm Total force (nominal):2-3-4-5- Presse - 600 to. to table surface area:2-3-4-5- Presse 3100 X1900 mm Last overhaul 2010/2020, consisting of: Circuit board washing system, manufacturer Neuhäuser, with 6 cleaning rollers, system no. 0905200, control unit by Siemens Blank automation, manufacturer Neuhäuser, type 19711594-00-0, year 2002, SN 369507/002, system no. FK42282, consisting of: destacking device, oiler, pallet changer, empty pallet discharge Gripper automation, manufacturer Olofström, type Doppin Loader 2000, SN 37719974886, system no. 0602300 Double-column press, manufacturer Weingarten, type ZS 1200.34 Year 1972, order no. 113 021, pressing force approx. 800 t, double action, stroke 850 mm, stroke adjustment 350 mm, height between table surface an ...

material width:400 mm coil weight:3,0 t material thickness:0,5 - 4,0 mm coil internal diameter:460 - 530 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:50 mm no. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mm material cross-cut:1600 mm² speed of coil line:0 - 20 m/min power requirement:35,0 kW weight:10,5 t dimensions (WxDxH):10,0 x 2,5 x 2,9 m straightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic

material width:300 mm coil weight:2 x 1,25 t material thickness:0,4 - 1,2 mm coil internal diameter:320 - 420 mm coil external diameter:1300 mm no. of straightening rolls:9 straightening roll diameter:30 mm number of draw-in rolls:2 roll diameter:30 mm speed:3 - 30 m/min feed length:0 - 9999,9 mm power requirement:3,0 + 2,5 kW weight of decoiler:0,7 t dimensions decoiler (WxDxH):2,1 x 1,4 x 1,5 mm weight of straightening machine:0,45 t dimensions straightener (WxDxH):1,5 x 0,8 x 1,1 mm weight of the feeder:0,4 t dimensions feeder (WxDxH):1,2 x 0,8 x 1,1 mm universal straightening machine:SC 12-FQ double decoiler:2352 B-FPS expansion:hydraulic lag brake:pneumatic electronic roll feed:WAV-RDS-2Z, Modell 1082 B intermittant lifting:pneumatic control:Siemens S 5

material width:600 mm coil weight:5,0 t material thickness: - 5,0 mm coil internal diameter:360 - 660 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:80 mm number of draw-in rolls:2 material cross-cut:1600 mm² weight of feeeder-straightener:2,5 t weight of decoiler:1,5 t dimensions feeder-straightener (WxDxH):1,7 x 1,7 x 2,6 mm dimensions decoiler (WxDxH):1,8 x 2,0 x 2,3 mm feeder-straightener:VCRL 650, Bj. 1994, GR 2001 height adjustment:motorisch alligator opening:hydraulisch decoiler:SHR 5000, Bj. 2000 expansion:hydraulisch

material width coil line:600 mm coil weight:2 x 3,5 t coil internal diameter:460 - 530 mm coil external diameter:1500 mm material thickness coil line:0,5 - 3,0 mm no. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mm feed length:0 - 500 mm power requirement:10,0 kW weight:10,0 t dimensions of the coil line:8,8 x 4,0 x 2,55 m straightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed

material width:500 mm coil weight:3,0 t material thickness:0,2 - 2,5 mm coil internal diameter:470 - 530 mm coil external diameter:1400 mm no. of straightening rolls:9 straightening roll diameter:40 mm number of inlet and outlet rolls:4 material cross-cut:1200 mm² speed:1,5 - 30 m/min dimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 m weight decoiler:1,1 t dimensions straightener (WxDxH):3,3 x 1,3 x 2,7 m weight straightener:3,0 t straightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic

Manufacturer: DMG GILDEMEISTER Year: 2008 Type: CNC lathe with motorized tools with C and Y axes Numerical control: Heidenhain iT Plus Max. turning diameter: 400 mm Max. turning length: 600 mm Distance between tips: 615 mm Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm Bar capacity: Ø 52 mm – spindle bore 61 mm C-axis: 0.001° resolution Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW) Strokes: X 160 mm / Z 450 mm / Y ±32 mm Fast feeds: X 60 m/min – Z 45 m/min Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system Dimensions (mm): 8000 × 3000 × 2700 Weight (kg): approx. 4500 Remarks: Machine in good condition, powered on. Serial number included in the description.
