Non-Ferrous Hot Forging Press Line HYDROMEC HF4000

400 Ton Hydromec HF4000 Non-Ferrous Hot Forging Press Line

MANUFACTURER – HYDROMEC
YEAR – 2000
SERIAL NUMBER – 660
MODEL – HF4000 C/D
MATERIAL – NON-FERROUS
TONNAGE – 400 TON (4000 KN)
STROKE – 380MM
STROKE PER MINUTE (CONTINUOUS) – 22-35
STROKE PER MINUTE (SINGLE STROKE) – 22-45
RAM ADJUSTMENT RANGE – 100MM
CLEARANCE (STROKE TO BOTTOM, ADJUSTMENT TO TOP) – 865MM
SIZE OF TOOL MOUNTING PLATE – 1000MM X 1000MM
MAIN PRESS MOTOR – 59 KW
MAIN MOTOR RAM ADJUSTMENT – 2.2 KW
CUSHION FORCE – 70 TON (700 KN)
CUSHION STROKE – 40 – 110MM

INCLUDES:
AUTOMATED PICK AND PLACE H6352481 ROBOT
FULLY AUTOMATED SLUG H6352481 LOADING STATION WITH FURNACE/CONVEYANCE
MAESTRI C.T. 3500 4 TRACKS SLUG FURNACE (NEW 2000) , 420 KW POWER. NATURAL GAS, 950 DEGREES CELCIUS
ELECTRICS
PRESS CONTROLS

VIRTUAL WALK

Combination Lot of the following:
Lot No. O233

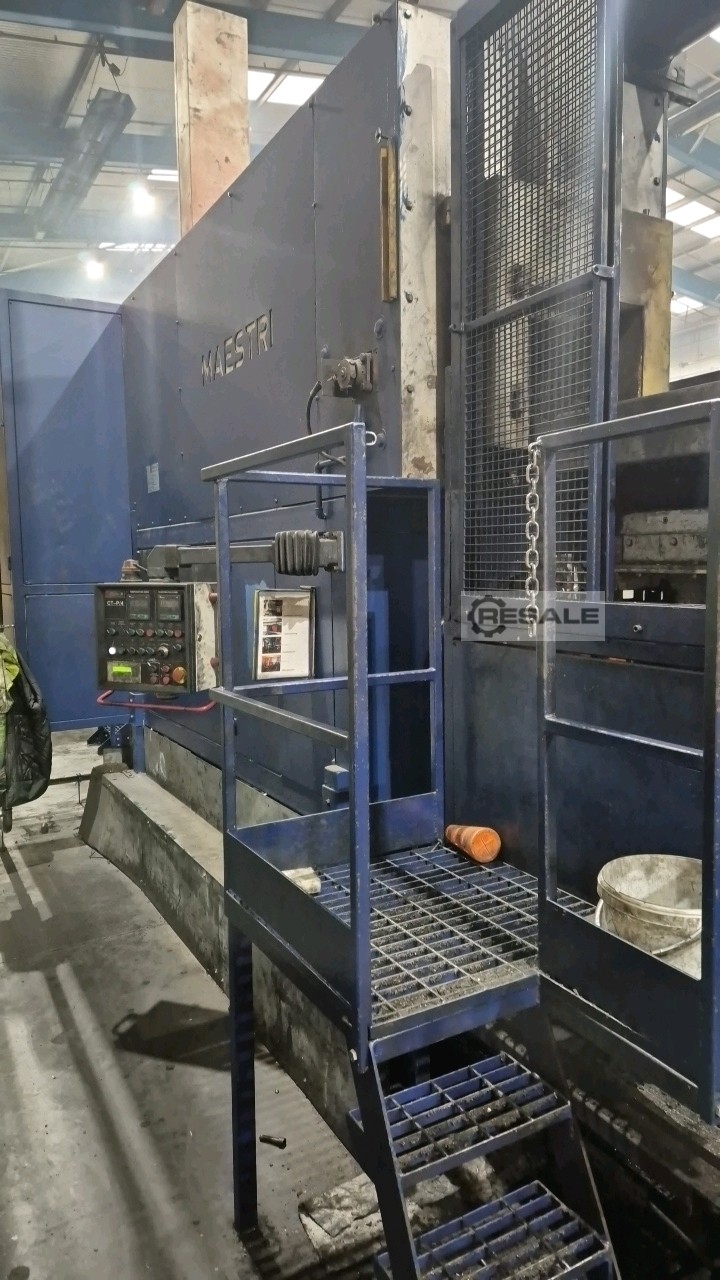

MAESTRI Gas Furnace
seller offer No. resale B225
