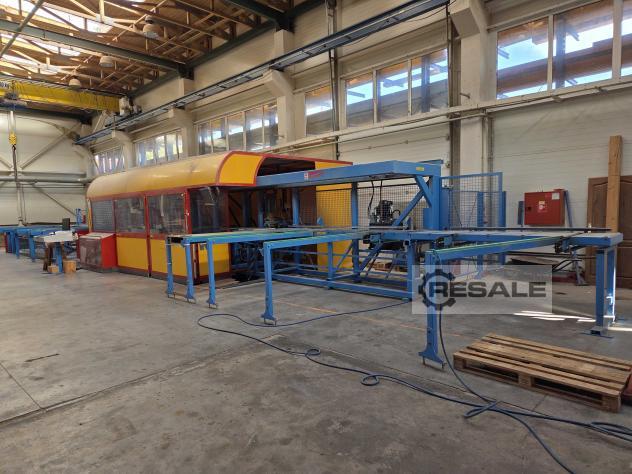

I am selling an automatic CNC machining center for BLOCK-HOUSE
production Hundegger K2i built in 2011.
Almost new machine. Built in 2015.
Under-table rotary saw with saw blade from 750 mm to 800 mm, 360°
rotation, servo-hydraulic inclination 0–65°

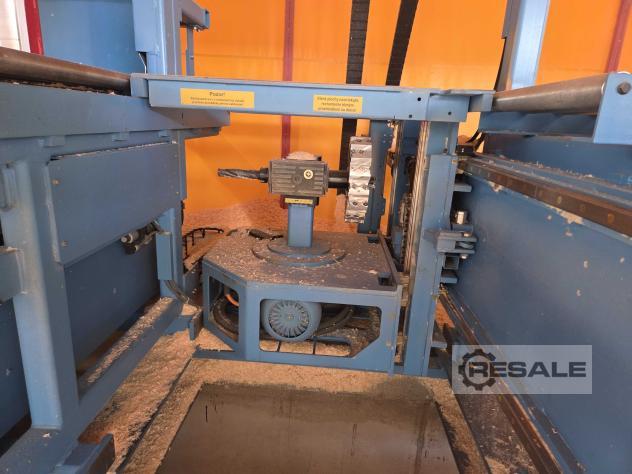

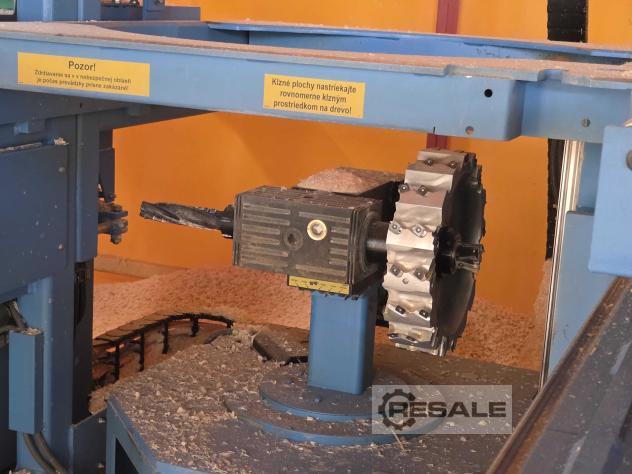

Universal 5-axis unit with round milling cutter, end mill and end
mill, milling head diameter 350 mm x 100 mm end mill
Combination holder for at least 5 tools with horizontal drilling
device up to 2.5–3.0 kW power, maximum drilling diameter 24 mm,
minimum drilling length 460 mm, minimum machining depth 300 mm
Combination holder for at least 5 tools with horizontal drilling
device up to 2.5–3.0 kW power, maximum drilling diameter 24 mm,
minimum drilling length 460 mm, minimum machining depth 300 mm

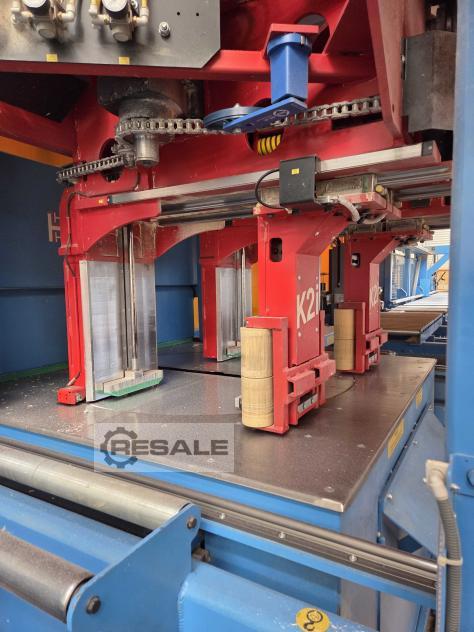

Positioning and clamping of the workpiece by means of gripper arms.
While the workpiece is measured and transported to the desired
position, the gripper arms hold the workpiece as close to the tool as
possible for stabilization.
The processed material can be rotated automatically.
Tolerance +/- 2 mm for a length of 13 m

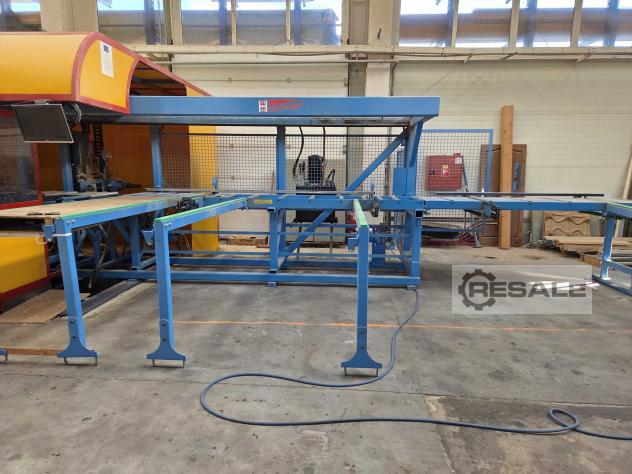

Fully automatic timber feeder with feed roller conveyor and feed and
sliding cross conveyor
K2i: Under-Counter Tilt Cross Section Saw
K2i: Universal Milling Unit – 4-Axis (UF4)
K2i: Combination support device for vertical tools
K2i: Drilling rig (2.2 kW) – vertical drilling direction
K2i: Combination support device for horizontally working tools
K2i: Drill rig (2.2 kW) – O51257996 horizontal drilling
direction
K2i: Marking tool (rear or user-side)
K2i: Fully automatic element rotation – hydraulic
K2i: Transport and positioning system "two-handed system"

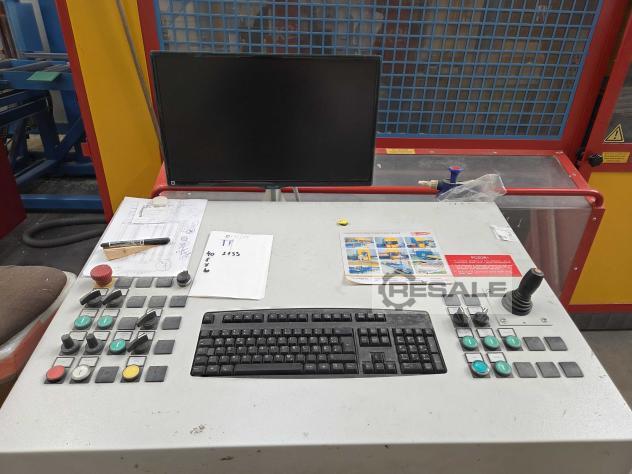

K2i: Electronic connection

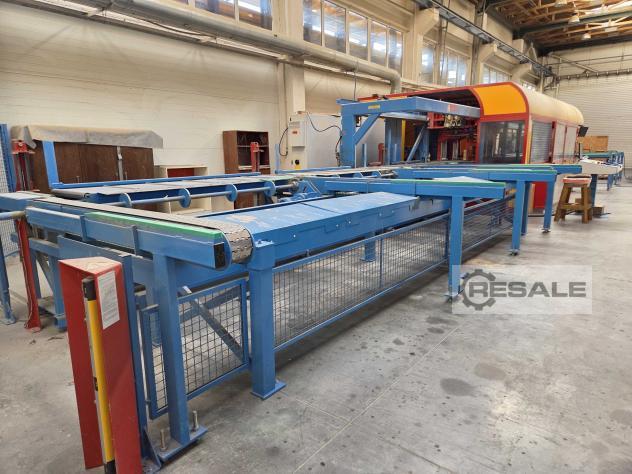

K2i: Roller conveyor for removing wooden elements with slider
K2i: 5-arm storage table
K2i: Safety device
K2i: Higher Quality Surface Machine
K2i: Extension of the K2i frame to 13.56 m
K2i: 5-axis universal milling unit – UF5 (extension to 4 axes)
K2i: Remote maintenance (incl. portable video camera)
K2i: Dovetail milling machine (with rotating blades) 60x28x16.5
Cheap for the timber constructions!
Available the same.
