holvrieka used for sale

12 x 14.800 ltr. VA4 completely Pasteurization tank, Holvrieka, round, used standing on feet, it will be only the lower tanks sold, ø 2.48 m, H: 3,80 m (2 St. 7.60 m), incl. all armatures and pressure valves (excluding pressure relief valve), operating pressure: 1.5 bar, ZIP able, dished, adjustable feet, very good condition, the tanks can be sold separately 20 x 10.200 ltr. VA4 completely Pasteurization tank, Holvrieka, used, round standing on feet, stacked per 2 PCs ø 2,10 m, H zs.: 7,40 m, incl. all armatures and pressure valves (excluding pressure relief valve), operating pressure: 1.5 bar, ZIP able, dished, adjustable feet, very good condition, the tanks can be sold separately 36 x 5.000 ltr. VA4 completely Pasteurization tank, Holvrieka, used, round standing on feet, stacked per 2 PCs ø 1.50 m, H zs.: 7 m, incl. all armatures and pressure valves (excluding pr ...

Qty. 1 Second-hand vertical fermentation tanks Mfc.: Holvrieka, Schmidding, Ellinghaus Built: 1991, 1996 Capacity: 24 x 1450 hl & 4 x 237 hl N° Name Producer Year Data Comments 1 Fermentation tanks Holvrieka 1991 1450 hl 2 tanks 2 Fermentation tanks Schmidding 1996 1450 hl 16 tanks 3 Fermentation tanks Ellinghaus 1991 1450 hl 6 tanks 4 Fermentation tanks Ellinghaus 1991 237 hl 4 tanks

50,000 litre milk tank/ agitator tank made of V2A Cat No.: 25-0150EUBA Condition: Used Volume 50000 L Material V2A (AISI 304) 1.4301 Total height 7200 mm Diameter 3300 mm Surface outside 2B=IIIC ground Surface inside 2B=IIIC ground Manufacturer: Holvrieka Built in 1972 Topsoil: Inclined cone base 2 crane eyes Level measurement sensor Ventilators Tank cylinder: Manhole 500 x 400 mm Agitator mixer - side with propeller Subsoil: Flat bottom with 2% slope Outlet bag DN 100 Sensor for level measurement

Equipment: Agitator,Manufacturer: Holvrieka,Condition: used,Volume: 100,000,Bottom floor: flat bottom with slope,Design: upright,Diameter inside: 3,350,Cylindrical height: 11,500,Total height: 12,500,Wall thickness underbody: 4,Wall thickness upper floor: 3,Technical documents: Drawing,Manhole / dome: in cylinder (approx. 350 x 450 mm),Type plate: Yes,Equipment: Ventilation/ventilation,Outlet : 100,Note: slight adhesions,Remarks: Sloping floor with slope to the outlet (for installation a concrete foundation would have to be erected on site) Total height estimated according to the drawing (smaller

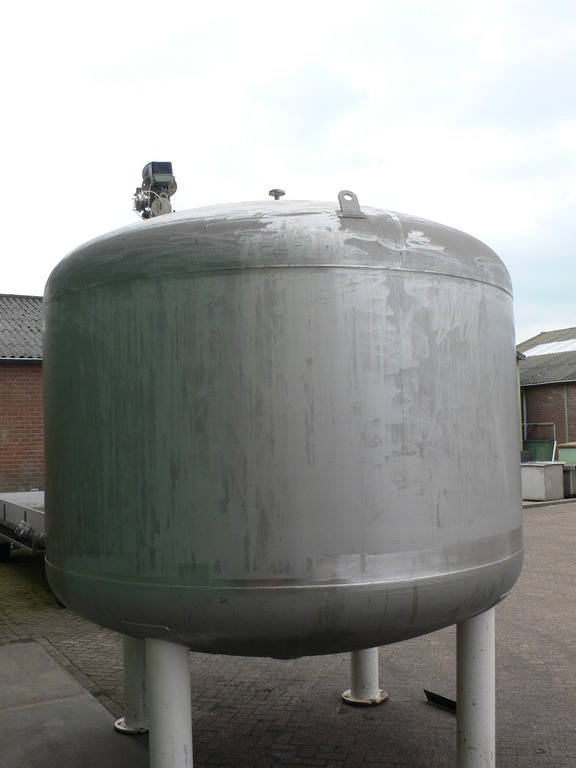

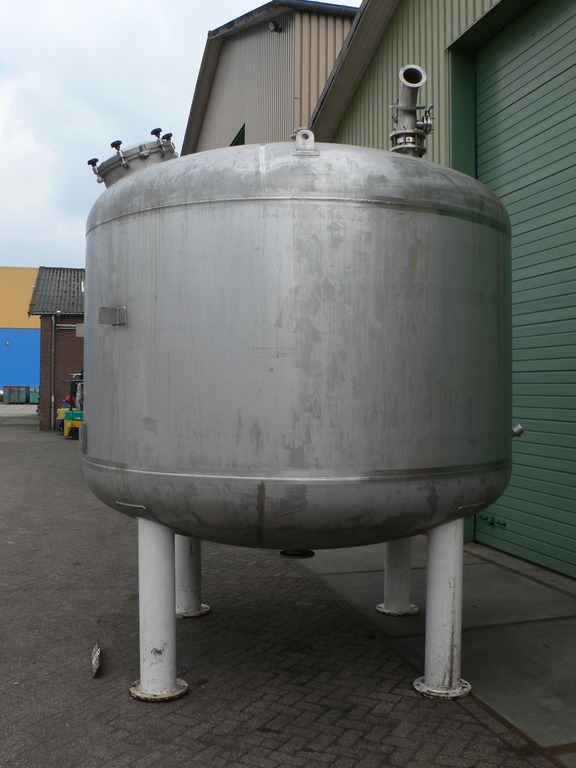

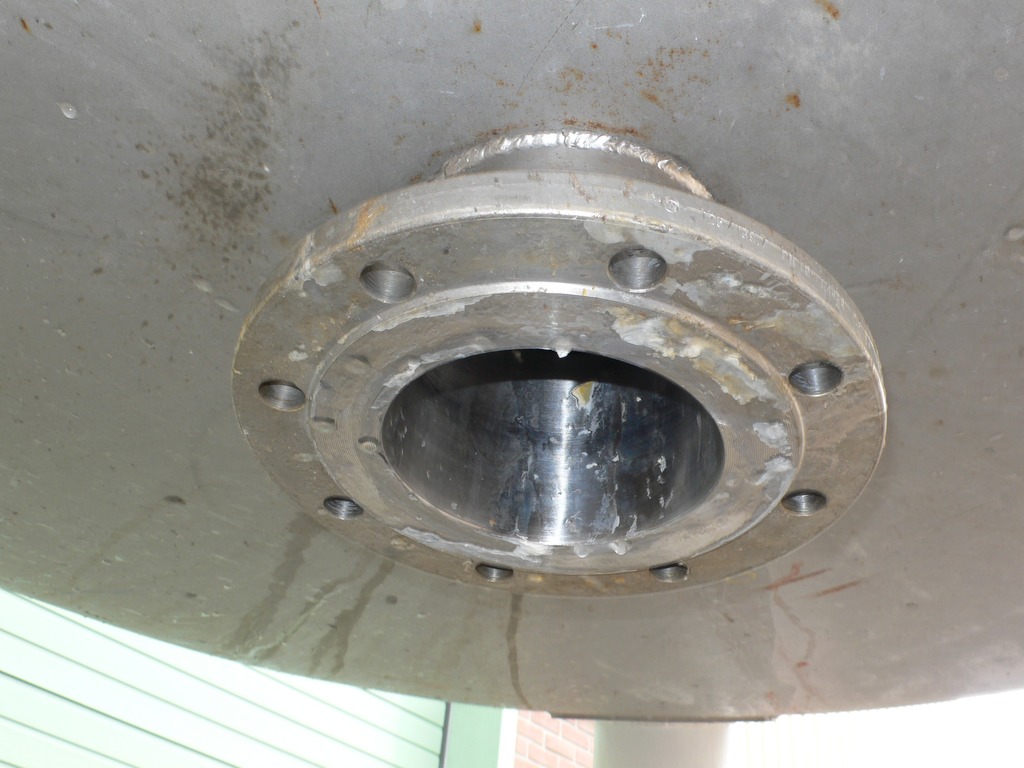

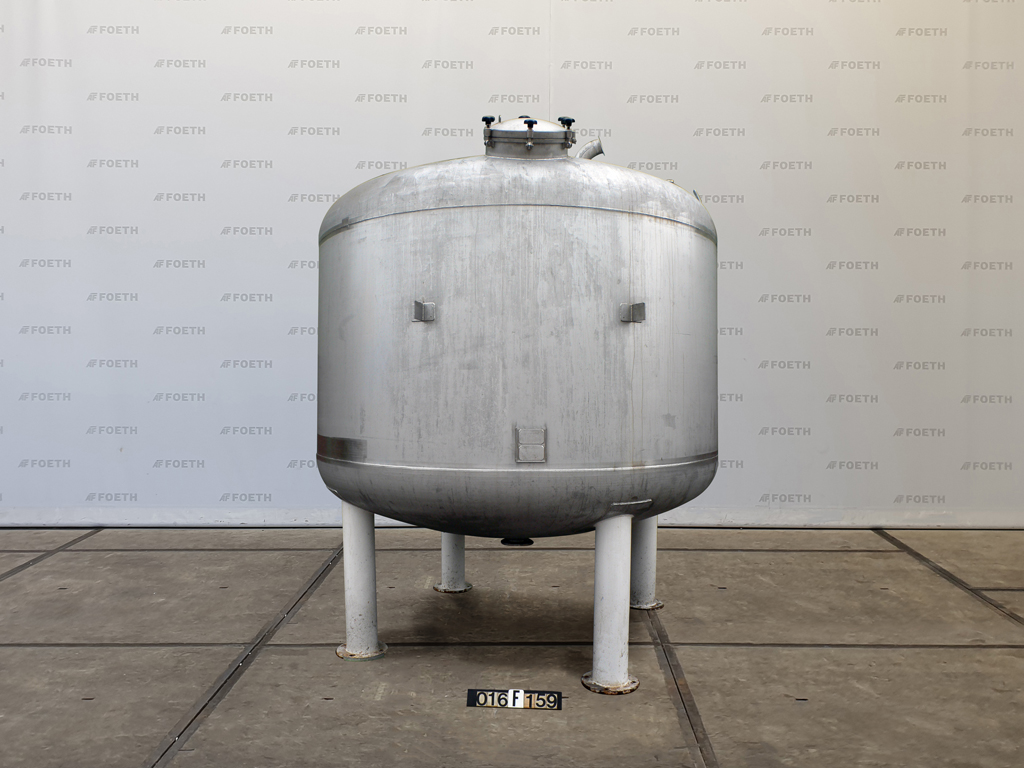

General SKU016F159 MakeHolvrieka-Nirota Sneek, Holland Type14000 Ltr. No.921162 Year of construction1992 Mounted on legscheck Pressure Working pressure3 Bar Main Features MaterialStainless steel Volume14000 Ltr. Pressure3 Bar Specified Features - Pressure vessel MaterialStainless steel 1.4301 (304) Capacity14000 Ltr. Vessel sizesdia. 3000x1500mm Dished topcheck Dished bottomcheck Manholedia. 500mm Top connectionsdia. 25 mm, dia. 80 mm, dia 125 mm Outletdia. 125mm Pressure vessels Closed vertical tank(1x) Capacity14.000 Ltr Vessel sizesdia. 3000x1500mm Dished topcheck Dished bottomcheck Manholedia. 500 mm Top connectionsdia. 25 mm, dia. 80 mm, dia 125 mm Outletdia. 125mm Information LocationBarneveld Floorspace3,0x3,0 M Total height4,2 M Weight2000 KGPressure vesselsDiscountHolvrieka SneekTanks > Pressure vesselsDiscountBrand > Holvrieka Sneek What you  ...

Insulated and clad stainless steel tanks standing on upright frames, each with three frame cooling zones and one cone cooling zone., Additional title: outdoor tanks, Volume: 1700 hl, Operating pressure tank: 1 bar, Operating pressure cooling: 4 bar, Test pressure: 1 bar, Width: 3,8 m, Height: 18,1 m, Weight: 13 t, Material: Stainless steel 1.4301, Position: Vertical, Base construction: Skirt, Features: PT100, full and empty detection probe, 4 cooling zones (3 frames, 1 cone, 42 l, 42 l, 126 l, 35 l), safety valve
