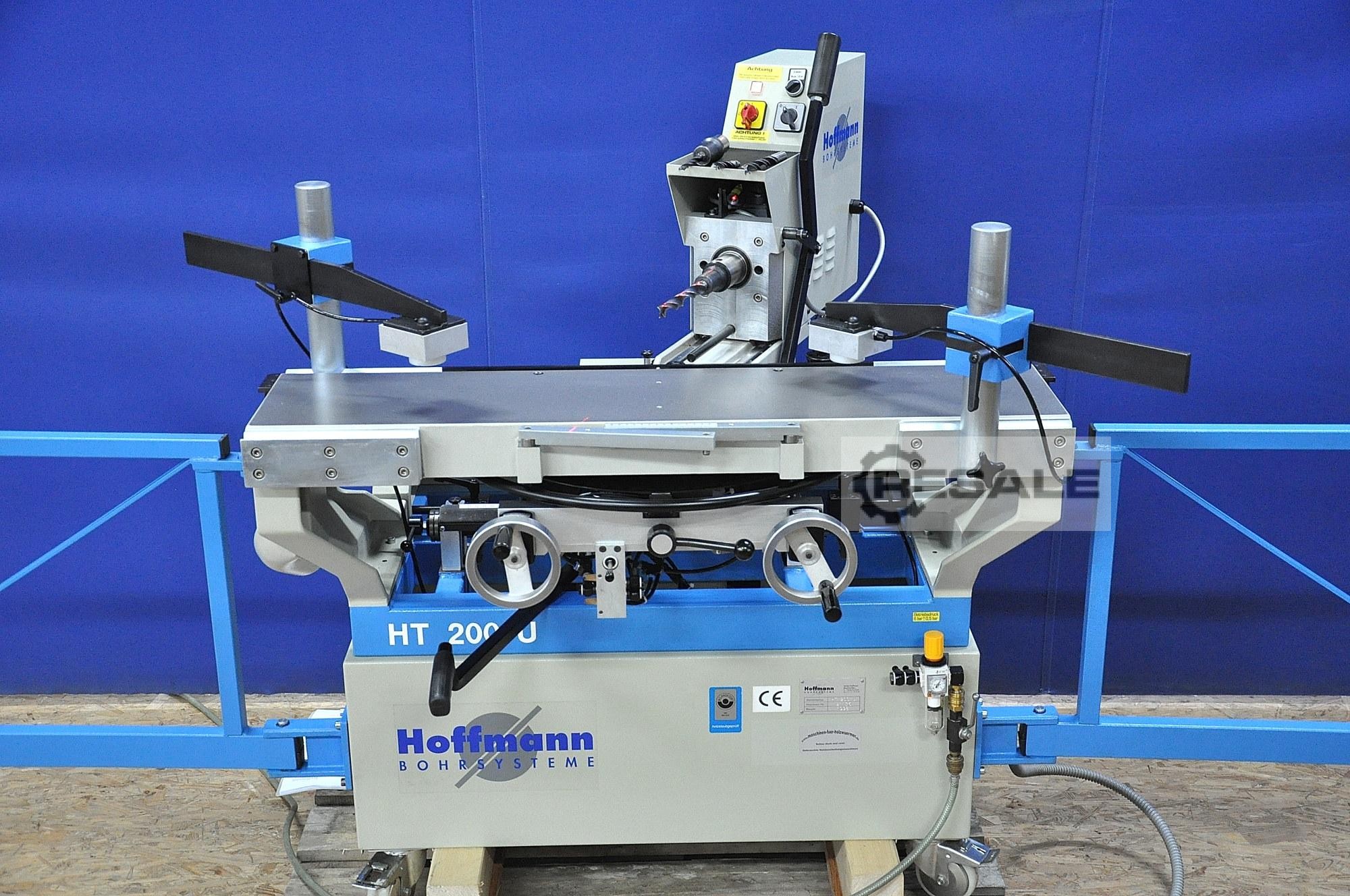

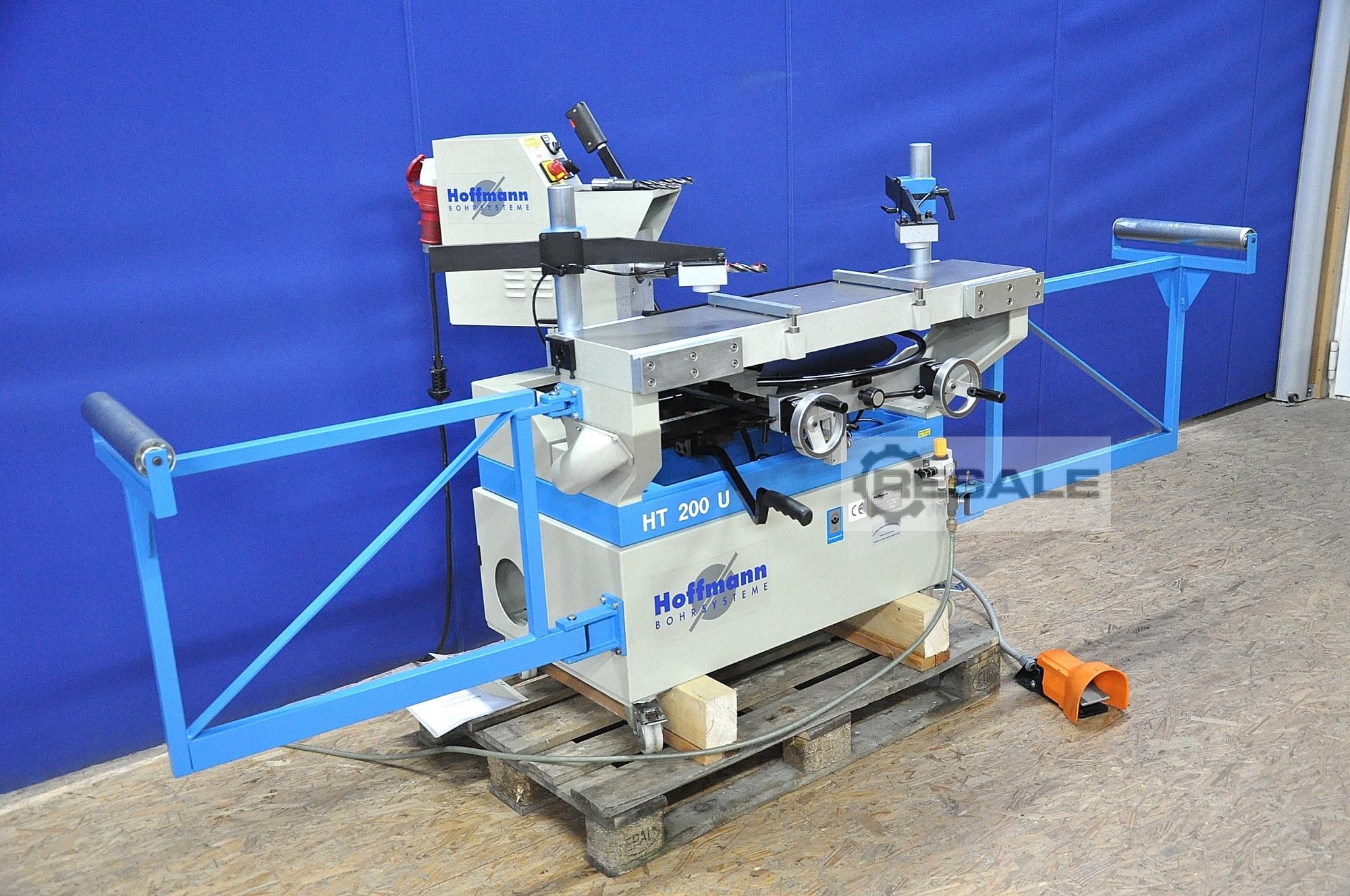

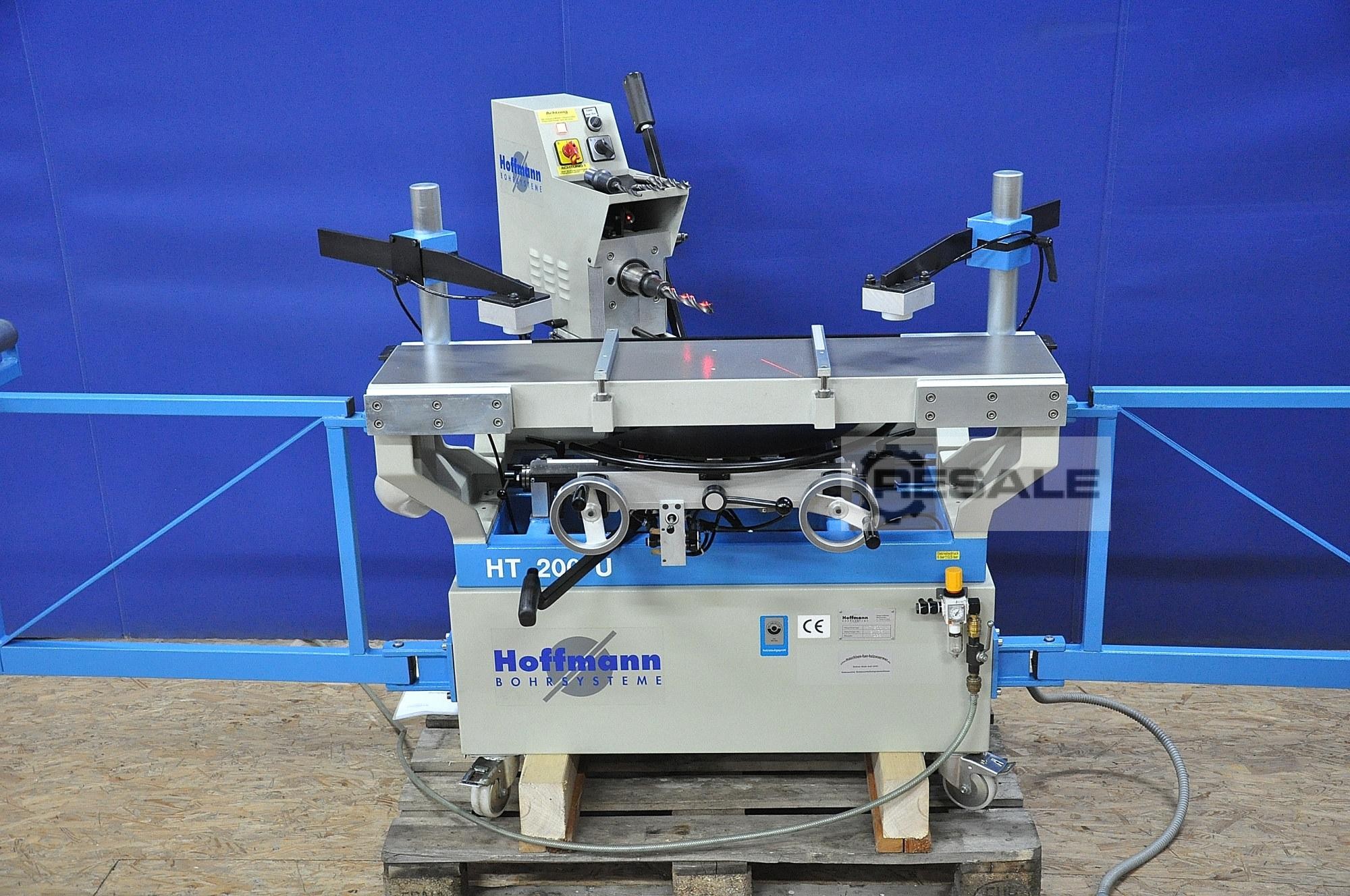

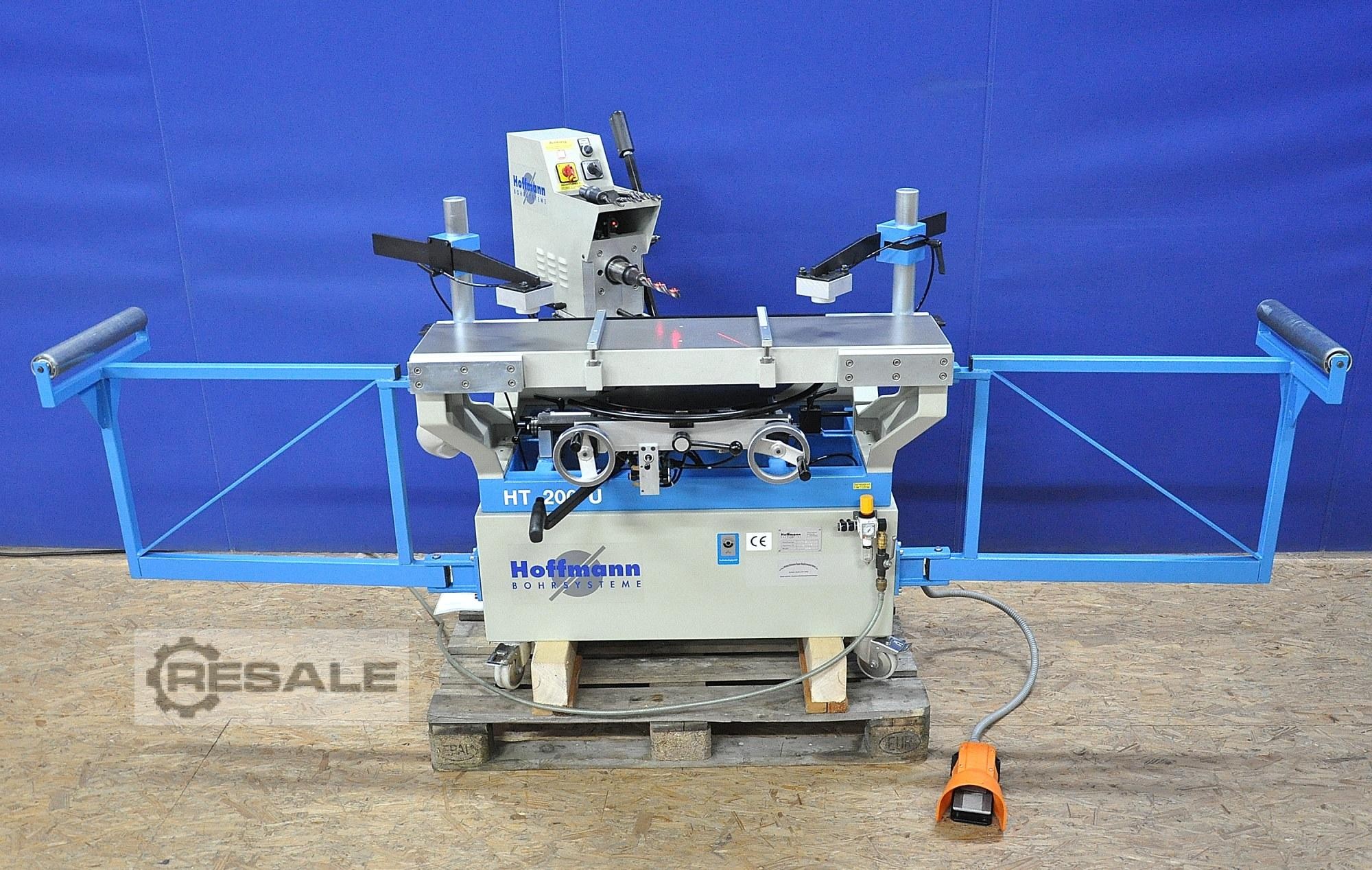

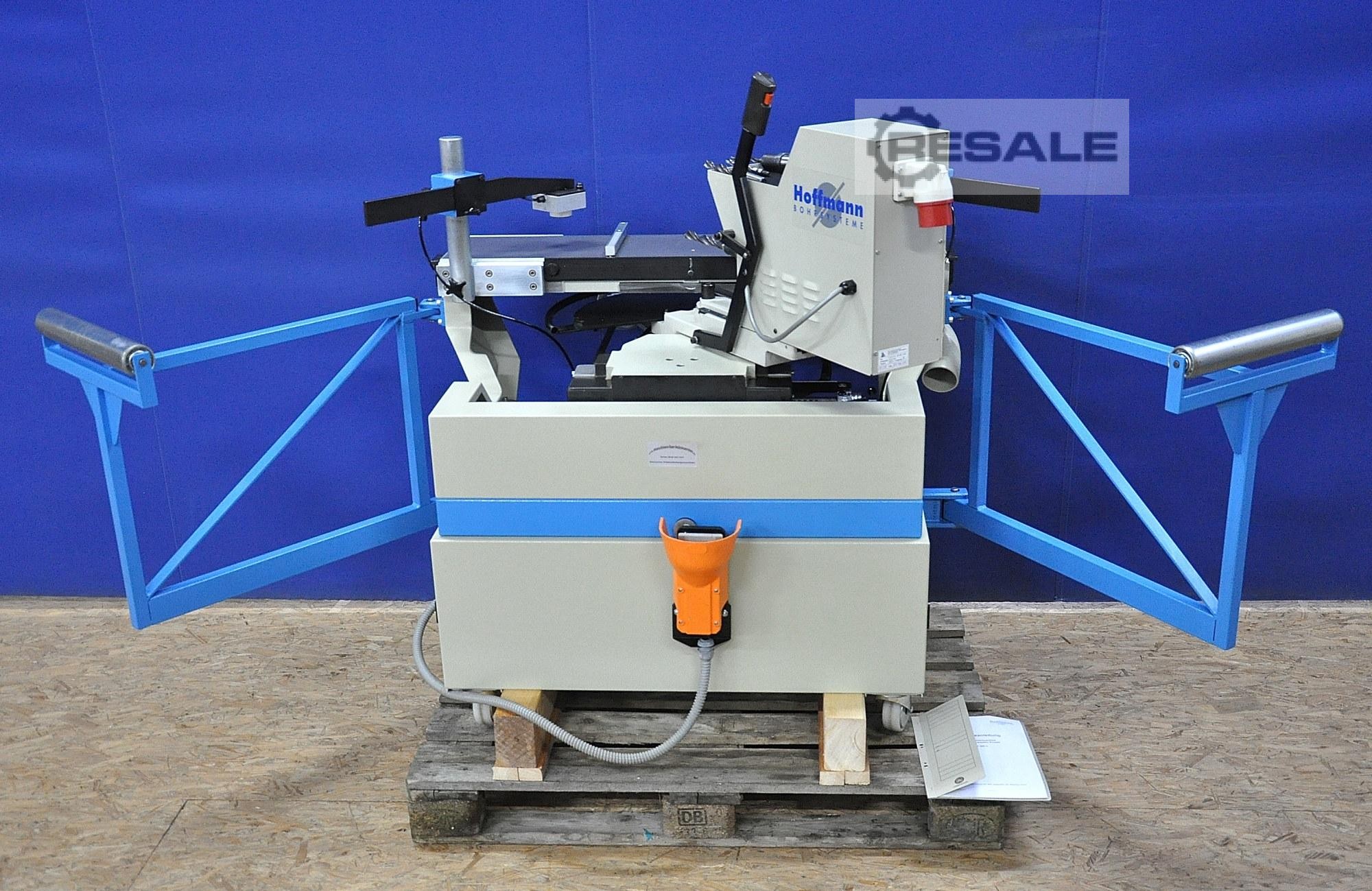

Frame dowel and slotted hole drilling machine from Hofmann HT 200 U
with angle adjustment
Special drilling machine for staircase construction, window
construction and universal use by
pneumatic height adjustment.

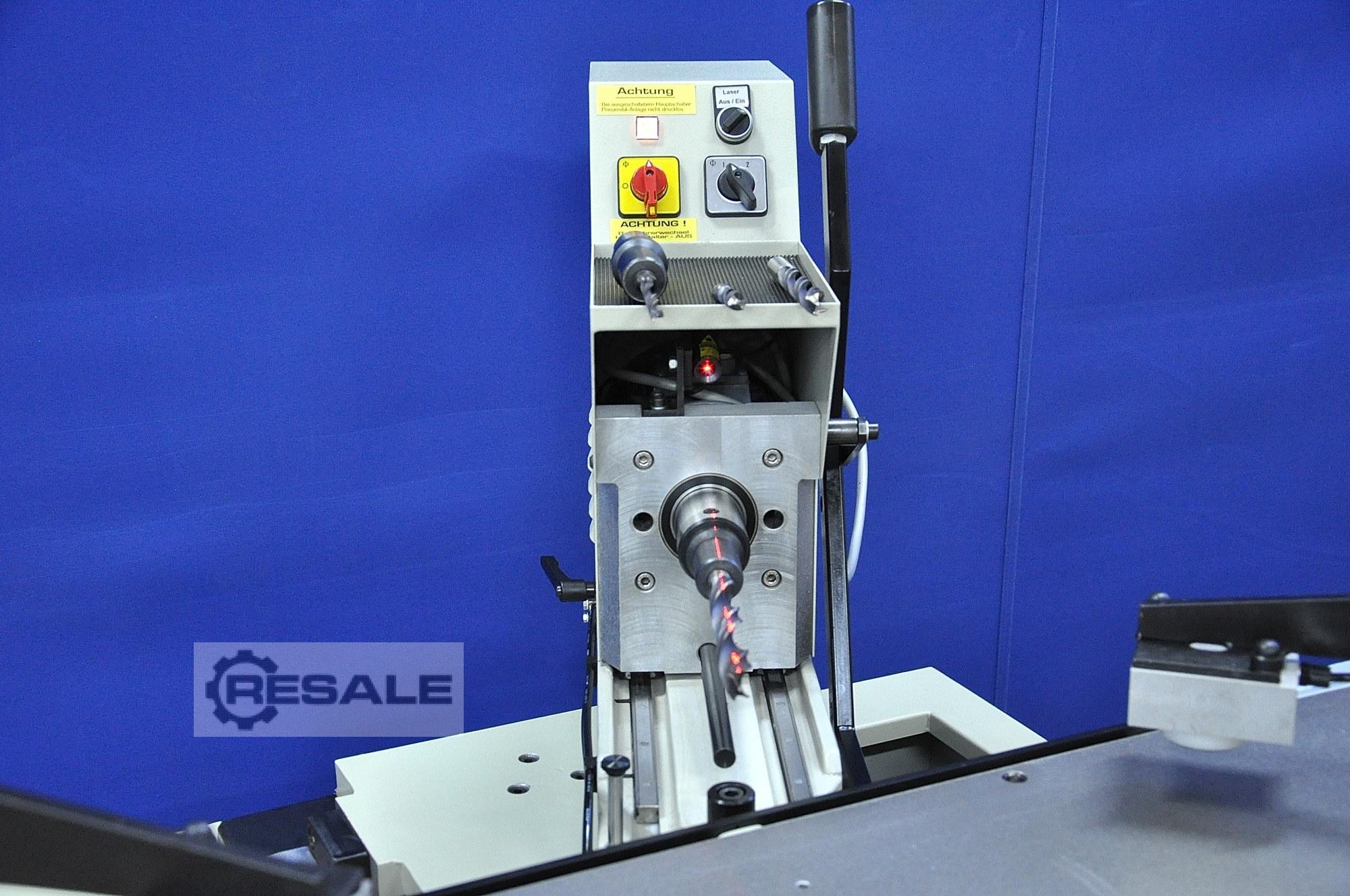

Angled dowels and picket holes are easy thanks to the rotatable
drilling unit
realizable.
Motor pole-switchable, two speeds
Motor power 1.5 / 1.8 kW, 1400 / 2800 rpm

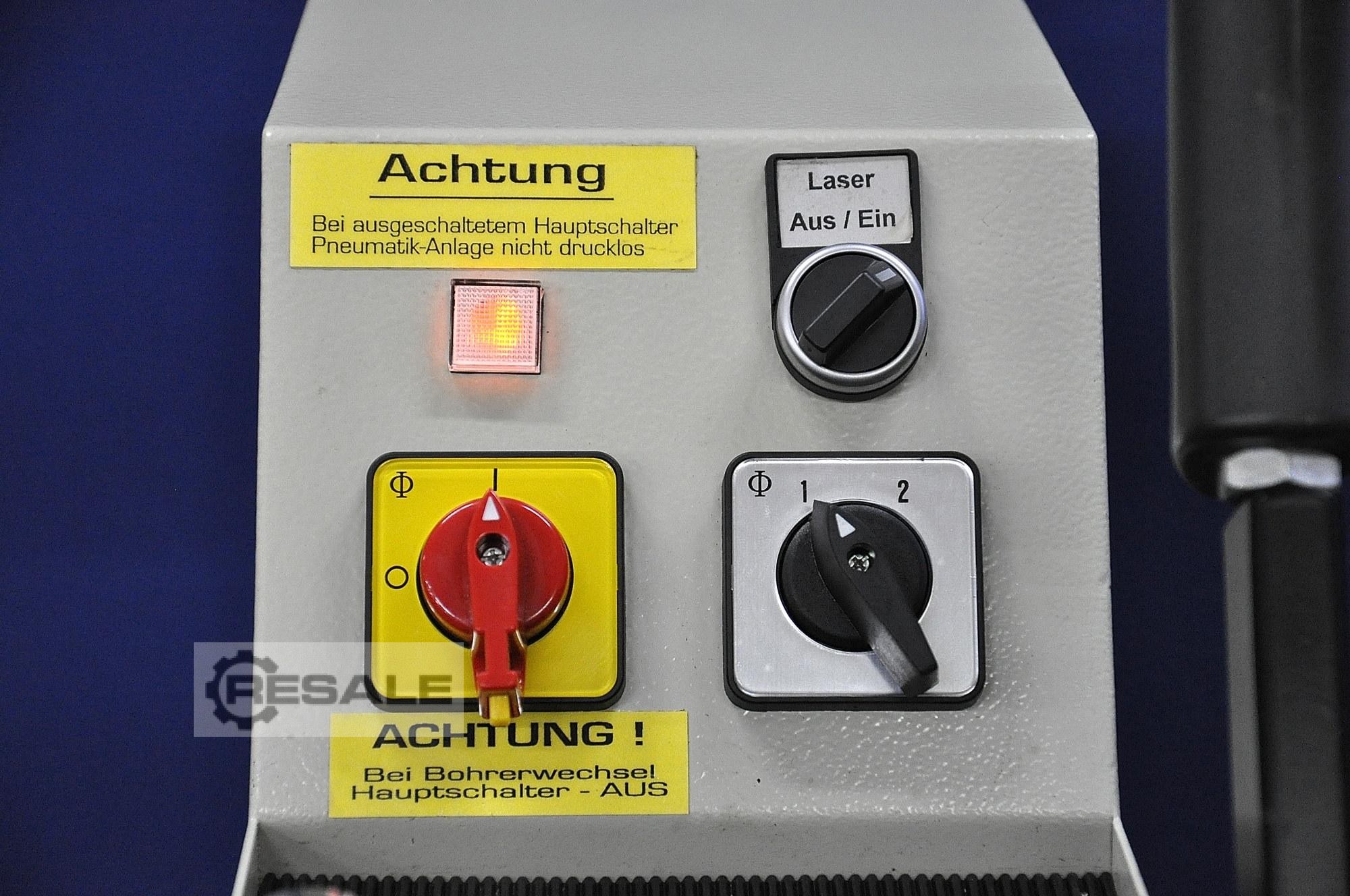

Start of the motor with practical handle switch
Precision Chuck with Two Inserts 16mm and M10 Thread
Table size approx. 1100 x 240mm
Linear laser for exact positioning of the workpiece
Drilling unit can be rotated 65 degrees to the left and right
Pneumatic adjustment of the processing height, dowels on two levels
without changing
The desired drilling heights can be achieved for each drilling level
with a handwheel and digital counter
, the changeover is then pneumatically done from the front
Transverse adjustment approx. 320mm, infinitely variable or in 12mm
increments
Drilling stroke approx. 200mm
2 pneumatic workpiece clamps, can be placed on the table at the front
and rear
2 swivelling workpiece supports
2 side stops, can also be used as a front T6311082 support
Chassis
Suction connection 80mm
4 used but good drills 9, 12,16,19mm
Few paint spots touched, very good condition see original photos
A used swivel slotted hole drill in this condition is very rare to
get.
CE mark
Instruction manual
Dimensions approx. 1200 x 1200 x 1200mm (LxWxH), weight 310kg.
The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see
"other offers of this year".
provider".
Germany
40764 Langenfeld
