hilma romheld used for sale

Fabr hydraulic vice: Hilma Jaw width: 200 mm

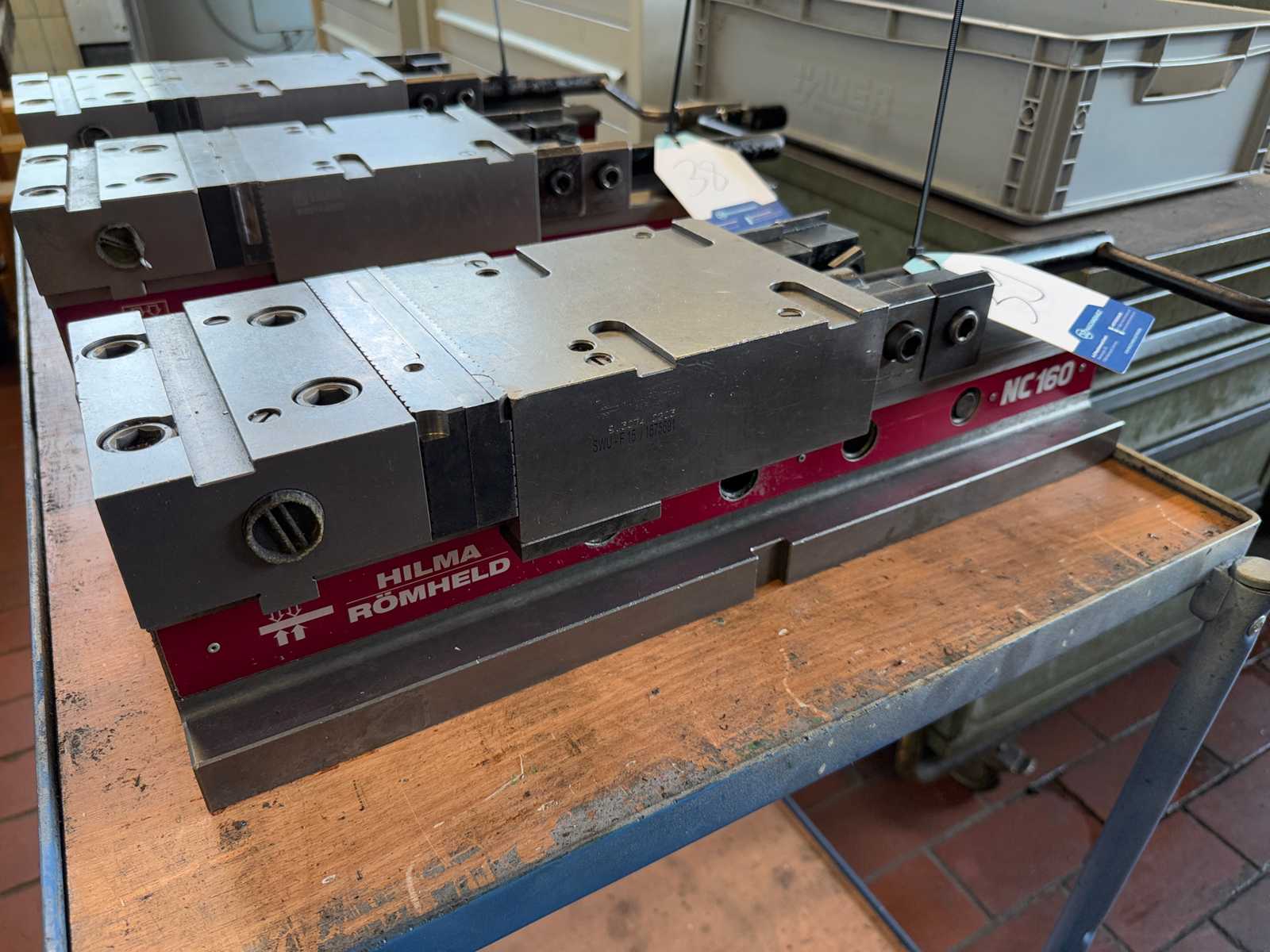

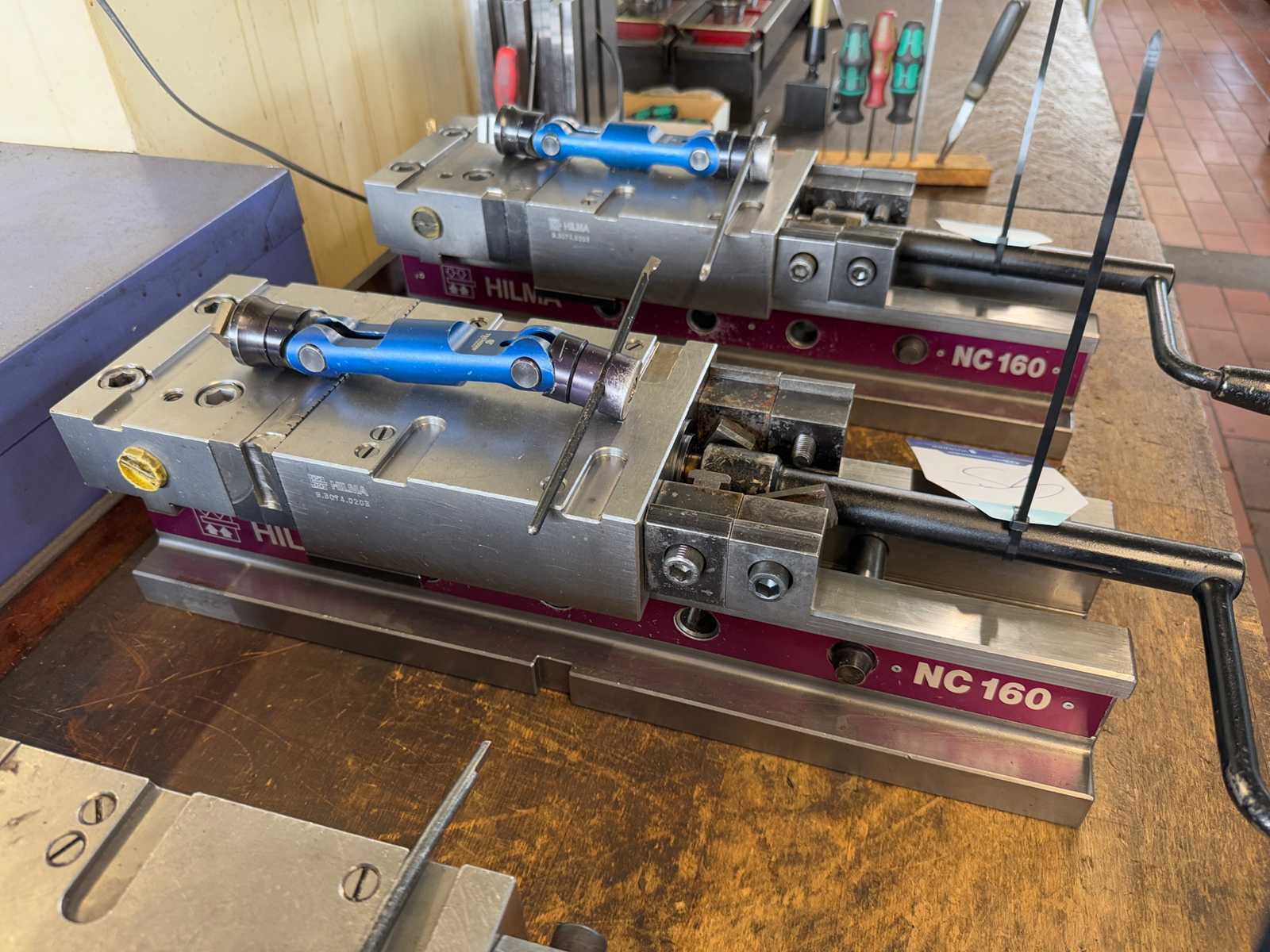

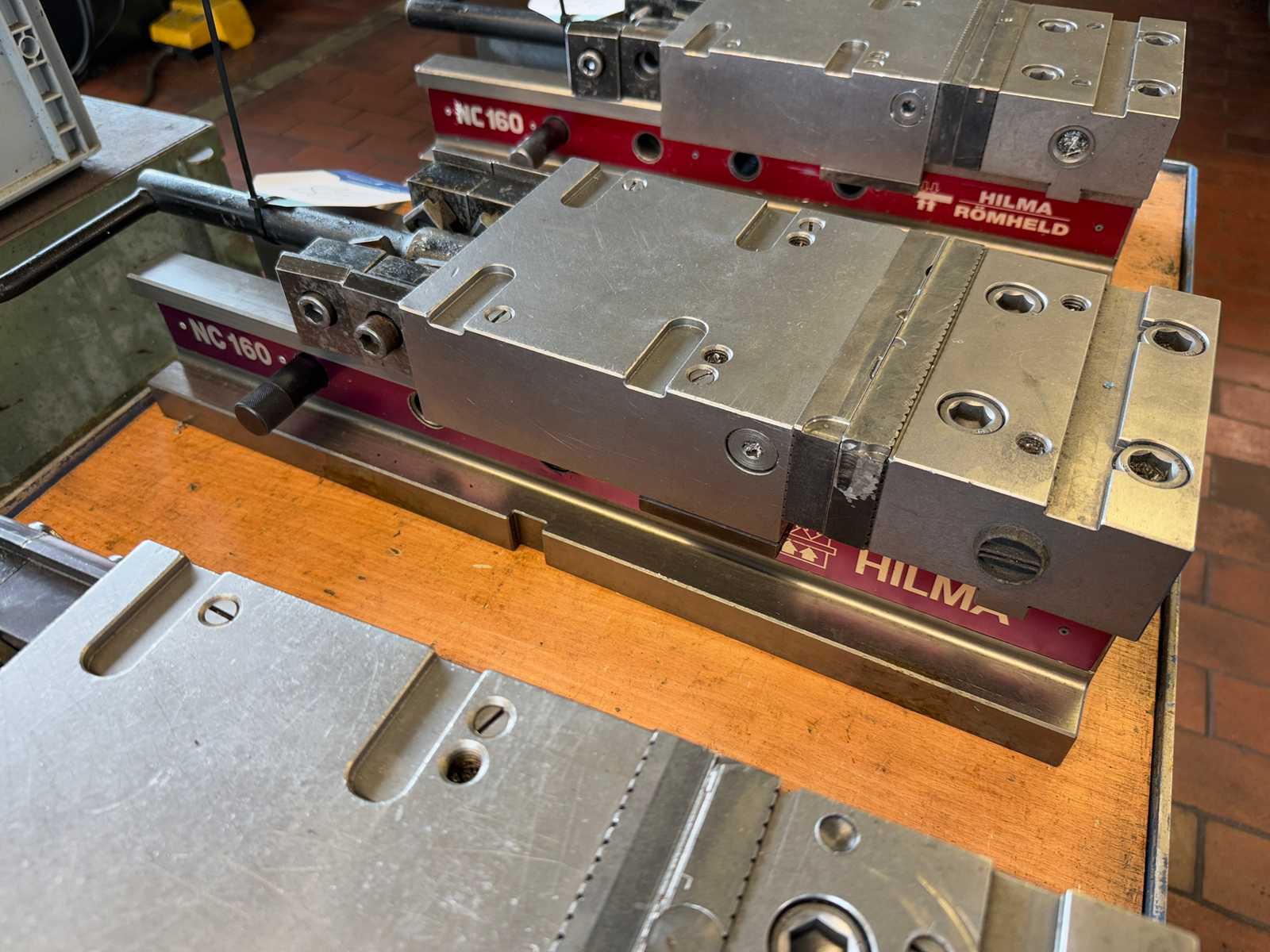

NC vices with 200mm jaw width

thickness of jaw: 160 mm : 53 mm clamping width: 310 mm clamping capacity: 4,5 t weight: 60 kg dimensions of the machine ca.: 550 x 250 x 140 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thickness of jaw: 160 mm : 53 mm clamping width: 310 mm clamping capacity: 3,5 t weight: 60 kg dimensions of the machine ca.: 550 x 250 x 140 mm - Serial-No.: 15167 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydraulic machine vice HILMA - ROEMHELD Type 160 Jaw width: 160 mm Jaw height: 54 mm Clamping force: 6 ton. Clamping range: 0 to 280 mm Opening width: max 284 mm Guideway height: 80 mm- 4 clamping ranges adjustable via push-in bolts from 0 to 280 mm- Angle drive HILMA - ROEMHELD 9.3294.0705- Workpiece clamping via angle drive from above for e.g. longitudinal clamping on the machine table Dimensions L x W x H: 550 x 250 x 145 mm Net weight: 56 kg good condition; used

Pendulum jaw with 125mm width and 160mm width available Strongest version on the market! Extremely flexible.

HILMA 3022-02 hydraulic precision vice: - Jaw width: 100 mm - Aperture: 170 mm - mechanical-hydraulic - with turntable - Original price: 2.400,- EUR - maintained from training workshop Price excl. VAT (#7777) Shipping possible for € 23,80.

thickness of jaw: 160 mm : 54 mm clamping width: 315 mm clamping capacity: 5,0 t weight: 60 kg dimensions of the machine ca.: 550 x 250 x 140 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thickness of jaw: 160 mm : 54 mm clamping width: 315 mm clamping capacity: 2,0 t weight: 60 kg dimensions of the machine ca.: 550 x 250 x 140 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thickness of jaw: 160 mm max. clamping width: 240 mm ca. tension force: 4,5 to high of jaw: ca. 60 mm Dimensions (L/W/H): ca. 550 x 160/250 x 140 mm weight: ca. 50 kg High pressure vice with turning plate. Machine dealer with own stock of 1600 m². The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

hydraulic machine vice, hydraulic vice, hydraulic vice, NC power clamp -hydraulic machine vice -Jaw width: 160 mm -Back height: 55 mm -Clamping depth: max. 250 mm -swiveling -Dimensions: 560/320/H170 mm -Weight: 74 kg

electronic clamping elements, twist-and-turn clamps -Clamping force: 160 kN -stat. max.: force 30 kN -Clamping stroke: 15 mm -Total stroke: 60 mm -Dimensions: 720/200/H220 mm -Weight: 60 kg

Hydraulic machine vice HILMA type 3024-02 Jaw width: 160 mm Jaw height: 54 mm Clamping force: 6 ton. Clamping range: 0 to 305 mm Opening width: max 307 mm Guideway height: 80 mm - 3 clamping ranges adjustable from 0 to 305 mm via plug-in bolts Dimensions L x W x H: 550 x 260 x 135 mm Weight: 60 kg very good condition; used

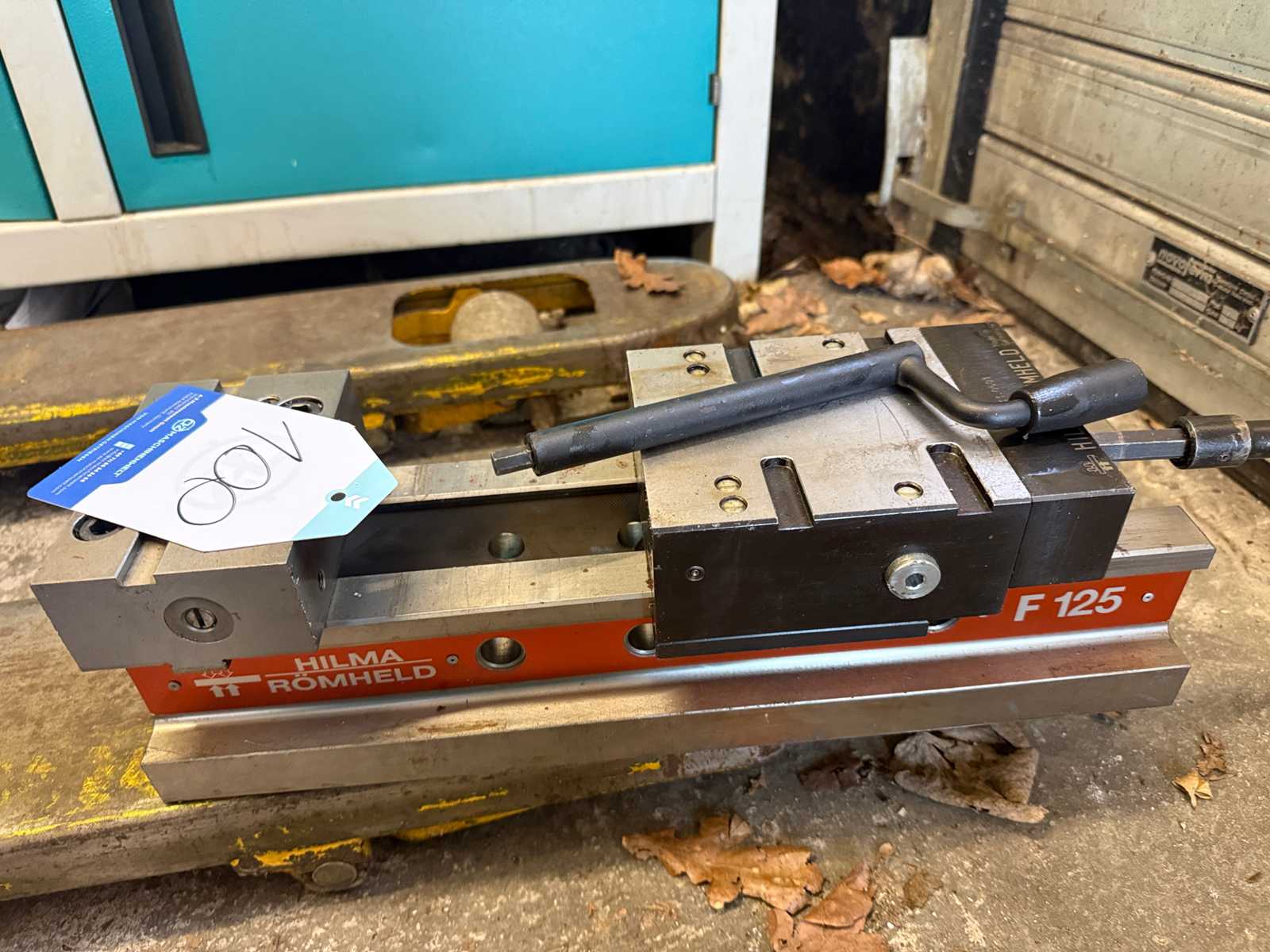

Description: Jaw width: 125 mm Approx. Onsite Dimension. (l x w x h): 450 x 130 x 130 mm, weight approx.: 60 kg

Description: In different designs and shapes Approx. Onsite Dimension. (l x w x h): 800 x 600 x 200 mm, weight approx.: 40 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

width of jaws: 125 mm, Approx. Onsite Dimension. (l x w x h): 450 x 220 x 130 mm, weight approx.: 30 kg

x-travel: 400 mm y-travel: 250 mm z-travel: 400 mm tool taper: ISO 40 spindle turning speed range: 30-6300 / 20-4200 U/min feeds: 0 - 10.000 mm/min quill stroke: 90,0 mm table-size: 600 x 320 mm T-slots: 5 x 14 x 63 mm Control: TNC 410 CA spindle: ein ~ 126 Std. engine output: 11,0 kW weight: 1300 kg dimensions of the machine ca.: 1600 x 1500 x 1900 mm Original price incl. special accessories ~ 72.000 euros Machine was very rarely used () with only approx. 126 spindle hours (spindle on) Furnishing : - MACMOM / INAS CNC universal milling and drilling machine - HEIDENHAIN CNC path control TNC 410 CA workshop-oriented path controls, with Programming in easy-to-understand plain text dialog HEIDENHAIN electr. Remote control with handwheel - Pivoting control panel, to the right of the machine - hydraulic tool clamping (tie bolt DIN69872-A) - Vertical milling head rotating on both sides - ...

- X: 420 mm - Y: 330 mm - Z: 400 mm - Table size: 850 x 325 mm - Speed range: 0 - 5000 rpm - Spindle mount: SK 40 - Rapid traverse: 12 m/min - WZ changer: 12-speed - Tool holder: 40 SK - Tool weight max.: 5 kg - Tool length max.: 220 mm - Tool Ø max.: 63 mm - Control: Sinumerik 810 M - Switch-on hours: 40484 h - Total power: 15 kW - Machine weight: 3200 kg - Dimensions (W x D x H): 2.4 x 2.3 x 2.45 m - Condition: good, ready for immediate use Details one tool station is currently defective, nice compact machine, can be used immediately Accessories HILMA SM 125 machine vice, various recordings in the magazine, documentation, machine feet

x-travel: 1100 mm y-travel: 600 mm z-travel: 500 mm table surface area: 1300 x 600 mm spindle taper: SK 40 spindle turning speed - stepless: 10.000 U/min ATC: 40 Pos control: HEIDENHAIN, TNC 530 total power requirement: kW weight of the machine ca.: 8,8 t Accessories: 2 hydr. vices make HILMA, model NC 160, width of jaws 160 mm, various tool holders, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1500 mm y-travel: 800 mm z-travel: 700 mm table surface area: 1760 x 700 mm spindle taper: SK 40 spindle turning speed - stepless: 8000 U/min spindle drive: 15 kW feeds: 1 - 8000 mm/min rapid traverse X/Y/Z axis: 15 / 15 / 12 m/min table load: max. 2500 kg spindle throat: 760 mm ATC: 40 Pos control: HEIDENHAIN, TNC 530 total power requirement: kW weight of the machine ca.: 12,5 t - with coolant through spindle Accessories: NC-dividing unit (=4th Axis) with tailstock, center height 250 mm, 2 hydr. vices make HILMA, model NC 160, width of jaws 160 mm, various tool holders, chip conveyor, coolant - geometrical overhauled in 2022 - - new ball bearing spindle installed on Y-axis in NOV. 2022 - - the magnetic plates shown on the photo are not included - The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 610 mm y-travel: 500 mm z-travel: 510 mm table surface area: 1000 x 460 mm spindle taper: SK 40 spindle turning speed - stepless: 120 - 8000 U/min spindle drive: 7,5 kW max. torque on the spindle: 190 Nm feeds -stepless-: 1 - 8000 mm/min rapid traverse X/Y/Z axis: 24 / 24 / 18 m/min table load capacity: max. 800 kg spindle throat: 510 mm distance spindle nose/ table min./ max.: 120 / 630 mm ATC: 24 Pos diameter of tools max.: 100 mm tool length - max.: 300 mm weight of tools max.: 10 kg control: HEIDENHAIN, TNC 530 total power requirement: kW weight of the machine ca.: 4,3 t Accessories: NC-dividing unit (= 4th axis) with tailstock, center height 175 mm, hydr. vice make HILMA, model NC 125, width of jaws 125 mm, various tool holders, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1020 mm y-travel: 500 mm z-travel: 500 mm table surface area: 1200 x 500 mm spindle taper: SK 40 spindle turning speed - stepless: 40 - 12.000 U/min spindle drive: 18,5 kW feeds: 0 - 20.000 mm/min rapid traverse: 40 m/min ATC: 30 Pos control: HEIDENHAIN, iTNC 530 total power requirement: kW weight of the machine ca.: 6,85 t dimensions of machine L x W x H: 2,47 x 2,54 x 2,83 m - with coolant through spindle Accessories: 2 hydr. vices make HILMA, model NC 160, width of jaws 160mm, various tool holders, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

High-pressure filter ROEMHELD, HILMA, STARK 3887-087 FA144458 max. operating pressure: 350 bar max. flow rate: 50 l/min < br /> Filter capacity: 10 μm Filter material: Stainless steel Housing material: Stainless steel Connections: 1/4 ( inch ) Width across flats: 36 mm New ! Dimensions: 90 x 40 x 40 mm

Pressure switch, hydraulic-electrical signal converter ROEMHELD, HILMA, STARK 9730-501 3415395 Pressure range: 50 - 350 bar < -br />max. operating pressure: 600 bar 1 Changeover switch Switching capacity: 28 V DC, 3 A / 250 V AC 4 A Mounting plate: 40 x 40 x 10 mm New ! Dimensions: 87 x 40 x 57 mm

x-travel: 420 mm y-travel: 330 mm z-travel: 250 mm table surface area: 650 x 325 mm spindle taper: SK 40 spindle turning speed range: 0 - 5000 U/min power feed x/y/z: 6000/6000/8800 N rapid traverse: 12 m/min ATC: 12 Pos tool diameter: max. 63 mm tool length - max.: 220 mm control: SIEMENS SINUMERIK 820 D total power requirement: 15 kVA weight of the machine ca.: 2,6 t dimensions of machine L x W x H: 2,43 x 1,76 x 2,30 m Accessories: 2 hydr. vices HILMA NC 125, various tool holders, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pressure switch, hydraulic-electrical signal converter ROEMHELD, HILMA, STARK 9730-501 3415395 Pressure range: 50 - 350 bar < -br />max. operating pressure: 600 bar 1 changeover switch switching capacity: 28 V DC, 3 A / 250 V AC 4 A mounting plate: 40 x 40 x 10 mm used, tested ! Dimensions: 87 x 40 x 57 mm

x-travel: 420 mm y-travel: 330 mm z-travel: 250 mm table surface area: 850 x 325 mm spindle taper: SK 40 spindle turning speed range: 0 - 5000 U/min power feed x/y/z: 6000/6000/8800 N rapid traverse: 12 m/min ATC: 12 Pos tool diameter: max. 63 mm tool length - max.: 220 mm control: SIEMENS, ShopMill total power requirement: 15 kVA weight of the machine ca.: 2,6 t dimensions of machine L x W x H: 2,40 x 2,33 x 2,30 m Accessories: 2 hydr. vices HILMA NC 125, various tool holders, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pneumatic cylinders, screw-in cylinders, round cylinders, double-acting ROMHELD 1175 - 100 Piston diameter: Ø 40 mm rod diameter: Ø 16 mm stroke: 50 mm thread: M50 x 1,00 5 Thread length: 94 mm New ! Dimension ( pneumatic cylinder ): 123 x 50 x 50 mm Dimension ( packaging ): 155 x 70 x 65 mm

High-pressure filter ROEMHELD, HILMA, STARK 3887-067 FA1803144 max. operating pressure: 350 bar max. Volumetric flow: 25 l/min Filter capacity: 10 μm Filter material: stainless steel Housing material: Stainless steel Connections: 1/4 ( inch ) New ! Dimensions: 54 x 30 x 30 mm

Pull cylinder, hydraulic cylinder, single-acting, with spring return RÖHMHELD, HILMA 1578-105 810R tractive force: 151,8 kN (at 500 bar) piston diameter: Ø 80 mm rod diameter Ø 50 mm stroke: 12 mm pmax: 500 bar unused ! Dimensions: 160 x 120 x 165 mm

Four-wire rotary joint, housing part ROEMHELD, HILMA, STARK 9284036 NW5 Pressure range: 10 - 500 bar max. operating pressure: 500 bar Number of passes: 4 Bearings: plain bearing speed: max. 48 rpm hydraulic connection: G1/4 New ! Dimensions: 88 x 85 x 85 mm

Screw-in cylinder, with sealing kit, 3 pieces ROEMHELD, HILMA, STARK 1471-001 piston diameter: Ø 16 mm Rod diameter: Ø 10 mm stroke: 10 mm cylinder head reworked to hexagon with width across flats: 24 mm Seal kit: 0131471 Seal kit: New , 9 pieces used, tested ! Dimensions ( screw-in cylinder ): 60 x 28 x 28 mm Dimensions ( packaging ): 140 x 100 x 30 mm

Gasket set, exterior, 7 pieces ROEMHELD, HILMA, STARK 131531 for screw-in cylinders 1471-001 5 -piece other quantities on request ! New ! Dimensions (packaging): 180 x 140 x 20 mm

Clamping cylinder, hydraulic clamping cylinder, hydraulic clamp, hydraulic tensioner, swing clamp, hydraulic swing clamp -Hydraulic clamp: Hydraulic swivel clamps 11 pieces -Swivel clamp: Römheld 1885-104 -Three-way valves: Hawe DZ3-1R -Price/tax: complete -Dimensions: 220/65/H165 mm / 100/100/H100 mm -Transport dimensions: 560/370/H160 mm -Weight: 64 kg

Reversible clamp, 4th axis, rotary table, rotary dividing table, controlled rotary table, dividing apparatus, dividing head, rotary indexing table Hydraulic rotary coupling -Manufacturer: Romheld, hydraulic reversible clamp with rotary coupling type 9284-003 711 -Number: 2x clamping unit available -Price per piece -Dimensions: 700/335/H430 mm -Weight: 113 kg/pc.

Reversible clamp, 4th axis, rotary table, rotary dividing table, controlled rotary table, dividing apparatus, dividing head, rotary indexing table Hydraulic rotary coupling -Manufacturer: Romheld, hydraulic reversible clamp with rotary coupling type 9284-826 908 -Number: 2x clamping unit available -Price per piece -Dimensions: 550/335/H400 mm -Weight: 90 kg/pc.

Gasket set, 3 pcs ROEMHELD, HILMA, STARK 131471 for screw-in cylinders 1471-001 10-piece other quantities on request ! New ! Dimensions (packaging): 180 x 140 x 20 mm

Gasket set, 4 pieces ROEMHELD, HILMA, STARK 132561 for rotary union 9284-036 10 pieces Other quantities on request ! New ! Dimensions (packaging): 180 x 140 x 20 mm

x-travel: 2000 mm y-travel: 600 mm z-travel: 500 mm table surface area: 2500 x 650 mm spindle taper: SK 40 control: HEIDENHAIN, TNC 426 ATC: 36 Pos total power requirement: 60 kW weight of the machine ca.: 7,5 t - with coolant through spindle - Accessories: NC-dividing unit (= 4th axis) with tailstock, center height 225 mm, 2 hydr. vices make HILMA, model NC 160, width of jaws 160 mm, various tool holders, chip conveyor, coolant - new spindle on X-axis in 2020 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

General SKUR0920 LocationBarneveld MakeRoemheld & Moelle GmbH (DE) Type4000 No.1110 Year of construction1985 Pressure Working pressure3.2 Bar Vacuum possiblecheck Working pressure jacket16 Bar Main Features MaterialStainless steel Volume6000 Ltr. Motor10 KW Specified Features - Stainless Steel Reactor Reactorcheck Capacity6000 Ltr (nett. 4000 Ltr) Vessel sizesdia.1800mm x2500mm Dished bottomcheck Dished top sidecheck ManholeDN600 Top connections2x DN250, 5x DN150 OutletDN100 Half coil jacketed(195 ltr) Max. temperature-30/200 Degr.C With paddle stirrerEkato EM 100-D Motor10 kW, 380 Volt Speed mixing shaft7.5-75 rpm Stainless Steel Reactors MaterialStainless steel 1.4435 (316L) Information Total height4,3 M Weight3500 Kg Floorspace2,3x2,3 MMinerals & inorganicAPIPlastic & polymersDyes & pigmentsAgrochemicalsSolid pharmaceuticsRubberLubricants & oleoOther ...

Machining Center - Vertical QUASER brand Type MV 154 PL/12 Year of construction 2008 x-travel 1020 mm y-travel 500 mm z-travel 500 mm Table clamping surface 1200 x 500 mm Spindle holder SK 40 Spindle speeds - continuously variable 40 - 12,000 rpm Spindle motor 18.5 kW Feeds 0 - 20,000 mm/min Rapid traverse 40 m/min Tool changer 30 positions HEIDENHAIN control, iTNC 530 Machine weight approx. 6.85 t Dimensions of the machine L x W x H 2.47 x 2.54 x 2.83 m - with IKZ Accesories 2 hydraulic clamps make HILMA, type NC 160, jaw width 160 mm; Various tool holders, chip conveyors, coolant equipment
