hasenclever used for sale

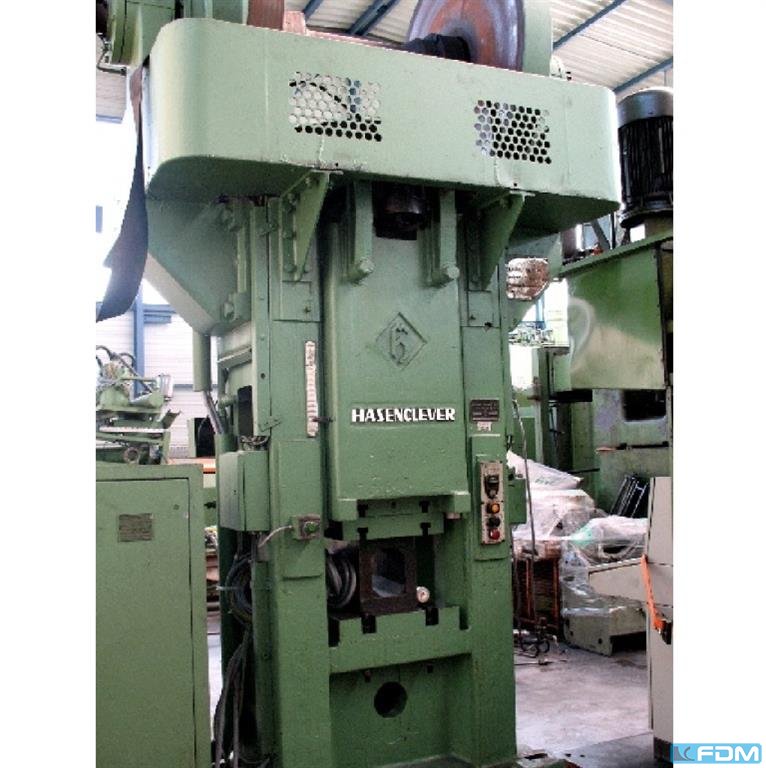

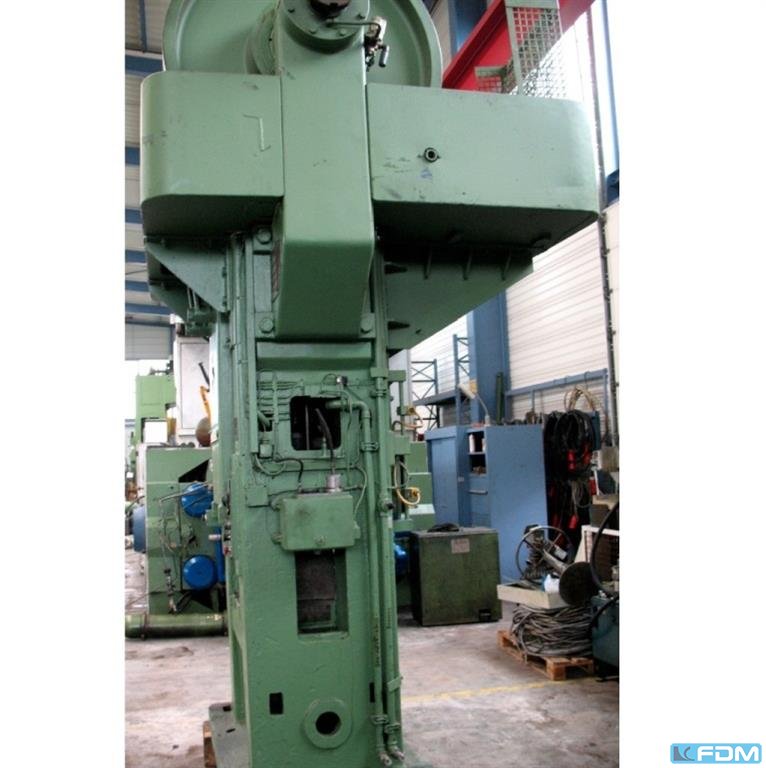

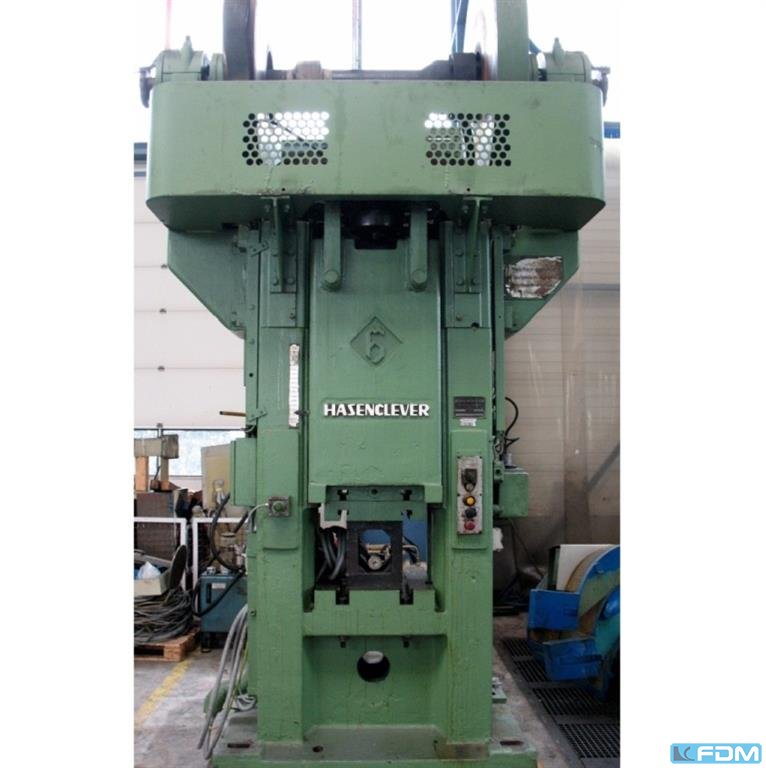

nominal force:315 t stroke:300 mm no. of strokes:36 /min distance between columns:540 mm distance table/ram, max. stroke up, adjustment up:750 mm table surface area:530 x 630 mm blow die to die:630 t Allowed max. force:500 t ram surface:450 x 560 mm spindle diameter:180 mm power capacity:18,0 kW weight:13,0 t Dimensions (WxDxH):2,5 x 2,0 x 4,0 m

Equipment Description Used Indirect Extrusion Press • Brand / Model: SMS Hasenclever 28 / 31.5 MN McKechinstrang” • Type: Horizontal indirect extrusion system for non-ferrous billets • Drive: Mechanical main unit with hydraulic auxiliaries • Country of Origin: Germany • Current Status: Dismantled and available for dispatch • Serial No. / Year of Manufacture: [To be confirmed] 2. Key Technical Specifications Parameter Value Main Piston Force 25.07 MN Total Press Force with Coupling 31.23 MN Max Stroke 3,070 mm Working Stroke 2,825 mm Ram Speed at 28 MN 0–64 mm/sec Ram Speed at 31.5 MN 0–57 mm/sec Billet Diameter Range Ø 230–355 mm Billet Length (cold) 320–1,320 mm Receiver Heating System Resistance; max 63 kW / 375 °C Shear Force 0.64 MN Profile Ejector Force 0.31 MN Actuation Differential Cylinders Ø 280/200 3. Included Components • B ...
