122,047 used machines on RESALE, but how to find them? Machine Search
used

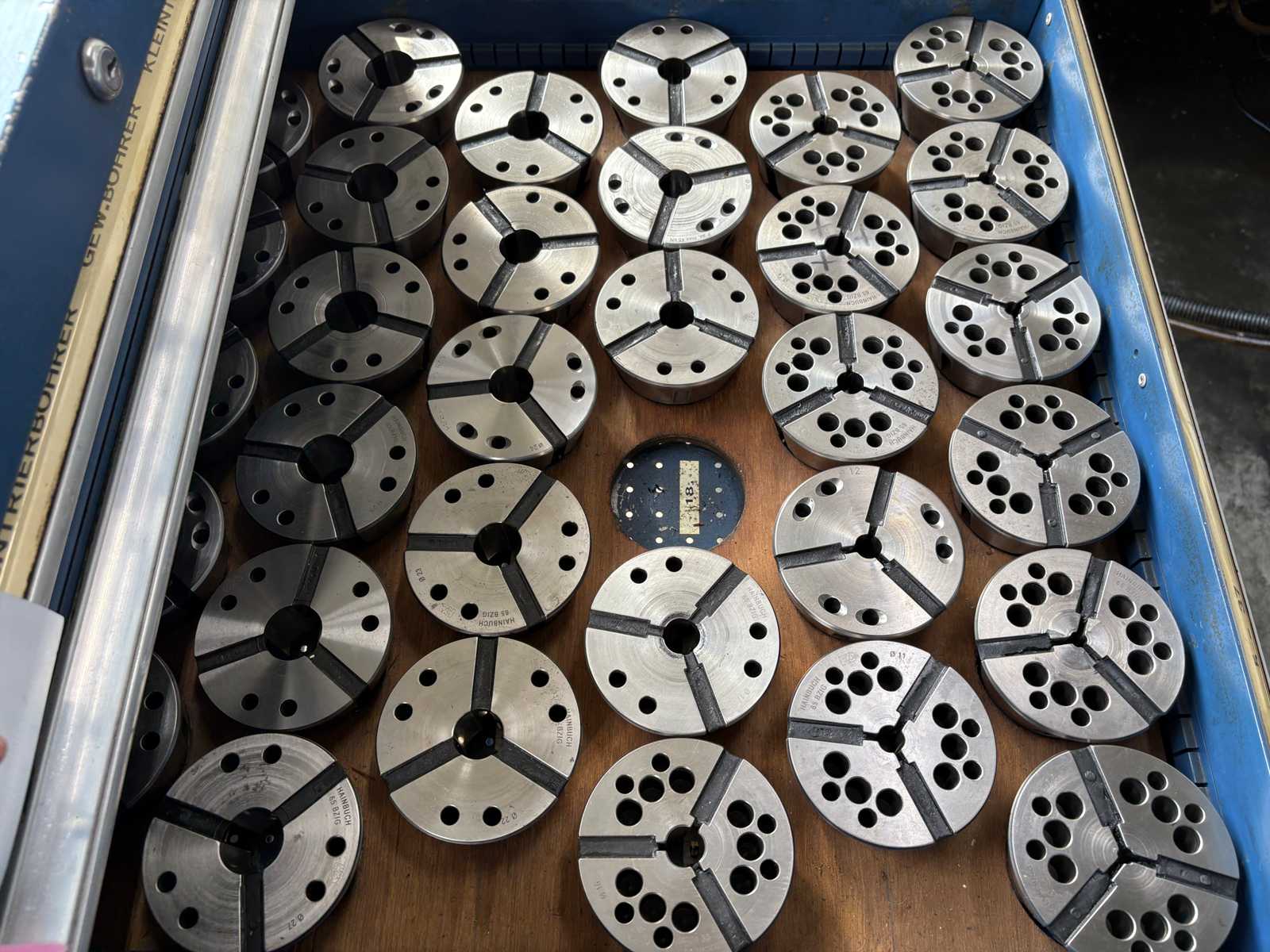

Description: 20x Hainbuch 42BZ / collets Approx. Onsite Dimension. (l x w x h): 310 x 225 x 270 mm, weight approx.: 19,00 kg
used

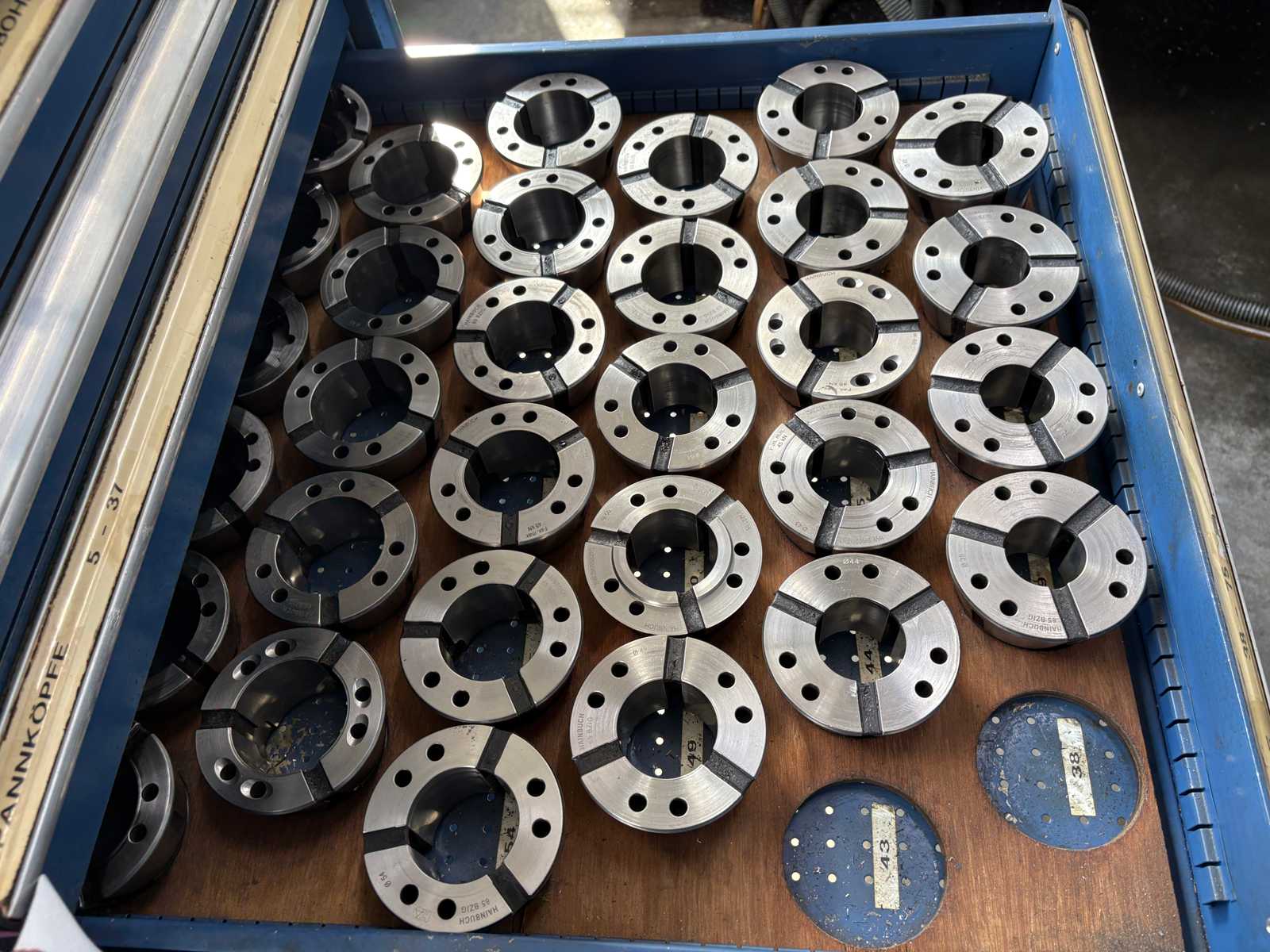

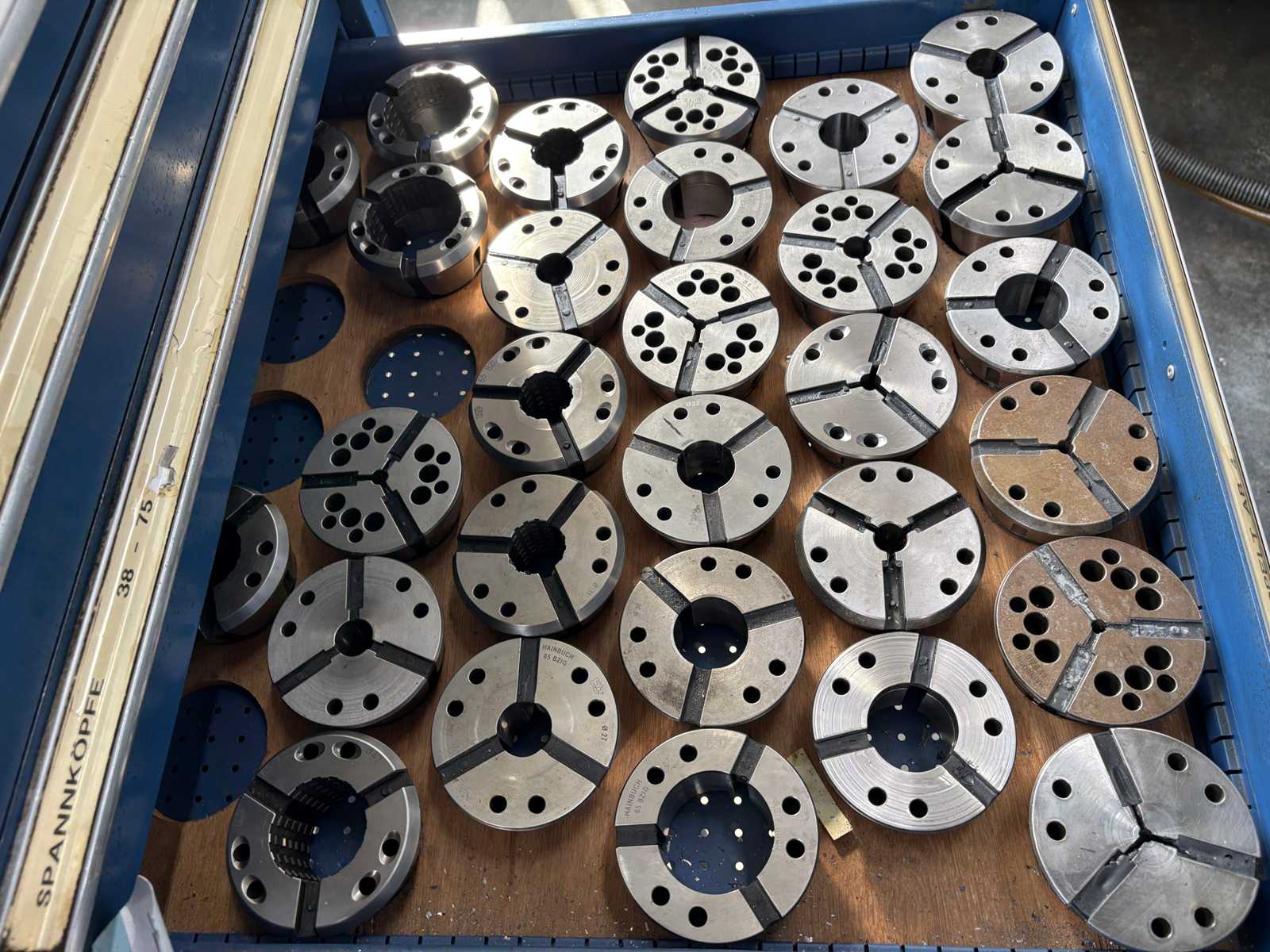

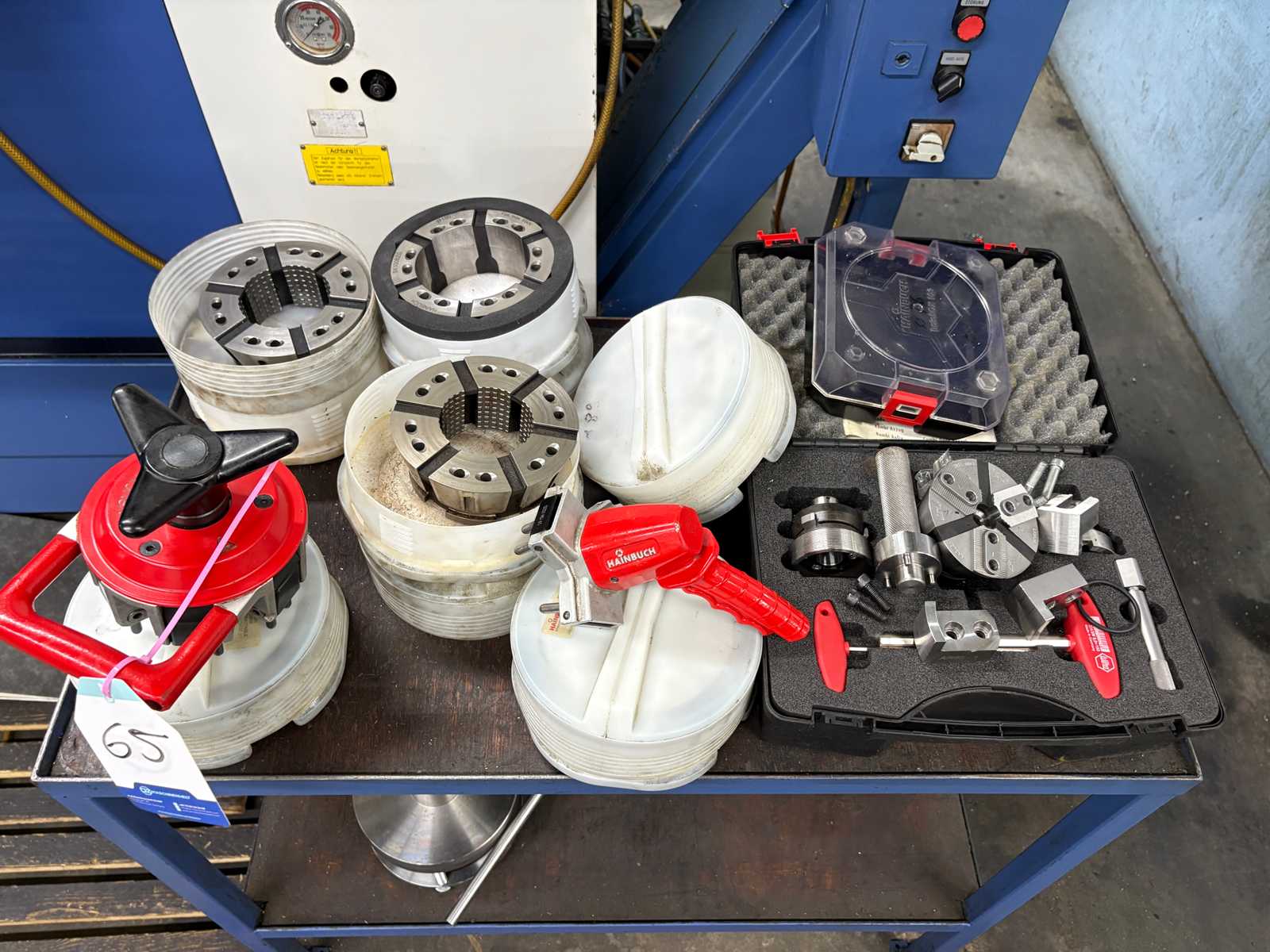

Description: Consisting of approx. 11 HAINBUCH collets and a lathe tip weight approx.: 30 kg, Approx. Onsite Dimension. (l x w x h): 500 x 400 x 200 mm
new
used
Eccentric lining , Adjustable via C-axis, as good as new condition
used
Description: Consisting of 3 pieces Opening diameter: approx. 50 mm Approx. Onsite Dimension. (l x w x h): 350 x 300 x 120 mm, weight approx.: 30 kg
used

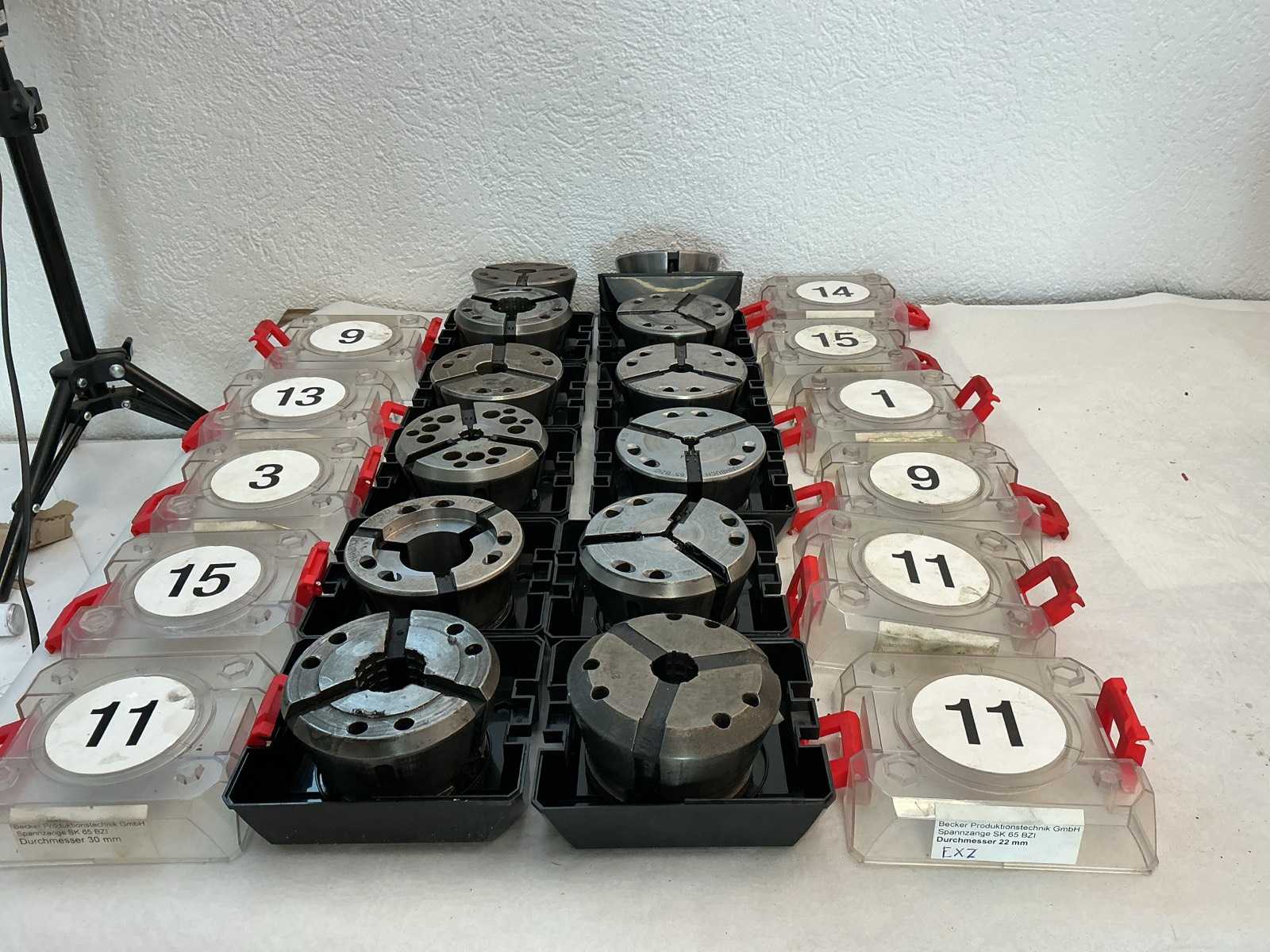

Description: Consisting of 9 collets and a clamping system Approx. Onsite Dimension. (l x w x h): 350 x 300 x 120 mm, weight approx.: 30 kg
used
Turning diameter: 0 mm Turning length: 0 mm Turret positions: 0 Positions ATC: 0 Number controlled axis: 0 CNC Brand: 0 CNC Model: 0 Control: SIEMENS SINUMERIK 840C Technical data Number of spindles: 2 Number of revolvers: 2 Spindle hole: 65 mm Turning diameter: 200 mm Turning length: 400 mm Turret slide: Number of positions turret 1: 14 Number of positions turret 2: 14 Driven tools turret 1: 14 Driven tools turret 2: 14 Spindle speeds: 6000 rpm Power of driven tools: 5.5 kW Inner cone DIN: 69 880 Indexing time: 0.4 sec Upper turret head: X axis: 155 mm Y axis: 120 mm Z axis: 400 mm Lower turret head: X axis: 105 mm Z axis: 400 mm Main spindle:: HAINBUCH Internal spindle diameter: 60 mm Spindle speeds: stepless up to: 6000 rpm Back spindle:: HAINBUCH max. speed: 6000 rpm Internal spindle diameter: 60 mm Spindle diameter: 160 mm Back spindle stroke: 445 mm Rapid traverse X: 22.5 m ...
used
1 pc CNC lathe MAZAK QT 200 MS Year of construction: 2020 Mazatrol Smooth G Max. turning diameter 380 mm Max. swing diameter 695 mm Distance between clamping jaws 575 mm Max. rod passage 65 mm Travel X/Z/W 234/625/585 mm Main spindle 26/22 kW Main spindle Max. speed 5,000 rpm Main spindle spindle nose A2-6 Counter spindle 11/7.5 kW Counter spindle Max. speed 6,000 rpm Counter spindle spindle nose A2-5 12-fold tool turret, 12 driven tool stations, 5.5 kW Max. speed: 5,000 rpm Overload monitoring Additional coolant nozzle main spindle 15 bar high-pressure pump Preparation for oil mist extraction Robot Interface (Advance/Profibus) Drilling cycle with torque-dependent clamping fracture Chip conveyor with low discharge height Hollow clamping cylinder counter spindle Hainbuch collet chuck clamping top Nova Axfix mini size 52 main spindle Hainbuch collet chuck clampin ...
used
Live tools on all turrets (12 positions each turret) Y axis on all turrets High pressure system with cartridge filter - max 18 bar, swarf conveyeor TECNOFORME Auto shut off Bar loader interface Type G pick-up arm for sub-spindle including conveyor belt for finished parts External cleaning blow for spindle and counter spindle Internal cleaning jet with coolant for counter spindle Polygoning Monitoring of cutting forces and tool life Navigator system for fast search of the piece zero, work clamping, N° 1 collet chuck Hainbuch SPANNTOP ASA 8 GR. 80mm - main spindle, N° 1 collet chuck Hainbuch Axfix ASA 6 GR. 80mm - couter spindle, tool holders, Set of tool holders Marchetti consists of:, N° 1 cut-off tool holder with coolant supply, N° 2 boring bar holder 40mm internal coolant supply, N° 4 boring bar holder 32mm internal coolant supply, N° 2 duple toolholder for tool shaft ...
used
turning diameter: 36 mm turning length: 100 mm control: Traub TX 8i turning speeds: 6300 U/min c-axis: 0,001 turret (x-stations): 12 angetrieben turning speeds: 6000 U/min x-axis: 370 mm z-axis: 250 mm y-axis: +/- 20 mm gripping station: 36 mm turning speeds: 6300 U/min c-axis: 0,001 0 collet unit: 2x Hainbuch HSP/GSP SK 6970 ZW/G load magazine: FMB turbo 5-42 chip conveyor: ja / yes kW total power requirement: 33 kW weight of the machine ca.: 4 t dimensions of the machine ca.: 3,4 x 1,22 x 1,7 + FMB m parts conveyor: ja / yes front attachment: 5(7) rear station: 5 (4 angetrieben) CNC automatic lathe Traub TNK 36, year 2005, with bar feeder FMB turbo 5-42 This turning-milling centre is in a very good condition and equipped with 2x Y- axes and driven tools on 3 tool carriers. Tool carrier 1 = turret 12-fold driven, Y-axis +/-20mm Tool carrier 2 = front attachment 5 stations (4 driven) Too ...
used
Year of construction 2014 Control Siemens 840 Dsl Main Spindle: Motor Spindle Technology Speed 7,000 rpm Power 16 kW Torque 75 Nm Bar passage 50 mm Workpiece clamping collet chuck, Hainbuch Kombi Axfix Gr. 52 Counter spindle: Motor Spindle Technology Speed 7,000 rpm Power 16 kW Torque 75 Nm Workpiece clamping collet chuck, Hainbuch Kombi Axfix Gr. 52 Tool carrier I (X/Y/Z): Technology turret with 12 stations Tool holder VDI 25 Tool drive 8,000 rpm, 1.5 kW, 10 Nm Travel in X/Y/Z 165/70/360 mm Rapid traverse in X/Y/Z 30/15/60 m/min Tool carrier II (X/Y/Z/B): Technology turret with 12 stations and swivel axis Tool holder VDI 25 Tool drive 8,000 rpm, 1.5 kW, 10 Nm Travel in X/Y/Z 215/70/740 mm Rapid traverse in X/Y/Z 30/15/60 m/min B-axis -23.5°/158.5° Tool carrier III (X/Y/Z): Technology turret with 12 stations Tool holder VDI 25 Tool drive 8,000 r ...
used
Year of construction 2022 Control Fanuc 32i-TB - ManualGudie Rotational diameter. [mm] 400 Turning length [mm] 650 General: Control Fanuc 32i-TB - Manual Guide Year of construction 2022 Turning diameter max. 400 mm Vibration diameter max. 600 mm Turning length 650 mm Bar passage 65 mm Spindle: Motor Spindle Technology Speed 4,000 rpm Power max. 34 kW Torque max. 325 Nm C-axis 0.001° Bar passage 65 mm Clamping Cylinder:Hollow Clamping Cylinder Lining Hainbuch Collet Chuck Tool carrier (X/Y/Z): Technology Star turret, 16 stations Tool holder VDI 30 Tool drive 6,000 rpm, 4.5 kW, 10 Nm X-axis 275 mm Y-axis 90 mm (+50/-40 mm) Z-axis 700 mm Equipment / Accessories: Chip Disposal Chip Conveyor Coolant supply coolant high-pressure, 15 bar Tool setter (Tool eye) Tailstock Automatically movable (CNC axis) Bar Feeder Interface Setting up an electronic hand ...
used
Control: OSP-P300L Turning diameter over bed: 400 mm Center spacing: 960 mm Turning diameter: 210 mm Speed: 50 – 6,000 rpm Counter spindle speed 50 – 6,000 rpm Recording: BMT 55 Travel: Z-axis 700 mm W-axis 730 mm X-axis 205 mm C-axis: 360 degrees (0.001) Equipment: - Y-axis - 2 tool turrets with 16 places each (all seats driven) - One Touch IGF - Chip conveyor Mayfran type: CONSEP 2000 - Bar feeder Samsys Multi 3000 - Main spindle chuck Kitagawa BB 208 Ø200 passage 68mm - Counter spindle chuck Kitagawa BB 208 Ø200 passage 52mm - Prepared for Samsys gantry loading system - additionally main spindle Hainbuch Spanntop nova CombiAxle hoist size 65 - additionally counter spindle Hainbuch clamping top nova Axfix size 65
used
Control: OSP-P300L Turning diameter over bed: 400 mm Center spacing: 960 mm Turning diameter: 210 mm Speed: 50 – 6,000 rpm Counter spindle speed 50 – 6,000 rpm Recording: BMT 55 Travel: Z-axis 700 mm W-axis: 730 mm X-axis: 205 mm C-axis: 360 degrees (0.001) Equipment: - Y-axis - 2 tool turrets with 16 places each (all seats driven) - One Touch IGF - Chip conveyor Mayfran type: CONSEP 2000 - Bar feeder Samsys Multi 3000 - Partial removal unit - Main spindle Hainbuch Spanntop nova CombiAxle hoist size 65 - Counter spindle Hainbuch Spanntop nova Axfix size 65 - additionally 1x lining Kitagawa BB 208 Ø200 passage 68mm - additionally 1x lining Kitagawa BB 208 Ø200 passage 52mm
used
X-axis: 140mm, y-axis: +/-35mm, z-axis: 450mm, max. turning length: 450mm, spindle clearance: 42mm, max. rotational speed: 5600/min, max. clamping diameter: 42mm, control: TRAUB System TX 8H, length: 4250mm, width: 2076mm, height: 1917mm, weight: 4.8t, spindle hour reading spindle 1/ 2: 63,484/ 48,015h, equipment: collet chuck Hainbuch left spindle/front side, collet chuck Hainbuch right spindle/rear side, tool probing device, part ejection device counter spindle, parts conveyor belt, bar loader Traub Stamag DNH42, machine status light, tool load monitoring, coolant system 12bar, lateral chip conveyor, with accessories and 40 tool holders, 10 of which are driven, has been regularly maintained by the manufacturer, an on-site inspection is possible.
used
Turning diameter: 0 mm Turning length: 0 mm Turret positions: 0 Positions ATC: 0 Number controlled axis: 0 CNC Brand: 0 CNC Model: 0 Control: SIEMENS SINUMERIK 840 D Operating hours: 76500 Technical data Number of spindles: 2 Number of revolvers: 2 Swing over bed: 240 mm Spindle hole: 65 / 42 mm Turning diameter: 200 mm Bar diameter: 65 / 42 mm Clamping chuck diameter: 200 mm Turret carriage: Longitudinal travel (Z-axis): 555 mm Transversal strocke (X axis): 190 mm Transversal travel (y-axis): +/-40 mm Carriage:: 2 Longitudinal travel (Z-axis): 555 mm Transversal strocke (X axis): 190 mm Turret carriage: Number of positions turret 1: 12 Number of positions turret 2: 12 Driven tools turret 1: 12 Driven tools turret 2: 12 Spindle speeds: 40-4000 rpm Main spindle: C axis (spindle,resolution): 0.025 ° Spindle speeds: stepless from: 25 rpm up to: 5000 rpm Torque max.: 200 Nm Back spi ...
used
control: Siemens 840-D tool taper: HSK & VDI 40 - - -: - - - - - - Vertical Turning Machine EMAG - VTC 250 DUO DD with ITC (7-30 bar) and driven tools Additional equipment: - Workpiece grippers on all 3 turrets - 12-position disc turret for driven tools and VDI 40 tool holders, - 12-station disc turret with cross-slot and VDI 40 tool holders, - 12-station disc turret for driven tools and VDI 40 tool holders, - NC steady rest, self-centering, - headstock below, - tailstock below, - chip conveyor - Knoll unit 1.500 l, - OP10: Three-jaw chuck Rhöm KFD-N 220/3, - OP20: Hainbuch Spanntop pull-back BZI65, - Live tool for axial and radial machining, - Tool holder with Capto 5 quick change system, - Artis as tool and process monitoring, The machine is in a well-maintained condition and can be inspected at any time under power. A machine video from the production plant will be shared on reques ...
used
turning diameter: max. 320 mm turning length: 810 mm control: MSX 701 MAPPS III standard turning dia.: 200 mm Main spindle:: Number of revolutions: max. 6.000 min/-1 power capacity - main spindel: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Subspindel:: Number of revolutions: max. 6.000 min/-1 power capacity - Sub spindle: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Turret 1 + 3:: number of toolpositions: je 16 pos. Number of driven toolspositions: je 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+65 / -45) mm Turret 2:: number of toolpositions: 16 pos. Number of driven toolspositions: 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+45 / -65) mm axis stroke:: x-travel: 1-3: 210 mm y-travel: 1-3: ...
used
GILDEMEISTER MF TWIN 65 Y CNC-Drehmaschine die 1999 in Deutschland gebaut wurde, ermöglicht vollautomatische Produktionsprozesse bei hoher Genauigkeit und niedrigen Betriebskosten. Die Maschine, die sich durch ihre umfangreichen Bearbeitungsmöglichkeiten auszeichnet, ist dank ihrer robusten Bauweise, der umfangreichen Ausstattung und dem Fokus auf hohe Produktivität ideal für jeden Produktionsbetrieb, selbst bei anspruchsvollsten Herausforderungen. Das CNC-Drehzentrum MF TWIN 65Y führt Präzisionsbearbeitungen von Metallwerkstücken mit einem maximalen Durchmesser von 200 mm durch, wobei zuverlässige Werkzeuge in zwei Werkzeugköpfen mit 12 Positionen (oben und unten) eingesetzt werden. Das Drehen der Werkstücke findet in einem großen Arbeitsraum statt, der mit einem um 45° geneigten, starren Bett und einem integrierten Späneförderer ausgestattet ist, der den Arbeitsraum sa ...
used
Manufacturer MORI SEIKI Model NLX2500SY/700 Month / Year 12/2011 CNC MORI SEIKI M730 BM Capacities Swing over bed 590 mm. Swing over cross slide 360 mm. Max cutting diameter 460 mm. Max cutting length 795 mm. Bar work capacity 80 mm. Y axis INCLUDED Travels and feeds X axis travel 260 mm. Y Axis travel ±50 mm. Z axis travel 795 mm. Spindle 2 B axis travel 734 mm. Rapid traverse rate X, Z, B axis 30.0000 mm/min Rapid traverse rate Y axis 10.0000 mm/min Jog feedrate X, Z, B, Y axis 0-5.000 mm/min Spindle C axis in spindle INCLUDED C axis index in spindle 0.001º Spindle speed 4.000 rpm Spindle speed ranges 2 Spindle nose JIS A2-8 Through-spindle hole diameter 91 mm. Spindle drive motor 18.5 kW Spindle 2 C axis in spindle 2 INCLUDED C axis index in spindle 2 0.001º Spindle 2 speed 6.000 rpm Spindle 2 speed ranges 1 Spindle 2 nose JIS A2-5 Through-spind ...
used
Traub TNA 300 Y, Year of construction 1998, Control TX8H, X/Z/Y travel 210/450/ +/- 35 mm, Y axis, C axis, Angetr. Tools 1 turret mount VDI 30, Hollow clamping cylinder 65 mm, Hainbuch BZI 65, LNS Hydrobar, Tailstock Conveyor approx. 20,000 spindle hours,
used
Clamping head HAINBUCH A013968.002A 5923706T.30 New ! Dimensions: 154 x 154 x 60 mm
used
General2-Axes Universal Turning Center with driven tools, C-axis, Y-axis and counter spindle - Direct measuring system for X / Y axis; Control: DMG MORI SLIMline® Multi-Touch control Working areaSwing diameter over transverse guideway370 mmSwing diameter over guide ways700 mmTurning diameter400 mmBar diameter max.80 mmSlide 1Transverse stroke276 mmLongitudinal stroke755 mmY axis, vertical+/- 60 mmRapid traverse in X30 m/minRapid traverse in Z30 m/minRapid traverse in Y22,5 m/minMain drive 1Drive power (100% DC)17 kWDrive power (40% DC)25,5 kWSpeed range- 4000 rpmTorque (100% DC)283 NmMax. torque (40% DC)426 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)426 NmWork spindle (left)Spindle noseA2-8 Bar diametre80 mmSpindle diametre on front bearing130 mmMain drive 2Drive power (100% DC)13 kWDrive power (40% DC)14 kWSpeed range- 5000 rpmTorque (100% DC)171 NmMax. torque (40% DC)192 N ...
used
NAKAMURA-TOME SUPER NTM3 CNC turning centre was manufactured in 2004 in Japan. Distinguished by its wide machining capabilities and extensive equipment, the machine allows fully automated production processes, while maintaining high precision and reduced operating costs. The high-quality construction additionally effectively dampens any vibrations and ensures maximum process stability, which results in excellent turning results. Workpieces are machined in up to 11 axes using reliable tools stored in three 24-position tool heads. The NAKAMURA SUPER NTM3 CNC lathe is offered with an extensive range of equipment including a BREUNING IRCO SiMag bar feeder, a FANUC 16i-TB CNC controller and additional toolholders. The CNC dual-spindle lathe weighs 12000 kg. Technical specifications of the NAKAMURA-TOME SUPER NTM3 CNC lathe - number of axes: 11 - CNC control: FANUC 16i-TB - number of ...
used
Clamping head HAINBUCH SB.K.0015-2 100 BZ 1 227 411 5923706 B3 Dimensions: 154 x 154 x 60 mm
used
Clamping head HAINBUCH SB.K.0173 3807222001 Clamping diameter: Ø 60.3 mm Dimensions: 154 x 154 x 60 mm
used
Clamping head HAINBUCH SB.K.0015.03 SPANNTOP 1208742 Dimensions: 154 x 154 x 60 mm
used
Key data: 520 mm, 625 mm, 5000 1/min
Manufacturer: Gildemeister Model CTX 420 V 3 Year of construction 2004 Condition Used Control Heidenhain iT Specifications Circulation diameter 565 mm Turning length 625 mm X-travel 260 mm Speed range - main spindle 25 - 5000 rpm Drive power - main spindle 25 kW Max. torque 270 Nm Spindle nose 170h5 Rod diameter 65 mm C-axis 0.001° Revolver Stations 12 pos. Tool holder VDI 40 Driven tool stations 12 pos. Speed driven tools 4500 rpm Drive power driven tools 12 kW Max. torque 27 Nm Tailstock mount MK 4 Rapid traverse X / Z 60 / 45 m/min Total power requirement 55 kVA Machine weight approx. 6.0 t Space requirement approx. (without bar feeder) 3495 x 2484 x 1885 mm Accessories/Equipment Bar feeder 3200 mm Iemca Master 880 MP-E Conveyor Parts catcher Conveyor belt C-axis Driven tools Collet Chuck Hainbuch 3 Röhm jaw chuck Too ...
used
Clamping head HAINBUCH SB.K.0173 Clamping diameter: Ø 60.3 mm New ! Dimensions: 154 x 154 x 60 mm
used
Spannkopf HAINBUCH SB.K.0015-2 100 BZ 1 227 411 5923706 B New ! Dimensions: 154 x 154 x 60 mm
used
Clamping head HAINBUCH SPF 446 00 - 03 ( SPF44600-03 ) 3 321 580 B3 Clamping diameter: Ø 50.3 mm Dimensions: 154 x 154 x 60 mm
used
Clamping head HAINBUCH SPF4460020080 BZ - 3 ( SPF4460020080BZ-3 ) 3321580B3 Clamping diameter: Ø 50.3 mm Dimensions: 154 x 154 x 60 mm
used
Changing device, hydraulic changing device HAINBUCH WV 380 ( WV380 ) 60 bar 12 Clamping fingers Clamping circle diameter: Ø 125 mm Dimensions: 260 x 170 x 125 mm
used
Changing device, pneumatic changing device HAINBUCH WV.034C.0005.00 12 Clamping finger Clamping circle diameter: Ø 132 mm with 2 m compressed air hose ! Dimensions: 300 x 250 x 140 mm
used
Changing device, hydraulic changing device HAINBUCH WV.0248.0010.00 60 bar 12 clamping fingers Clamping circle diameter: Ø 100 mm Dimensions: 260 x 170 x 125 mm
used
Changing device, hydraulic changing device HAINBUCH WV.024C.0006.00 60 bar 12 Clamping finger Clamping circle diameter: Ø 130 mm Dimensions: 260 x 170 x 125 mm
used
FANUC Series 31i Model B, 10.4", color 12-month warranty on all FANUC parts (in single-shift operation) Year of construction: 2018 Hours: 0 Short-turn variant, with movable headstock, hydraulic clamping system, suitable for Hainbuch SK 52 7 axes (X/Z /Y/C/Z2/X2/C2), Rod Ø max. 42 mm Turning length max. 110 mm Main spindle, speed max. 6,000 rpm, C-axis, FANUC motor, hydraulic clamping, 5.5kW 100%ED, 7.5kW 30 min ED Counter spindle, speed max. 6,000 rpm, C-axis, Buog7zkt FANUC engine, 3.7kW 100%ED, 5.5kW 30 min ED 5-fold tool holder, 20x20mm 5-fold drill holder, 4 transverse boring machines, driven, (2 pcs. modular), speed max. 6,000 rpm FANUC engine, 1.4kW 100%ED, 1.88kW 30 min ED 4 positions for backside processing / Driven, speed max. 5,000 rpm FANUC engine, 0,75kW 100%ED, 1,0kW 30 min ED Parts Conveyor Belt Oil cooler unit Coolant pan Conveyor Rod feeder Fire ...
used
Index G200 bar lathe :::SPECIFICATIONS::: CNC Model: Siemens CNC version: Index C 200 - 4 Main spindle nose: ASA 6 Main spindle bar clearance: 60mm Turning diameter: 150mm Turning length: 400mm Main spindle revolutions: 5000 Number of Tool Turrets: 1 Number of tool places before turret: 14 Number of motorized first turret: 14 First turret tool attachment type: VDI 25 X axis travel first turret: 155mm Y axis travel first turret: +-60mm Z axis travel first turret: 400mm Model and brand bar magazine: LNS Hydrobar L 3000 mm Tailstock: yes Positioning: automatic Chip evacuator: carpet Other technical data: The tailstock has a programmable axis Machine equipment: Rich equipment: Motorized and fixed tool holder sets Hainbuch pliers Self-centering forkardt :::D IMENSIONS AND WEIGHT::: Weight: 4800Kg
used
Control: SIEMENS 840C Year of production: 1999 - head 1: 12 tools (all driven sockets + Y axis) - head 2: 12 tools (all sockets driven) - max rpm 5000/min. - 2 x C-axis - Y axis - powered tools - travel in the X1 axis = 220mm - travel in the X2 axis = 220mm - travel in the Z1 axis = 550mm - travel in the Z2 axis = 550mm - travel in the C axis = 0° - 360° (main spindle) - travel along the C axis = 0° - 360° (intercept) - pass-through spindle Fi-66mm - main hydraulic Hainbuch sleeve holder - BISON three-jaw hydraulic catching chuck - finished part collector - Bar magazine and feeder: IRCO SIMAG - high pressure cooling system - chip conveyor - full programming manual - Mechanical and Electrical Documentation - machine weight: 6.5 tons
used
year of construction 2013 Emco MaXXturn 45SMY The perfect solution for economical processing of inserts or bar material up to a diameter of 45 mm. Equipped with a counter spindle, driven tools, a highly accurate C-axis and high rapid traverses, the MaXXturn 45 offers everything you need to produce complex turning/milling parts properly and as efficiently as possible. What is striking is the very stiff construction of the Y-axis with a wide stroke. The MaXXturn series offers you limitless possibilities combined with the highest precision. The MaXXturn 45 has a Fanuc 31i control with Manaul Guide. This is an ideal and favorable machine for many tool makers. Here too, a takeover spindle and a highly accurate and rigid Y-axis can be of great added value. This MaXXturn 45 has, among other things: Bar feeding interface Product collection device 25 Bar coolant pump Flush gun Hain ...
used
swivelling range: 250 mm max. working diameter: 210 mm max. working lenght: 555 mm control: Fanuc 18i TB spindle taper: JIS A2-6 spindle diameter: 71 mm number of spindle speeds: 5.000 U/min CNC Turning- and Milling Center | NAKAMURA TOME - WT-250 MMY equipped with bar loader (Profimat) Equipment/accessories: - Bar loader - driven tool holders Further technical data: - Chuck size: Hainbuch collets - Distance between spindle end faces: 555 mm - Max. outside diameter for bar material: 65 mm - Spindle power 1 = 11 / 15 kW - Spindle power 2 = 7.5 / 11 kW - Max. torque: Nm 265 (kgf-m 27) The machine is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: WT-250MMY | WT 250MMY | WT250MMY The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
turning diameter: 100 mm turning length: siehe Datenblatt mm control: Siemens 840D total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Almost new machine Ultra precision hard lathe for hardened workpieces up to 70 HRC Hydrostatic spindles Direct-drive axles in X and Z ! Hydrostatic guideways -2 spindle 10.000 rpm 8.000 rpm -Sauter tool turret 6 tools fixed / 6 tools driven axial/radial machining with Benz tool systems (engraving, drilling, milling) -Hainbuch clamping system -Schaublin clamping system -jaw chuck -tool measuring system / probe for component measurement -Preparation for automation cell -Chip conveyor -suction system -cooling unit -Fire extinguishing system for applications with oil-KSS Translated with www.DeepL.com/Translator (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
DMG MORI CTX2500 / 700 Year of construction 2023 Switch-on hours 1804h Spindle hours 1453h Max. workpiece diameter 430 mm Max. workpiece length 1,284 mm Max. bar clearance 102 mm Circulation diameter 710mm Max. travel X-axis 260 mm Max. travel Y-axis 100 mm Max. travel Z-axis 1,345 mm Turret with 12 driven tool positions Spindle speed main spindle 6000 rpm Spindle speed counter spindle 7000 rpm Equipment/Accessories: CELOS Siemens 840D Control Control option (Alternating Speed, Groove Jointing, Y-Axiy Parting) Y Axis Counter spindle turnMaster Chuck main spindle SPANNTOP nova Modular (hornbeam) Counter spindle 3- jaw chuck BBD 175-56 Tailstock function for counter spindle Conveyor Ejection hopper Belt filter system 600l Feed rinsing device outside for main and counter spindle Coolant supply through the counter spindle Coolant/compressed air ...
used
spindle passage: H: 65 / G: 51 mm numbers of positions in the tool changer: 2x12 control: FANUC 18i-T tool taper: BMT55 collet chuck: Hainbuch (RD65) CNC Turning- and Milling Center | NAKAMURA TOME - WT-250 MMY equipped with tool changer and measuring system. Equipment/accessories: - parts gripper - small package of tools (2x radial & 2x axial driven tools + various passive holders) The machine is in a well-maintained condition and can be inspected at any time under power. A machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: WT-250MMY | WT 250MMY | WT250MMY The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Description: Controlsystem: Mazatrol MATRIX Barcapacity (max.): 77 mm Turning-ø (max.): 420/760 mm Turninglength (max.): 1.524 mm Mainspindle: Technology: Motor spindle Speed (max.): 4.000 rpm Power (max.): 30 kW Torque (max.): 724 Nm Bar passage (ca.): 77 mm C-axis: 0.001 Workpiececlamping: 3-jaw chuck, ø 254 mm Subspindle: Technology: Motor spindle Speed (max.): 4.000 rpm Power (max.): 26 kW Torque (max.): 500 Nm Bar passage (ca.): 77 mm C-axis: 0.001 Workpiececlamping: Collet chuck, Hainbuch TOPlus mini Axfix 65 Movement in W: 1.530 mm Rapid travers in W: 30 m/min Toolcarrier I (X/Y/Z/B): Technology: Milling spindle (motor spindle) Speed: 12,000 rpm Power (max.): 18.5 kW Torque (max.): 119 Nm Tool holder: Capto C6 B-axis: -30°/+ 195° Movement in X/Y/Z: 630/230/1.585 mm Rapid travers in X/Y/Z: 38/26/38 m/min Toolcarrier II (X/Z): Technology: Tool turret with 9 stations ...
used
Key data: 500 mm, 700 mm, 35200 1/min
Make: Spinner Model : TC 110 SMCY Control Siemens 840 D ShopTurn Year of construction 2006 Specifications: Turning diameter 500 mm Circulation diameter 690 mm Turning length 900 mm Y-axis -55/+65 mmmm C-axis 0.001° Spindle passage main spindle 110 mm Spindle passage counter spindle 66 mm Main spindle motor 28 kw High-speed main spindle 3200 rpm. Counter spindle speed 5000 rpm. Rapid traverse x/y/z 24 m/min. Sauter Star Revolver VDI 50 Number of stations 12-fold Driven tools 12 Speed driven tools 4000 rpm. Machine weight approx. 7800 kg Dimensions set-up (L x W x H) with chip conveyor 5500 x 2200 x 1800 mm Accessories: automatic pick-up device Measuring arm Bar feeder preparation Conveyor 3D Renishaw Probe Coolant gun Increased coolant pump Hainbuch Collet Chuck for Main Spindle 3 Jaw chuck counter spindle Various tool holders Documentation
used
Control Heidenhain CNC Pilot 640 Rotational diameter. [mm] 450 Turning length [mm] 800 Main Spindle: Motor Spindle Technology Speed 5,000 rpm Power (max.) 34 kW Torque (max.) 380 Nm Bar passage 65 mm Workpiece clamping Hainbuch CentroteX with B-TOP 165-43 Counter spindle: Motor Spindle Technology Speed 5,000 rpm Power (max.) 32 kW Torque (max.) 360 Nm Bar passage 65 mm Workpiece clamping I 3-jaw chuck, Schunk ROTA THWplus 215-66 Workpiece Clamping II Differential Compressive Stress Travel in Z 800 mm Tool carrier I (X/Y/Z): Technology turret with 16 stations Tool holder VDI 30 Tool drive 6,000 rpm, 10 kW, 32 Nm Travel in X/Y/Z 300/120/800 mm Rapid traverse in X/Y/Z 30/22.5/30 m/min Equipment/Accessories: Direct displacement measuring system (glass scale) in X Chip Management Chip Conveyor Coolant management IKZ system with paper belt filter and high pr ...
used
turning diameter over bed:42 mm turning diameter over longitudinal slide:42 mm turning length:110 mm control:FANUC 31 i model B spindle speed::25 - 6000 1/min spindle:5,5 / 7,5 kW spindle hollow:42 mm total power requirement:25 kVA weight:3,3 t space requirements approx. LxWxH:2,95 x 1,55 x 2,15 m CNC-lathe, NEW , from showroom we have 4 new machines in our stock CNC long center lathe with moved spindle and subspindle prepaired for bar loader up to 42 nmm 7 axis ( X Z Y C Z2 X2 C2 ) 5 pcs. toolholder 20 x 20 mm 5 pcs. drill holder 4 pcs. driven tools , max. 6.000 rpm 4 pcs. driven tools from backside , max 5.000 rpm swarf conveyer, high pressure cooling system hollow clamping device, eletr. handwheel hydraulic hollow clamping cylinder front- and backside clamping system on both sides Hainbuch SK 52 0 h "machine on", 0 h "spindle on" !
used
number of spindles:8 spindle passage:67 mm Machine type: CNC controlled multi spindle automatic lathe Manufacturer: MORI SAY Type: TMZ 8/67 CNC Yob: 2018 Double four-spindle machine, eight-spindle machine with spindles-drum locking by means of 3 HIRTH-type frontal rings and spindles set for HAINBUCH BZI SK80 collets equipped with twin CNC systems model SINUMERIK SOLUTION LINE 840D SL for the control of: indexing speed of the spindles drum with bar feed at station 1 speed and orientation of each of 8 main spindles speed and position of each of 8 frontal slides speed and position of each of 7 compound slides speed and position of the cut-off slide at station 8 for a total of 30 CNC-controlled axes, with the possibility of requesting further upgrades from the manufacturer. Machine equipped with the following optional items: BAR LOADER automatic bar feeder model PB 60 by CUCCHI BLT for bars ...
