pressure: 150 t
chamfer lenght: 3100 mm
distance between
columns: 2600 mm
throat: 250 mm
dayligth: 325 mm
piston
stroke: 120 mm
table height: 875 mm
ajustment speed: 70.0
mm/sec
working feed: 9.0 mm/sec
return speed: 60.0
mm/sec
pressure: 220 bar
Control: ATL 550
total power
requirement: ca. 15.0 kW
weight: 8400 kg
range L-W-H: 3500 x
1700 x 2240 mm
from a maintenance workshop
Good /
well-maintained condition ()
- in checked conditions -
machinenvideo -
https://www.youtube.com/watch?v=Vk6FOVp0cVo
Specificatio
ns:
- Simple NC electro-hydraulic press brake
With torsion
shaft

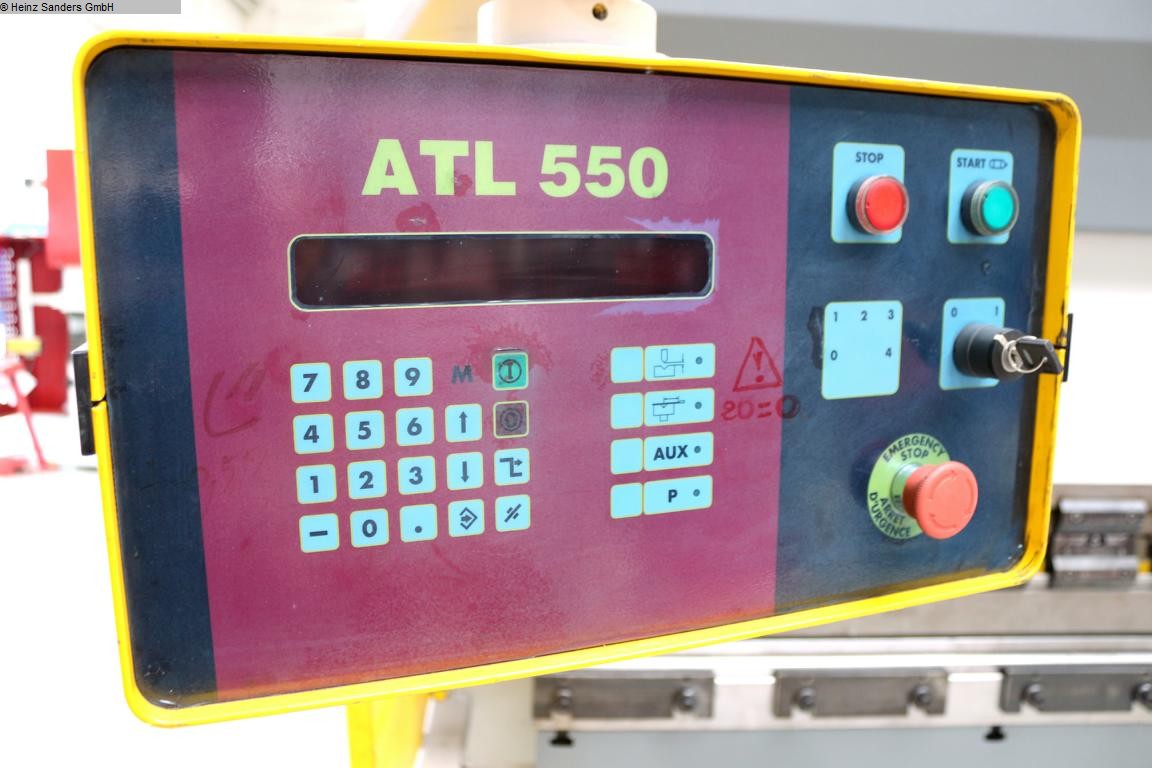

- ATLANTIC NC control system ATL 550
Backgauge
positioning (X)
Depth adjustment positioning (Y1, Y2)
Ability to program various programs
Memory capacity: max. 200
programs - max. 400 blocks
Swiveling control panel, front
left
- NC electro-motorized backgauge (X-axis)
2 manually
adjustable stop fingers

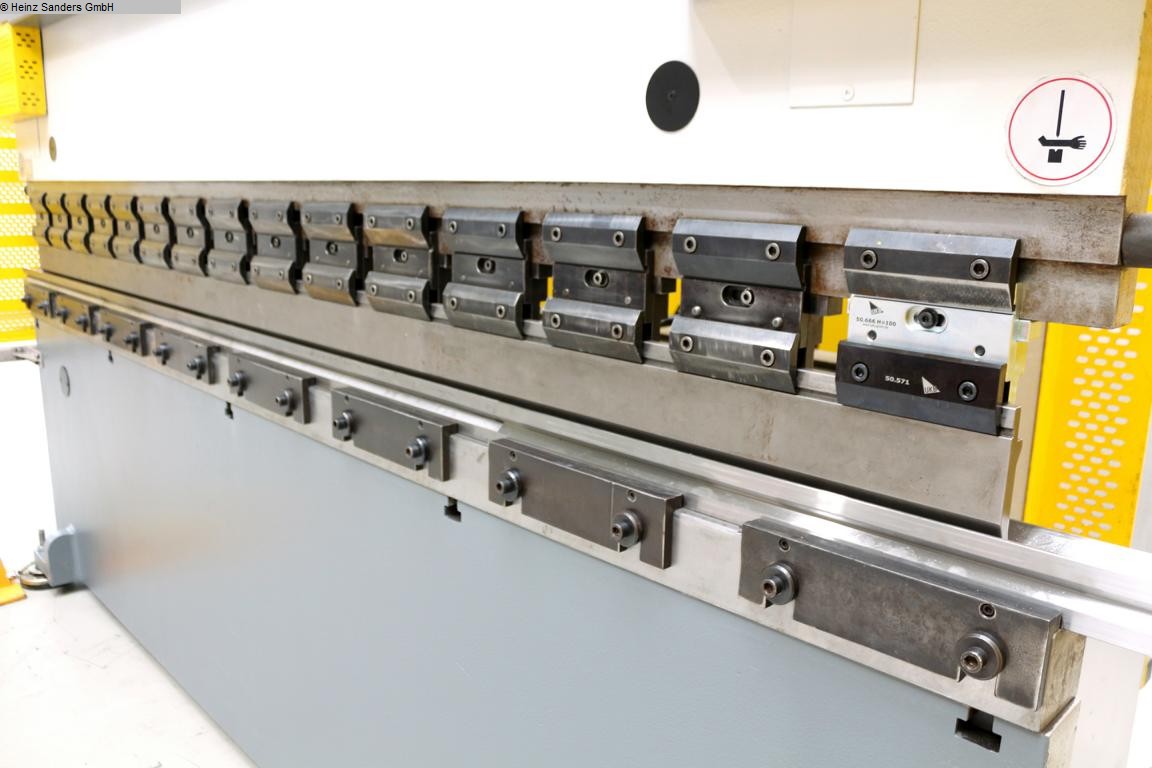

- 1 split set of Rehfuß-upper dies
Includes AMADA/PROMECAM tool adapter
- 1 split set of reversible
4-V dies
V-openings: 16/22/35/50 mm

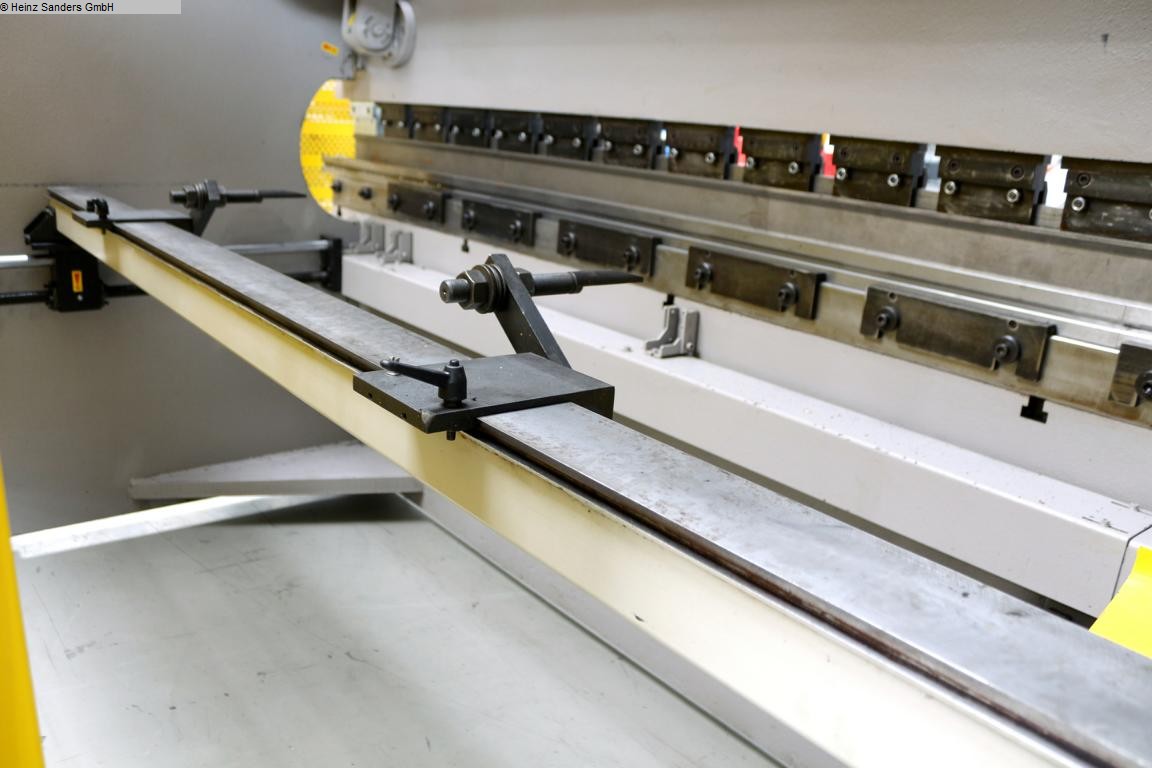

- 1 freely movable foot
control
- Safety guard on the side behind the machine
-
Operation manual and wiring diagram
