gwf used for sale

Specifications: - working width 4050 mm - max. cutting capacity St 40 6 mm - Cutting gap adjustment - Stroke rate depending on cutting length approx. 20 - 25 per min - Backgauge with positioning control ELGO 10 - 750 mm - Cutting length adjustment - Hydraulic hold-downs - front angle stop - front support arms can be moved laterally - Drive 400 V / 15 kW - Foot switch - Space requirement without support arms approx. W 4850 x H 2000 x D 2300 mm - Weight approx. 10800 kg

Compressive force: 1000kN/100t, ram stroke: 200mm, max. operating pressure: 290bar, control: DNC70, safety distance: 166mm, overtravel time: 104ms, overtravel distance: 7mm.

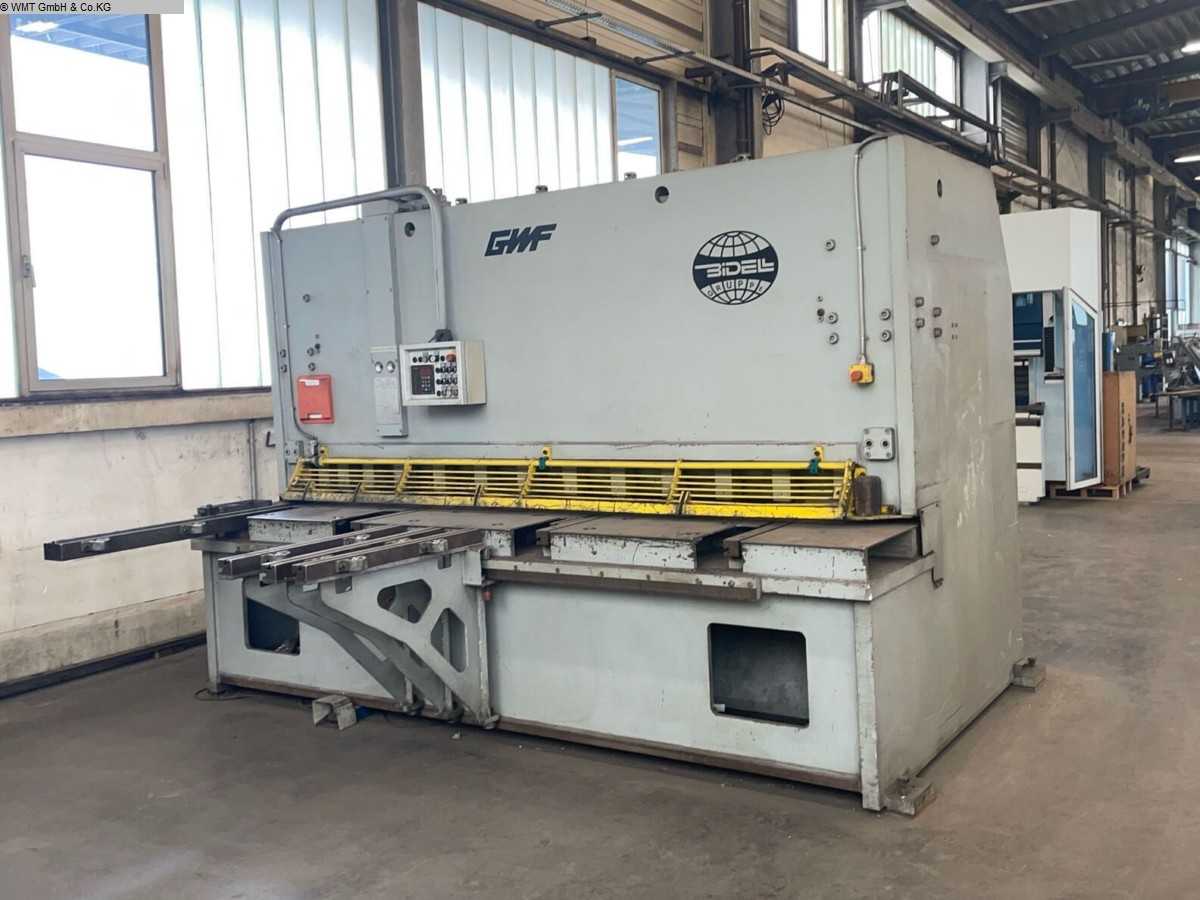

sheet width: 3050 mm plate thickness: 16 mm distance between columns: 3050 mm : 15-1000 mm cutting angle adjustment: ja ° cutting gap adjustment: ja mm connected load: 30 kW weight of the machine ca.: 14,.5 t dimensions of the machine ca.: 4,0 x 260 x 2,55 m Hydraulic guillotine shear with - ELGO control for backgauge - Cutting angle adjustment - Cutting length adjustment - Cutting length limitation (time dependent) - Sheet thickness adjustment - Back gauge with clearance function - Cutting line lighting - Side stop - 3 pcs. support consoles - good condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 125 t chamfer lenght: 3550 mm distance between columns: 3050 mm stroke: 250 mm table width: 120 mm table height: 900 mm column arm: 320 mm return speed: 100 mm/sec working feed: 10 mm/sec control: Cybelec DNC 70 quantity of oil: ca. 250 l total power requirement: 11 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 4 x 2 x 3 m new control Cybelec CypTouch 12 - 3 axes Hydraulic tool clamp Crowning Swivel control, right front free-moving foot control lateral protective device (protective grille) rear protective device (protective grille) Machine is available in about 1-2 months The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 160 t chamfer lenght: 3050 mm distance between columns: 2550 mm table width: 220 mm column arm: 280 mm dayligth: 440 mm work stroke: max. 250 mm total power requirement: 22 kW weight of the machine ca.: 13 t - Hubgeschw. / speed of stroke: abwärts: down, 90 mm/s - Press down 11 mm/s - Aufw. / upward: 90 mm/s - Spez/specif.: 2-Hand/Fuss-Bedienung / 2 –hand foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

12 CNC-assen: Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / R1 / R2 / R3 / R4 / X5 / X6 / Tandem kantbank: 2 x 2000 ton GWF Als je een werkstuk van 16 meter lang buigt, is de maximale keeldiepte 1250 mm. Buigvoorbeeld: 35 mm (normaal staal) over een lengte van 16 meter Capacity: 4000 ton x 16 200 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 4600 mm (2x) Max stroke: 1000 mm Max distance between table -- ram: 1650 mm Depth of throat: 1250 mm Table width: 650 mm Locking speed: 70 mm/sec Working speed: 4 > 7,5 mm/sec Returning speed: 75 mm/sec Electric motor (power): 75 kW (2x) Power needed: 380V Length: 7100 mm Depth: 5000 mm Height: 6350 mm (above floor) Weight: 500 ton (2x 250 ton) Capacity: 4000 ton Bending length: 16200 mm

Hydraulic press brake, used Hydraulical press brake, used type / model: D 160-25 Make / make: GWF Year / year of make: 1993 Pressure / force: 160 t Bending length / working length: 3,050 mm Stand width approx. / distance b/n standards: 2.550 mm Table width: 220 mm Stand RADIUS / depth of Cap: 280 mm height / shut height: 440 mm working stroke ca / stroke. Max 250 mm Hubgeschw. / speed of stroke: down: down; 90 mm / s Press down 11 mm / s Expensed. / upward: 90 mm / s Machine weight / weight: approx. 13 t Power consumption / connected load: 22 kW Spec/specif.: 2-hand/foot control / 2 foot switch - manual
