pressure: 125 t chamfer lenght: 3550 mm distance between columns: 3050 mm stroke: 250 mm table width: 120 mm table height: 900 mm column arm: 320 mm return speed: 100 mm/sec working feed: 10 mm/sec control: Cybelec DNC 70 quantity of oil: ca. 250 l total power requirement: 11 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 4 x 2 x 3 m new control Cybelec CypTouch 12 - 3 axes Hydraulic tool clamp Crowning Swivel control, right front free-moving foot control lateral protective device (protective grille) rear protective device (protective grille) Machine is available in about 1-2 months The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Specifications: - working width 4050 mm - max. cutting capacity St 40 6 mm - Cutting gap adjustment - Stroke rate depending on cutting length approx. 20 - 25 per min - Backgauge with positioning control ELGO 10 - 750 mm - Cutting length adjustment - Hydraulic hold-downs - front angle stop - front support arms can be moved laterally - Drive 400 V / 15 kW - Foot switch - Space requirement without support arms approx. W 4850 x H 2000 x D 2300 mm - Weight approx. 10800 kg
Compressive force: 1000kN/100t, ram stroke: 200mm, max. operating pressure: 290bar, control: DNC70, safety distance: 166mm, overtravel time: 104ms, overtravel distance: 7mm.
pressure: 160 t chamfer lenght: 3050 mm distance between columns: 2550 mm table width: 220 mm column arm: 280 mm dayligth: 440 mm work stroke: max. 250 mm total power requirement: 22 kW weight of the machine ca.: 13 t - Hubgeschw. / speed of stroke: abwärts: down, 90 mm/s - Press down 11 mm/s - Aufw. / upward: 90 mm/s - Spez/specif.: 2-Hand/Fuss-Bedienung / 2 –hand foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

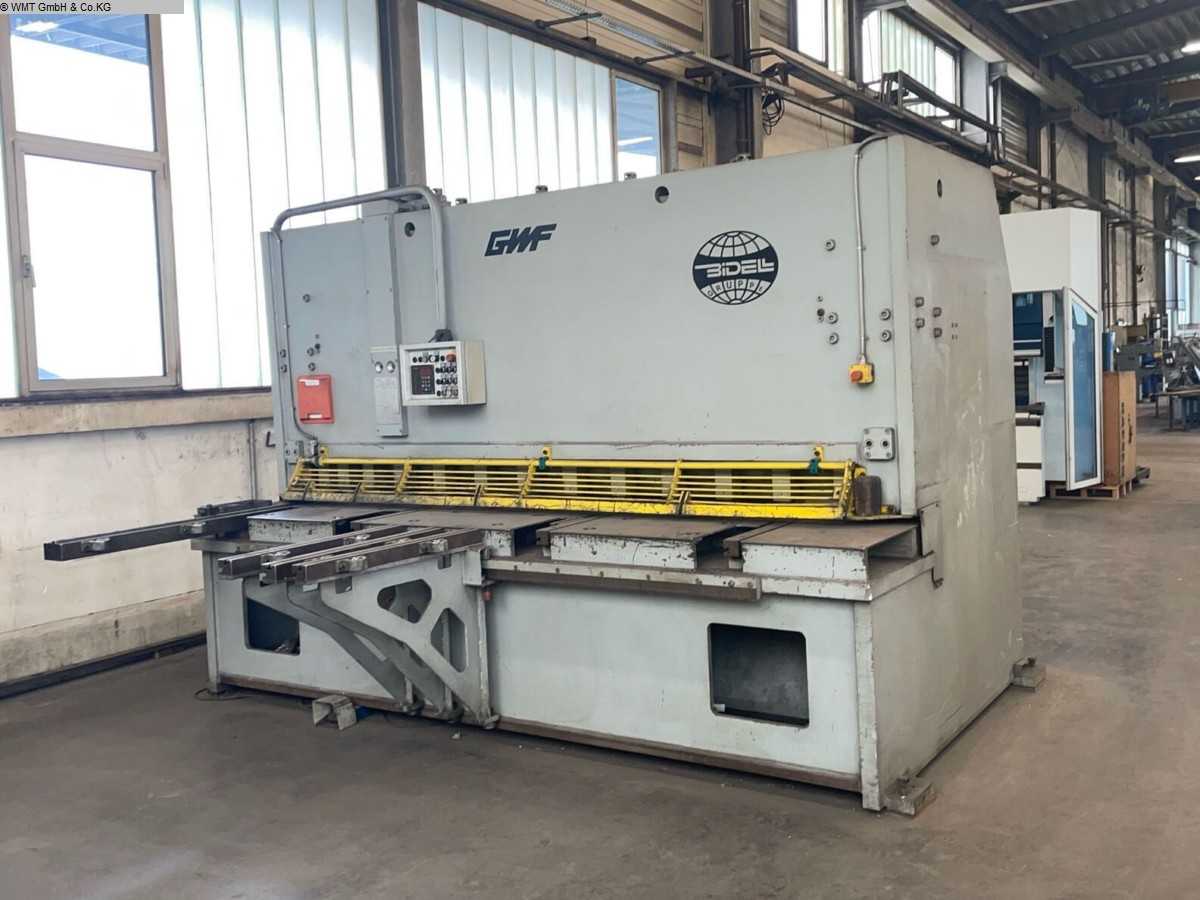

sheet width: 3050 mm plate thickness: 16 mm distance between columns: 3050 mm : 15-1000 mm cutting angle adjustment: ja ° cutting gap adjustment: ja mm connected load: 30 kW weight of the machine ca.: 14,.5 t dimensions of the machine ca.: 4,0 x 260 x 2,55 m Hydraulic guillotine shear with - ELGO control for backgauge - Cutting angle adjustment - Cutting length adjustment - Cutting length limitation (time dependent) - Sheet thickness adjustment - Back gauge with clearance function - Cutting line lighting - Side stop - 3 pcs. support consoles - good condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Hydraulic press brake, used Hydraulical press brake, used type / model: D 160-25 Make / make: GWF Year / year of make: 1993 Pressure / force: 160 t Bending length / working length: 3,050 mm Stand width approx. / distance b/n standards: 2.550 mm Table width: 220 mm Stand RADIUS / depth of Cap: 280 mm height / shut height: 440 mm working stroke ca / stroke. Max 250 mm Hubgeschw. / speed of stroke: down: down; 90 mm / s Press down 11 mm / s Expensed. / upward: 90 mm / s Machine weight / weight: approx. 13 t Power consumption / connected load: 22 kW Spec/specif.: 2-hand/foot control / 2 foot switch - manual
12 CNC-assen: Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / R1 / R2 / R3 / R4 / X5 / X6 / Tandem kantbank: 2 x 2000 ton GWF Als je een werkstuk van 16 meter lang buigt, is de maximale keeldiepte 1250 mm. Buigvoorbeeld: 35 mm (normaal staal) over een lengte van 16 meter Capacity: 4000 ton x 16 200 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 4600 mm (2x) Max stroke: 1000 mm Max distance between table -- ram: 1650 mm Depth of throat: 1250 mm Table width: 650 mm Locking speed: 70 mm/sec Working speed: 4 > 7,5 mm/sec Returning speed: 75 mm/sec Electric motor (power): 75 kW (2x) Power needed: 380V Length: 7100 mm Depth: 5000 mm Height: 6350 mm (above floor) Weight: 500 ton (2x 250 ton) Capacity: 4000 ton Bending length: 16200 mm
Press brake edge machine edge bench press used Manufacturer: Mengele Type: C320-4B Built: 1966 last revision and repair: 2000 Location D-01587 Riesa Dimensions WxH: 6,250 x 3,650 mm Edge knife width: 6,150 mm sheet thickness at 6,000 mm bending length: approx. 7.5 mm. The machines are designed for very deep shaft bends, therefore very deep cheek recesses. Original 300 t pressing force - In 1989 the pressing force was increased to 350 t. The press is in very good condition despite its age. The machine is disassembled and ready for loading. documentation for the machine is available. Weight: about 45 t
pressure: 160 t chamfer lenght: 4000 mm distance between columns: 3060 mm control: FORTRON CNC 10 H 4 throat: 280 mm stroke: 250 mm dayligth: 500 mm table length: 4050 mm table width: 280 mm feed down: 70 mm/sec feed up: 68,4 mm/sec working feed: 9 / 3,5 mm/sec operating pressure: max. 205 bar oil volume: 400 l total power requirement: 19,5 kW weight of the machine ca.: 20,8 t Total weight including accessories: 22 t dimensions of machine L x W x H: 4,8 x 1,88 x 2,93 m dimensions of switch cabinet: 1,6 x 0,5 x 2,25 m Acc.: programmable back gauge, upper and lower dies, table extensions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 200 t chamfer lenght: 3000 mm distance between columns: 2560 mm dayligth: 450 mm throat: 450 mm adjustment of stroke: 240 mm horn length over column outer edge each: 175 mm table length: 3050 mm table width: 280 mm table height over floor: 820 mm electrics - voltage/frequency: 220/50 V/Hz control: CYBELEC, DNC60 stroke: 250 mm operating pressure: 150 bar total power requirement: kW weight of the machine ca.: 15 t dimensions of the machine ca.: L:4,0 x B:3,2 x H:3,44 m • hydraulical press brake, • new control CYBELEC DNC60 (in 2005), • lower part of the machine moves down 500 mm to the floor, at the moment the machine is mounted on a double-T-support, • prism and upper part of the machine in 3000 mm length The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3050 mm plate thickness: 25 mm distance between columns: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Hydraulic press brake Manufacturer: MENGELE Type: A 100-2 Pressing pressure: 100t Stroke: 160mm electr. Connection: 400V 3Ph Year of construction: 1964 Condition: used and functional
pressure: 1250 t chamfer lenght: 15000 mm distance between columns: 10160 mm Control: CNC 10 Grafik total power requirement: kW weight of the machine ca.: 230 t dimensions of the machine ca.: 17000 x 5400 x 5900 m - Pressure: 1.250t - Bending length:15.000mm - Control: CNC 10 graphics - No. of axes axes: min. 10 - Frame width: 10.160mm - Projection: 770mm - Table length: 15,000mm - Dimensions: 17,000mm x 5,400mm x 5,900mm - Mass: approx. 230t Equipment - Crowning device - CNC 10 control with graphics - Hydr. clamping of the upper tools - Multi-man operation - Increased speeds - Automatic height-adjustable rear sheet stop - die cushion device - Horn length 2,200 mm on both sides The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 130 t chamfer lenght: 3550 mm distance between columns: 3050 mm stroke: 250 mm Control: Cybelec weight of the machine ca.: 11.600 kg dimensions of the machine ca.: 4000x2000x3000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
An oil-hydraulic press brake built in 1978 is offered, max. pressing force: 2000kN, max. stroke: 250mm, max. operating pressure: 295bar. Control panel defective. Viewing is possible by arrangement.
pressure: 160 t chamfer lenght: 3000 mm distance between columns: 2650 mm Control: Cybelec DNC 800 total power requirement: kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
cutting length: 2000 mm sheet thickness - max.: 6 mm operating pressure: 250 bar fabric-no.: S2669 weight of the machine ca.: 4,7 t working width: 2059 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Hydraulic cylinders, support cylinders, hydraulic rams, pressure rams -Spare part: Hydraulic cylinder from Mengele press brake -Equipment: with threaded stop for depth limitation -Piston diameter: approx. 240 mm -Piston rod: Ø 200 mm -Stroke: approx. 380 mm -Piston rod mounting: 212 x 212 mm -Number: 2x cylinders available -Price: per piece -Dimensions: 840/410/H355 mm -Weight: 430 kg/piece -Weight: 430 kg/piece
Key data: 3 mm, 10 mm, 1 mm
Guillotine shears from a company liquidation Worked as a cutting center with automatic stacking device make Theis Control cabinet , built in 2015 new Front support arms 1,000 mm Service regularly performed according to plan 3,000 x 10 mm
Hydraulic guillotine shears with>br>- ELGO control for backgauge>br>- Cutting angle adjustment>br>- Cutting length adjustment>br>- Cutting length limitation (time-dependent)>br>- Sheet thickness adjustment>br>- Backgauge with free-moving function>br>- Cutting line lighting>br>- Side >stopbr br>- 3 pcs. support brackets>br>- good condition>br>sheet width 3050 mm>br>sheet thickness 16 mm>br>stand width 3050 mm>br>stop depth 15-1000 mm>br>cutting angle adjustment yes °>br>Cutting gap adjustment yes mm>br>Connected load 30 kW>br>Machine weight approx. 14..5 t>br> Space requirement approx. 4.0 x 260 x 2.55 m Auction-ID: A7-44817-25
7.900 €
