guida used for sale

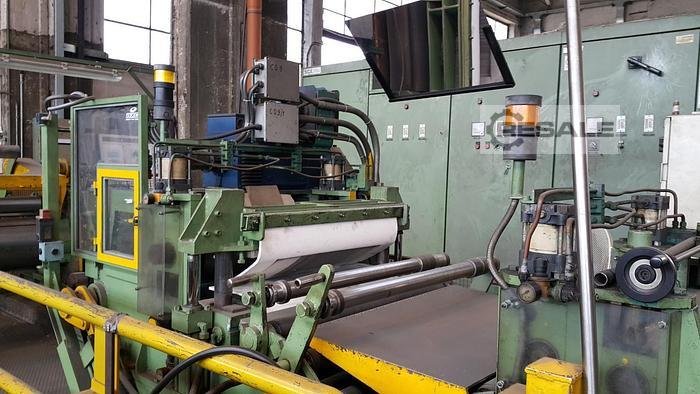

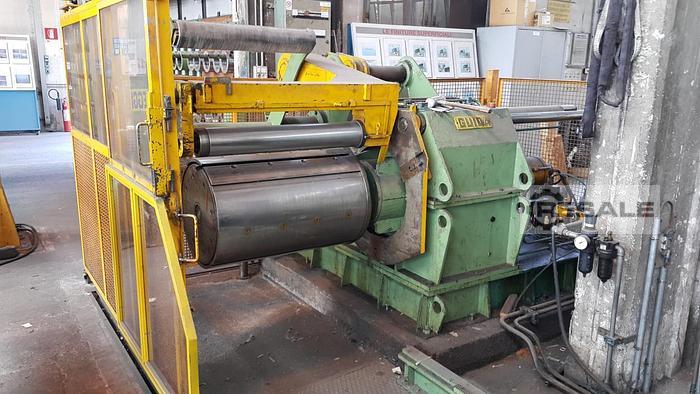

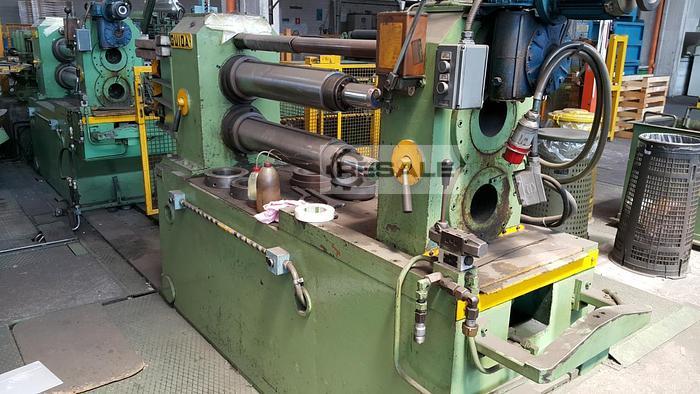

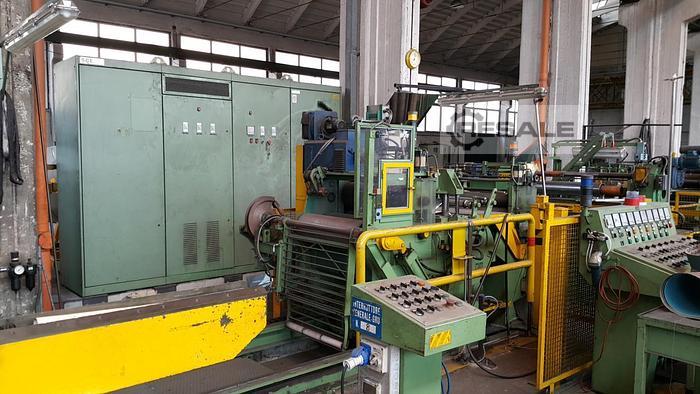

Qty. 1 Second-hand coil slitting line Mfc.: GUIDA IMPIANTI, Italy Built: 2003 Max. strip width: 2,000 mm Thickness: 1.5 – 5.0 mm Material: Carbon steel, inox, stainless steel Speed: 80 ~ 160 m/min Coil Weight: 26 TON Coil ID: 508 / 760 mm Coil OD: 2100 mm Knife diameter: 370 / 450 mm Traction resistance: 650 N/m² Installed power: 360 kW

Qty. 1 Second-hand slitting line - dismantled Manufacturer: Guida (Italy) Built: 1990 Status: dismantled and in storage Strip width: 1500 mm Thickness: 1.0 - 8.0 mm Coil weight: 20 ton Coils ID: 500/600 plus steel spacers for bigger diameter Shear roller diameter: 220 mm Knife diameter: 355 mm Speed: 0/25/50 m/min

Key data: 2 mm

Bandwidth... 1,550 mm Strip thickness 0.5-3.0 mm Coil weight. 15,000 kg Coil I Diameter 508 mm Coil A Diameter... 1,600 mm Straightening rollers 23 pcs. Execution. 6 high Stainless steel / aluminium

see images and PDF now available

Specifications / Technical Data S-720 CNC-Fraesmaschine With the High-Z CNC-Fraes.- and Engraving Machine you acquire an all-round talent in TUeV-certified Quality (EMV). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equipment of all high- ...

Item condition: New. Machine is delivered pre-assembled and tested. Specifications / Technical Data S-720 CNC-Fraesmaschine Engravings of all kinds, even on glass, VHM, carbide and up to 62 RC hard steel ! With the High-Z CNC-Fraes.- and Engraving Machine they acquire an all-round talent. Whether you want to clamp complex parts on a groove table or, or to clamp factory tins into a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are pr ...

Specifications / Technical Data S-400 Fraes machine / engraving machine With the High-Z CNC-Fraes.- and engraving machine you acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equip ...

Specifications / Technical Data S-400 Fraes machine / engraving machine With the High-Z CNC-Fraes.- and engraving machine you acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +/-0,02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equip ...

Used and in very good condition, Kaak Twin spiral freezer with a producing capacity depending on the product data (based upon 1000 pcs of cream cakes of 2500 grams each) approximately 2500 kg/h. Spiral freezer is largely made of stainless steel/aluminium with the exception of the drums (which are hot-dip galvanized). Infeed/outfeed North/South configuration. Infeed/outfeed height 800 mm, stainless steel Ashworth belt B26-12-17 with integrated metal side conduction, belt width gross 762 mm, net 648 mm, effective belt length 648 meters, number of tiers per drum 21, 42 in total, inside diameter of drum 3353 mm, outside diameter 4877 mm, maximum height 5255 mm, maximum product height 125 mm (this can also be adapted to a maximum of 200 mm). Furthermore this very well maintained twin spiral freezer is equipped with 3 pieces Güntner stainless steel/aluminium blast freeze evaporators with  ...

Manufacturer Ruefli AG SA Biel - Bienne Very powerful exhauster, suction system Spaene suction with filter bag for woodworking machines, Power 2.2kw 2850rpm. machine probably unused except for advance guidance. Special price

2 pieces Mosca strapping machines, bundling machine - used - : Price per piece from location: 2,295.- EUR (net)! Manufacturer: Mosca Type: RO-TR-13 Year of construction: 1997 Welded closure: Thermal Bandwidth: 5-9mm Belt voltage: Infinitely adjustable Belt unwinders: Belt coils inside- 200 Weight: 415kg mains voltage 200-440V Airpressure: 6 bar Air consumption: 5.4l/stroke noise emission: 75 dB measured according to DIN 45635 pressing pressure: downward max. 650N at 6 bar / upward max. 100N at 2 bar Afield: The fully automatic strapping machine for almost all packaging areas and package sizes: Width: 100mm - 550mm Length: 150mm - 600mm Height: 5mm - 400mm Machine Description: Fully Automatic Plastic Strapping Machine for Poly-Propylene Packaging Tapes. High connection voltage due to minimum distance from the transport plane to the locking unit. Transport speed of 0.1 -0.8 m/sec  ...

LAMINATING SYSTEM POLYTYPE BB 2200 LAMINATION LINE Coating/- lamination equipment for solvent based resin system. On an existing film or composite material. Year: 2008 Condition: Excellent The different film thicknesses what can be used depending on the materials, see references: Plastic foils 25-250 microns Metal foils (copper, aluminium) 20-150 microns Total composite thickness max. 500 microns Machine data: Production speed 0 - 150m/min Production speed 840 - 2160mm Resin 1 - 40g/m2 Winding units (main winder-/ lamination winder-/tensilized film winder): For unwind of the base film there are two winders (main winder/ lamination winder). Winder performance: - Winding direction clockwise / anticlockwise - Brakes ystem for constant and regulated tension e.g. alu foil with max. 2000 kg roll weight - Roll system centerless for steel,plastic-, carton tubes with optimal  ...

Dough tub trolley NEW TW 14 "for the perfect long-term guidance" with 14 dough trays and lids 9.8 litre tub (max. 6 kgdough) Lid for special dough guidance /air guide Stainless steel car mobile

2019 technically overhauled CBN or DIA grinding in deep grinding Cover / Schalldaemmhaube with viewing window Interior lighting by halogen lamp Separate control cabinet with screen display and operator guidance Special tooth shapes: 10 forms freely programmable and stored Automatic, motorized central lubrication 1 piece of grinding wheel flange Centering pad with bolts ( x16 mm) 1 set centering rings Normal access and user manual Operating tool Colour pigeon blue Grinding range of 60 - 520 mm Saegeleaf thickness max. 6 mm Zaehne numbers 20 - 999 Saegeleaf holder bolt 16 (8) mm Grinding wheel diameter 200 mm Maximum tooth height 32 mm Grinding wheels bore 32 mm Grinding wheel drive 4 kW Grinding wheels Speed 5730 rpm Weight approx. 1150 kg

properties Used belt conveyor Incl. drum motor Incl. side guidance Ideal for fast material transport Expertly dismantled and packaged Condition: fully functional 1 pcin in stock Technical data: Manufacturer: Krups Conveyor Systems Type: KF308800/300 Dimensions of the belt conveyor Total length: 8,800mm Total width with motor: 370mm Total width without motor: 300mm Drive, drum motor Belt width: 270 Belt type: Steering grooves Frame: Steel Information on the page guidance Height: 30mm Width: 20mm Material: Aluminum belt conveyor The belt is ideal in the picking zone for interlocking machines or workstations and to optimize the internal process. During transport, the belt conveyor can transport sensitive and different sized containers, boxes or other packaging and article units to the feed-off or dispensing point and also serves, for example ...

Cutting and miter saw • Saw blade diameter: 420 mm • Saw blade holder: 40 mm • Cutting length: 410 mm (at 90°) • Cutting height: 170 mm (at 90°) • Machine can be swivelled on both sides via hand crank (from 90° to left by 45° and from 90° to right by 30° to max. 60°) • HM circular saw blade for wood (420 x 3.4/2.4 x 40 mm 48 WZ neg) • stable cast iron construction • Precise ball bush guidance of the tool slide on hardened and ground steel shafts • Saw feed manually • Miter range horizontal: 45° - 90° - 25° • Miter range vertical: 90° to 45° (left) • re-adjustable fixed stops • Lower saw blade protection can be connected to a suction system (diameter suction nozzle = 100 mm) • incl. machine stand for type 170 N • Weight: 120 kg Engine data: • Power: 3 kW • Speed: 2710 rpm • Voltage: 400/230 V • Rated current: 6.4 ...

Fill 3D-Ultrasonic Cutter Here we offer you a Fill 3D ultrasonic cutting system. Fill 3D-ULTRASONIC SCHNEIDER 3D ULTRASONIC CUTTER The 3D ultrasonic cutter from Fill enables three-dimensional contour cutting of fiber-reinforced plastics using ultrasonically excited cutting systems. Your advantages: Ergonomic feeding and unloading Easy creation of bleed programs (NC control) Space-saving system concept (as an alternative to the robot) High repeatability High process stability Easy and fast tool change Possible integration into an overall process chain The principle: The linear axis portal enables precise guidance of the ultrasonic knife with a small footprint and simple kinematics. Thanks to the Siemens 840 D CNC control, the trimming device can be programmed like a machine tool. Tool corrections or path changes can simply be carried out directly on the machine. As standa ...

Machine type: Table milling machine Manufacturer: ELEKTRA BECKUM Model: TF 100 M 2.8 DN Built: 1998 Condition: ready for use Offer type: used machine Technical data: Table: 520 X 420 mm Speeds: 4000/6000/7500 rpm. Drive: 1.8 KW Comment: with an additional horizontal sawing unit (1.5 kW) for Two-sided machining with roller conveyor and lateral material guidance, everything can be easily dismantled Weight: 150 kg

Punching machine Trumpf TruMatic TC3000-1300 FMC Year of construction 2004 87500 hours (03.2021) In this case, the configuration : TruMatic TC3000-1300 FMC Year of construction 2004 Working range : 2550 x 1280 mm Standard: • Sturdy C-frame • Coordinate guidance with integrated linear magazine, 21 seats for tools and clamps • 2 clamps • Drives: Maintenance-free digital three-phase servo motors • Punching head: hydraulic system with closed control loop, hydraulic mono tool holder, 360° rotation for all Tools, automatic tool length compensation, programmable scraper movement • Programmable hold-down • Tool spray lubrication • Punch butt suction • Partial slide 500 x 500 mm • Control Bosch PNC-P, activity-oriented user interface, Online Help, Diagnostics, 3.5" Floppy Drive, RJ45 Network Connection • Graphics programming ToPs 2000 • ToP ...

OERLIKON / ALPHATOME II T30 HP300 PPM 400 OERLIKON - Typ: ALPHATOME II T30 HP300 PPM 400 - Baujahr: à 2013. Special features of the ALPHATOME II series / EQUIPMENT: Camera system: Moving camera on the cross-drive carriage for easy positioning and cutting monitoring by the operator from the control panel. The graphic is done by a permanently visible button on the touch screen interface. Protective devices: 7 Facilities for the protection of operating personnel. Photocells in the front and back of the bridge. Emergency stop button on all corners, as well as on the external control panel. Anti-glare-/splash protection: The anti-glare panel of the bridge is raised or lowered automatically or by pressing a button. On the sides, the panel can be opened manually for the burner and wear parts. Furthermore, the noise development is significantly reduced and resulting smoke is bet ...

-High performance -Belt grinding device height-adjustable 0-90° -Maximum usable face grinding surface -Belt adjustment with fine adjustment -Combined belt grinding/grinding machine -Longitudinal stop for material guidance -Perfectly balanced and low vibration -Double-sided connection for dust extraction Ø 50 mm -Motor circuit breaker with undervoltage trigger -Fixed stop -1 sanding belt standard (brown), grain 80 -1 grinding wheel 250 x 40 x 51 mm, grain 80 -Spark protection -Connection cable with CEE plug -with machine stand, EMERGENCY STOP push button, brake and suction Delivery: in Germany free domicile incl. packaging

TECHNICAL DATA: Working area 3,000 x 1,500 x 115 mm Control Siemens Sinumerik 840 D Laser power 5,000 watts Max. sheet thickness structural steel 25 mm Max sheet thickness stainless steel 20 mm Max sheet thickness aluminium 12 mm Machine regularly serviced by TRUMPF! Standard: - Closed machine frame with integrated laser unit - TRUMPF laser TLF 5000 - Laser unit: CO2 laser, high-frequency excited, maintenance-free turboradial blower, cooling unit, logbook function - Automatic pallet changer and longitudinal conveyor belt - Drives: Gantry drive in combination with linear direct drives - Laser power control - Position laser diode - HI-LAS high-pressure cutting - Plasma sensor inges, PMS - Automatic sheet metal edge detection - Programmable performance cycles - Microweld - Automatic nozzle cleaning - Fast editing with SprintLas - ContourLas for making small ho ...

Make: TRUMPF Type: TRUMATIC L 3030 RotoLas Built: 2002 Working range: 3000 x 1500 mm Laser power: 2000 watts Engine hours: 54,000 Control: Siemens Sinumerik 840D Standard: Closed machine frame with integrated laser unit Laser unit: CO2 laser TLF 2000 high frequency excited, mirror telescope, cooling unit, logbook function Automatic pallet changer and longitudinal conveyor belt Drives: Maintenance-free three-phase servomotors HI-LAS High-pressure cutting Plasma Sensors (PMS) Fast editing with SprintLas ContourLas for making small holes Cutting gas pressure setting programmable Laser cutting head with 5" lens and laser cutting head with 7.5" lens, DIAS III Cutting head quick-change device Position laser diode Automatic focus position setting AutoLas Plus Logbook function Laser Oil spraying device for safe thick sheet processing Auto shut-off Workspace lighting  ...

Vertical band saw and band filing machine make JAESPA type AS 4Fabr. -No: 735401, built in 1973Technical specifications:Roll diameter: 420 mmCutting height under guidance: 450 mmCutting width: 400 mmBelt speed: 16 - 1600 m / minSaw band length: 3200 - 3400 mmTable size: 660 x 660 mmTable load: 350 kgSaw motor: 2.2 kWGrinding motorExternal dimensions L x W x H: 660 x 900 x 1920 mmWeight: 690 kgwith- Band saw welding machine BSO-16- grindstone- tiltable table- Attack- lighting- Emergency stop switchused, from a company liquidation,in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

properties: Condition: fully functional, with traces of usage Manufacturer: Overbeck Feet to order separately Colour: blue/grey Ideal for fast material transport Expertly dismantled and packaged Technical data: Total width outside: 2,100 mm Total width inside: 1,200mm Total width incl. motor: 950mm Conveyor width: 50mm Incl. SEW Motor 0.18KW Incl. side guidance Curve radius approx.: 90 degrees Material: Galvanized Manufacturer: Interroll frame Height: 135mm Material: Steel roller conveyor curve Due to the excellent workmanship of the roller conveyor curve, your material glides gently to the destination, even under heavy loads. Tailor-made solutions for your intralogistics We are your competent contact for roller conveyors, belt tracks, inclined belts or telescopes for loading and unloading your goods! We will be happy to prepare your indivi ...

pressure:100 t passage width:500 mm stroke:400 mm Approx. weight (w/o operational materials):5,5 t Measurements L x W x H:ca. 1300 x 2800 x 2900 mm Table size:800 x 500 mit T-Nuten mm Table height above ground level:850 mm Oil Tank Capacity:140 l main cylinder:220 Ø mm Auxiliary cylinder:2 Stk - 50 x 30 Ø mm Auxiliary guidance:2 Stk - 50 Ø stk. Engine Output:11 kW :26 Lt./min. Approach Speed:110 mm/sec Pressure Speed:120 mm/sec Return Speed:12 - 4 mm/sec Ram plate:800 x 500 mit T-Nuten mm pre-run valve:1 Stk Siemens Control System:S7 1200 Monitor:Siemens 7 Zoll Light sensors sick:700 + 150 mm Special feature: When operating at 260bar the machine reaches a pressure level of 70 tons.

Circular shears make PARX / KUNZ type KSM / 2 / schMachine -No: 3756 built in 1975Technical specifications:Shear capacity 40 kg / mm2 4.0 mmShear capacity 70 kg / mm2 2.5 mmProjection 380 mmGuide curve projection 750 mmgr. round square sheet metal 1000 mm gr.Ronde octagonal sheet metal 1250 mm Flare diameter max. 400 mmFlare height max. 30 mmFlaring radius max. 20 mmCutting speed 15/30 m / minDrive power 2.5 / 3.0 kWWeight approx. 2500 kgDimensions 3600 x 500 x 2200 mmWeight approx. 2500 kgWith- automated with hydr. Adjustment of the circle center point guidancefor different diameters and material tension in the center- complete electr. Facility- Inclined lower knife shaft- swiveling control panel- hydr. Infeed of the upper tool for scissors and guide arch- hydr. Guide arc swivel device- various cutting wheelsused, in good conditionPrice on request.Delivery: ex warehouse or  ...

SF 444n-8 Feed apparatus standard with 8 speeds 3.5-5-7-10-12-17-26-34 m/min ideal guidance of the workpiece thanks to 4 roller system every working position can be easily adjusted via two-rod tripod right/left run 2 step motor Precision gearbox ensures precisely uniform feed speed and long service life G&HM-SF444-8

: 3,0 mm ST 40 : 2,0 mm VA : 90° Grad blade length: 130 x 130 mm table:: 600 x 460 mm work height max.: 900 mm engine output: pneumatisch weight: 170 kg range L-W-H: 630 x 660 x 1270 mm Characteristics : - Notching with a burr-free cut, without deforming the cut edges - Machine body made of high-quality gray cast iron, base frame made of sheet steel - Cutting knife made of surface-hardened tool steel - Effort-saving work thanks to the pneumatic drive - Operation by means of a foot pedal, so both hands are free for the workpiece - Large work table with integrated scales - T-slots for precise guidance of the swiveling stops - Protective cover in front of the cutting knife for high security scope of delivery - 1 set of cutting knives - 2 swiveling material stops - Plexiglass protective cover - foot pedal - angle gauge - underframe The data for this ad was created with ModulMWS - the sof ...

Holzkraft Precision Wood Band Saw HBS 533 SET Product name: Precision wood band saw HBS 533 SET Manufacturer: Holzkraft Item number: 5155303 SET Year of construction: 01/2022 Condition: As good as new technical details: • Dimensions work table (L x W x H): 535 mm x 535 mm x 945 mm • Saw table inclination: -10° to +45° • 2 x suction nozzles • Diameter suction nozzle: 2 x 120 mm • Working table length max.: 685 mm • Work table widening length: 535 mm • Work table widening width: 150 mm • Cutting height max. 90°: 270 mm • Cutting width max. with stop: 474 mm • Cutting width max. without stop: 514 mm • Band saw blade speeds: 850/430 m/min • Band saw length: 3,865 mm • Band saw guide: precision guide at the top and bottom • Weight: approx. 163 kg • incl. band saw set, length 3865 mm, 3 pieces - 1x band saw blade wood 3865 x 10 x 0.5  ...

Cobot collaborative robot Dobot CR10 new - with Safeskin Reach: 1300mm Payload: 10kg Collaborative robot series Supports payloads of 3 kg, 5 kg, 10 kg and 16 kg Safe working on the side and cost-effectively Hand guidance, collision detection and trajectory reproduction Ideal for application scenarios with human-robot collaboration Multiple control methods Low latency and high noise immunity Supports controls on Android, iOS and Windows High-performance network card with a transfer rate of up to 433 Mbit/s Intelligent interactive panel robot hand guidance The Intelligent Interactive Panel is embedded with LEDs that indicate the status of the robot With the touch of a button, you can drag and move the robot to teach it a specific path Wide compatibility Wide compatibility with a wide range of peripherals Suitable for feeding, assembling, testing, handling, screwing, gr ...

cutting diameter: 350 mm saw band length: 4160 mm cutting width: 400 mm : 350 mm : 350 x 350 mm Capacity 90° rectangular: 400 x 350 mm speed: 20 -100 m/min main drive: 2,2 kW hydraulic pump: 0,37 kW coolant pump: 0,12 kW dimensions of saw-band: 4160 x 34 x 1,1 mm work height max.: 860 mm total power requirement: 2,9 kW weight of the machine ca.: 1030 kg dimensions of the machine ca.: 2,23 x 0,88 x 1,89 m Description: • Fully automatic miter band saw for sawing thick-walled Profiles and solid materials • Motorized roll feed of the material with electrical contact stop • Delta touch screen controls • Miter cutting, up to 45 ° • 1 program with 10 steps • Length accuracy 0.5 mm The feed length of the material is manually adjustable via an Microswitches selected that • Robustly constructed monoblock saw frame with hydraulic vertical movement and linear guide • Rapid advanc ...

Haver & Boecker SWA/MECII-20 Loading Device Haver & Boecker SWA/MECII-20 Loose loading device with scale for loading trucks or wagons with bulk goods Suitable for free-flowing non-dusty bulk materials Description Brand: Haver & Boecker Type: SWA/MECII-20 Year: 2003 Temperature limits: -10°C / 40°C Voltage: 230V Frequency: 50 Hz Pneumatic pressure: 5 bar; Max 40 kg Min 10 kg Dimensions: Section I L2.43 x W187 x H310 Section II L240 x W240 x H310 Haver Nettowage with frame Weighing and evaluating electronics MEC II-20 to control weighing and/or machine functions Advantages • high ease of use • easy programmability • PTB and OIML approval • 99 product type memories • User guidance via plain text display in 6 selectable languages Bt 15 operator terminal For automatic remote variety adjustment, including motor adjustment of the bag length/width  ...

Cobot collaborative robot Dobot CR5 new - with Safeskin Reach: 900mm Payload: 5kg Collaborative robot series Supports payloads of 3 kg, 5 kg, 10 kg and 16 kg Safe working on the side and cost-effectively Hand guidance, collision detection and trajectory reproduction Ideal for application scenarios with human-robot collaboration Multiple control methods Low latency and high noise immunity Supports controls on Android, iOS and Windows High-performance network card with a transfer rate of up to 433 Mbit/s Intelligent interactive panel robot hand guidance The Intelligent Interactive Panel is embedded with LEDs that indicate the status of the robot With the touch of a button, you can drag and move the robot to teach it a specific path Wide compatibility Wide compatibility with a wide range of peripherals Suitable for feeding, assembling, testing, handling, screwing, grind ...

MOSCA RO-TR-P-5 Strapping Machine A fully automatic MOSCA strapping machine type RO-TR-P-5. The machine is in very good condition. The original price was about 18,500 € Technical details: Heating wedge welding system with electronic heating regulation Fully automatic belt threading Drive of the unit in DC technology with wear-free direct drives Tape End Query with Tape Jam Throw Automatic belt ring ejection in case of incorrect triggering Belt coil quick-change system Wear-free, force-controlled belt guidance Integration into any processing line possible Hinged transport systems with frequency control PLC control Control panel for setting the operating modes, switching distances, strip tension Potential-free contacts to upstream and downstream systems Automatic PP straps width 5,6,7,8,9 or 12mm Data sheet & machine map under these links

The DH exxactly. QS is used where a tape measure is too inaccurate and a caliper is too short. Ideal for measuring wooden panels, Aluminium, steel, plastic and glass as well as pipes, profiles and rods. • Version as a tabletop unit or on a mobile base • For dimensional control in the machine room, in incoming goods or quality assurance • Smooth-running guidance for precise and fast measurement • Safe measurement of long workpieces by one person • Measuring range of choice up to 7,000mm (longer version possible on request) • Easy-to-read large digital display "Lowest-Power-LCD" • Power supply depending on the display unit battery or mains connection 100-240 VAC; 50/60 Hz • Dimension display on 1/10 mm

3-way guided flat steel perforator - the RollsRoyce among needle perforators up to 70cm insertion width motor driven - foot pedal pivot pin coupling penetration force approx. 12-18 sheets half perforation through split needle holder perforating comb scoring comb with 2 scoring lines of different width side guidance front stop with ruler deliver tapes allow high speed production Machine has been fully refurbished - can be tested!

The DH exxactly. TRP is used where a tape measure is too inaccurate and a caliper is too short. Ideal for measuring wooden panels, Aluminium, steel, plastic and glass as well as pipes, profiles and rods. Version as a tabletop unit or on a mobile base For dimensional control in the machine room, in incoming goods or quality assurance For daily inspection of your own machine lines Smooth-running guidance for precise and fast measurement Safe measurement of long workpieces by one person Measuring range of choice 1,000 to 7,000mm (longer version possible on request) Easy-to-read large digital display "Lowest-Power-LCD" Power supply depending on the display unit battery or Mains connection 100-240 VAC; 50/60 Hz Dimension display at 1/10 mm Accessories: With interchangeable centering tips suitable for measuring hole distances Interface with data connection to a PC for logging  ...

Number of sanding units: 8 st. sanding width: 150 mm Machine can be inspected during production! Leistomat - Finisch and intermediate leveling machine Löwer LZ 8 -------------------------------------------------- ------------------- for finish sanding (smoothing, defibering and edge breaking) or intermediate sanding profiled window latch - Finish and intermediate sanding machine with eight sanding blade aggregates, 2 surface units at the top (synchronism / counter-rotation) 2 surface units below (synchronism / counter-rotation) 4 profile units with angled arrangement top right, bottom right, top left, bottom left, all mating - linear guidance of all grinding units over Linear ball bearing sets on hardened shafts - Timed immersion of all in the opposite direction rotating grinding units directly above the incoming Workpiece edges to avoid looping through the Primer in the front edge area ...

Manufacturer TRUMPF Type L 3030 Year of construction 2005 Working range 3,000 x 1,500 x 115 mm Control Siemens Sinumerik 840D Laser power 2,700 watts Accuracy +/- 0.1 mm Equipment: Rotolas Closed machine frame PCS Automatic pallet changer Longitudinal conveyor belt for small parts/waste Laser Power Control Control Siemens: Open PC-based controller, simple operation, online help, diagnostic functions, maintenance hole book, technological data, teleservice Safety: Multi-beam photoelectric sensors, beam guidance fully encapsulated and ventilated, monitoring system, multi-chamber extraction and compact dust collector, protective cabin DIAS height control Automatic focus position adjustment AutoLas Plus Network connection (RJ45) by installation via teleservice The machine is in good condition. Location Germany, visit by appointment. Errors in the technical data and pri ...

Safetech ST-Alarm-V2 Safety Weighing Cabin The latest generation of safety weighing cabins, the ST1 series, stands out characterized by an optimized design, especially with regard to personal protection for Working with toxic and active substances. All cabins are equipped with an alarm system and two alarm sensors. The sensors measure the flow velocity on the right and left side of the working opening. As soon as the flow velocity falls below a limit value, both an audible and a visual alarm are triggered. The key advantages at a glance: Unique directional airflow guidance through BAFFLE technology (patent pending) Virtually turbulence-free balance environment Suitable for the latest generation of microbalances Cabin design also enables pipette handling Alarm system with two sensors and data recording Vibration-free due to independent filter unit Easy to cle ...

groove width: 3 - 90 mm drawing length: 430 mm working speed: 4 - 12 m/min slot-milling length: 400 mm return speed: 15 m/min total power requirement: 5,5 kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: 1,3 x 1,7 x 1,5 m • div. pull broaches and guidances The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine type Machining center universal BAZ Manufacturer Heller Model MCS-H / U 300 Year of construction 2002 Condition good (used) Specifications Bright MCS-H/U 300 Year of construction: 2002 Control: Siemens 840 D Workspace: Longitudinal stroke X-axis 1000 mm Vertical stroke Y-axis 800 mm Transverse stroke Z-axis 1100 mm Lifting position longitudinally to the center of the table MCS-H X-axis +500 to -500 mm Lifting position vertically over. Palettes. MCS-H Y-axis +120 to +920 mm Lifting position transverse to the center of the table MCS-H Z-axis +200 to +1300 mm Guidance system: Linear compact roller guide version Size 55 Transfer elements: Accuracy Ball Screws Diameter x Slope Diameter 50 x 20 mm Feed drive system: Three-phase servo motors Closed design Feed forces: X-axis at ED S3-40% 15000 N Y-axis at ED S3-40% 15000 N Z-axis at ED S3-40% 20000 N Positio ...

Articulated conveyor belt made of aluminium including substructure 3000 + 2500mm 45° inclination Angle conveyor made of aluminium for a wide range of applications 3000 mm flat + 2500 mm slope Aluminium construction: Conveyor belt incl. shaft edge on both sides Total width belt: 500 mm Green PVC conveyor belt, 3-layer, particularly transversely stable, endlessly welded with step connection 40x35mm shaft edge edge-free zone for belt guidance on both sides 70mm antistatic due to threads in the fabric of the running side Drive: Motor approx. 0.55 kW, speed 0.3 m/sec. controllable with frequency converter Connection 220 / 400V, 50Hz protection class IP54 Drive, motor control optional Our core competence lies in providing the customer with exactly what he really needs. Together with our customers, we develop customer-specific, individual solutions and supply correspond ...

Pre-milling unit: yes; Pre-milling unit material removal: 0 - 2 mm; Plastic edges: 0.4 - 3 mm; Workpiece thickness: 8 - 50 mm; Workpiece length min.: 130 mm; Workpiece width min.: 80 mm; Glue unit: granules / glue container quick change kit; Chopping knife: yes; Flush cross-cut unit: yes; Corner copying unit: yes; Flush radius milling unit: yes; Radius Scraper Aggregate: yes; Surface scraper unit: yes; Buffing unit: yes; Power consumption: 9 kW; Machine Length: Machine Width: Machine height: Weight: Prima 7.3 r.a. PLUS â€" Partnership Edition Aggregates: Joining milling unit incl. AIGNER Diamant jointing cutter heads, with DIA interchangeable knife system Konstantin and controlled edge blow-out nozzle behind the 2nd joining cutter head. Cross-cut saw unit with suction device incl. pneumatically swivelling saw blades, adjustable and programmable from the control pa ...

Aluminium angle conveyor belt with substructure Conveyor belt length: 1000mm flat + 2400mm rising Slope angle in kink 45°C Discharge height: approx. 2000mm Height of the horizontal 300mm top edge PPU conveyor belt FDA Food compliant Conveyor belt EM 15/2 0+17 PU blue 7 white Belt width 400mm T20 stud welded - pitch 202mm antistatic due to threads in the fabric of the running side endlessly welded with stepped finger connection 30mm shaft edge high on both sides high frequency welded Edge-free zone on both sides for belt guidance in the slope Transverse arrangement -70/+35/-5/+190/-5/+30/-70mm Full-surface underlay sheet Drive: Motor approx. 0.25KW Belt speed approx. 0.3m/sec Connection 220/400V, 50Hz protection class IP54 Our core competence lies in providing the customer with exactly what he really needs. Together with our customers, we develop customer-speci ...

Dobot collaborative robot Cobot CR 3 - new Range: 620mm Payload: 3kg Collaborative robot series Supports payloads of 3 kg, 5 kg, 10 kg and 16 kg Safe working on the side and cost-effective Hand guidance, collision detection and trajectory reproduction Ideal for application scenarios with human-robot collaboration Multiple control methods Low latency and high noise immunity Supports controls on Android, iOS, and Windows High-performance network card with a transfer rate of up to 433 Mbit/s Intelligent Interactive Panel Robot Hand Guide The Intelligent Interactive Panel is embedded with LEDs that indicate the status of the robot With the touch of a button, you can drag and move the robot to teach it a specific path Wide Compatibility Wide compatibility with a wide range of peripherals Suitable for feeding, assembling, testing, handling, screwing, grinding and gluing M ...

TECHNICAL DATA SHEET CNC – Gantry gantry milling machine TRIMILL brand Type VF3016 Year of construction 2017 Control HEIDENHAIN iTNC530 HSCI Travel X-axis (longitudinal): 3,000 mm Y-axis (transverse): 1,600 mm Z-axis (vertical): 1,200 mm B-axis (swivel axis milling head) +/- 100 ° C-axis (rotation axis milling head) +/- 240 ° Structure / Axis concept AC servomotors with digital control for all axes Gantry drive of the X-axis Rack and pinion drive in the X-axis, backlash-free due to electrically prestressed, water-cooled motors 2 ball screws each in the Y and Z axes Guides of all linear axes are designed as prestressed roller guides Hydro-pneumatic weight compensation of the Z-axis via 2 cylinders Stationary frame components made of mineral casting, movable main components made of grey or nodular cast iron Double beams in load- and thermosymmetric d ...

TECHNICAL DATA SHEET CNC – Travelling column milling machine Make PARPAS Type SHARK One Control HEIDENHAIN iTNC 530 HSCI Year of construction 2016 Travel Longitudinal movement (X-axis) 3,500 mm Transverse movement (Y-axis) 1,083 mm Vertical movement (Z-axis) 1,074 mm Clamping table Clamping surface 4,000 x 1,000 mm Threaded holes with fitting seat Feeds X-, Y- and Z-axis, infinitely variable 2 - 30,000 mm/min. Rapid traverses in X / Y / Z 30 m/min feed force of the axes 10,000 N 2-axis milling head 2-axis milling head TUB-E92 with drive viaTorque motors for 5-axis simultaneous machining Power at 100 % ED 29 kW Speed range, infinitely variable 0-18,000 min-1 torque 92 Nm Rotational speed axis A/C 60 min-1 Tool holder HSK 63A – DIN 69893 Clamping force A-, C-axis 2,300/4,000 Nm Automatic tool changer ATC Tool stations 30 places  ...

Dobot collaborative robot Cobot CR 16 - new Range: 1000mm Payload: 16kg Collaborative robot series Supports payloads of 3 kg, 5 kg, 10 kg and 16 kg Safe working on the side and cost-effective Hand guidance, collision detection and trajectory reproduction Ideal for application scenarios with human-robot collaboration Multiple control methods Low latency and high noise immunity Supports controls on Android, iOS, and Windows High-performance network card with a transfer rate of up to 433 Mbit/s Intelligent Interactive Panel Robot Hand Guide The Intelligent Interactive Panel is embedded with LEDs that indicate the status of the robot With the touch of a button, you can drag and move the robot to teach it a specific path Wide Compatibility Wide compatibility with a wide range of peripherals Suitable for feeding, assembling, testing, handling, screwing, grinding and gluing ...
