geibel hotz used for sale

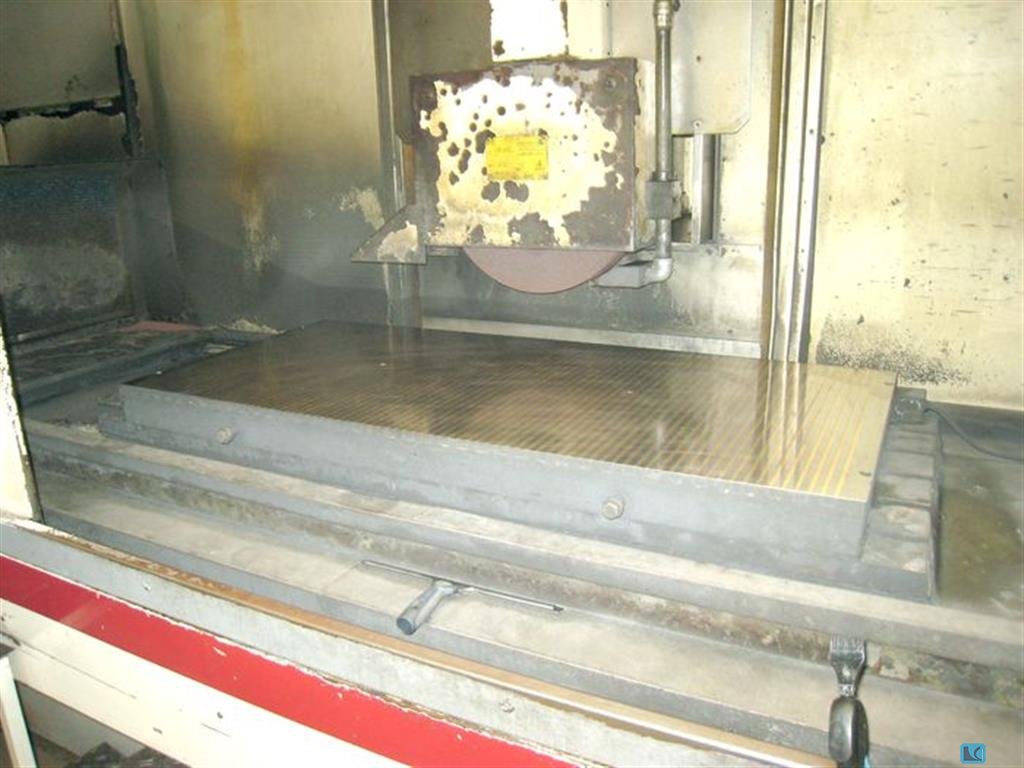

Technical details Grinding length max. 600 mm Grinding width max. 350 mm Control conv. Distance from spindle center to table max. 525 mm Magnetic clamping plate 600 x 350 mm max. table load 400 kg Table longitudinal movement 660 mm Table speed 2 - 28 m/min Transverse movement 360 mm Grinding wheel dimensions max. 300 x 50 x 76.2 mm Clamping width max. 30 mm Drive power - grinding spindle 3.7 kW Total power requirement 8 kW Machine weight approx. 2.1 t Space requirements approx. 4.5 x 3.0 x 2.4 m

Surface grinding machine manufactured in 1990. This GEIBEL & HOTZ FS 40 SA features a maximum grinding length of 400 mm and a grinding width of 200 mm. It has a maximum workpiece weight capacity of 150 kg and a clamping surface of 600 mm in length. If you are looking to get high-quality grinding capabilities, consider the GEIBEL & HOTZ FS 40 SA machine we have for sale. Contact us for further details.

Siemens Sinumerik 840D control, incl.: grinding tool preparation, hydraulic unit, and portal loading system for loading and unloading the machine, Technical specifications:, Tip distance: 600mm, tip height: 180mm, maximum grinding diameter: 355mm, maximum workpiece weight: 150kg, maximum Z-axis speed: 11 m/min, minimum Z-axis speed: 0.01 m/min, maximum X-axis speed: 7.5 m/min, minimum X-axis speed: 0.01 m/min, External/internal grinding spindle:, Grinding wheel standard (Øa x b x Øi): 600 x 80 x 304.8 mm, Grinding wheel circumferential speed: 5 - 50 m/s, Power consumption of grinding spindle motor: 11 kW, Workpiece spindle:, Taper bore workpiece headstock: MK 5, Power consumption: 2.7 kW, Tailstock:, Taper hole center point: MK 4, Coolant reservoir: 2000 liters, lubricating oil: 30 liters, hydraulic oil: 60 liters, Operating voltage: 400 volts, 3 phases, Mains frequency: 50 Hz, Total w ...

grinding length: 2000 mm grinding width: 600 mm workpiece height: mm Control: total power requirement: 17 kW weight of the machine ca.: 10 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 800 mm grinding width: 500 mm workpiece height: 425 mm total power requirement: 15 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 800 mm grinding width: 400 mm workpiece height: 375 mm Control: Siemens 840 D total power requirement: 18 kW weight of the machine ca.: 2,6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 800 mm grinding width: 400 mm workpiece height: 375 mm table surface area: 840 x 400 mm table speeds: 0,005 - 35 m/min spindle speeds (infinitely variable): 1000 - 3000 U/min grinding wheel motor: 3,7 kW grinding wheel size: 300 x 50 x 76,2 mm cross adjustment: 100 - 1250 mm/min rapid traverse vertical: 180 mm/min table load: max. 700 kg distance spindle center to table: max. 525 mm total power requirement: kW weight of the machine ca.: 2,8 t dimensions of machine L x W x H: 3,14 x 1,78 x 2,50 m Accessories: magnetic plate 800 x 400 mm, grinding wheel with flange, wheel dressing attachment, wet grinding attachment with paper band filter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Siemens Sinumerik 840D control, incl.: abrasive processing, hydraulic unit and portable loading system for loading and unloading the machine, Technical specifications:, Tip distance: 600mm, tip height: 180mm, maximum grinding diameter: 355mm, maximum workpiece weight: 150kg, maximum Z-axis speed: 11 m/min, minimum Z-axis speed: 0.01 m/min, maximum X-axis speed: 7.5 m/min, minimum X-axis speed: 0.01 m/min, External/internal grinding spindle:, Grinding wheel standard (Øa x b x Øi): 600 x 80 x 304.8 mm, Grinding wheel circumferential speed: 5 - 50 m/s, Power consumption of grinding spindle motor: 11 kW, Workpiece spindle:, Taper bore workpiece headstock: MK 5, Power consumption: 2.7 kW, Tailstock:, Taper hole center point: MK 4, Coolant reservoir: 2000 liters, lubricating oil: 30 liters, hydraulic oil: 60 liters, Operating voltage: 400 volts, 3 phases, Mains frequency: 50 Hz, Total weight ...

G+H precision external cylindrical grinding machine RS 600 CNC / P for machining multiple diameters in a single setup, in plunge or oscillating mode. Grinding table driven by a digital servo axis, ball screw with a 10 mm pitch, axis speed 0.01 mm/min - 15 m/min, positioning via linear scale, resolution 0.001 mm, V-flat slide guide, guideways are Turcite-B coated. Disc feed support driven by a digital servo axis, ball screw with a 5 mm pitch, axis speed 0.01 mm/min - 10 m/min, positioning via linear scale, resolution 0.0005 mm, V-flat slide guide, guideways are Turcite-B coated. Workpiece headstock with digital servo spindle, positionable with initiator for detecting the reference mark, adjustable 0-1000 rpm; 2.7 kW power, MK5 taper bore, max. grinding diameter 260 mm. Tailstock with hydraulically operated quill, fine adjustment of cylindricity, max. center distance 600 mm. Center height  ...

G+H precision finishing machine FI 600 for machining multiple diameters in one setup., Feed table driven by digital servo axis, ball screw with 5 mm pitch, axis speed 0.01 mm/min – 15 m/min, positioning via internal encoder, resolution 0.001 mm, mechanical cylindricity adjustment +10° - 4°, V-flat slide guide, guideways are Turcite-B coated., Z-table movable for positioning a sword finisher, The Nagel finishing head is provided by the customer. Workhead with digital servo spindle, positionable with an initiator for detecting the reference mark, adjustable from 0-1000 rpm; 2.7 kW power, MK5 taper bore, max. grinding diameter 260 mm. Tailstock with hydraulically operated quill, fine adjustment of cylindricity, max. center distance 600 mm, center height 140 mm., Full-room machine enclosure, approximately 2.3 m high, open on the sides, with integrated loader. Front sliding door electrica ...

Key data: 600 mm, 350 mm

G+H (Geibel + Hotz), FS 635 SA Built in 1997 Grinding area 600x350 Weight: approx. 2,600 kg

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

Specifications Center width mm 1000 Tip height mm 300 Grinding length mm 1000 Workpiece weight between tips kg 800 Load on the workpiece spindle during on-the-fly grinding Nm 200 X-axis - infeed movement Feed speed mm/min 0.01-8000 Linear measuring system, internal resolution mm 0.0001 Z-Axis - Table Movement Table speed mm/min 0.01-8000 C-axis - workpiece headstock Speed min-1 0-300 Drive power kW 5 Pick-up taper MK 5 / KK 6 Grinding spindles Power grinding spindle motor with water cooling kW 15 Grinding wheel circumferential speed m/s 35 (63) Grinding wheel, standard mm 600x80x203.2 Tailstock MK 5 pick-up taper Workpiece Tension Spring Hydraulic Retraction

grinding length: 600 mm grinding width: 350 mm workpiece height: mm total power requirement: 7,5 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 600 mm grinding width: 400 mm workpiece height: 375 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Gewartet und Längsachse neu eingeschabt Glasmaßstäbe in der Senkrecht- und der Quer-Achse Schleifscheine 300/50/76,2 mm Magnetspannplatte 600x400mm mit Haftkraftregelung Universal-Papaierfilterautomat UPF100 mit 280l Tankinhalt. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cylindrical grinding machine manufactured in 2015. This GEIBEL & HOTZ RS 600 C features a maximum swing diameter of 275 mm and a center distance of 600 mm. It is equipped with a grinding spindle motor power of 5.5 kW and operates at speeds ranging from 700 to 2100 rpm. If you are looking to get high-quality grinding capabilities, consider the GEIBEL & HOTZ RS 600 C machine we have for sale. Contact us for further details.

grinding length: 600 mm grinding width: 400 mm workpiece height: 350 mm table-size: 820 x 350 mm dist. center of grinding spindle - table: 140-525 mm table movement: 660 mm workpiece weight max.: 400 kg diameter / bore of grinding wheel: 350 x 50 x 76,2 mm table speeds: 2-28 m/min power capacity - grinding motor: 3,7 kW total power requirement: 8 kW weight of the machine ca.: 2100 kg dimensions of the machine ca.: 4,5 x 3 x 2,4 m Geipel & Hotz FS 60 AC surface grinder, built in 2001, in good condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 600 mm grinding width: 400 mm workpiece height: 375 mm workpiece weight: 400 kg table longitudinal travel: 650 mm table speeds: 2 - 28 m/min table cross travel: 400 mm speed: 100 - 1000 mm/min grinding wheel size: 300 x 50 x 76,2 mm grinding spindle drive: 3,7 kW peripheral speed: 10 - 32 m/sec total power requirement: 11 kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,95 x 2,65 x 2,47 m CNC Precision Surface Grinding Machine Table drive: hydraulic Cross-axis drive: electromechanical Electromagnetic plate: 600 x 400 mm with holding force control and automatic magnetic pole reversal for demagnetizing Features: Partially enclosed, open-topped loading compartment with a sliding door Cleaning kit for cleaning the work area with hand-held impulse nozzle Holder for prism arm with single-point diamond, MK 0 Grinding spindle speed control with V-constant con ...

workpiece weight: 160 kg workpiece length: 250 mm diameter: 620 mm total power requirement: 0 kW weight of the machine ca.: t dimensions of the machine ca.: m Auswuchtwaage für Schleifscheiben und scheibenförmige Prüfkörper Workspace: 620 x 250 Control: max. Prüfkörpergewicht 150 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 600 mm grinding width: 400 mm workpiece height: 525 mm table surface area: 960 x 400 mm dimensions of grinding wheel: 350 mm table height over floor: mm : 600 x 400 mm grinding spindle speed: 3000 U/min table load capacity: 1100 kp total power requirement: 8,0 kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,4 x 1,9 x 2,1 m Surface grinding machine - Magnetic chuck - Coolant system with filter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table with one T-slot as well as a magnetic clamping plate with the plate dimensions: 400 x 200 mm

grinding length: 400 mm grinding width: 200 mm workpiece height: mm weight of the machine ca.: 1,2 t total power requirement: kW dimensions of the machine ca.: m automatic infeed electro magnet plate dressing device coolant device Technische Daten / technical details: max. Schleiflänge / max. grinding length 400 mm max. Schleifbreite / max. grinding width 200 mm X-Achse, Tischlängshub / X-axis table longitudinal travel 420 mm Z-Achse, Querweg / Z-axis cross travel 190 mm Schleifscheibenabmessungen / grinding wheel dimensions 225x25x51 mm Anschlussleistung / drive capacity 7 kW Gewicht ca. / weight ca. 1200 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Geibel & Hotz FS 1050 GT SL Surface Grinding Machine Working range grinding length (max.) 1,000 mm Grinding width (max.) 500 mm X-axis (longitudinal) longitudinal table stroke 50 – 1,050 mm Table speed 0.001 – 35 m/min (infinitely variable) Y-axis (vertical) Distance table to spindle center 180 – 625 mm (optionally up to 825 mm) Perpendicular speed 50 – 4,000 mm/min Z-axis (transverse) transverse travel (max.) 500 mm Grinding spindle Grinding wheel dimensions 400 x 100 x 127 mm (Ø x width x bore) Spindle drive (standard) approx. 11 kW Max. speed up to 2,380 rpm / 35 m/s Weight & installation Total weight of the machine approx. 4,500 kg Max. table load approx. 1,380 kg Various accessories according to photos: - Grinding wheel mounts - Documentation in detail - Hoffmann Grinding Wheel Adjustment Scale If you have any questions, please contact us at Tel. 017 ...

grinding length: 600 mm grinding width: 400 mm workpiece height: 375 mm table adjustment - longitudinal: max. 660 mm table cross movement: max. 410 mm distance spindle center to table: max. 525 mm table speeds: 2 - 28 m/min table load: max. 400 kg cross feed of table intermittent: 3 - 40 mm rapid traverse cross: 1 m/min grinding wheel size: ø 300 x 50 x ø 76 mm total power requirement: 8 kW weight of the machine ca.: 2,1 t dimensions of machine L x W x H: 2,75 x 1,7 x 2,42 m Accessories: magnetic plate 600 x 400 mm, grinding wheel with flange, 1 flange separate, DRO on Y-axis (vertical), wheel trueing attachment, balancing scale, wet grinding attachment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Surface grinding machine - magnetic plate - coolant system with filter Grinding length 600 mm Grinding width 400 mm Workpiece height 525 mm Table clamping surface 960 x 400 mm Grinding wheel dimensions 350 mm Magnetic plate 600 x 400 mm Grinding spindle speed 3000 rpm Table load 1100 kp Total power requirement 8.0 kW Machine weight approx. 2.1 t Dimensions approx. 2.4 x 1.9 x 2.1 m Condition: untested Auction-ID: A7-51438-434
