gear used for sale

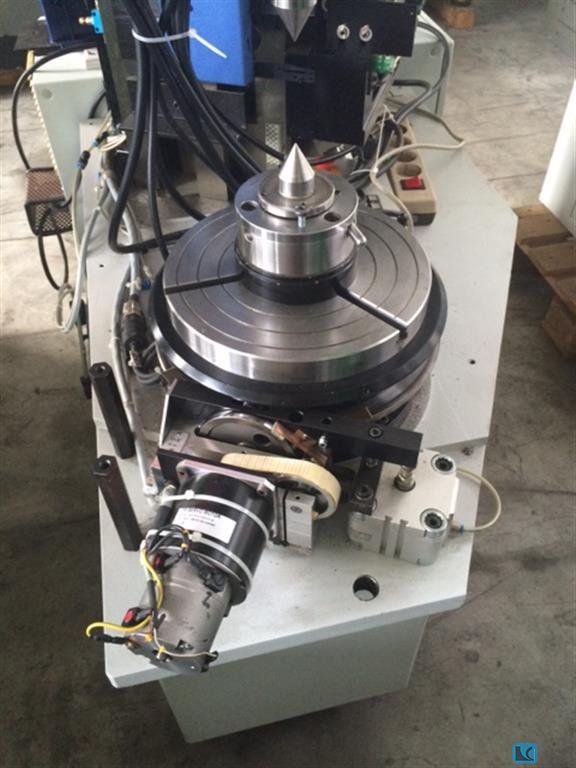

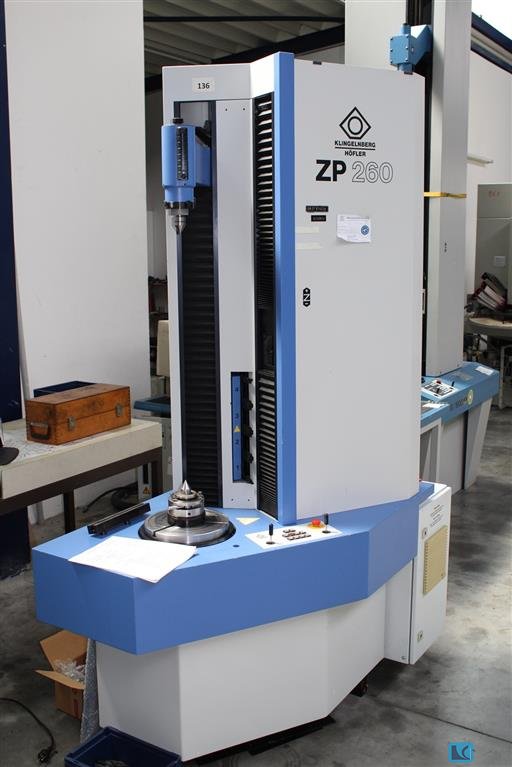

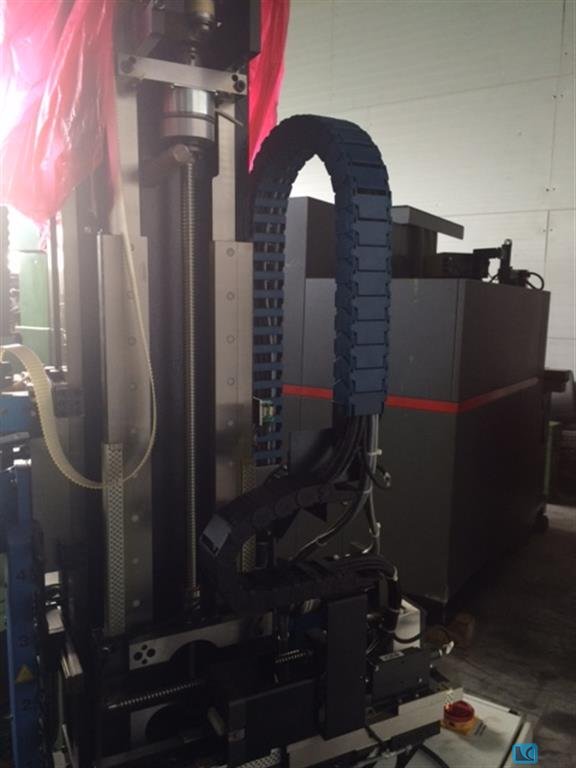

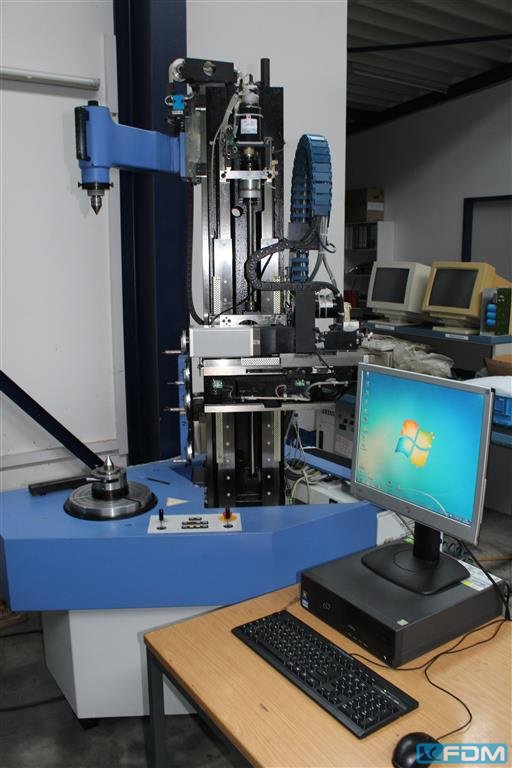

max. wheel diameter:5 - 260 mm gear width:400 mm max. module:15 min. module:0,5 gear hobbing diameter - internal:30 mm max. helix angle:> 85 ° Aussenverz. max. helix angle:> 45° Innenverz. Testing Range vertical:400 mm dist. between centers:5 - 600 mm table diameter:260 mm max. table load:100 kg speeds:30 1/min total power requirement:1,6 kVA weight of the machine ca.:900 kg dimensions of the machine ca.:200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

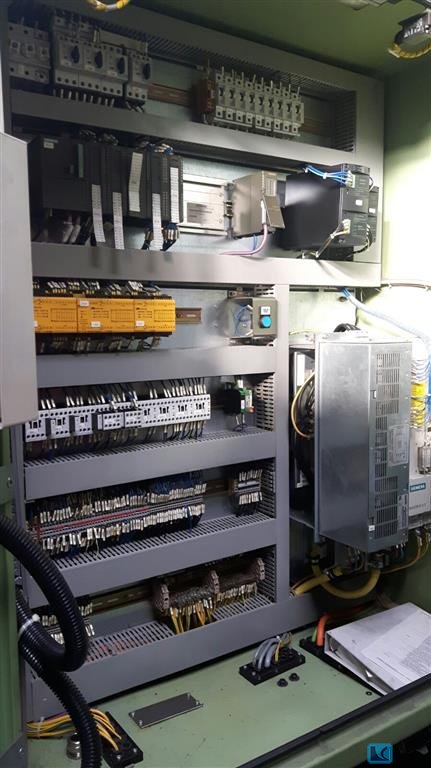

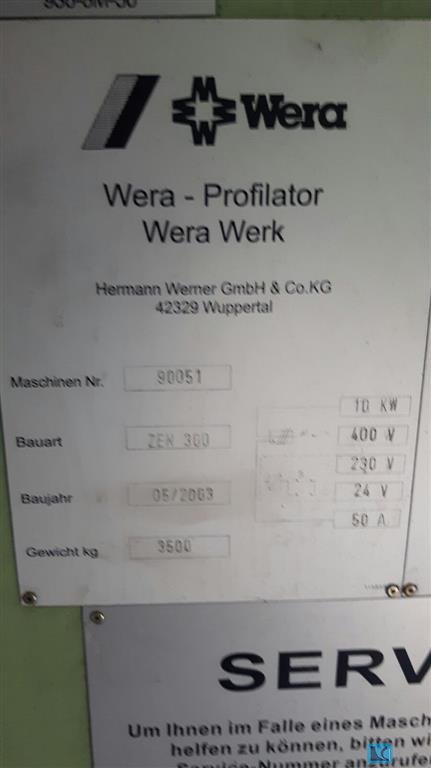

max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

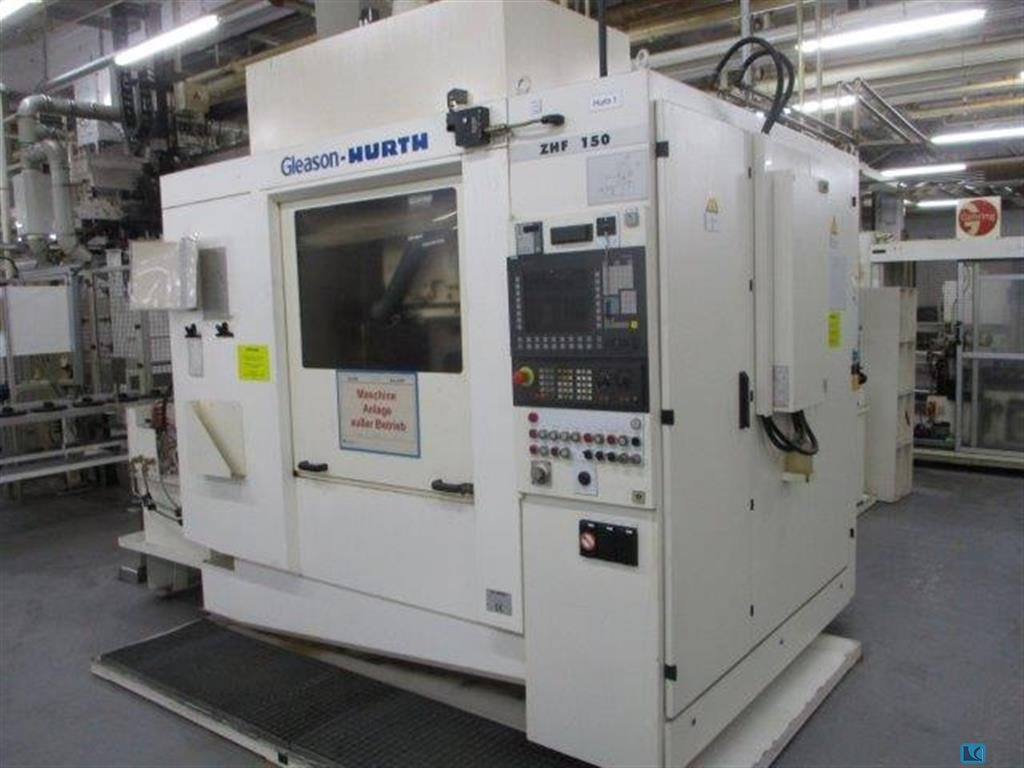

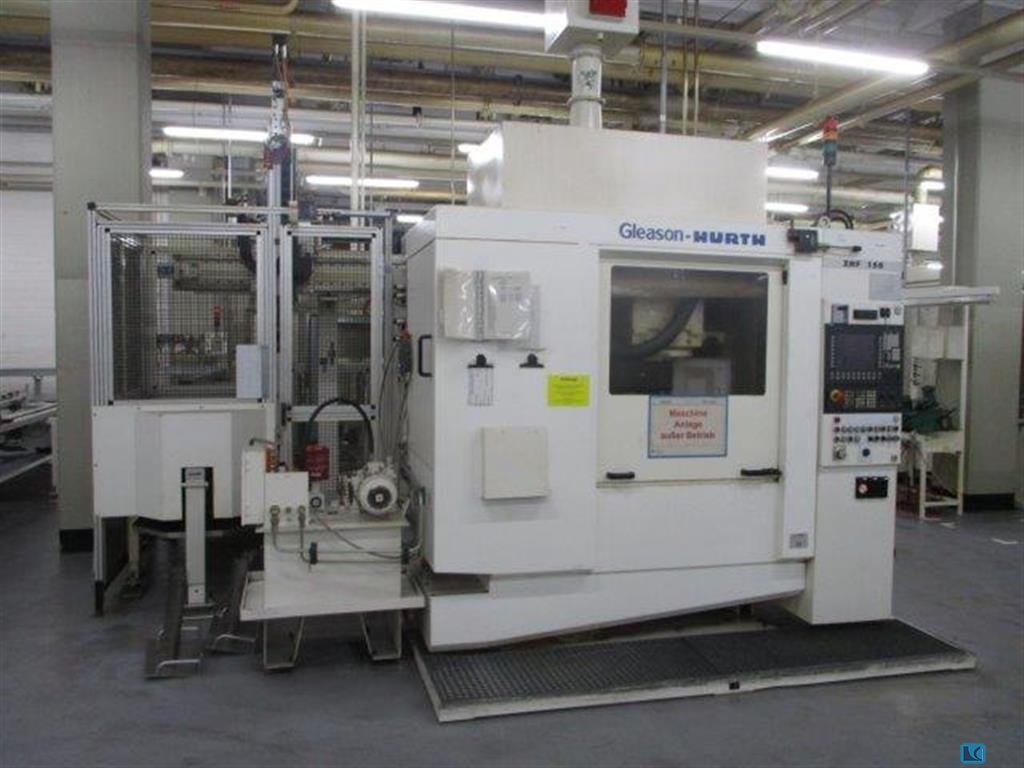

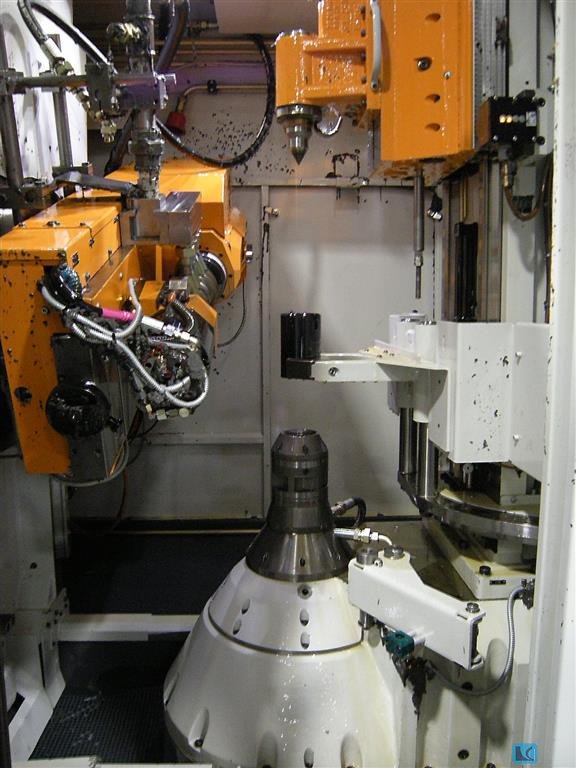

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

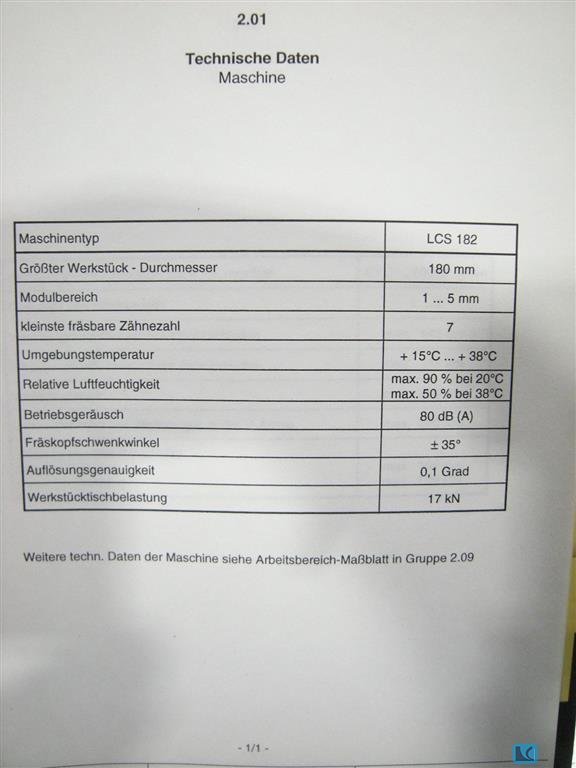

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

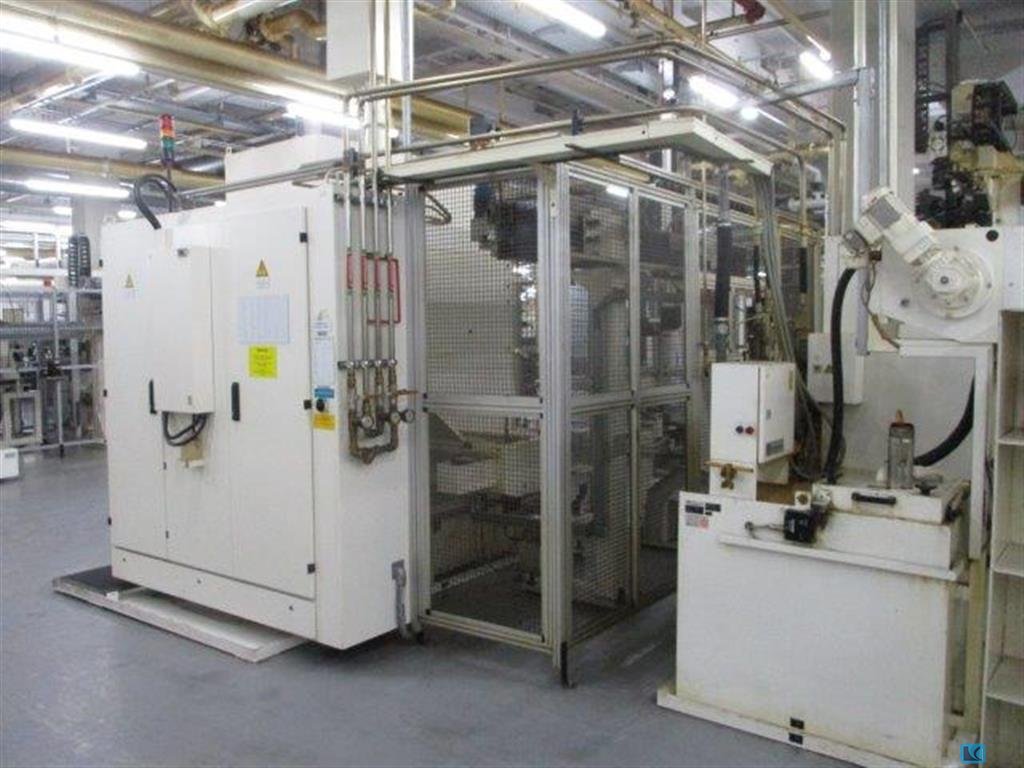

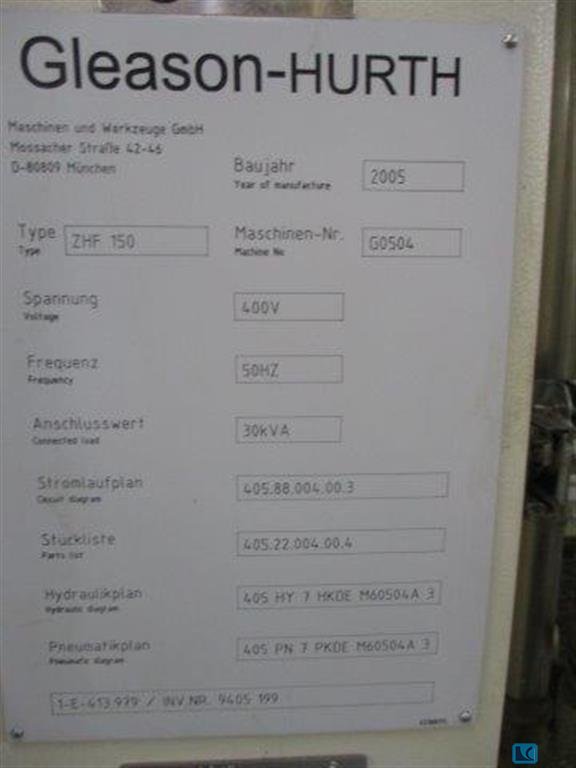

workpiece diameter:63,5 mm centre distance:350 mm honing length max.: mm total power requirement: kW weight of the machine ca.:6 t dimensions of the machine ca.:2,70x2,30x2,60 m Technical data G0504 working space Length of the clamping surface mm 1550 Number of T-slots mm 2 Width of the T-slots mm 18 Distance between T-slots mm 180 Center height (tailstocks) mm 350 Swivel range of the fine wheel head (U-axis) degrees + 30 / -30 Center distance - tailstock / fine wheel min./max. mm 120/225 Input resolution (all NC axes) mm / degrees 0.001 Delivery slide Movement range (= Z-axis travel) mm 105 Input resolution mm 0.001 tool Outside diameter min./max. mm 225/275 Hole diameter mm 160 Width mm 60 workpiece Outside diameter min./max. mm 40-150 Module min./max. mm 1.25-4.0 Tooth width max. Mm 45 weight Weight of the machine approx. Kg 5500 Operating fluid requirements Cooling lubricant recomme ...
