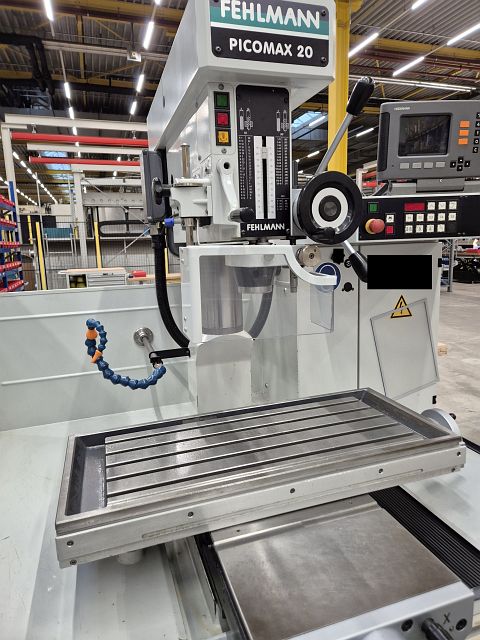

Milling Machine FEHLMANN PICOMAX 20

CONTROLS
   HEIDENHAIN ND 780

WORKING RANGE -CUBIC-
  .. among of them simultaneous CNC axes: 2
  X-axis travel: 450 mm
  Y-axis travel: 260 mm

FLOOR PLATE
  table surface (left-right): 770 mm

TABLE
  table surface (left-right): 770 mm
  table surface (front-back): 520 mm
  workpiece load (max): 200 kg

SPINDLE / HEAD
  spindle revolutions (min): 50 /min
  spindle revolutions (max): 6300 /min
  sleeve stroke: 110 mm

AXIS DRIVES
  traverse velocity X (max): 2000 mm/min
  traverse velocity Y (max): 2000 mm/min

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 1500 mm
  space requirements -front/back-: 1400 mm
  total height: 2100 mm
  total weight approx.: 850 kg

ATTACHMENTS
  European CE standards: yes



seller offer No. resale 55973
