CNC Milling Centers FEHLMANN PICOMAX 54

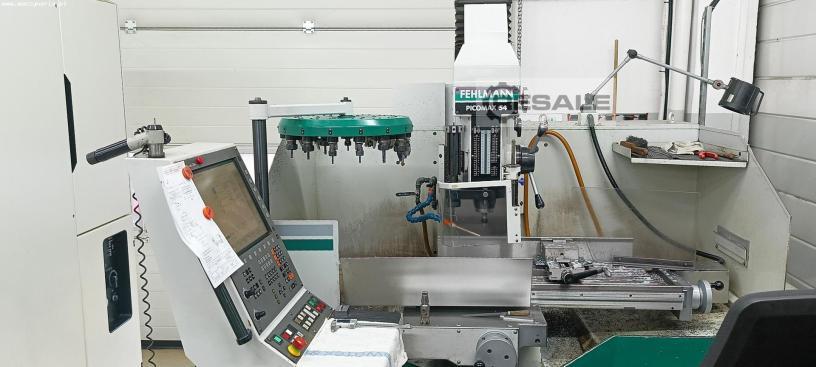

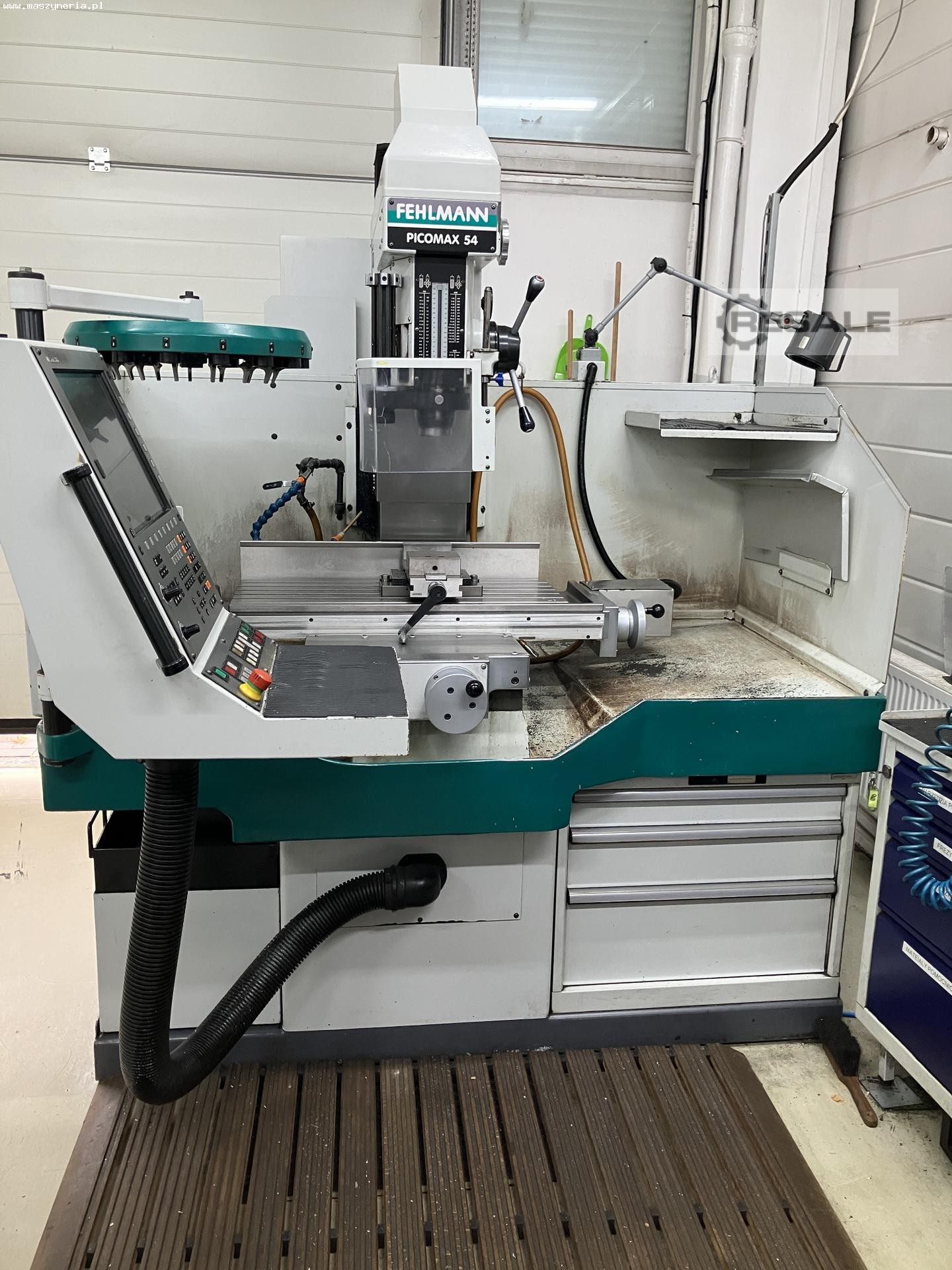

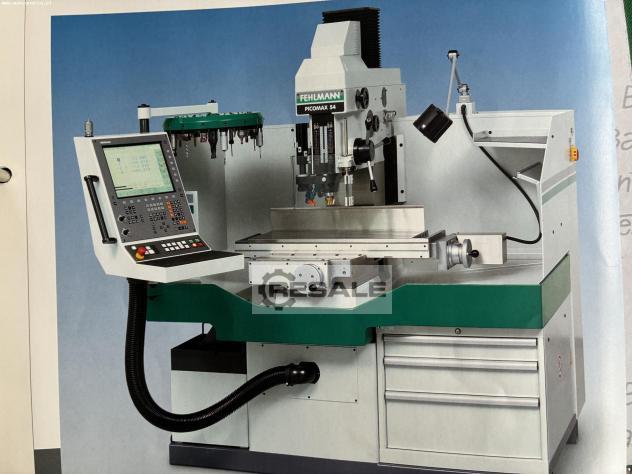

FEHLMANN PICOMAX 54 CNC milling machine was built in 2010 in Switzerland by FEHLMANN AG. This is an exceptionally efficient, multi-tasking machine that is ideal for processes requiring extreme precision. The machining processes, i.e. milling, drilling and threading, are performed inside a large workspace by means of a reliable high-speed spindle. In order to achieve high feed repeatability, all axes are equipped with special measuring systems, consisting of measuring scales and encoders. The open design, in turn, ensures free access to the workpiece. All this is complemented by the easy-to-use HEIDENHAIN CNC control with many useful functions. The FEHLMANN PICOMAX 54 drilling and milling machine weighs 2150 kg.

Technical specifications of the FEHLMANN PICOMAX 54 CNC machining center
- number of axes: 4 (X,Y,Z,W)
- feed in the X/Y/Z/W axis: 500/260/160/480 mm
- feed rate in the X,Y axis: 1-2000 mm/min
- feed rate in the Z axis: 10-1200 mm/min
- feed rate in the W axis: 500-2000 mm/min
- work table dimensions (L x W): 880 x 320 mm
- milling capacity (Rm=700 N/mm2): 100 cm3/min
- drilling capacity (Rm=700 N/mm2): Ø 28 mm
- threading capacity (Rm=700 N/mm2): M24
- maximum workpiece weight: 300 kg
- maximum spindle rotational speed (stepless): 7100 rpm
- minimum spindle rotational speed (stepless): 100 rpm
- spindle drive power: 7.6 kW
- maximum spindle torque: 62 Nm
- distance from spindle tip to work table surface: 0-610 mm
- T-slot number: 5
- T-slot width: 12 H8
- T-slot spacing: 50 M6151405 mm
- tool change M6151405 repeatability: 0.002 mm
- tool change time (manual): 3 s
- positioning tolerance in the X,Y axis: 0.005 mm
- positioning spread in the X,Y axis: 0.003 mm
- positioning spread in the W axis: 0.020 mm
- total power: 10 kW
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): 1800 x 1430 x 2460 mm
- weight of the FEHLMANN PICOMAX 54 machine: 2150 kg

Equipment of the FEHLMANN milling center

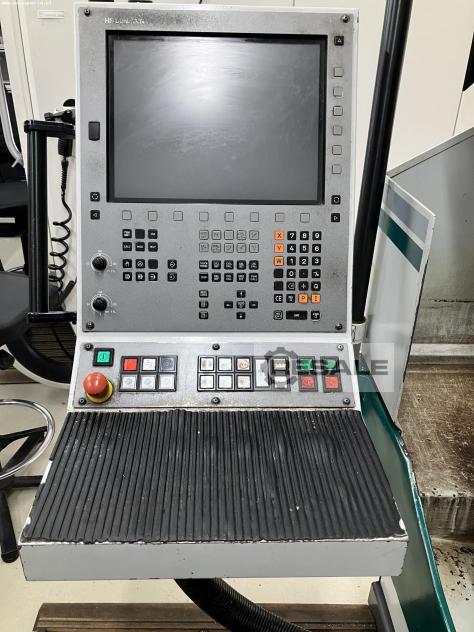

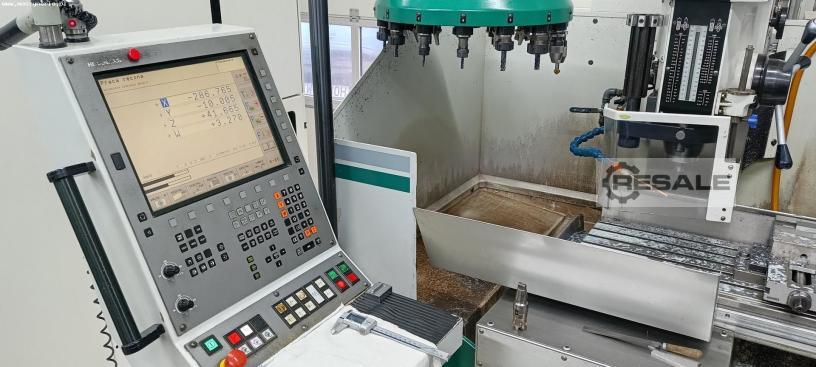

- CNC controller: HEIDENHAIN TNC 320
- SF32 rapid tool exchange system
- X,Y axis direct measuring system in the form of measuring scales
- Z,W axis indirect measuring system in the form of measuring encoders
- workspace illumination
