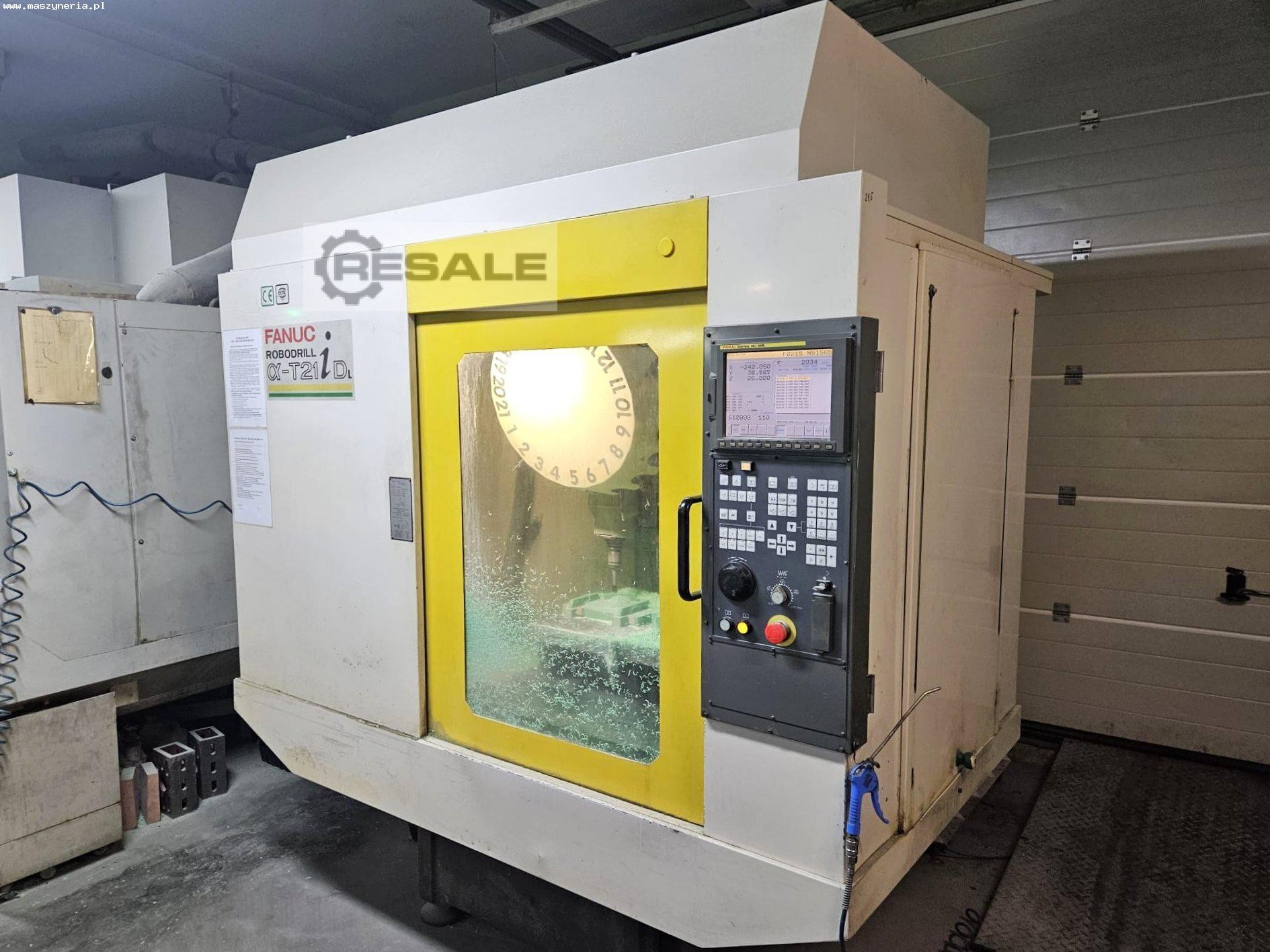

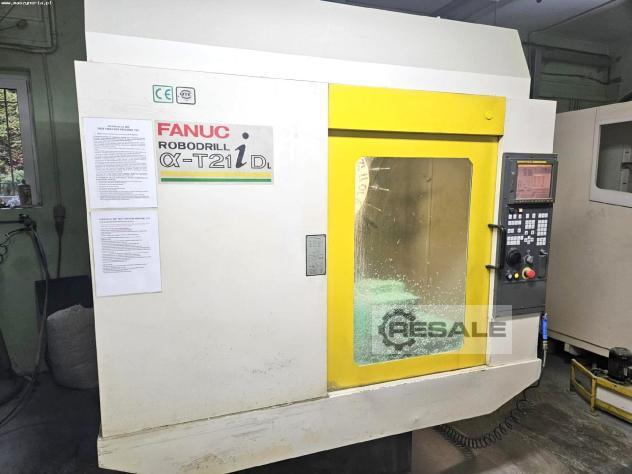

FANUC Robodrill ALPHA T21iDL CNC machining center was built in 2003 in
Japan by FANUC Ltd. The machine, distinguished by its compact design
and high efficiency, is used in both unit and series production.
Workpieces with a maximum weight of 250 kg are machined inside a
large, fully illuminated workspace by means of a reliable spindle and
cutting tools taken from a 21-position turret. The work table offers a
large surface area and T-slots for easy and fast attachment of
tooling. The extremely stable design made of top quality steel, in
turn, eliminates any vibration and oscillation during machining. All
this is complemented by an advanced FANUC CNC controller with an
intuitive interface and all the necessary functions. The Robodrill
ALPHA T21iDL CNC vertical machining center weighs 2200 kg.

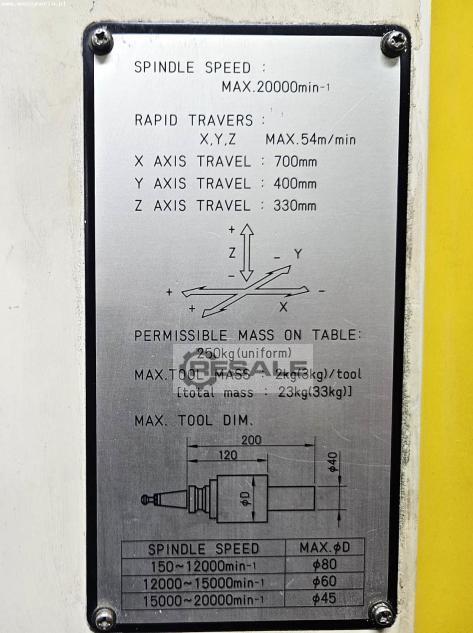

Technical specifications of the FANUC Robodrill ALPHA T21iDL CNC
milling machine
- CNC controller: FANUC Series 16i-MB
- feed in the X/Y/Z axis: 700/400/330 mm
- rapid traverse in the X,Y,Z axis: 54 m/min
- work table dimensions (L x W): 850 x 410 mm
- maximum workpiece weight: 250 kg
- maximum spindle rotational speed: 20000 rpm
- spindle taper: BT30
- 21-position turret
- tool diameter: 80 mm
- tool length: 200 mm
- tool weight: 2 kg
- power rating: 10 kVA
- power supply: 3x 400 V; 50/60 Hz
- weight of the FANUC Robodrill ALPHA T21iDL machine: 2200 kg
