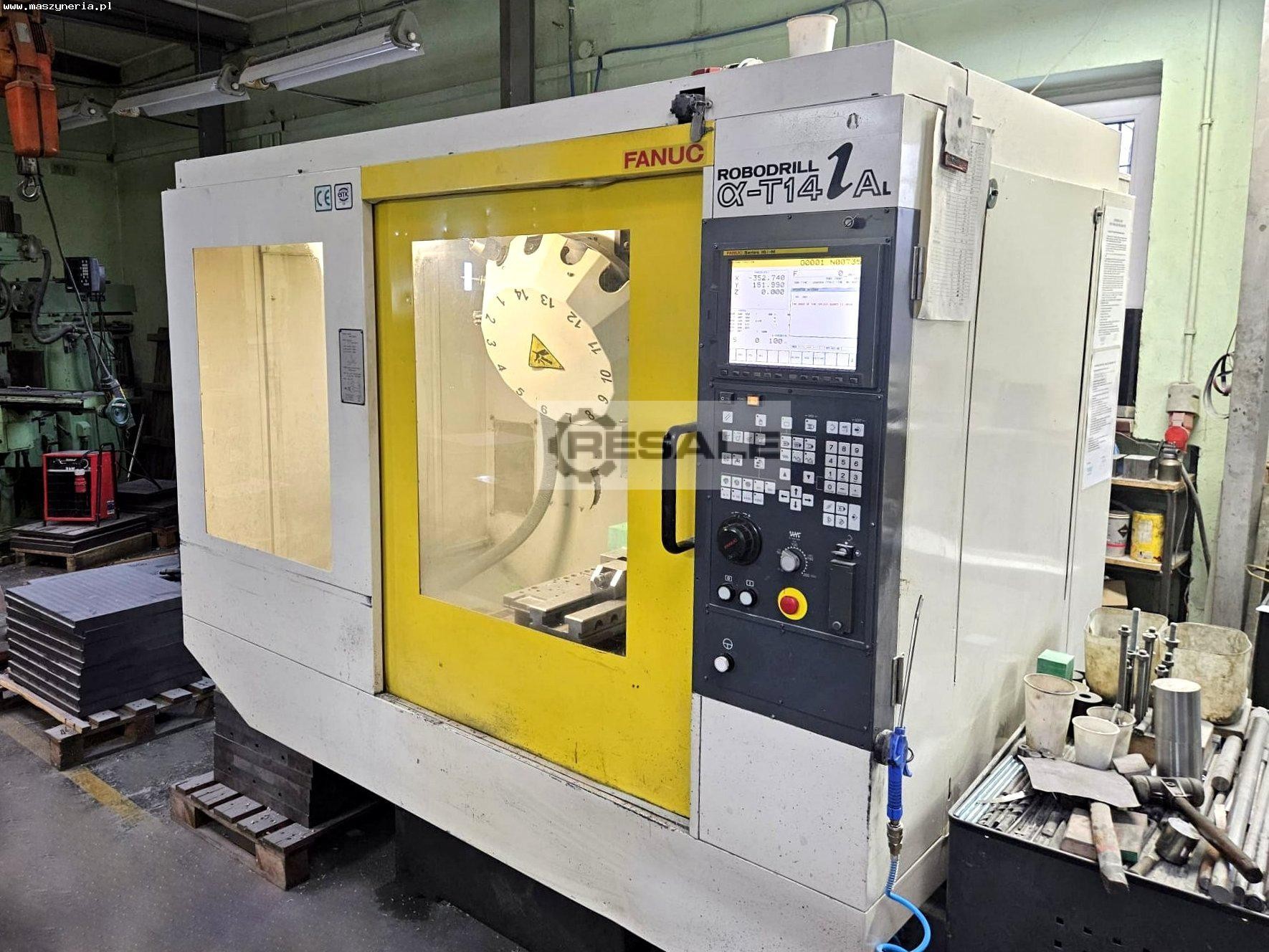

FANUC Robodrill ALPHA-T14iAL CNC machining center was built in 2000 in
Japan by FANUC Ltd. The machine, designed for precision machining of
workpieces with a maximum weight of 200 kg, is an excellent choice for
both unit and series production. The machining process is performed
inside a large, fully illuminated workspace by means of a reliable
spindle and cutting tools taken from a 14-position turret. The spindle
taper is cleaned continuously with compressed air to protect it from
chips and coolant . The work table offers a large surface area and
three T-slots for easy and quick attachment of tooling. An extremely
stable design made of top-quality steel, in turn, eliminates any
vibration and oscillation during machining. All this is complemented
by the advanced FANUC CNC control with all the necessary functions.
The FANUC Robodrill ALPHA T14iAL CNC vertical machining center weighs
1900 kg.

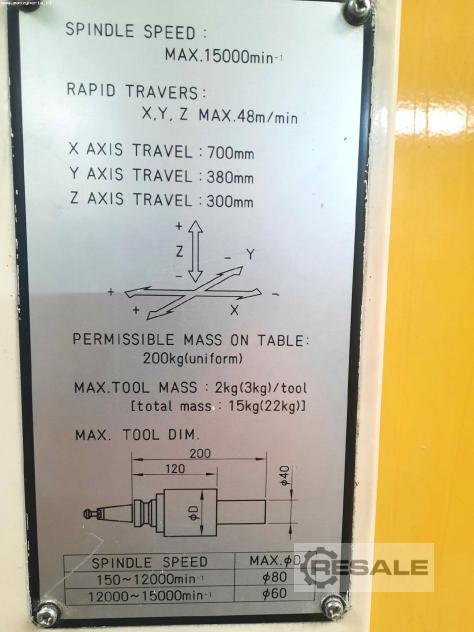

Technical specifications of the FANUC Robodrill ALPHA-T14iAL CNC
milling machine
- CNC controller: FANUC Series 16i-M
- feed in the X/Y/Z axis: 700/380/300 mm
- rapid traverse in the X,Y,Z axis: 48 m/min
- work feed rate: 1-15000 mm/min
- work table dimensions (L x W): 850 x 390 mm
- maximum workpiece weight: 200 kg
- maximum spindle rotational speed: 15000 rpm
- minimum spindle rotational speed: 80 rpm
- spindle taper: 7/24
- spindle drive power (start-up/continuous operation): 5.5/3.7 kW
- spindle taper blow-off system with compressed air
- 14-position turret
- tool type: MAS BT30/ MAS PT30T-1 (45°)
- maximum tool diameter: 80 mm
- maximum tool length: 250 mm
- total weight of all tools (2 kg tool): 15 kg
- total weight of all tools (3 kg tool): 22 kg
- tool change time (2 kg tool): 1 s
- tool change time (3 kg tool): 1,4 s
- distance from toolholder to work table surface: 250-550 mm
- axis positioning accuracy: ± 0.003 mm/300 mm
- positioning repeatability: ± 0.002 mm
- number of T-slots: 3
- width of T-slots: 14
- spacing of T-slots: 125 mm
- compressed air pressure: 490 Pa
- compressed air consumption: 100 l/min
- power supply: 3x 200 V; 50/60 Hz
- dimensions (L x W x H): 1585 x 1907 x 2218 mm
- weight of the Robodrill ALPHA T14iAL machine: 1900 kg
