external grinding used for sale

-High performance -Belt grinding device height-adjustable 0-90° -Maximum usable face grinding surface -Belt adjustment with fine adjustment -Combined belt grinding/grinding machine -Longitudinal stop for material guidance -Perfectly balanced and low vibration -Double-sided connection for dust extraction Ø 50 mm -Motor circuit breaker with undervoltage trigger -Fixed stop -1 sanding belt standard (brown), grain 80 -1 grinding wheel 250 x 40 x 51 mm, grain 80 -Spark protection -Connection cable with CEE plug -with machine stand, EMERGENCY STOP push button, brake and suction Delivery: in Germany free domicile incl. packaging

Pot discs - diameter:175 mm spindle extension:180 mm operating voltage:400 V Machine weight approx.:300 kg room requirements approx.:0.90 x 0.60 x 1.80 m

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

Langbein double-saddle grinding bench with left/right feed for woodworking. Technical data: Clamping length per side: approx. 450 mm Spindle diameter: 45/35 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Vertical Grinding Machine, Surface Grinding Machine DORMAC / DORIA Type PerseoCup Grinding MachineFabr. No. 786 Year of construction 1987Grinding area 500 x 250 mmMagnet 400 x 150 mmGrinding height Grinding wheel - magnet approx. 190 mmGrinding height Grinding wheel - clamping surface Table approx. 235 mmGrinding wheel diameter 175 mmTable longitudinal movement approx. 600 mmGrinding wheel speed approx. 2800 rpm. Motor power approx. 2.2 kWNerg connection 380 volts, 50 Hz manual depth delivery via handwheel, travel per

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

Graver grinding machine PARPAS type AUFabr. No. 854/36 Year of construction 1971Grinding wheel diameter 100 mmGrinding spindle speed approx. 3500 rpm. Motor power approx. 0.55 kWNetz connection 380 volts, 50 Hz- Socket for collets (system DECKEL with S20x2)- Collet 15.0 mm- Diamond grinding wheel dresser for the grinding wheel endSpace: L x W x H 700 x 350 x 450 mmWeight approx. 80 kgGood condition; used

Steel grinding block, steel grinding machine ULRICH KLINGEL type HSM 4Year of construction approx. 1976with 4 workstationsGrinding wheel diameter: 1x 100; 1x 150; 2x 200 mmGrinding wheel speed: approx. 1400/2800 rpm Motor power: approx. 1 kWNet connection: 380 volts, 50 Hz- 3x swinging grinding table- all 3 workstations with swivelling tables, feeding movement via handwheel- one workstation (the 4th) with swivelling and tilting table, feeding movement via handwheel- 1 piece diamond grinding wheel 100 mm is mounted (heavily worn)- 2 pieces

Drill Bit Grinding Machine GÜHRING Type SS 15Fabr. No. 909 Year of construction approx. 1977Drill diameter max. 40 mmGrinding wheel diameter right 300 mmGrinding wheel diameter left 250 mmGrinding wheel width 40 mmGrinding spindle speed approx. 2800 rpmMotor power approx. 2.2 kWNet connection 380 volts, 50 Hz- tip angle infinitely adjustable- Sharpening device- Gear motor for height oscillation in front of the cup wheel- Diamond dressing holder- Various drill holders-

Double-sided grinding and polishing bench MEYER type SMPMasch. No. 848 Year of construction 1963Shaft diameter 50 mmGrinding wheel holder 305 mmDisc spacing 1470 mmGrinding-polishing wheel diameter max. 800 mmWorking height 550 mmSpeed 710 / 800 / 950 rpm. Drive power 2x 3 kWNet connection 380 volts, 50 Hz.- two drive motors for each working side separately- star-delta switch for each drive motor separately- speed change by folding the drive belt- dust extraction flange 100 mm-

The machine underwent a general overhaul in 2015 The following tasks were performed as part of the overhaul: repair of the electrical cabinet and hydraulics, scraping of the bed and table, replacement of bearings in the headstock, new springs for the axial bearings, new table piston rod and sleeves, installation of sludge separators. Documentation for the machine is available. Year of manufacture: 1980.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

GENERAL Project No.: 905789 Quantity: 1 pcs. Manufacturer: BUDERUS Type: BDG 220 Control: Siemens 840 D solutionline Year of Make: 2020 Condition: Used machine Spindle Approx (hrs): 3000 Shifts machine one approx. (hour): rarely used DESCRIPTION GRINDING Max. workpiece diameter 440 mm Max. workpiece height 150 mm Travel in X 170 mm Max. rapid traverse speed in X/Z 30 m/min Max. feed speed in X 0.01-15 mm/min Max. speed workpiece spindle 1000 1/min OTHER EQUIPMENT Workpiece probes for measuring thickness deviation Gate sensor Splash protection cladding with fully encapsulated working area Automatic work room door Lighting in the work area Mechanical oil/emulsion mist extraction system Coolant device with paper belt filter High pressure pump 25 bar Mobile control unit for set-up operation with electronic handwheel Machine condition light Au ...

Very good surface grinding machine Table surface / working area 200 x 600 mm

Unused alubit grinding balls (alumina ceramic) designed for wet grinding (continuous operation), available in the following sizes and quantities: 1 1/4'' (32 mm) [1,000 kg]; 1 1/2'' (38 mm) [990 kg]; 2'' (50 mm) [700 kg]; 1 3/4'' (45 mm) [940 kg]; 2 1/2'' (64 mm) [1,970 kg]. All balls made in Italy, packed in 25 kg bags.

Unused alubit grinding balls (alumina ceramic) designed for dry grinding (batch and continuous operation), available in the following sizes and quantities: 1 1/4'' (32 mm) [960 kg]; 1 3/4'' (45 mm) [1,580 kg]; 1 1/2'' (38 mm) [940 kg]; 2'' (50 mm) [410 kg]; 2 1/2'' (64 mm) [580 kg]. All balls made in Italy, packed in 25 kg bags.

rotary table diameter: 600 mm grinding height: 600 mm grinding head - power requirement: kW workpiece weight: 300 kg grinding wheel diameter: 600 mm power spindle motor: 15 kW grinding height: 600 mm Control: SIEMENS STC weight of the machine ca.: 19 t dimensions of the machine ca.: 4,7 x 3,6 x 2,5 m Equipment & Accessories ? Wet grinding unit with universal paper belt filter, discharge container and magnetic separator, tank capacity approx. 500 l ? Electrical cabinet with digital drives SIMODRIVE 611D ? Coolant Mist extractor ? Recooling unit for grinding spindle motor ? Fully closed machine enclosure ? Central lubrication ? Swivebale Control Panel with SIEMENS Simatic 10” Touch HMI mounted at front of the machine ? Electro-permanent magnetic plate Ø 600 mm with 4mm pitch, absolute accuracy due to lack of heat, incl. Adhesion control (30-100%), autom. magnet pole switching via push b ...

ELB ELB Super Rubin 020 VA II CNC surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth control Magnetic Table 600 x 300 mm Movements axis X/Y/Z: 650/300/250 mm 4th axis- rotational Grinding wheel: -Dia 300 mm -width 40-50 mm -bore size 76,2 mm Spindle speed 1400-2800 rpm Total power requirement 5,5 kW Weight of the machine ca. 3,4 t 4th axis devices: -Punch former PF350 V-block -Punch former PF650-ER20 -Punch former PFD-ER40 -Punch grinder PGAS- centreless Accessories: Collets Radius and angle dresser RDC Sinusoidal-table for devices SPF 50 Balancing rack for wheels LBS 14 surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth c ...

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

DELTA LC 400 / Rotary Table - Surface Grinding Machine -Magnetic clamping plate (turntable) 400mm -Max. grinding diameter 400mm -Grinding height (distance table - grinding wheel) approx. 220mm -Grinding wheel dimension / standard / 200x80x78mm -Speed / grinding spindle 2840 rpm -Fine adjustment 0.01mm -Distance / column - Grinding wheel axle 315mm -Spindle motor / 3KW -Side grinding wheel puller -Machine enclosure -Coolant device Dimensions : LxWxH 1.2x0.8x1.8 meters / Weight 700Kg

ELB Brilliant-Future 20 CNC Surface & Profile Grinding Machine Manufacturer: ELB-Schliff (Germany) Model: Brilliant-Future 20 CNC Serial No.: 430090398 Country of Manufacture: Germany A high-precision German-made CNC surface and profile grinding machine equipped with automatic dressing system. ELB Brilliant-Future machines are designed for precision grinding applications requiring high accuracy and excellent surface finish. Specifications: Table size: 460 × 2440 mm Control: CNC Automatic wheel dresser: Included Machine type: CNC Surface / Profile Grinder Grinding applications: Tool & die manufacturing Mold production Precision mechanical components General high-accuracy grinding operations Features: CNC-controlled grinding operation Automatic grinding wheel dressing German precision engineering Suitable for long workpieces requiring  ...

General Description High-precision coordinate jig boring machine manufactured by SIP-Hauser , model S50-DR . Designed for ultra-precise positioning and boring of holes in tooling, molds, gauges and precision mechanical components. The machine is equipped with a precision coordinate table, rotary table, digital readout and complete coolant system. Technical Details Manufacturer: SIP-Hauser (Switzerland) Model: S50-DR Machine type: Coordinate jig boring machine Year: Not confirmed (electrical documentation dated 1982) Power supply: 380 V, 3-phase, 50 Hz Vertical precision spindle Precision coordinate table Rotary indexing table Digital readout (DRO) Bellows-protected guideways Separate coolant filtration unit Electrical control cabinet Original manuals and electrical documentation included Condition Good industrial used condition. The machine appears complete with rot ...

ZIERSCH + BALTRUSCH STARLINE 800 CNC ist eine CNC Flach/Profilschleifmaschine mit hoher Präzision, Genauigkeit und Zuverlässigkeit. Tisch 800×300 mm, Abstand Tisch–Spindelmitte 600 mm; Schleiflänge 800×300 mm; Scheibe Ø250 mm, max Breite 70 mm, Bohrung 51 mm. Tisch 2–35 m/min; Kriech 2–1000 m/min; Quervorschub 1–10000 mm/min; Vertikal bis 10000 mm/min. Spindelmotor 6,6 kW; 3×400 V 50 Hz; Gesamtbedarf 22 kVA; Gewicht ~4500 kg. Zubehör: Kühlung, Papierfilter, Ölnebelabsaugung, Temperaturstabilisierung, Magnetplatte 800×300, TAG/TAD, Auswuchten, Kabine, RS-232. Erreicht enge Toleranzen; geeignet für Automotive, Werkzeugbau, Luftfahrt, Medizintechnik, Uhrmacherei. Technische Daten ohne Gewähr

ELB SMART BD10 STC ist eine CNC-Flach/Profilschleifmaschine für hohe Präzision, Genauigkeit und Zuverlässigkeit. Kapazität: Tisch 1360×590 mm, X1100 Z670 Y400, Schleifmaß 1000×600 mm, Zuladung 1000 kg. Daten: Scheibe Ø400×100 mm (Bohrung127), 1450 U/min, Spindel 10 kW, Tisch 2–30 m/min, Vorschübe bis 2000/1500 mm/min, Eilgang Y 1 m/min, 3×400V, Gesamt 30 kW, Gewicht ~6900 kg, Abm. 3550×2410×2660 mm. Zubehör: Kühlung, Papierfilter, Ölnebelabsaugung, Magnetplatte 800×600, Abrichter, Profileinrollvorrichtung, Satz Scheiben/Flanschen, elektronisches Handrad. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Werkzeugbau, Medizin, Uhren. Technische Daten ohne Gewähr

ABA EL 1006 ist eine Flach/Profilschleifmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Tisch 1000×500 mm, Schleiflänge 1000 mm, Breite 600 mm, max. Tischlast 1000 kg, Spindelmitte 700 mm; Wege X 1300 mm, Z 600 mm, Y 530 mm. Vorschübe: X 2000–35000 mm/min (stufenlos), Z 1–5000 mm/min, vertikal 1–3000 mm/min; Schleifscheibe Ø400 mm (Breite 60 mm, max 80 mm), Bohrung127 mm, 1000–2600 t/min; Spindelmotor 11 kW; Feinverstellung 1 µm; Druckluft 6 bar; 3x400 V 50 Hz; Gewicht ~5600 kg; Abmessungen 2850×1750×1850 mm. Zubehör: Kühlmittel 250 l, Papierfilter, Magnetplatte 1000×500 mm, hydraulischer Abrichter, Zentralschmierung, Ölnebelabsaugung AIRTECH, elektronisches Handrad. Erreicht enge Toleranzen; geeignet für Automotive, Uhrenindustrie, Werkzeugbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

Sanding belt size 2000x75 Auction-ID: A1-49309-165

Grinding body dimension: 200 x 40 x 76 mm Circumference speed: 30 m / sec Follow-up value: 0.7 kW Weight: approx. 250 kg Specification: Double grinding bracket with integrated suction

Fabric grinding belts of M3 1260 mm x 13 mm P150 for metalworking

Machine number: 3728-87 Grinding length 2000 mm (Roll grinding machine)

; NEW

Tip height 120 mm, grinding length 1000 mm, 8 spindle speeds 55 - 600 rpm, spindle head holder MK 3, table sash. infinitely adjustable, table swivel 7 each, delivery by hand or automatically, grinding wheel-dm. max 400 mm, Grinding wheel width approx. 60 mm, tailstock holder MK 2, connection value approx. 3.5 kW, automatic working cycle, express speed 30 mm, automatic. Piercing loops. The machine is functional and does not require a geometric revision. Accessories on request!

universal tool sanding machine manufacturer fa Kellenberger (Strausak) the machine is geometrical and also funktionmig in a very good state. Spitzenh?he: 125 mms top width: 680 mms L?ngsbewegung: 500 mms Arbeitsfl?che of the table: 1030 x 214 mms Q?rzustellung: 280 mms mm H?henverstellung Schleifkopf:300 wheel area Schleiftisch: + 90 °/-45 ° wheel area Schleifkopf: 350 ° Horizontally wheel area Schleifkopf: 360 ° Vertically Schleifspindel 4 speeds: 2250-3000-4500-6000 revos Schleifscheibendurchme?er: 250 mms Antriebsleistung:Schleifsp .: 1.5 kW Sony 2-axes digital display 0,001 mms

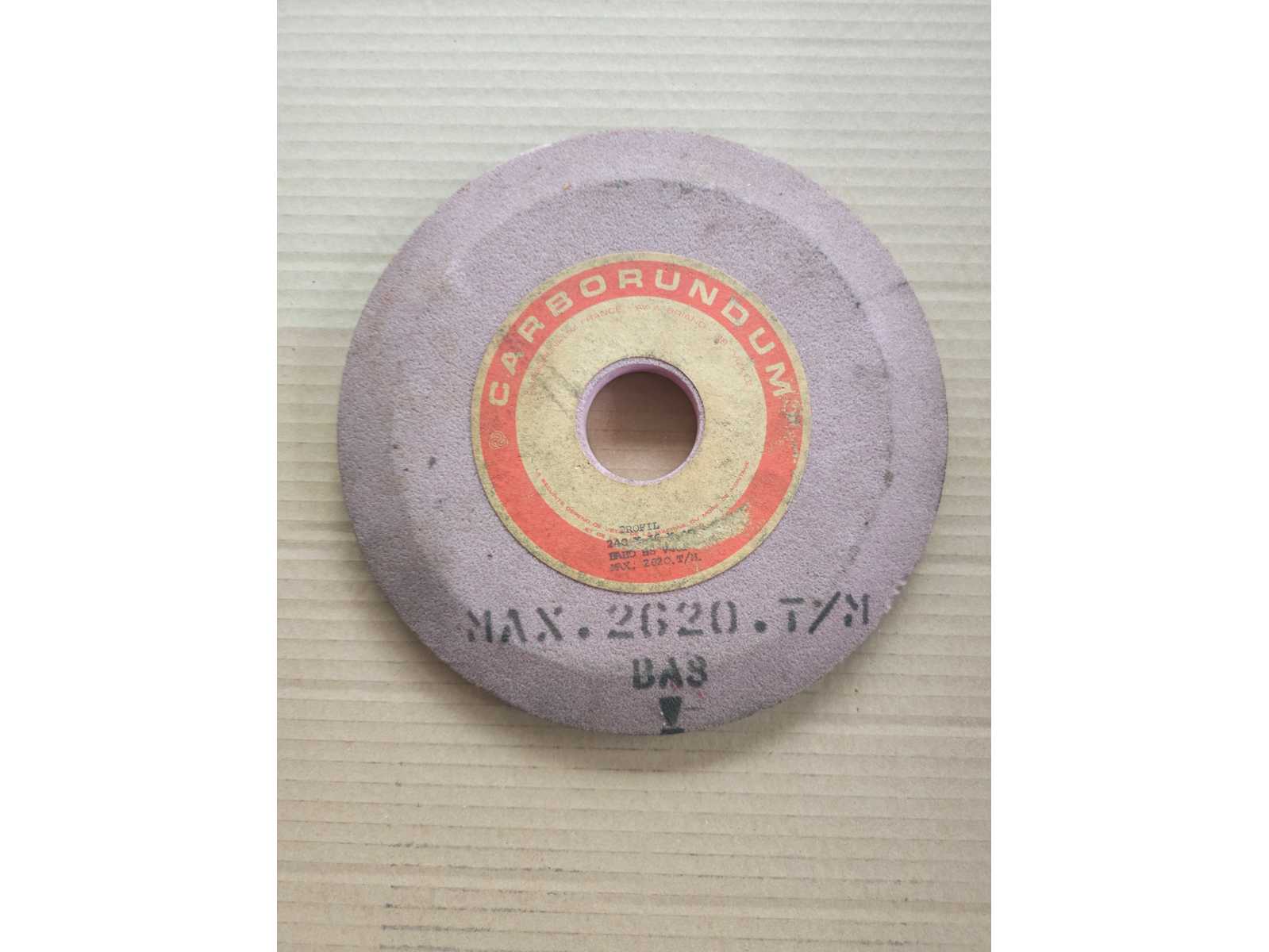

a palette with 145 kg - 4 pieces new Schleifscheiben D=350mm, 2 pieces used Schleifscheiben with flange, 10x Abrichtrollen. a palette with 319 kg - 4 pieces Schleifscheiben D=400mm uses with flange and an Abrichtrolle.eine palette with 257 kg - 22 pieces Abrichtrollen with flange
