ET 6600-2 Rotary Table Wet Blasting Machine
Procedure description:
The principle of wet blasting technology has proven itself for several
decades as an extremely effective and powerful cleaning system.
The ET 6600 wet blasting machine is a rotary table-based wet blasting
machine based on a wheel that is designed in particular to remove
impurities such as oils, greases, emulsions, rust, scale, paint or
other organic impurities from components. The system is equipped as
standard with a process chamber, 2 blast wheels, a spray nozzle /

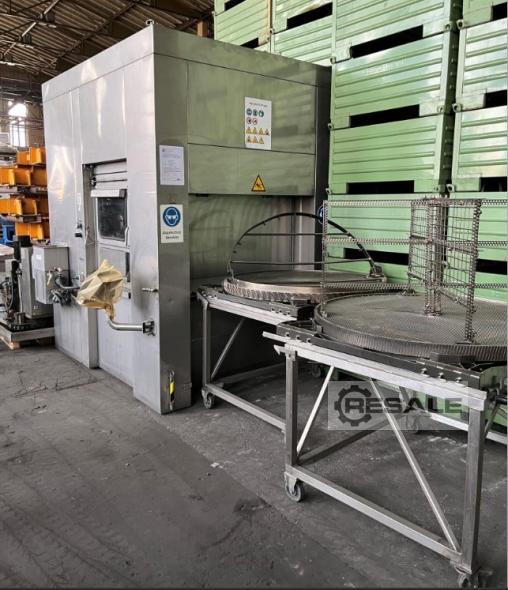

blow-off register and a turntable, which rotates components in front
of the blast wheels or the spray nozzle / blow-off register and thus
enables all areas to be cleaned on the components to be processed in a
multi-stage process (blasting + washing + rinsing + post-drying).
Workpiece designation:
Various workpieces that are contaminated with oils, greases,
emulsions, rust, scale or other impurities
Workpiece material:
Primarily metallic workpieces, but also mineral workpieces or
workpieces made of plastic are conceivable
Workpiece dimensions:
min. 100 x 100 x 100 mm | max. 1400 x 600 x 800 mm (length x width x
height)
Other dimensions after testing has been carried out!
Max. Weight:
500 kg. (Optionally expandable to 2000 kg.)
Machining task:
Cleaning, degreasing, rust removal, descaling, paint stripping,
passivation
Normal Processing Time:
Cleaning, degreasing, rust removal, descaling, paint stripping,
passivation
Final K51227004 state:
Cleaned surface without specified requirements for residual dirt and,
if necessary, corrosion protection
Process means:
Abrasives, cleaning agents, process water purifiers and, if necessary,
defoamers or passivating agents
Process water treatment:
Scraper conveyor – filter module or centrifuge system

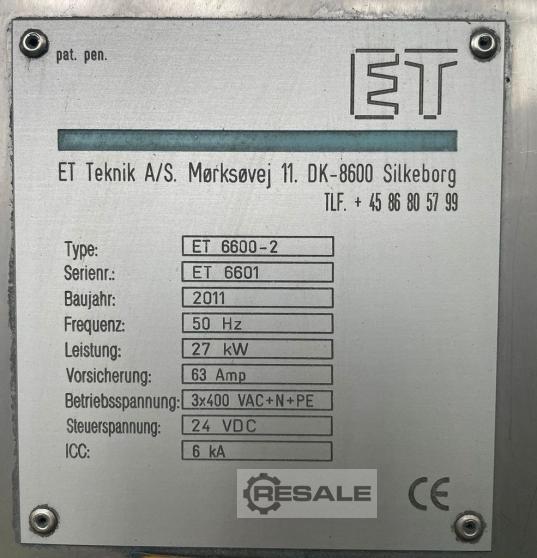

Manufacturer: ET Teknik
Type: ET 6600-2
Operating voltage: 3x400 VAC+N+PE
Frequency: 50 Hz
Power: 27 kW
Pre-fuse: 63 A
Control voltage: 24 VDC
Year of Make: 2011
Dimensions: (L x W x H) 2700 x 2200 x 3700 mm
Weight: approx. 4000 kg
