ernault somua used for sale

Horizontal bed milling machine make ERNAULT SOMUA type Z 1 CFabr. -No: 104470/333, built in 2/1970Table mounting surface: 1200 x 300 mmTable movement lengthwise: 700 mmY: 250 mmZ: 400 mmSpindle taperSpindle speeds Horizontal: 50 - 2500 rpmSpindle speeds Vertictal: 40 - 2000 rpmautomatic feeds f. along u. across the limit switchMotor power spindle approx.: 3 kWexternal dimensionsWeight approx: 1760 kgWith- Additional track control / cam control via connector panel- Coolant deviceused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Machine details Stock number 1105-03330 Machine type guide and pull spindle lathe Make ERNAULT-SOMUA Type Cholet 550 Year of construction 1990 Control type conventional Storage location FRANCE Country of origin France Delivery time immediately Freight base EX WORK price Technical details Turning diameter over bed 550 mm Turning diameter via support 500 mm Turning length 1100 mm Tip height 250 mm Spindle bore 52 mm Inner cone 136 Spindle speeds 32-1800 rpm Feeds - bed slide / lengthwise 0.05-07 mm/w Feeds flat slide 0.033-0.45 mm/min Total power requirement 13 kW Weight of the machine ca. 2,3 t Space requirement approx. 2870 x 940 x 1400 m Information accessories: PARAT steel holder 4 STUCK 3 bake lining dia 250mm 2 AXIS DIGITAL

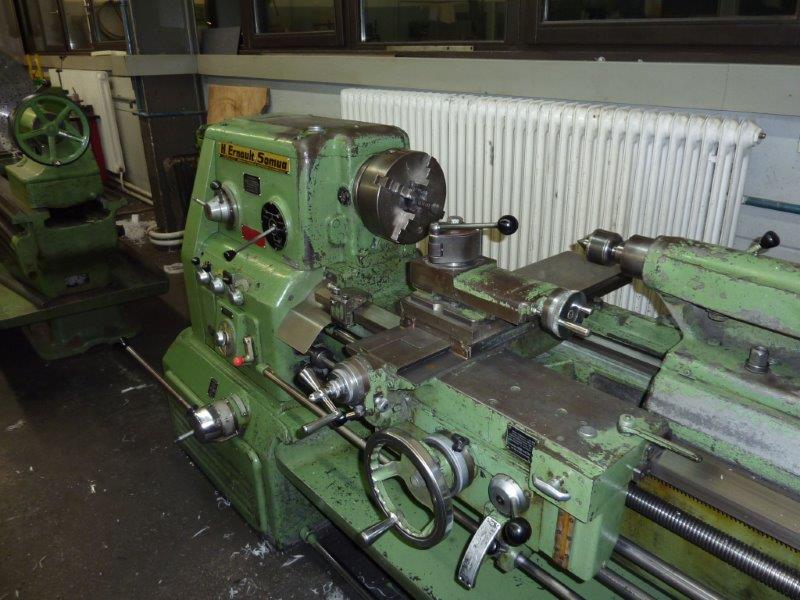

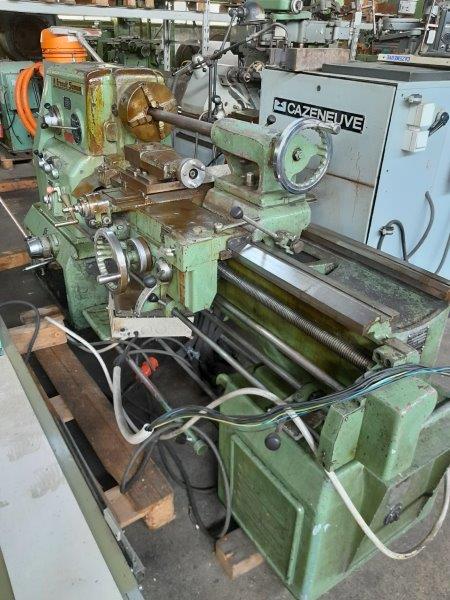

Parallel Lathe ERNAULT SOMUA CHOLET 350 Between points: 900 mm Maxi Ø on bench: Ø 90 mm Maxi Ø over saddle: Ø 180 mm Spindle diameter: Ø 42 mm Spindle speed: from 45 to 2000 RPM 3-jaws chuck Ø 250 mm Threadings Metric + Whitworth Tailstock CM4 Auto feeds longitudinal + transverse Voltage: 380 V Dimensions (L x W x H): 2500 x 1100 x 1300 mm Weight: approx 1,7 T

Spindle size: dia 200 / ISO 70 X travel: 6.000 mm Y travel: 4.500 mm Z travel: 1000 mm W travel: 1.250 mm Spindle speed: 800 RPM Rotary table: - Surface: 3600 x 3600 mm - Travel: 2000 mm

dimensions: 3500 x 3000 mm max load: 50 ton longitudinal travel: 2700 mm rated torque of turning motor: 22 mkg circular feed: 0,0006 gt; 0,6 rpm rated torque of longitudinal travel: 9,4 mkg 13 T-slots (width 36 mmnbsp; H7) power: 50 kVa weight: 31 ton

Description: Including 3-jaw chuck, Multifix type B base holder, tailstock, documentation Drehlänge: 1,000 mm, turning diameter over bed: 350 mm, turning diameter over slide: 170 mm, spindle bore: 50 mm, weight approx.: 1,800 kg, Approx. Onsite Dimension. (l x w x h): 2,600 x 1,000 x 1,500 mm

weight: 56000 kg engine output: 75.00 kW longitudinal stroke: der Senke 800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Machine Details Stock-No. 1105-03882 Type of machine CNC Lathe - Inclined Bed Type Make ERNAULT TOYODA Type HES 52 Year of manufacture 1987 Type of control CNC Storage location FRANCE Country of origin france Delivery time immediately Freight basis EX WORK Technical details turning diameter 650 mm turning length 1100 mm control FANUC 10 T swing over bed 650 mm Spindle Bore 80 mm spindle turning speed range 7 - 4000 rpm transmission ratio 3 Rapid Traverse 12 m/min main drive 37 kW total power requirement 47 kW Weight of the machine approx. 12 t dimensions of the machine ca. 5 x 2.4 x 2. m Additional information 2-axes CNC-control FANUC 10 T 1 x 12-station turret VDI 50 programmable tailstock 3-jaw power chuck diameter 450 mm swarf conveyor

turning diameter over bed: 435 mm turning diameter over slide rest: . mm turning length: 750 mm turning speeds: U/min digital readout: digital readout: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC Lathe 2 axes ERNAULT TOYODA HES 52 Travel X: 365 mm Travel Z: 2130 mm Numerical Command: NUM 750 Maxi Ø on bench: 480 mm Maxi Ø over saddle: 400 mm Max machinable length between points: 1983 mm Spindle diameter: Ø 79,5 mm Spindle speed: from 50 to 4000 RPM Turret 12 tools VDI 50 Year of construction: 1990 Motor: 37 kW Tailstock: CM5 Dimensions (L x W x H): 4585 x 3160 x 2550 mm Total length: 6135 mm Weight: 14,5 T

Lathe H.Ernault 250HN This lathe is brand H. ERNAULT Batignolles type 250HN, it has been used very little, the interpoint is 2m.

Coolant tank with pump ERNAULT-TOYODA 250 liters (z.b. for Ernault-Toyoda HES52) Pump 120 l/min 3.5 bar 1.1 kW 220 / 380 V used, tested ! Dimensions: 1400 x 1100 x 750 mm
