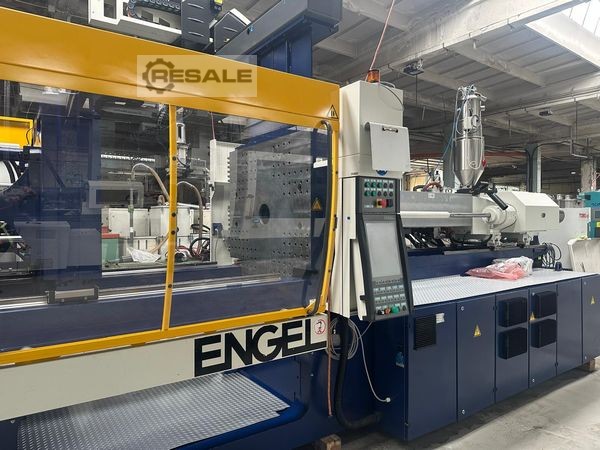

Engel Victory 2550/350 Tech with the Engel Viper 40 robot
Year of Make: 2010
Injection unit:
Screw diameter: 80 mm
Injection weight: approx. 1410 g
Spray pressure: 1638 bar
Dosing volume: 1558 ccm
Clamping unit:
Clamping force: 350 t
Spar spacing: 0x0 mm

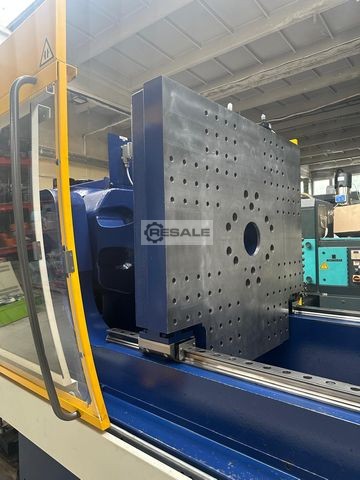

Size of the clamping plates: 1200x1100 mm
Ejector: hydraulic
Clamping unit: hydraulic

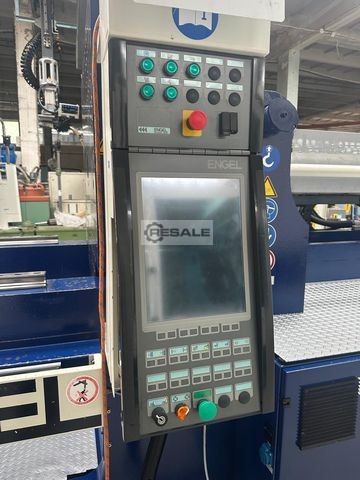

Control: CC 200 - touch screen
Additional equipment:
Production line with the Engel Viper 40 robot

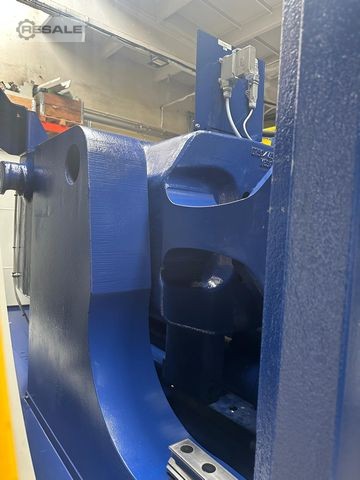

Tie-bar-less machine
Robot interface
Air core pull x 4 on the side of the fixed clamping plate
Hydraulic core pull x 2 on the side of the movable clamping plate
Hydraulic core pull x 1 on the side of the fixed clamping plate
Control with hot runners x 12
Injection unit is wear-resistant and resistant to corrosion
Proportional valve on the injection unit – precise injection
Robot Angel Viper 40
Year of Make: 2010
6-axis robot: 5 axes are driven by servo motors (electric): X, Y, Z, B
(rotation), A; axis C - pneumatic
Touch control panel
The safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Dimensions:
Weight: 25100 kg
Length/Width/Height: 7.59x2.18x2.30 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
Poland
91212 Lodz
