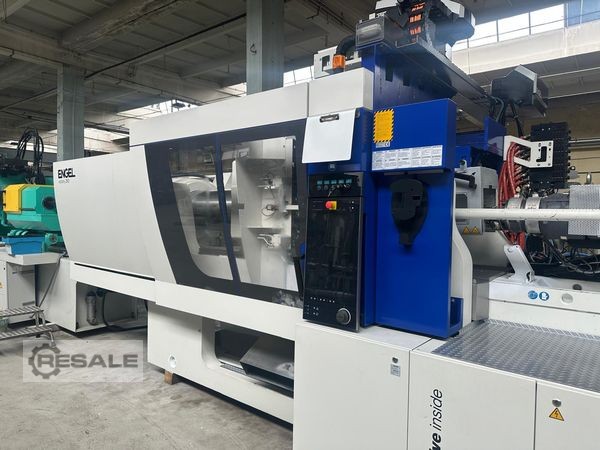

Engel Victory 2050/260 Tech Ecodrive with the Engel Viper 20 robot /
Hybrid machine / Operating hours: approx. 20,000 h in automatic
mode
Year of Make: 2016

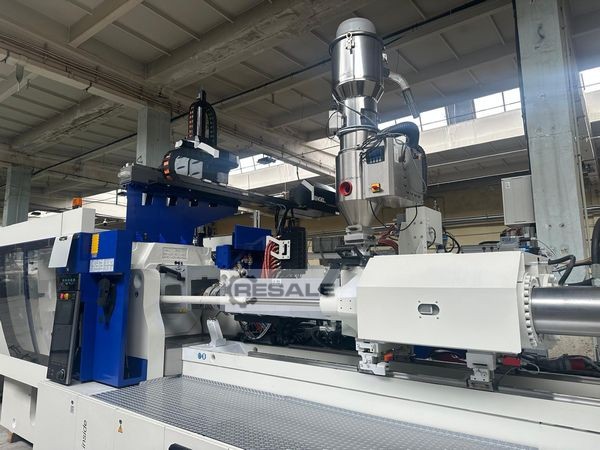

Injection unit:
Screw diameter: 70 mm
Injection weight: approx. 1020 g
Spray pressure: 1780 bar
Dosing volume: 1155 ccm

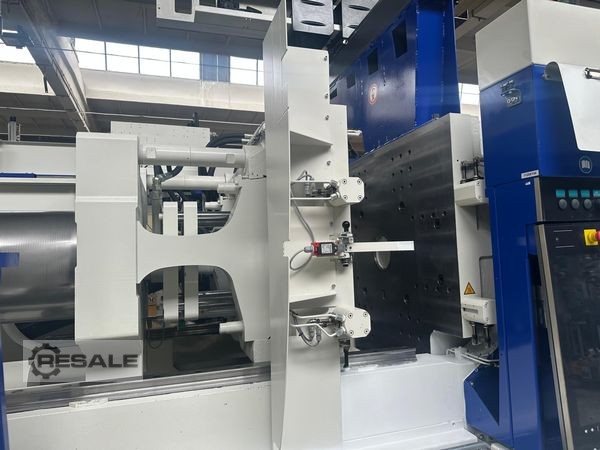

Clamping unit:
Clamping force: 260 t
Spar spacing: 0x0 mm
Size of the mounting plates: 1100x1000 mm
Ejector: hydraulic
Clamping unit: hydraulic

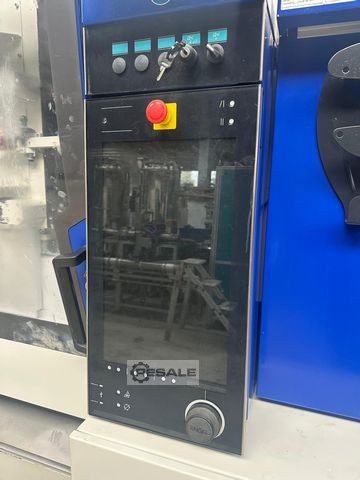

Control:CC 300 - Touch Screen
Additional equipment:
Production line with the Engel Viper 20 robot
Tie-bar-less, hybrid machine: energy-saving and very quiet
Operating hours: approx. 20,000 in automatic mode
Robot interface
Air Valve x 4
Hydraulic core pull x 2 on the side of the movable clamping plate
Hydraulic core pull x 6 on the side of the fixed clamping plate
Injection unit is wear-resistant and resistant to corrosion
Main motor of the machine - Servo motor driven by inverter - Energy
saving
Proportional valve on the injection unit – precise injection
Kistler Sensor - Tool Pressure Control
Automatic, hydraulically operated tool assembly system, controlled
from the machine control panel
Integrated automatic cooling water regulator e-flomo with heating
function
Robot Angel Viper 20
Year of Make: 2016
6-axis robot: 6 axes are driven by servo motors (electric): X, Y, Z,
B, C, A
Load capacity: 11 kg
Touch control panel
The safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Dimensions:
Weight: 21000 kg
Length/Width/Height: 7.36x2.06x2.37 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
