Make : Agie Model : Agiecut Challenge 2 Year : 2000 Application EDM Description: Nuppx Travels : X= 350 mm, Y= 250 mm, Z= 256 mm Travel U/V-axis : +/- 70 mm Maximum Conicity : 30° at 100 mm height Maximum Workpiece Dimensions : 750x550x250 mm Maximum Workpiece Weight : 200/450 kg Achievable Surface Quality : Ra: 0.3 µm Average Contour Tolerance Tkm +/- 4 µm Available Wire Diameters : 0.20 - 0.33 mm Water Bath Machine with Automatic Wire Threading With automatically lowerable container (accessible from 2 sides) Incl. AGIEJOGGER - hand box for comfortable setup AGIEVISION control system AGIE HSSC Generator Dimension (LWH) : 2215 x 2215 x 2220 mm Net Weight : 3600 kg

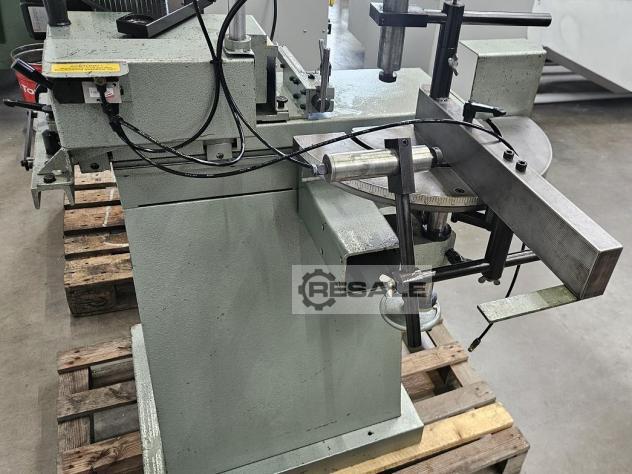

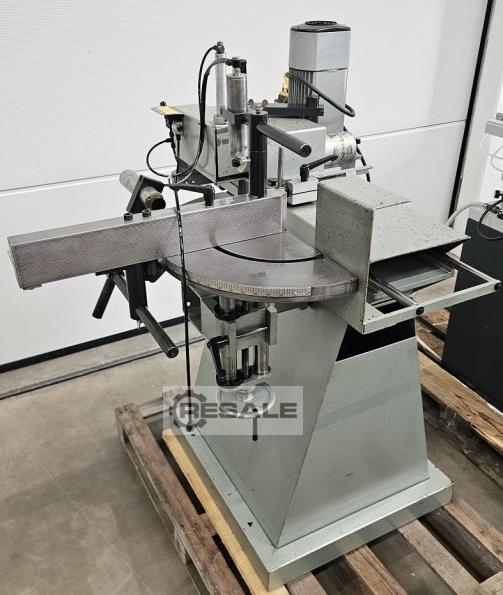

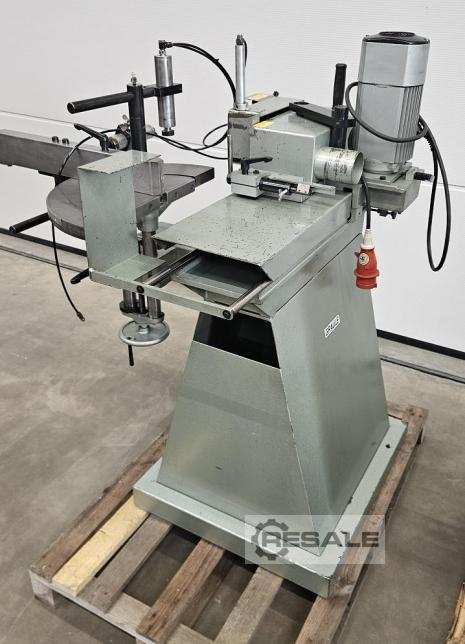

Notching milling machine make GRAULE type AKF 2Year of construction 1986Technical specifications:Shaft diameter (cutter holder): 40 mmMilling cutter diameter max .: 250 mmMilling cutting width: 8.0 mmProfile height max .: 80 mmMilling width up to: 320 mmMilling depth: 72 mmDrive motor: 380 V, 2.2 kWWeight approx: 80 kgDimensions approx: 1100 x 800 x 600 mm- without baseusedPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

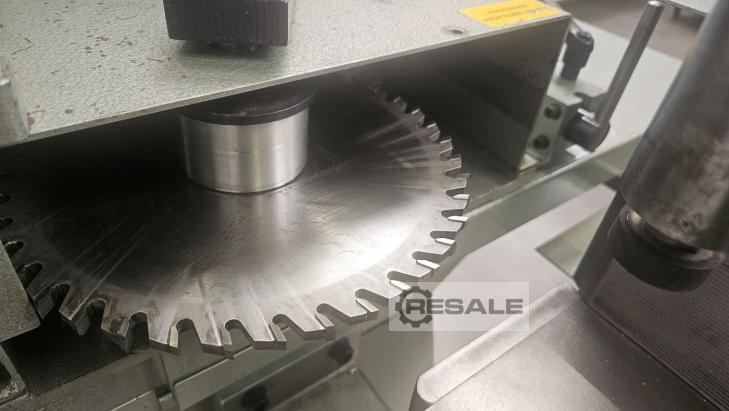

Cutter diameter 250 mm Pneumatic workpiece clamps Manual feed Weight: approx. 160 kg
for cutters up to max.: 300 mm Saw stroke can be moved by hand: 550 mm Delivery via spindle by hand: 150 mm Height adjustment via spindle by hand approx.: 130 mm Table semicircle: 500 mm Saw blade drive: 380 V, 2.2 kW Saw blade speed: 2700 rpm Space requirement approx.: 1000 x 900 x 1300 mm Weight approx.: 100 kg
Graule AKF 6/250 - Year of construction 1999 - Engine brake - very good condition - technically tested and fully functional
Year: 2016 - technically efficient, ready to work – after full service - pneumatic profile clamping - manual feed - cooling device
Pneumatic workpiece clamps Manual feed Weight: approx. 160 kg
Cutter diameter: 250 mm notching width: 400 mm notching depth: 85 mm profile height: 150 mm Hydropneumatic feed via foot switch Feed length: 500 mm Stop between 20° - 90° - 20° Pneumatic workpiece clamps Minimum quantity spraying device Weight: approx. 250 kg
Cutter diameter: 250 mm notching width: 400 mm notching depth: 85 mm profile height: 150 mm Feed length: 500 mm Stop between 20° - 90° - 20° Pneumatic workpiece clamps Minimum quantity spraying device Manual feed
Cutter diameter: 250 mm notching width: 400 mm notching depth: 85 mm profile height: 150 mm Feed length: 500 mm Stop between 20° - 90° - 20° Pneumatic workpiece clamps Minimum quantity spraying device Hydropneumatic feed via foot switch Weight: approx. 350 kg
Technical data: - Feed of the milling unit manually - Work table adjustable in height via handwheel - horizontal and vertical material tension - Cutter diameter min. / max. 100 / 250 mm - Cut-out width - max. profile height 150 mm - max. cut-out depth 80 mm - max feed length 500 mm - angle-adjustable stop Li. + Re. 20 - 90 - 20 ° - Milling spindle speed 2800 rpm - Drive 400 V / 2.2 kw - Compressed air connection 6 - 8 bar - Air consumption per working cycle 10 l - Pneumatic profile clamping - Spraying device - Mobile base - Space requirement approx. W 1000 x H 1350 x D 1000 mm - Weight approx. 150 kg
Used notching milling machine Manufacturer: ROTOX Type: SAF 163 Ma. No. 163093 built 1978 Power 2,2 kW Item location: 58730 Fröndenberg/Ruhr The machine can be visited. We will be happy to send you more photos by e-mail. A forklift/crane for loading is available. We reserve the right to prior sale. It is possible to expertly examine the items for sale on site. Specific questions should be clarified in advance. The information, such as technical data, dimensions, year of construction, condition are non-binding and have been shown to the best of our knowledge and belief. Errors are therefore reserved. The warranty / guarantee is excluded. The goods are sold ex location / warehouse, with the transfer of risk to the buyer there, this also applies to a shipment on our part, which we have carried out on your behalf. This offer is only aimed at traders, traders and leg ...
