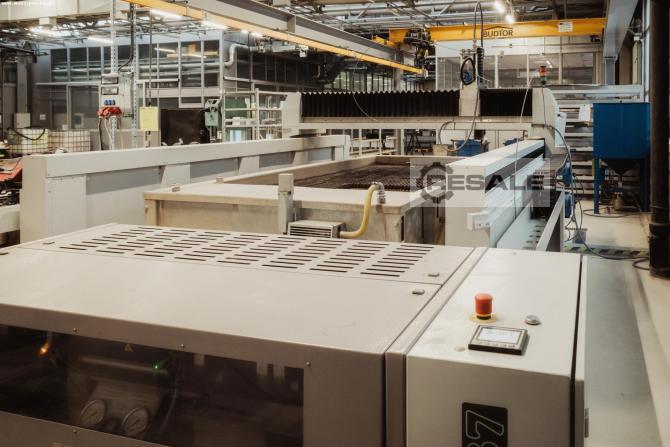

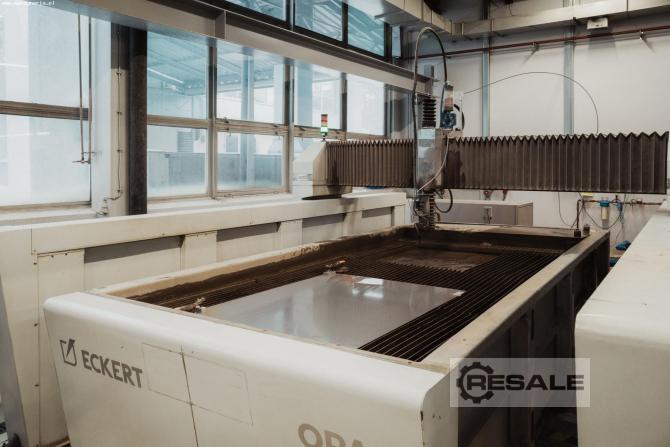

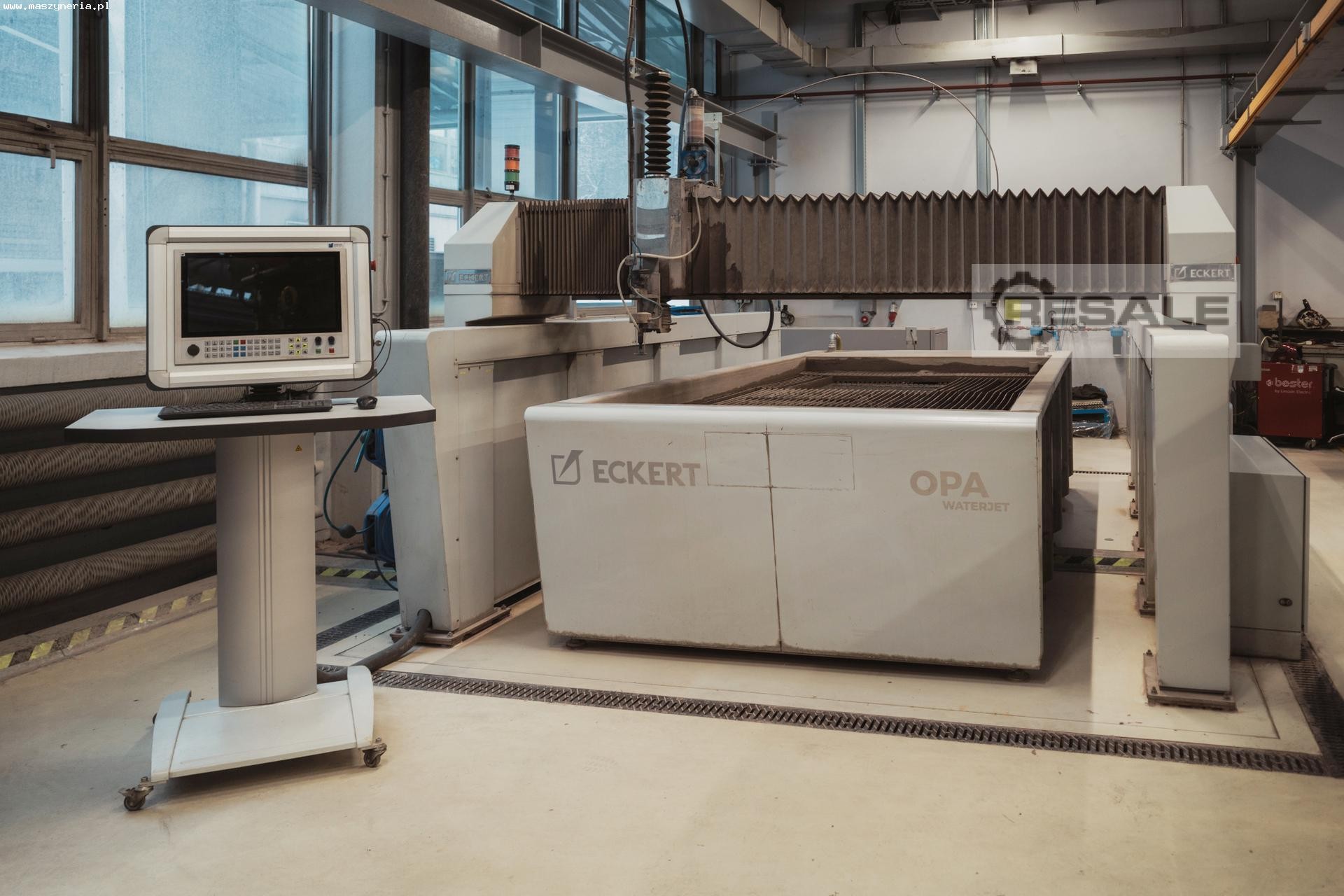

ECKERT Opal WaterJet CNC waterjet cutting machine was built in 2019 in
Poland by ECKERT AS Sp. z o.o. The machine is designed for precision
machining of a wide range of materials, i.e. metal, stone, wood and
plastics. Workpieces with a maximum thickness of 150 mm are machined

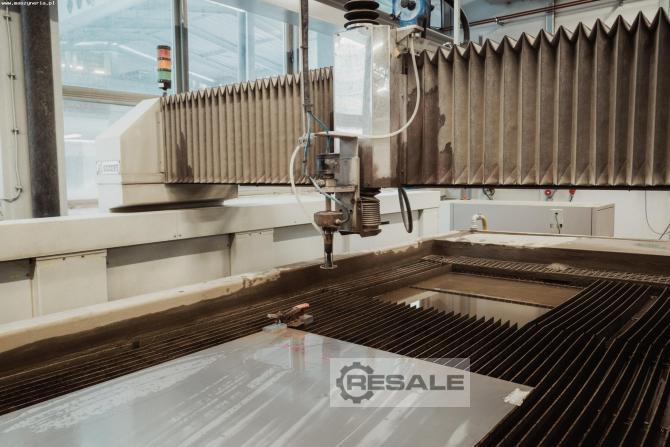

by means of a reliable cutting head with anti-collision and tool
height sensor. During cutting, only water is used, making the process
free of harmful fumes and safe for the environment.

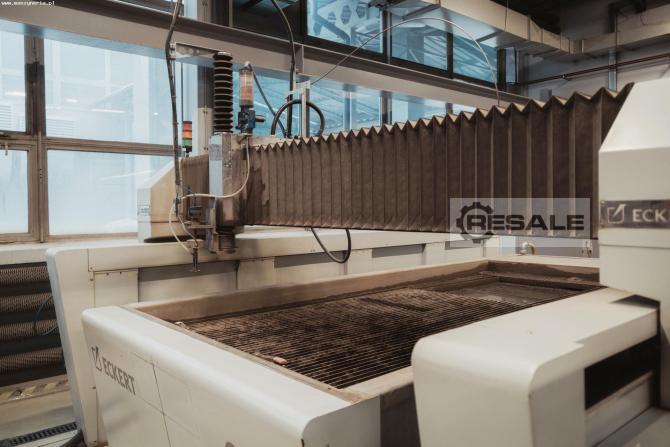

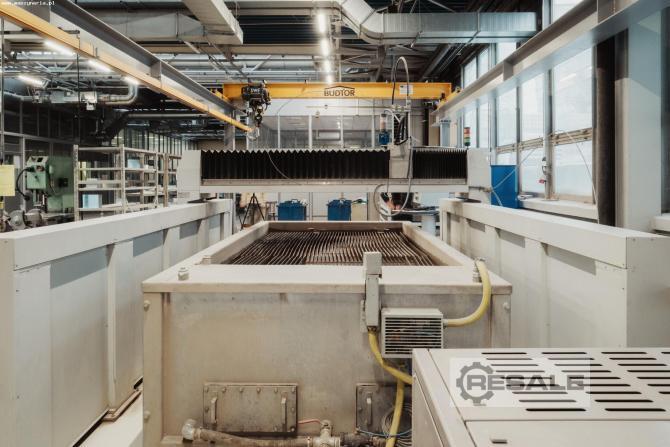

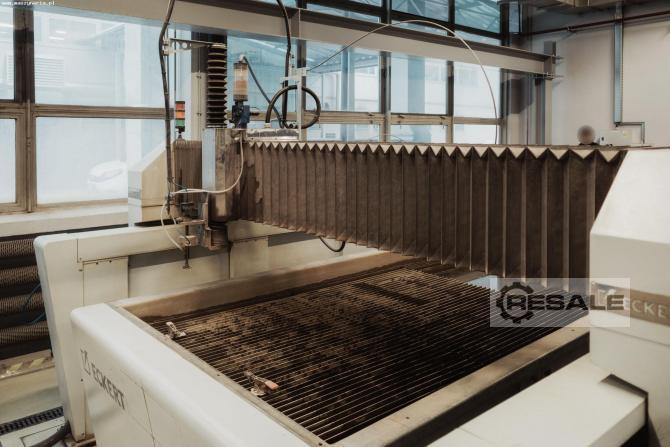

The ECKERT Opal WaterJet is distinguished by its robust water table
with a double WEMA grating system. The design made of closed steel
profiles ensures high stability during even the most intensive
challenges. All travel components, in turn, are protected by bellows
covers. This solution guarantees uninterrupted operation of the
machine for many years of use.
The ECKERT WaterJet is operated via a state-of-the-art industrial
controller with a touchscreen, powerful components and a design that
is resistant to extreme conditions on the production floor. Its rich
functionality, combined with an intuitive interface, allows the
machine’s machining capabilities to be fully utilised. The

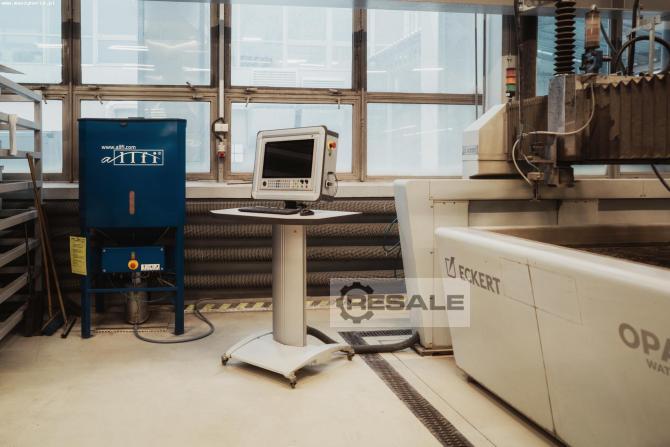

controller is installed on a free-standing panel that provides
M6351405 exceptional operator comfort and safety, allowing the cutting
process to be observed during operation.
Technical specifications of the ECKERT Opal WaterJet water cutting
machine
- CNC controller: ECKERT i-Vision
- machinable materials: metal, stone, wood, plastics, etc.
- work table dimensions (L x W): 3000 x 1500 mm
- maximum cutting thickness: 150 mm
- minimal cutting thickness: 0.5 mm
- travel speed: 25000 mm/min
- positioning accuracy: ± 0.025 mm
- power supply of the ECKERT Opal WaterJet machine: 230 V; 50 Hz
Poland
