drilling centers used for sale

without software, with PIC iX hardware 866424 Auction-ID: A7-49715-107

CNC machining center FEHLMANN Picomax 56 TOP TECHNICAL FEATURES: Year: 2015 CNC Type: HEIDENHAIN TNC 620 X-axis travel: 500 [mm] Y-axis travel: 400 [mm] Z-axis travel: 400 [mm] X, Y and Z axis travel speed: 20000 [mm/min] Min. Distance. Spindle/Table: 120 [mm] Max. distance spindle/table: 520 [mm] Table dimensions: 908 x 480 [mm] Max. weight permissible on the table: 250 [Kg] Pin attachment: ISO 30 Maximum speed Spindle: 12000 [rpm] Number of tool magazine stations: 20 Max. Length of Tool: 240 [mm] Maximum weight per tool: 3 [Kg] Max. tool diameter: 130 [mm] Tool Change Time: 3 [sec] Time between cuts: 8 [sec] Number of cutting hours: 1463 [h] Rated Current: 25 [A] Supply voltage: 400 [V] Machine weight: 3250 [Kg] EQUIPMENT INCLUDED: HEIDENHAIN measuring rulers on the X, Y and Z axes x1 FRIBOSA Switzerland precision clamping vice x1 RENISHAW par ...

Machine Type: CNC Turning Center Model: CTXbeta500V4 Manufacturer: DMGMORI Control: Siemens 840D si Operate solutionsline Year of Make: 2014 Location: EU (#301336) Facilities • Main spindle 34/25 kw rpm 5000 • Hydraulic 3-jaw chuck 250 mm • Manual tool measuring device • 12 VDI 40 station turrets • Tool drive for all stations • C-axis • Y-axis • Scale X • Chip conveyor • 12 bar / coolant system • Coolant spray gun incl. documentation if available Technical data Turning diameter max. approx. 410 mm Turning diameter standard approx. 270 mm Rod diameter max. approx. 65 mm X-axis approx. 300 mm Z-axis approx. 550 mm Y-axis approx. +/- 60 mm Spindle speed 1 approx. 5000 rpm Speed milling pindle approx. 4,000 rpm Rapid traverse X/Y/Z approx. 30/22.5/30 m/min Power spindle 1 approx. 34/25 kW Footprint L x W x H approx. 5.3 x 3.0 x 2.1 m  ...

Machine Type: CNC Turning Center Model: CTXbeta1250 TC Manufacturer: DMGMORI Control: DMG MORI CELOS with Siemens 840D sl Operate Year of Make: 2020 Location: Germany (#301432) Facilities - Turning-milling spindle HSK-A 63 - Tool magazine 80 places - Hinge belt chip conveyor - Main spindle ISM 102 33/40kW - Sub-spindle ISM 76 25/32kW - Counter-pressure stress main spindle and sub-spindle - Milling spindle 20,000rpm - High pressure cooling 80bar - Feed rinsing device, main spindle - Tool probe, BLUM for fixed tools in the turning/milling spindle - Tool probes for workpieces - Automatic door - Oil mist extraction mechanical - Bar machining package 104 mm - Workpiece pick-up device with conveyor belt - Hydraulic hollow clamping device n max 3,600 rpm - Indicator light, 4-colour - Machine Protection (MPC) - Electrical interface standard Profibus for Robo2Go -  ...

Key data: 800 mm, 800 mm, 800 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMU 80 P duoBlock Year of Make: 2006 Condition: Good  Control: Name: Heidenhain iTNC 530 Handwheel: Heidenhain HR 410 Technical data: • Spindle: 18000 rpm, infinitely variable • HSK-A63 interface • 120x WZW • B-axis (infinitely variable) • C-axis • Table size: 900 mm x 700 mm • Table load: max. 1400 kg • IKZ (internal coolant supply) 40 bar • Chip conveyor • Coolant tank with paper belt filter Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

Key data: 1000 mm, 900 mm, 700 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMU 100 eVo Year of Make: 2013 Condition: Very good – machine partially overhauled in 2023  Control: Name: Heidenhain iTNC 530 Handwheel: Heidenhain HR 410 Technical data: • Spindle: 18000 rpm, infinitely variable • HSK-A63 interface • 60x WZW • Swivel rotary table 950 mm x 800 mm • B-axis 5°/+110° • C-axis 360° • IKZ (internal coolant supply) 40 bar • 600 l coolant tank with paper belt filter • Chip conveyor • Rinsing gun • Blowing air through spindle center Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

travel: 1600 mm length: 1600 mm width: 1200 mm spindle head according to: spindle turning speed range: 100-12000 U/min switching steps: feeding velocity x-Axis min./max.: mm y-Axis min./max.: mm Control: Fanuc Brand: OKK Type: VP1200 CNC brand: Fanuc CNC model: 160is-MB Year of make: 2004 Table length: 1.600 mm Table width: 1.300 mm X: 1.600 mm Y: 1.300 mm Z: 550 mm Throat depth: 560 mm Tool changer: 40 Minimum speed: 100 RPM Maximum speed: 12.000 RPM Max. workpiece diameter: 82 mm ø Maximum table load: 2.000 kg For additional information, please refer to the pdf file Machine dimensions: 5.800 x 3.200 x 2.800 mm Machine weight: 16.000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 750 mm, 650 mm, 560 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMU 75 monoBlock Year of Make: 2017 Condition: Very good  Control: Name: Heidenhain TNC 640 Handwheel: Heidenhain Technical data: • Spindle: 20-20000 rpm, infinitely variable • HSK-A63 interface • 60x WZW • Swivel rotary table • CNC rotary table Ø 650 mm • Integrated with 800 mm x 650 mm • IKZ (internal coolant supply) 40 bar • 600 l coolant tank with paper belt filter • Flushing gun with pump, 2 bar // 40 l/min • Chip conveyor • Cooling device blowing air by spindle medium, selectable via M-function • Oil and emulsion mist separation system, mechanical filter, throughput volume 600 m³/h • Infrared probe Heidenhain TS 649 • 3D quickSET • Spindle load indicator for main drive, integrated in headstock cover • Mechan ...

Key data: 730 mm, 560 mm, 560 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMU 60 monoBlock Year of Make: 2006 Condition: Good  Control: Name: Heidenhain iTNC 530 Handwheel: Heidenhain HR 410 Technical data: • Spindle: 20-18000 rpm, infinitely variable • HSK-A63 interface • 60x WZW • Rotary table Ø 600 mm (C-axis) integrated into 1000 mm x 600 mm • B-axis (infinitely variable) • IKZ (internal coolant supply) 40 bar • 600 l cooling lubricant tank with paper belt filter • Chip conveyor • Rinsing gun • Oil and emulsion separation plant • Blowing air through spindle center Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

NAKAMURA WT 250 CNC Fanuc, Series 16i-T Main spindle, counter spindle 1 tool turret with driven tool stations + 1x Y-axis 1 tool turret with driven tool stations 2x C-axis Conveyor Bar loading magazine IEMCA TS560P The machine is energized in our warehouse in Gussago BS.

Key data: 1000 mm, 1250 mm, 1000 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMC 100 U duoBlock Year of Make: 2015 Condition: Very good  Control: Name: Heidenhain iTNC 530 Handwheel: Heidenhain Technical data: • Spindle: 20-12000 rpm, infinitely variable • HSK-100 interface • B-axis (infinitely variable) • C-axis as pallet carrier • 2-fold pallet changer • Pallet size: 1000 mm x 800 mm • 180x WZW • Max. workpiece weight: 2000 kg • IKZ (internal coolant supply) 40 bar • 980 l coolant tank with paper belt filter • Blowing air through spindle center • Chip conveyor • Probe TS 649 • Tool breakage detection • Machine Protection Control (MPC) • 3D quickSET • ATC • BA 4 (extended manual intervention) Prior sale is reserved. No liability is assumed for the technical information provided here. ...

General: Year of construction 2013 Control Fanuc Series 0i-MD Travel X 703 mm Y 603 mm Z 503 mm Working spindle 12,000 rpm Tool changer 40-fold Tool holder DIN40 Specifications: Table swivel +31.1° / -121.7° Table rotatable 360° Other equipment and accessories included: Preparation 3D probe

Key data: 1000 mm, 1000 mm, 1000 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMC 100 U duoBlock Year of Make: 2006 Condition: Very good  Control: Name: Heidenhain iTNC 530 Handwheel: Heidenhain HR 410 Technical data: • Spindle: 18000 rpm, infinitely variable • HSKA-63 interface • 180x WZW • 2-fold pallet changer • Pallet size: 1000 mm x 800 mm • NC swivel rotary table • IKZ (internal coolant supply) 40 bar • Chip conveyor • Coolant tank with paper belt filter Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

travel -x axis: 2x 750 mm travel -y axis: 500 mm travel -z axis: 600 mm control: Siemens 840 D turning speeds: 30 - 6.000 U/min tool taper: SK 40 numbers of positions in the tool changer: 22 surface area: 2x (1.000 x 500) mm Dimensions (L x W x H): 4.100 x 2.300 x 2.600 mm Double-place machining center (shuttle operation) | AXA - DBZ Additional equipment: The machine comes with a 4th axis on each side processing in tack setting. The machine is in very good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 800 mm, 1050 mm, 850 mm

We hereby offer you a 5-axis machining centre from DMG as follows: Basic machine data Make: DMG Type: DMC 80 U duoBlock Year of Make: 2014 Condition: Very good Control: Name: Heidenhain 640 Handwheel Heidenhain Technical data: • Spindle: 20-20000 rpm, infinitely variable • HSK-A63 interface • 123x WZW • B-axis (infinitely variable) • C-axis as pallet carrier • 2-fold pallet changer • Pallet size: 800 mm x 630 mm • IKZ (internal coolant supply) • Operating station for WZW • Coolant tank with paper belt filter • Signal light • 3D quickSET • Infrarottprobe • Blum Laser Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

First installation year 2010 - Bar capacity 52 mm - The machine has always worked with oil - Equipped with Lns Sprint S2 barfeed, front magazine type, and a lot of accessories (for both lathe / barfeed) - Fanuc 31i-A Control.

Nitrogen Furnace nitrogen furnace Pit furnace, top condition. 50kW ele Max T. 950°C Anealing in hydrogen, nitrogen atmospere Batch size 800x1000mm run only for tests and start of production similar possible furnace REY, Naberther, CFI, SAIREM, SOLO, ALD, ECM, BMI, CERIC WISTRA, ELTI, ECM, NAGAT SAT, SAFED, SERTHEL, SLFI, MORGAN, OTTO JUNKER, CIEFFE Anlaßöfen mit Luftumwälzung Anwärmöfen Aluminium – Glühöfen Abschreckbäder Beschickungsanlagen für Druckgußmasch inen Drehherdöfen Doppelkammeröfen Draht – Glühöfen Durchlauföfen Elev atoröfen Glühöfen für verschiedene Einsatzarten Gas Nitrieröfen Härteöfen Härtebäder Herdöfen Hubbalkenöfen Herwagenöfen Haubenöfen Industrie Trockenanlagen Kammeröfen Kunststoff - Beschichtungsöfen Carbonitrieren Härten Vergüten Härten von Kaltarbeitsstahl Härten von Warmarbeitsstahl Induktivhärten Flammh ...

Mazak Integrex 200 lll S + GL 150 F CNC turning-milling center with second spindle CNC control Mazatrol PC Fusion CNC 640 MT PRO Turning diameter 550/660 mm Turning length 1016 mm Spindle bore diameter 65 mm Spindle speed 35-5000 rpm X-axis travel: 580 mm Y-axis travel 160 mm Z-axis travel: 1045 mm B-axis travel: 225 ° mm C-axis indexing 360° Spindle nose A2-6 Tool cone Capto C6 Number of tools in the magazine 40 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail.

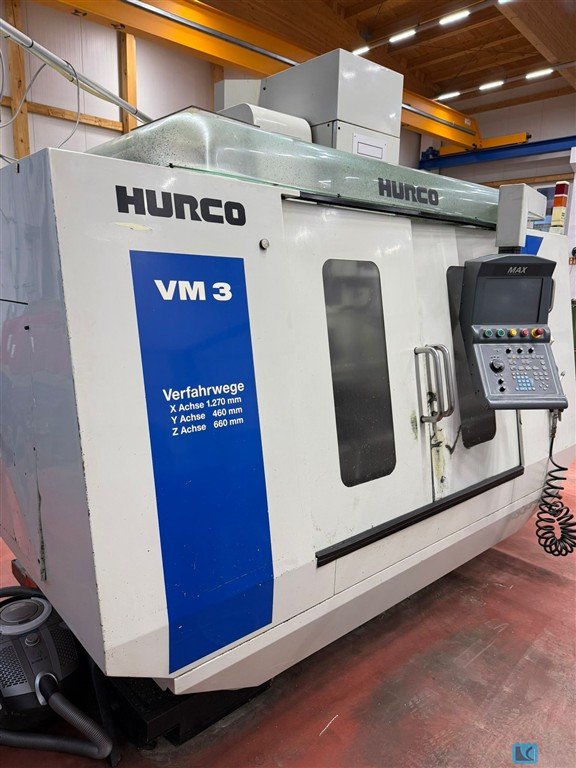

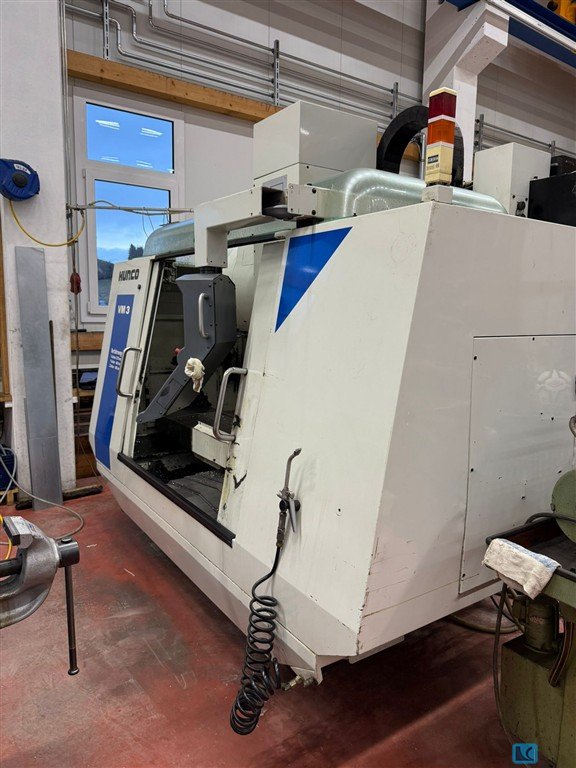

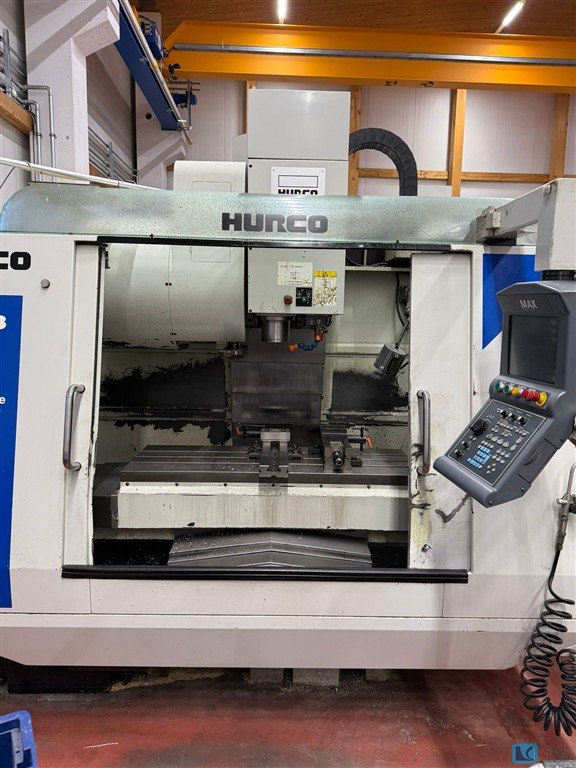

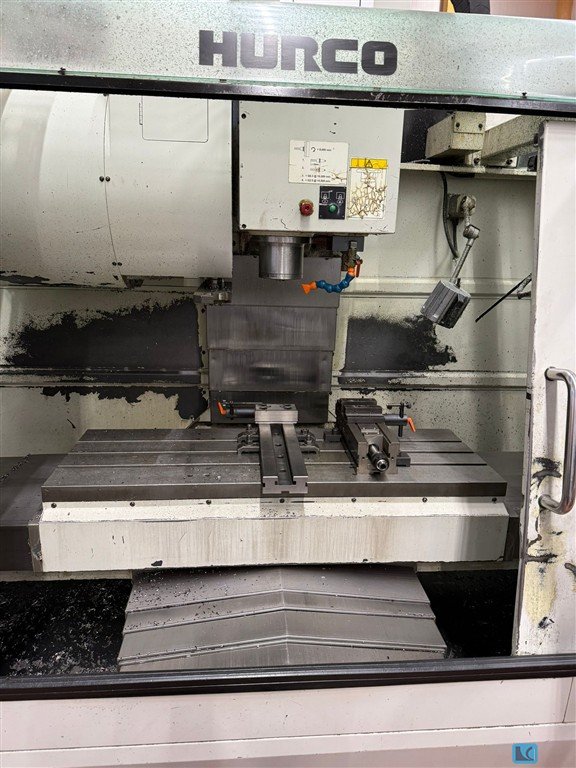

x-travel:1270 mm y-travel:460 mm z-travel:660 mm Machine hours: 58,355 Spindle speed: 8,000 rpm

WE OFFER A VERY NICE MACHINE WITH COMPLETE TOOLS ACCESSORIESS. MACHINE IS PERFECT WORKING CONDITION, MACHINE IS IN VERY NICE CONDITION IT HAS NEW SPINDLE 3 MONTHS AGO TOTAL WORKING HOURS :11296 H 17min DATE OF INSPECTION: 09.06.2023 PART COUNT : 61849 MACHINE IS ON POWER WORKING IN THE PRODUCTION OF PLASTIC COMPONENTS. MACHINE WAS USED ON METAL ONLY COPLE DAYS PER YEAR. TECHNICAL DATA: CONTROL: FANUC 0iMF SPINDLE TAPER SK: 50 TRANSMISSION: GEAR SPINDLE SPEED 6000 RPM TABLE SIZE: 2400 X 1000 TABLE LOAD MAX: 4000 KG TRAVEL: X: 2200 mm Y: 1000 mm Z: 800 mm MAFAZINE CAPACITY: 24 TOOLS MACHINE HEIGHT : 3600mm MACHINE DIMENSION: 5700 mm x 3900 mm WEIGHT 20.000 KG MACHINE IS AWAILIBLE IMEDIATELY DIRECT FROM THE FACTORY

HAISHU CNC550T 4-axis CNC Lathe Producer- Taian HAISHU Machinery Co. Ltd YOM 2015 Condition- Never used Equipped with two spindle and an additional lower turret with 12 tools, providing automatic two-way processing of the workpiece in the achievement of maximum processing speed. Control CNC GSK988TD Additional Y axis Max. working length 750 mm Maximum turning diameter over bed 550 mm Maximum turning diameter pallet 500 mm Spindle type А12 Hydraulic Jaws: 2x 300 mm Front spindle bore taper 1:20 Spindle pass 75 mm Speed of Servo spindled 0-4000 mm/min Axis X/Z/B Quick moves 40 000 mm/min CS1, CS2 power of main motors: 15 kW Engine motor on axle C- 5.5 kW Moment by Axis X/Z: 15 Nm Movement on Y axis: + 55/-55 mm; Moment on axis B: 20 N. m; Time to change tool 1.6 sec Positioning accuracy 0.005 mm Moves on axes X1/X2- 350 mm Moves on axes Z1/Z2- 1100/1350/1850 mm ...

19 own machines in stock or on arrival (Biglia-Doosan-Gildemeister-Miyano-Nakamura) visit our website and ask to infodemacnc for more details

• More information: on request

Key data: 42 mm, 588 mm

bar capacity 42 mm - three x 12 position turrets (3 x Y axis +/- 31 mm) - LNS Sprint S3 new in 2007 with rear magazine - weel tooled - Fanuc 31iTA Control

Stock number: 3814 PROCESSING Manufacturer: MATSUURA, Type: LX-0 - HIGH PRECISION Machine NO.: 20110533, Year of manufacture: 2002 Specifications: Table size 540 x 320 mm mm Longitudinal movement (X) 330 mm Transverse movement (Y) 300 mm Vertical movement (Z) 250 mm Spindle cone BT 30 ISO Spindle speeds 0-40,000 rpm Spindle motor 2.2 - 3,7 Kw Total power 22 KVA Tool changer 50 places Feed rate 1-90,000 mm/min Rapid traverse 90 m/min Control LX0/ Fanuc L-Tech 15I Fabr. Accessories: High Presision Liniare Scale X/Y/Z - 0.0001 mm Cooling water system. Spindle Cooling Tool Measuring Length: 3110 mm, Height: 2550 mm, Width: 1500 mm, Weight: 5000 kg

Key data: 1000 mm, 500 mm, 500 mm

Inv. Num. : 6776 Type: VOC 1000 Produzent: INTOS Erzeugt: 2003 Parametern: Steuerungssystem: SIEMENS Sinumerik Arbeitstischlänge: 1100 mm Arbeitstischbreite: 500 mm Maximale Drehzahl der Spindel: 8000 1/min Verfahrwege X-Achse: 1000 mm Verfahrwege Y-Achse: 500 mm Verfahrwege Z-Achse: 500 mm Spindelleistung: 25 kVA Kegel: SK 40 Anzahl der Stapelpositionen: 20 Stücke Maschinengewicht: 4619 kg

Key data: 1020 mm, 510 mm, 610 mm

Inv. Num. : 6222 Type: BMC 4020 Producer: HURCO Created: 2000 Parameters: Control system: UNIMAX Operating hours: 59,600 h Work table length: 1220 mm Work table width: 510 mm Minimum vertical spindle speed: 80 1/min Maximum vertical spindle speed: 8000 1/min X-axis travel: 1020 mm Y-axis travel: 510 mm Z-axis travel: 610 mm Spindle power: 15 kW Maximum tool weight: 682 kg Max. tool weight: 7 kg Machine height: 2670 mm Machine length: 3350 mm Machine width: 2320 mm Machine weight: 5600 kg Equipment: Tool clamping 2015: Spindle change

Key data: 1300 mm, 540 mm, 720 mm

Inv. Num. : 6148 Type: CFV 1300i Producer: Cincinnati Created: 2010 Parameters: Control system: Heidenhain iTNC 530 Hours: 59260 h Duty cycle: 26295 h Work table length: 1370 mm Work table width: 610 mm Tool magazine: 24 pieces Maximum vertical spindle speed: 9000 1/min X-axis travel: 1300 mm Y-axis travel: 540 mm Z-axis travel: 720 mm Cone: SK 40 Equipment: IKZ Conveyor New spindle 24x clamping tools 4x Hydro Vise

Key data: 1800 mm, 850 mm, 800 mm

Inv. Num. : 6502 Type: FTV 850 Producer: Cincinnati Created: 2002 Parameters: Control System: Acramatic Work table length: 2300 mm Work table width: 900 mm Tool magazine: 36 pieces X-axis travel: 1800 mm Y-axis travel: 850 mm Z-axis travel: 800 mm Spindle power: 42 kW Machine height: 3800 mm Machine length: 7200 mm Machine width: 3500 mm Machine weight: 17000 kg Equipment: Technical Documentation 40x Tool Holder 1x D100 cutter

Key data: 1050 mm, 510 mm, 560 mm

Inv. Num. : 5759 Type: SVM 105 Producer: LILIAN Created: 2013 Parameters: Control System: Fanuc Oi-MC Operating hours: 23000 h Spindle hours: 5081 h Work table length: 1200 mm Work table width: 500 mm Maximum table load (uniform): 650 kg Tool magazine: 32 pieces Speed: 60-8000 1/min X-axis travel: 1050 mm Y-axis travel: 510 mm Z-axis travel: 560 cm Cone: BT40 Max. tool weight: 6 kg Main motor power: 11/15 kW Machine height: 2558 mm Machine length: 3050 mm Machine width: 2319 mm Machine weight: 5200 kg Equipment: Conveyor IKZ

Key data: 400 mm, 700 mm, 400 mm

Inv. Num. : 6723 Type: BA400-2 Producer: SW Created: 2004 Parameters: Control system: Siemens - Sinumerik 840D Maximum spindle speed: 17500 1/min Tool magazine: 120 pieces X-axis travel: 400 mm Y-axis travel: 700 mm Z-axis travel: 400 mm Cone: HSK63 Equipment: IKZ High Pressure Pump Filtration Knoll Preparation for 5 axis

Key data: 760 mm, 430 mm, 450 mm

Inv. Num. : 6921 Type: VMCF-760 Producer: Microcut Created: 2007 Parameters: Control system: Fagor 8055 MC Work table length: 900 mm Work table width: 410 mm X-axis travel: 760 mm Y-axis travel: 430 mm Z-axis travel: 450 mm Cone: ISO 40 Machine weight: 3,300 kg

Key data: 1010 mm, 800 mm, 1010 mm

Inv. Num. : 6942 Type: H63 Producer: ZPS Created: 2005 Parameters: Control system: Siemens Work table length: 800 mm Work table width: 630 mm X-axis travel: 1010 mm Y-axis travel: 800 mm Z-axis travel: 1010 mm

Key data: 2500 mm, 1000 mm, 80 mm

Weeke BHX 500 with hedgehog buffer in the inlet Hedgehog buffer with 30 buffer places, length overall: 5700 mm Effective width: 2000 mm Manually movable Weeke machining center with one machining support at the top and one at the bottom Insertion table with automatic workpiece feeding and positioning WORKPIECE DIMENSIONS min. workpiece length: 200 mm max. workpiece length: 2500 mm min. workpiece width: 70 mm max. workpiece width: 1000 mm min. workpiece thickness: 4 mm max. workpiece thickness: 80 mm max. workpiece stacking: 2 pcs. Machine Configuration: 2V32 HIGH SPEED 7500 Vertical drilling unit arranged in the upper and lower machining support, each with 32 drilling spindles (individually controllable with variable speed range). 2H8X/2Y Horizontal drilling unit arranged in the upper and lower processing support with 10 over Drill spindles can be called up individu ...

Key data: 3050 mm, 1200 mm, 120 mm

Technical version: Console table 3050 x 1200 mm with manually movable 6 brackets, 2 vacuum cups per console and a pneumatic excavation rail Spot laser set-up aid, vacuum pump CNC control XILOG Plus Main spindle 7.5 kW HSK 63F with C-axis, 1500 – 24,000 rpm Tool changer plate 10-fold 1 adapter unit swivel saw Drill head with: 12 vertical spindles, 4+2 horizontal spindles, groove saw Installation dimensions: 6800 x 3040 mm Weight: 2850 kg

Key data: 1050 mm, 510 mm, 510 mm

Inv. Num. : 7111 Type: NEXUS 510 C Producer: MAZAK Created: 2008 Parameters: Control system: MAZATROL MATRIX NEXUS Duty cycle: 14206 h Hours: 4777 h Work table length: 1300 mm Work table width: 550 mm Spindle drive power: 11 kW Speed: 12,000 rpm X-axis travel: 1050 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Cone: ISO 40 Number of stacking positions: 30 pieces Machine weight: 6886 kg Equipment: Tool Probe IKZ

Lid Maho DMC 64 V linear Year of construction 2003 The MMC was overhauled in October, as well as the rectifier. The spindle motor has been overhauled - The encoder is new as well as the glass scale in X. Location: Bochum

Key data: 1625 mm, 860 mm, 760 mm

Control Ultimax 4 Travel X/Y/Z: 1625/860/760 mm Speed 8000 min-1 Tool magazine for 40 Wkz., SK 40 IKZ Conveyor

Microcut Challenger MCV-2418 - CNC Machining Center - Fagor 0i-mc CNC control - Additional tank for internal spindle cooling (15 bar) 400 liters Btl9ijraac - Year of construction 2005 Specification - Travel X/Y/Z: 610 / 455 / 520 mm - Rapid traverses: 24 m/min - Speed working spindle: 8000 rpm - Tool holder: BT40 - Table size : 762 x 363 mm - Table load max.: 350 kg - Motor power: 18 kW - Operating voltage: 400 V - Weight: 3140 kg

Inv. Num. : 7256 Type: RFM 600/2 Producer: Röders TEC Created: 2000 Parameters: Work table length: 700 mm Work table width: 550 mm X-axis travel: 600 mm Y-axis travel: 450 mm Z-axis travel: 300 mm

x-travel: 1000 mm y-travel: 1000 mm z-travel: 950 mm Control: FANUC total power requirement: - - - kW weight of the machine ca.: - - - t dimensions of the machine ca.: - - - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MATSUURA MC 600 VF Vertical Machining Center YOM 1996 X axis 600 mm Y axes 410 mm Z axis 470 mm Working capacity 600 x 410 x 470 mm Tool changer 20 TC Table capacity 800 x 400 mm Table load 400 kg Spindle speed range 30- 8000 Rpm Spindle taper ISO 40 Spindle bore 80 mm Weight 4000 kg

X-axis: 3000 mm Y-axis: 800 mm Z-axis: 720 mm Rapid traverse: X/Y/Z axis: 50m/min Control: SIEMENS 840D Recording: SK40 Speed: 18,000 rpm Mileage: total approx. 5,000 hours (of which approx. 500 hours since the overhaul) Spindle motor: 321V - 116 A Work table: W 3500 x L 820 mm Dimensions: L 5250 x W 4046 mm Drives: SIEMENS The machine is a 5-axis machine, where the turntable is both vertical, as well as horizontally. - Subject to technical errors and prior sale. -

CNC Machining Center Vertical DECKEL-MAHO - DMC 635 V Built in 2006 in good condition. Control iTNC 530 Heidenhain Duty Cycle: 35172 Hours: 5903 Specifications: x-travel 635 mm y-travel 510 mm z-travel 460 mm Main Spindle: Speed range - main spindle 20 - 8,000 min/-1 Drive power - main spindle 13 / 9 kW Tool holder SK 40 DIN 69871 Max. torque 83 / 57 Nm Clamping force 8 kN Workbench: Table clamping surface 790 x 560 mm Number of T-slots 4 + 1 T-slots - spacing 100 mm T-slots - width 4x 14H12 / 1x 14H7 mm max. table load 600 kg Table height above floor 720 mm Distance between spindle nose and table 120 - 580 mm Tool changer: Number of tool slots 20 pos. Max. tool width 80 / (130) mm max. tool length 250 mm max. tool weight 6.0 kg max. total weight 80 kg Tool - Tool change time 1.6 sec Changeover time span - span 6.0 sec Feeds: Rapid traverse 30 m/mi ...

Control Heidenhain TNC 620 Travel X/Y/Z: 1035/560/510 mm, Spindle speed: 12,000 min-1, Tool magazine for 30 Wkz., SK 40, Cooling by the spindle 12 bar, Conveyor

Inv. Num. : 3505 Type: AJV-25/404 Producer: MAZAK Generated: Parameters: Control system: MAZATROL M-32 Work table length: 1240 mm Work table width: 550 mm Maximum table load (even): 800 kg Spindle drive power: 15 kW Minimum vertical spindle speed: 28 1/min Maximum vertical spindle speed: 4000 1/min Mechanical feed length axis X: 1000 mm Mechanical feed length axis Y: 508 mm Mechanical feed length axis Z: 460 mm Cone: ISO 40 Number of tools: 30 pieces Maximum tool diameter: 100 - 150 mm Max. tool weight: 8 kg Distance between uprights: 650 mm Accuracy: 0.02 mm Machine height: 3026 mm Machine length: 3810 mm Machine width: 2590 mm Machine weight: 8.1 t

Nv. Num. : 7401 Type: QM-40 SA Producer: Feller Created: 2007 Parameters: Control system: FANUC Maximum spindle speed: 20,000 1/min Number of axles: 3 X-axis travel: 1000 mm Y-axis travel: 500 mm Z-axis travel: 500 mm Number of stacking positions: 24 pieces Machine weight: 6300 kg Equipment: BLUM 3D Workpiece Probe 2022/11: GO Interchangeable Arms Spindle change 2021: Installation of the BLUM workpiece probe 2020: Replacement of drive bearings and bolts on X/Y beams Replacement of caliper lubrication dispensers, new brake caliper covers Replacement of the spindle center cooling reducer

Milling machining center CNC Hedelius Tiltenta T7-4200

Inv. Num. : 7531 Type: VMC 750 Producer: MAS Created: 2000 Parameters: Control system: VICKERS ACRAMATIC A2100 Work table length: 1000 mm Work table width: 500 mm X-axis travel: 750 mm Y-axis travel: 500 mm Z-axis travel: 500 mm Machine weight: 4000 kg Equipment: Technical Documentation

x-travel: 1200 mm y-travel: 600 mm z-travel: 700 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m - CNC control Heidenhain TNC426 - swivable milling head (horizontal / vertical) - NC-rotary table (C-axis) - tool changer for 32 tools - chip conveyor - electronical hand wheel - coolant device (coolant through spindle device 20bar) Technische Daten / technical details: Verfahrweg X längs / X-Travel longitudinal 1200 mm Verfahrweg Y quer / Y-Travel cross 600 mm Verfahrweg Z vertikal / Z-Travel vertical 700 mm C-Achse Rundtisch / C-axis rotary table 360 ° Fräskopf / milling head +-90 ° Rundtischgröße / rotary table size 800 mm Werkzeugschaft / spindle taper SK40 Drehzahlbereich 2-stufig / spindle speed (2-steps) 20-6300 UpM /rpm Anzahl der Werkzeugplätze / tool places in ATC 32 fach Antriebsleistung Spindel 100%ED / drive c ...
