drill grinder used for sale

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

workpiece thickness max.:80 mm workpiece thickness min.:5 mm plate size without being adjusted:2000x1000 mm size of plate min.:100x100 mm control:CNC Mubea Matic100 hole diameter:min/max:10/40 mm workpiece weight:750 kg deburring device max.:d=40 mm traversing speed:80 m/min work height max.:1050 mm positioning accuracy:+/- 0,5 mm opening of gripping pliers min/max.:Typ I: 5/45 mm opening of gripping pliers min/max.:Typ II: 45/85 mm feed length:max. 150 mm rapid traverse::8 m/min spindle turning speed range:112-180-224-280-355-560 U/min work table::L:2500;B:950 mm arm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mm cross travel:y=1000 mm bore spindle stroke:max. 150 mm total power requirement:25,0 kW weight of the machine ca.:5,5 t space requirements approx. LxWxH:5,0x5,5x2,7 m plate size with beeing adjusted also 1000x4000 mm possible with roller conveyo ...

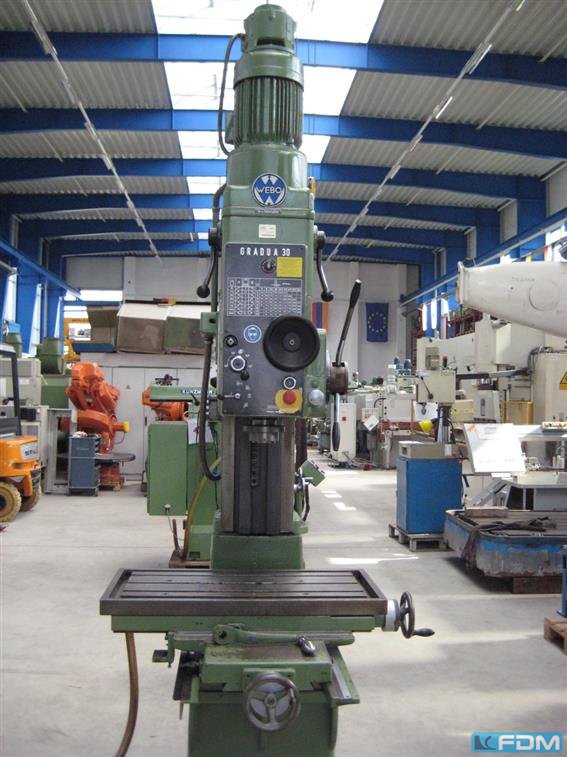

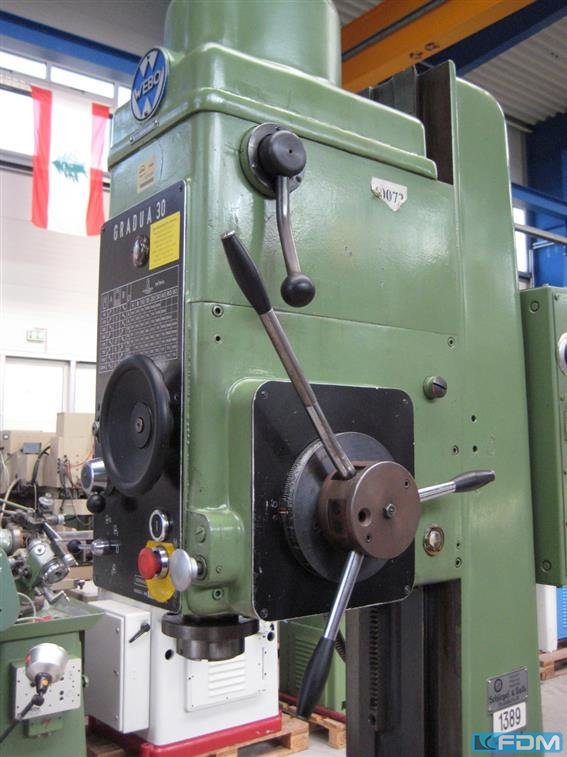

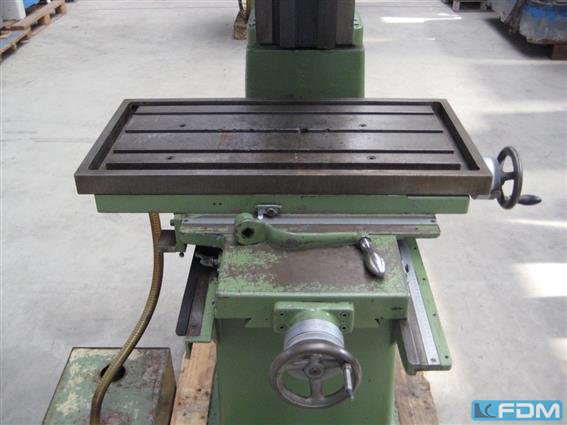

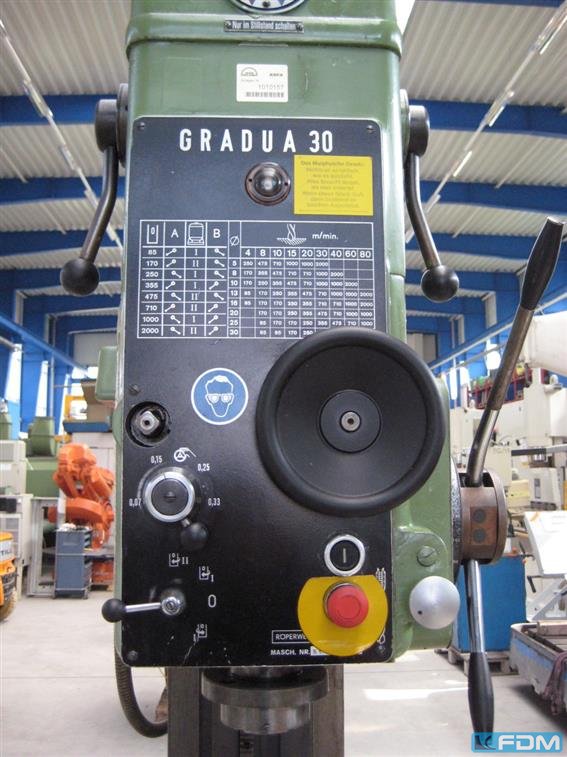

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

bore capacity in steel (diameter):100 mm max. pitch circle:7000 mm number of spindles:2 bore spindle turning speed range:1 - 3000 U/min high speed spindle taper ISO:50 bore slide stroke:900 mm feed speeds:1 - 6000 mm/min max. workpiece weight:18000 kg total power requirement:125 kW dimensions of the machine ca.:13 x 11 x 5,1 m with CNC SIEMENS 840 D Workpiece clamping up to dia. 7000 mm The machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 Nm Chip conveyor and coolant device

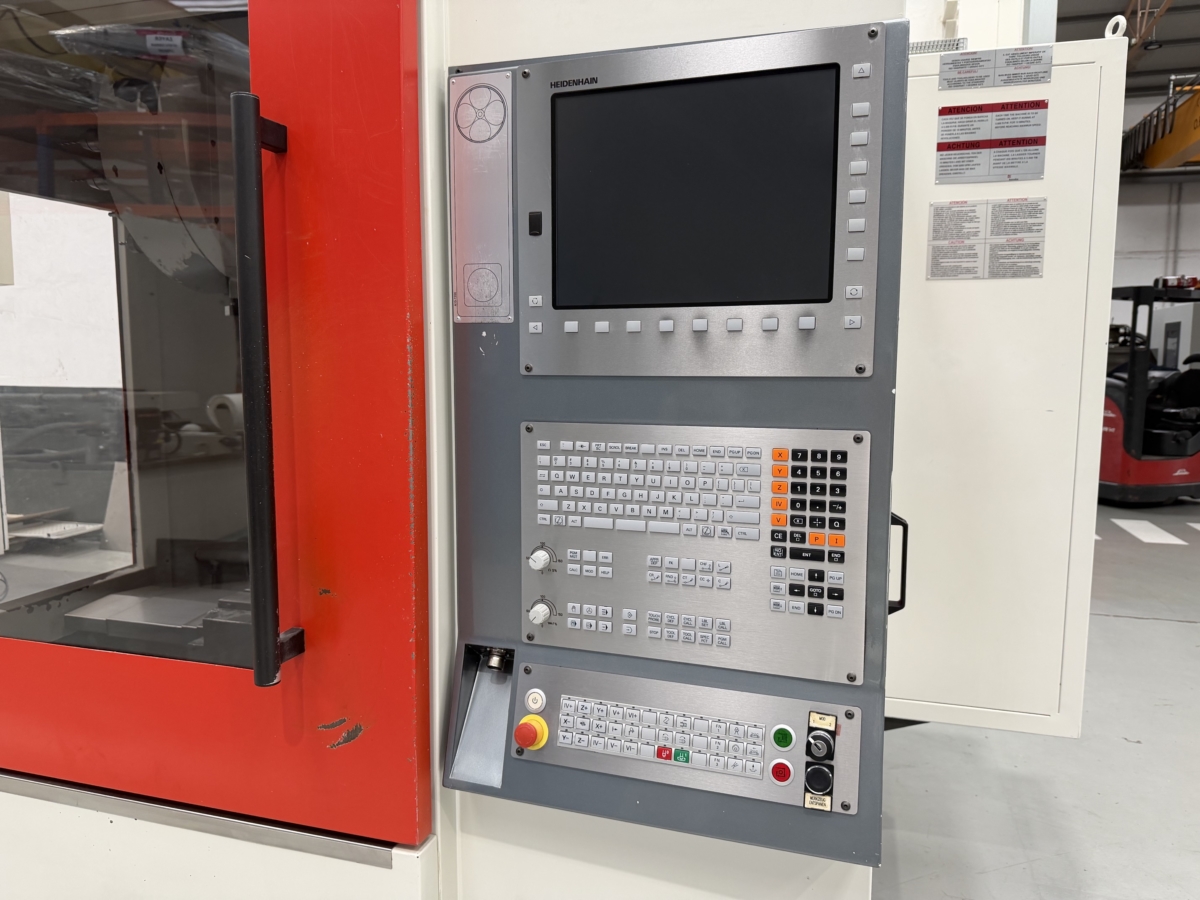

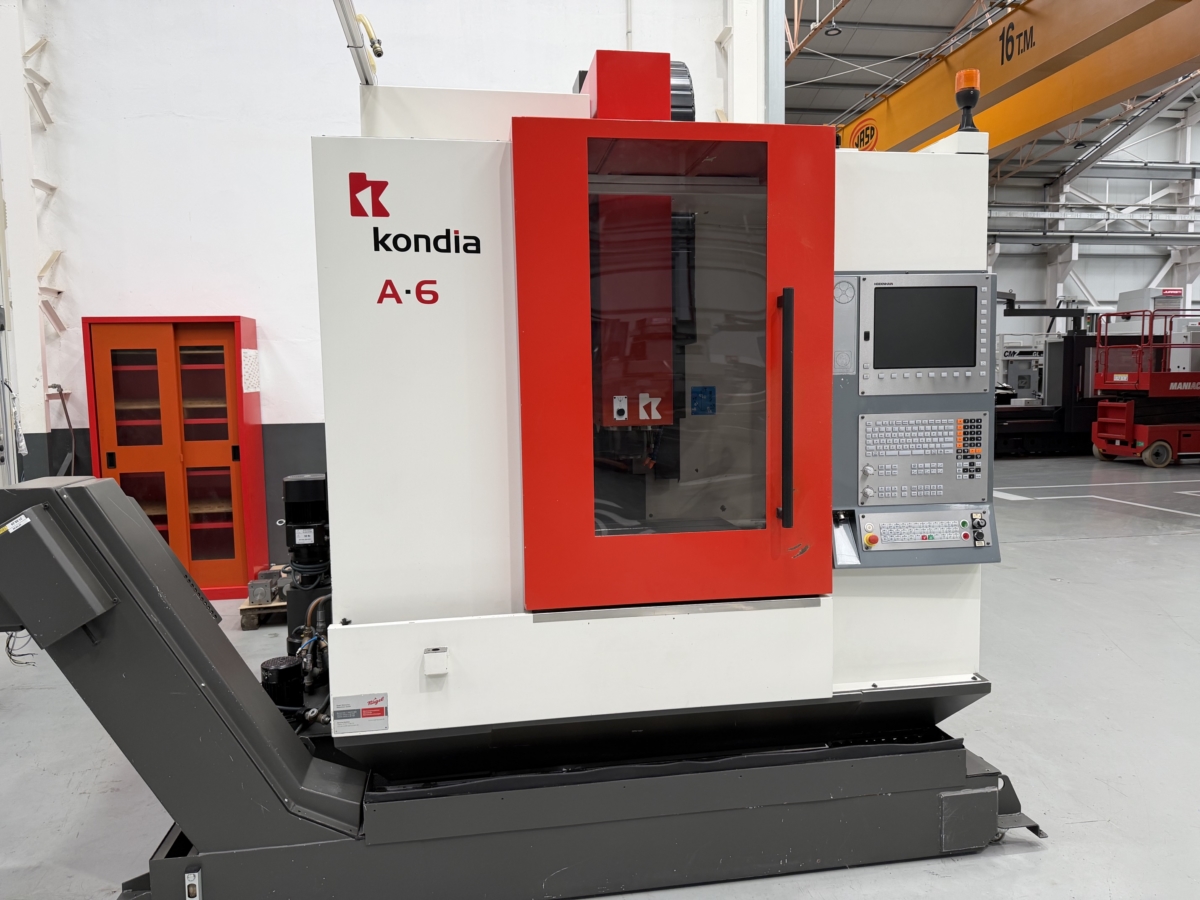

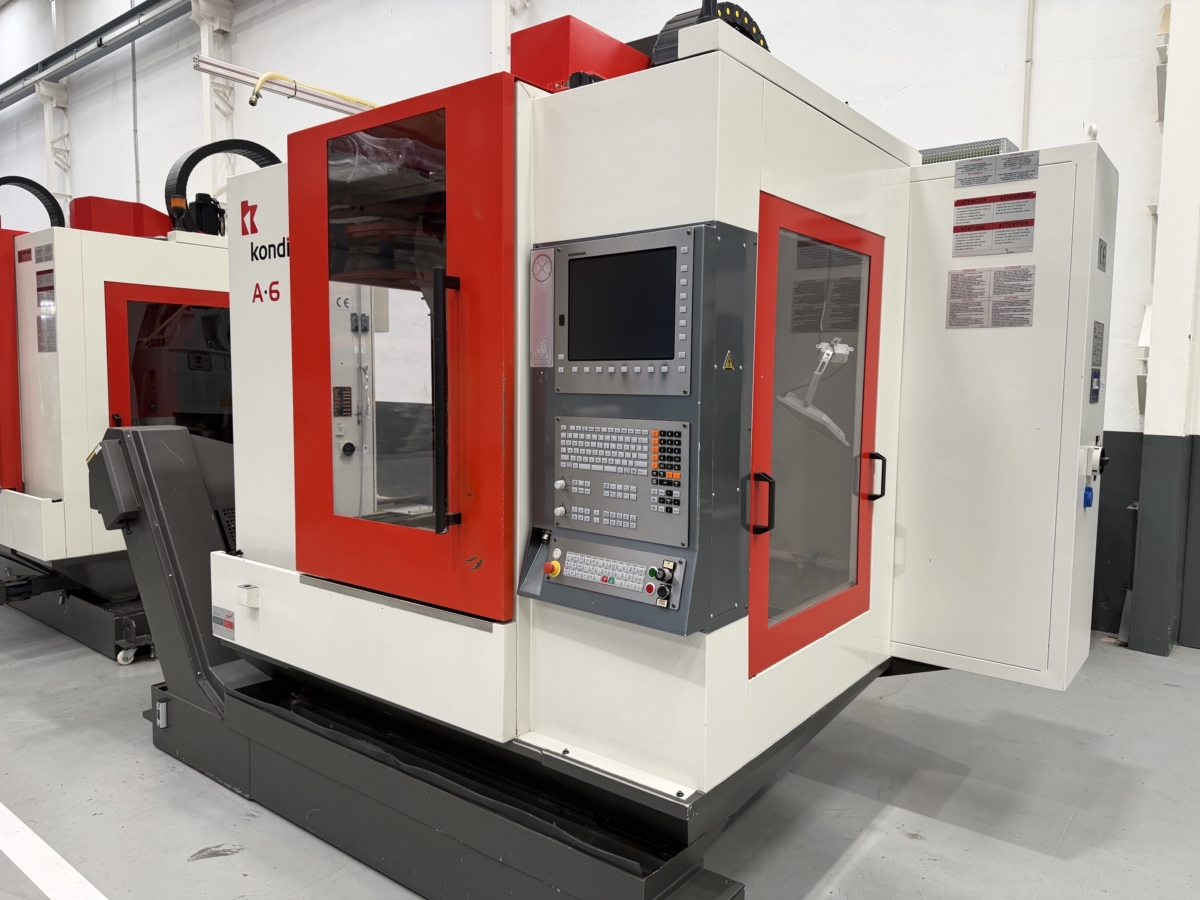

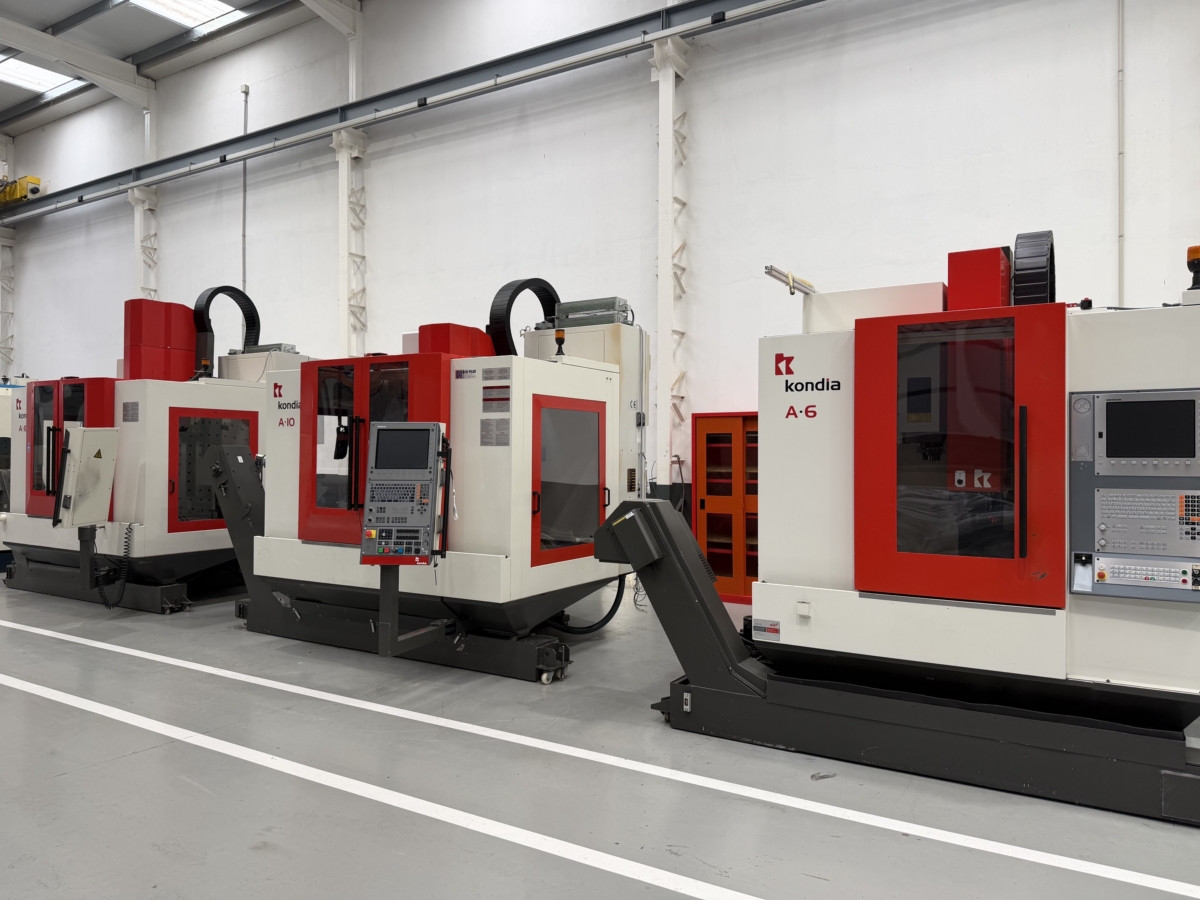

x-travel: 600 mm y-travel: 410 mm z-travel: 500 mm Control: HEIDENHAIN TNC 530 HSCI table surface area: 800x400 mm T-slots: 3 T - slots distance: 125 mm table weight: 450 Kg rapid traverse: 30.000 mm/min taper ISO: ISO 40 DIN 69871 number of spindle speeds: 12.000 U/min/rpm Spindle power: 10/17 magazine: 20 Internal cooling system: 20 bar Chip coveyor: inkl. handwheel: HEIDENHAIN HR-410 total power requirement: 25 kW weight of the machine ca.: 4.150 kg dimensions of the machine ca.: m -T-slots (width, spacing) 18, 125 mm -Distance from table to floor 885 mm -Distance from table to spindle nose (min./max.) 140 / 650 mm -Type Chain -Tool selection Random -Max. tool diameter with adjacent pockets empty 135 mm -Max. tool diameter without adjacent pockets empty 85 mm -Max. tool length 250 mm Max. tool weight 6 kg -Workpiece cleaning gun Included -Optical measuring systems (glass sc ...

Offer 26250 Technical data: Drilling capacity in steel ST 60 32 mm Drilling capacity in steel ST 60 40 mm Long spindle MK 3 Drilling spindle speeds infinitely variable 160 - 2250 rpm Drilling spindle stroke 120 mm Projection 293 mm Column diameter 115 mm Machined base plate with T-grooves 400 x 400 mm Max. distance from base plate to spindle 600 mm Emergency stop button Space requirement approx. W 450 x H 1250 x D 900 mm Weight approx. 250 kg Keyless chuck Table base
