double column machining used for sale

The machine is in good technical condition; testing is possible by prior arrangement. Fully equipped, with tooling and accessories valued at approx. 1 million. X-axis travel: 1050 mm; Y-axis travel: 900 mm; Z-axis travel: 600 mm. Control system: Heidenhain TNC 640. Max. spindle speed: 18,000 rpm. Table clamping surface: 900 x 750 mm. Tool positions: 42. Tool holder: HSK 63A. Max. tool diameter: 80 (125) mm. Max. tool length: 225 mm. Max. tool weight: 8 kg. T-slots – width: 18 mm; spacing: 100 mm. Center bore: 32 mm. Rotation range: 360°. Tilt range: +/- 115°. Max. table load: 1500 kg. Rapid traverse (X/Y/Z): 35/35/35 m/min. Operating hours: approx. 8,500 h. Spindle hours: approx. 2,500 h. Machine weight: approx. 15 t.

Capacity: 3-axis Stroke: Longitudinal X:300 mm - Vertical Y: 350 mm- Transverse Z: 250 mm Spindle motor: Max speed: 6000rpm Continuous power :3.7 kW Peak power :5.5 kw Table: Dimensions: 300 x 300 mm Mounting: M8 centerline: 50 m Fast travel speed: 10 m/min Fast Rotation Speed B: 10RPM Tool Holder Type: BT40 Number of pitches :20

Manufacturer: Matec Model: matec-30HV Type of Machine: Machining Center) Year of Manufacture: 05/99 Technical Details: - X-axis travel: 2000 mm - Y-axis travel: 600 mm - Z-axis travel: 800 mm - Spindle taper: SK-40 - Spindle speed: 9000 U/min - Rapid traverse: 30 m/min - Feed rate: 30000 mm/min - Control system: BOSCH, Typ 3 osa - Main Components: - Tool magazine: Alu-guss, 48 tool positions, SK 40 DIN 69871 - Table: 650 mm width x 2500 mm length - Chip conveyor with integrated coolant system Find more here - .ucymachines/ Contact us at - sales@ucymachines

EDEL CYPORT CP 3020 – 5-Axis CNC Gantry Machining Center Technical Data: Gantry clearance height: 1,380 mm Table size: 5,000 × 2,300 mm A-axis: ±110° C-axis: ±360° Spindle power: 27 kW Spindle torque S1: 130 Nm Spindle torque S6: 170 Nm IKZ: up to 40 bar Workpiece measuring system: M&H with wireless probe Coolant system: with band filter Direct measuring systems: in all linear axes Automatic central lubrication Spindle cooling Ethernet interface Safety features: safety bumper, light grid, and lamella curtains

LARU DHZ 02/1200 DD End Processing Machine Technical Data: - Multi-spindle 3 x 3 - Between centers 1200 mm - Centering - Drilling - Thread cutting - Cooling system - Chip conveyor - Hour counter 25517 H

Manufacturer DMG-MORI Model DMF 260 Year 2011 CNC SIEMENS SINUMERIC 840D Table Table surface 2,900 x 700 mm. Maximum weight on table 2,150 kg. Routes and advances Longitudinal (X-axis) 2,600 mm Transverse (Y-axis) 700 mm Vertical (Z-axis) 700 mm Fast forward of the axes (X,Y,Z) 40 m/min Working progress of the axes (X,Y,Z) 40 m/min Axle acceleration 4 m/s2 Head Revolutions 14,000 mm/min SK 40 Head Cone DIN 69872 Main engine power 18.4 / 14 kW Automatic tool loader No. of Charger Tools 30 Maximum tool length 300 mm Maximum tool weight 6 kg. Maximum tool diameter with adjacent free positions 130 mm Maximum tool diameter without adjacent free positions 80 mm Equipment Refrigeration 40 Bar / 600 l. INCLUDED Longitudinal chip evacuator INCLUDED Coolant cleaning gun INCLUDED Portable steering wheel INCLUDED Direct Measurement System INCLUDED Machine hours  ...

SW BA one6Year of manuf. : 2020 Control : Siemens 840 Dsl Speed : 17500 rpmMovement X/Y/Z : 600/650/500 mmTool holder : HSK 63 ____________Description:In General:Year of manufacture:2020Control system:Siemens 840 DslTravel range X/Y/Z:600/630/500Rapid traverse X/Y/Z:120 m/minSpindle:Technologie:MotorspindelnDrehzahl:17.500 U/minLeistung:35 NmDrehmoment:80 NmWerkzeugaufnahme:HSK-63Swivel mount:Technology:A-axis or U-axis with counter bearingDrive:Direct drive (torque motors)Clamping bridge:Technology:Clamping bridge with 1x NC rotary table eachDrive:Direct drive (torque motors)Table diameter:Ø 340 mmMax. table load:150 kgMax. fixture dimensions:Ø 675 x 450 mmTool magazin:Technology:Chain magazineTool changer:Pick-upNumber of stations:105Max. tool diameter:80 (160) mmMax. tool length:450 mmEquipment:Position measurement systems:Direct on all axes (glass scales)Drive systems:Direct  ...

Key data: 800 mm, 800 mm, 800 mm

DMG MORI DMC 80H duoBLOCK – 4-Axis Horizontal Machining Center with Interchangeable Table – Used For sale is a used DMG MORI DMC 80H duoBLOCK horizontal machining center. The machine is currently still in productive use and is reliably used in series production. It is mainly used for processing steel and cast iron. Condition: Fully functional and operational. Viewing under power possible by arrangement. Equipment: 4-axis machining Horizontal design for efficient chip removal Changing table (pallet changer) for reduced non-productive times duoBLOCK design for high stability and precision Tool Changer Generous working space for complex components Further details on the equipment are available on request Control manufacturer: Siemens Control model: Sinumerik 840D Workpiece weight (max.): 1,200 kg Total height: 3,100 mm Overall length: 4,850 mm Overall  ...

Key data: 700 mm, 400 mm, 330 mm

A FANUC Robodrill α-D21LiA5 High Power vertical machining centre from 2014 is for sale. No repair machine – no known defects – ready for immediate use. The machine features the powerful FANUC Series 31i-B5 controller, a 21-fold tool changer, MAS BT30 tool holder and extensive equipment with a Renishaw touch probe and tool measurement. This machine also has a 100 mm stand raiser. The machine is ideal for the fast and precise machining of individual parts and series and is very productive, especially due to the high travel and feed speeds. Technical data Manufacturer: FANUC Model: Robodrill α-D21LiA5 Version: High Power Version Year of Make: 2014 Control: FANUC Series 31i-B5 Weight: approx. 2,200 kg Connected load: approx. 11 kVA Travels: X-axis: 700 mm Y-axis: 400 mm Z-axis: 330 mm Machine table: Table size: approx. 850 × 410 mm 3 T-slots ...

Machine type: Vertical machining center Control: Heidenhain, Table load: 500 kg Tool magazine: 24 places The dismantling must be carried out by one of the partner companies mentioned. The costs for this are to be requested by the buyer himself. Auction-ID: A1-50085-3

This 5-axis POSmill H 500 U was manufactured in 2020. It features a Heidenhain TNC 640 control system and includes additional equipment such as a chip conveyor and an external cooling unit. With a nominal power of 60 kVA and extensive operational hours, this machine is well-equipped for high-quality machining tasks. If you are looking to get high-quality machining capabilities, consider the POSmill H 500 U vertical machining centre we have for sale. Contact us for further details.

A vertical CNC machining center is offered. X/Y/Z-axis travels: 560mm/410mm/381mm, spindle speed: 60-6000rpm, drive power: 3.7/5.5kW, table size: 410mm × 900mm, max. table load: 300kg, tool shank: ISO 40 (MAS-BT40), rapid traverse X/Y/Z: 24/24/18m/min, control: Mazatrol CAM M-2. Equipped with original parameter lists. Weight: approx. 4200kg, overall dimensions X/Y/Z: approx. 2300mm/2000mm/2641mm. The program is missing because the machine has been disconnected from power for several years. Documentation available. Inspection possible by appointment.

x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm Control: total power requirement: --- kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dismantling and collection mandatory in week 48 (23.11.-27.11--26), without machine pallets 800 x 1000 mm, pallets can be purchased from Heckert. Technical details and layout see appendix, number of tools 240, max tool diameter. 250. max tool length 800 mm, Knoll cooling system and chip conveyor. An inspection under chip can be made by arrangement. The dismantling must be carried out by one of the partner companies mentioned. The costs for this are to be requested by the buyer himself. Dismantling of the system mandatory in week 49/26 Auction-ID: A1-50085-167

Year of construction: 2019 CNC controller: FS-31iB (MAPPS IVB) Axes X-axis travel mm: 1540 Y-axis travel mm: 760 Z-axis travel mm: 660 Rapid traverse m/min: 20 Worktable Table dimensions mm: 1700x760 Max. workpiece weight kg: 2000 Spindle Spindle speed rpm: 20000 Spindle drive power kW: 18,5/15/11 (10 min./30 min./cont) Spindle torque Nm: 81 (10%ED) Cooling Cooling through the Spindle Center bar: 70 Tool system Tool holder: BT 40 Tool magazine slots: 60 With free neighboring places mm: 125 With occupied neighboring places mm: 95 Max. Tool Length mm: 450 Max tool weight kg: 12 Tool-to-tool time s: 2.1 Equipment Electronic Handwheel Internal cooling lubricant supply Rinsing gun Signal lamp Tool measuring arm Mist collector Heat compensator Program restart Paper band filter Machine running times Under power: 35557 Spindle Working: 27278 Rated power kVA:  ...

With double pallet, HEIDENHAIN control Excluding machining and tooling supports AVAILABILITY END OF JANUARY/BEGINNING OF FEBRUARY 2027 Auction-ID: A7-50204-15

Machine: BIESSE CNC Machining Center Table: 3060 x 1260 x 150 mm Solenoid Spindle: 12 kW, ISO30 Cone Tool changer: 10 positions Vacuum pump: 100 m³/h Consoles: 6 with 3 ATS suction cups Drilling Head: 15 Vertical + 4 Horizontal Pins X Saw: Ø125 mm Accessories: 4-position flange, bevel gearbox, flange for aggregates Equipment: chip recovery belt, Biesse WORK software, B_NEST Auction-ID: A1-50215-11

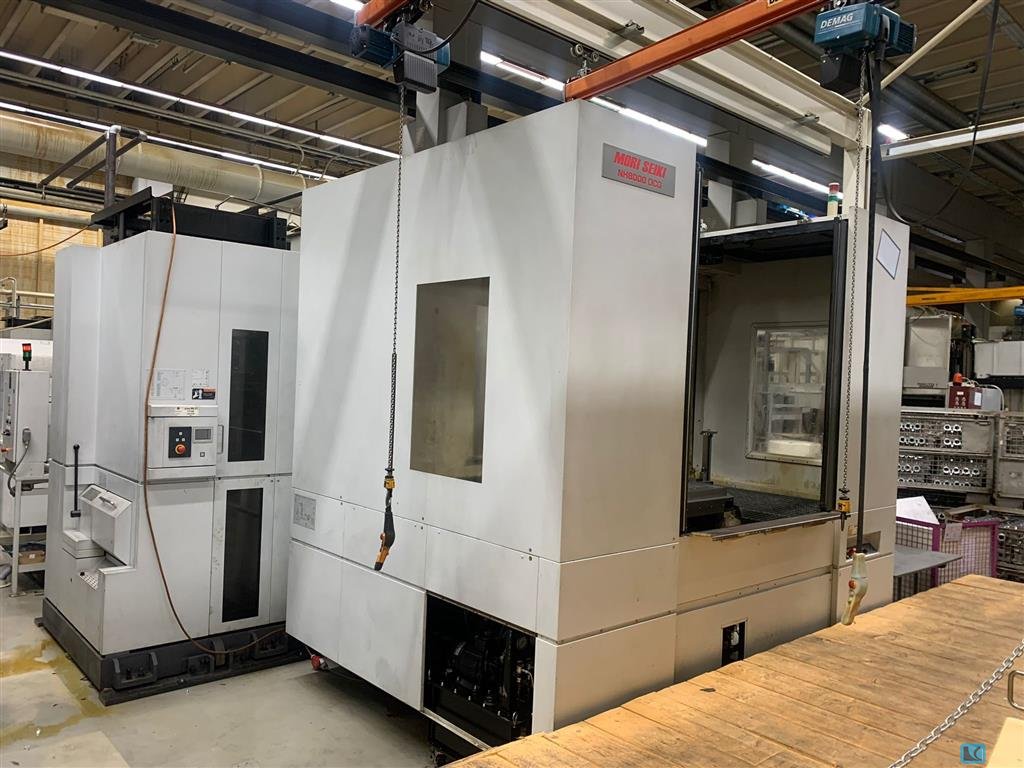

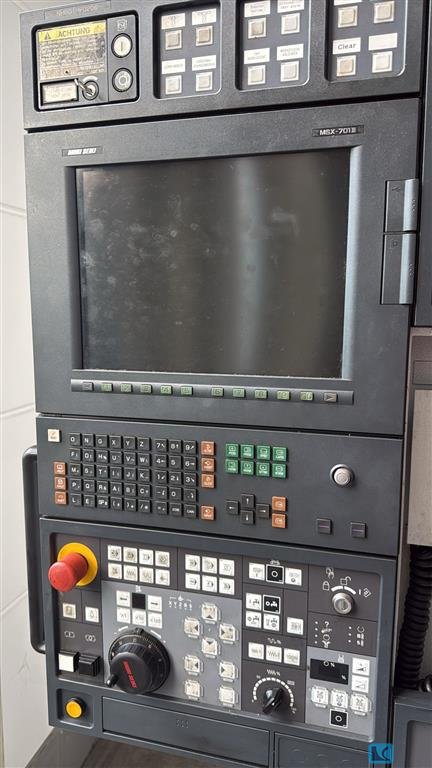

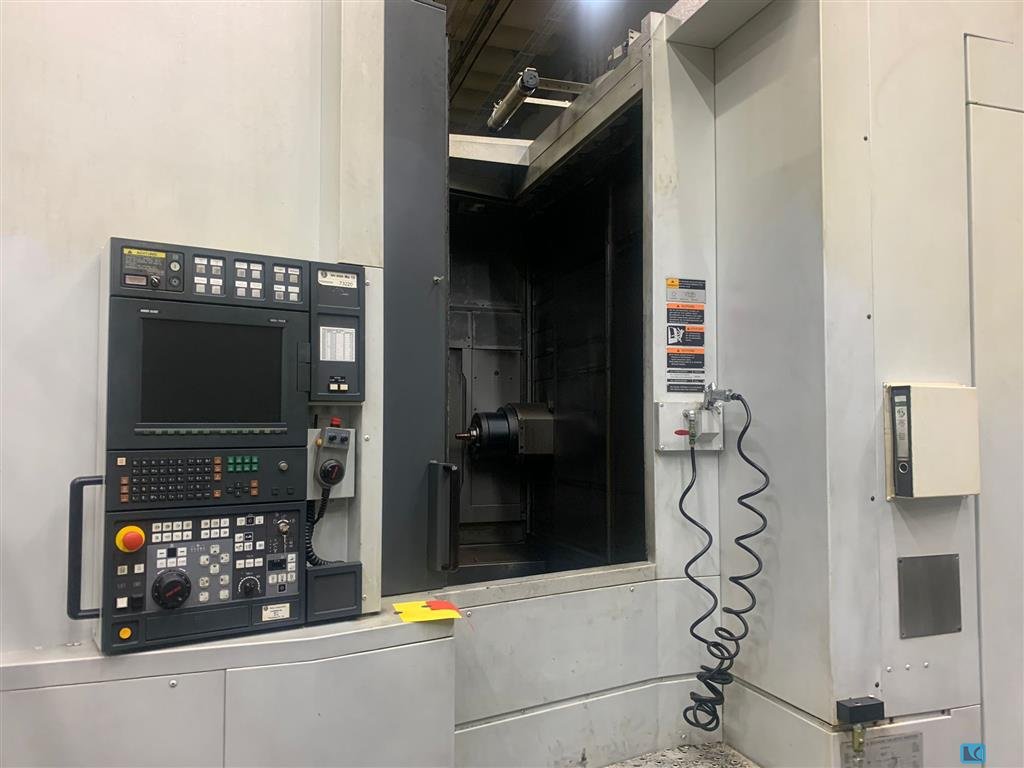

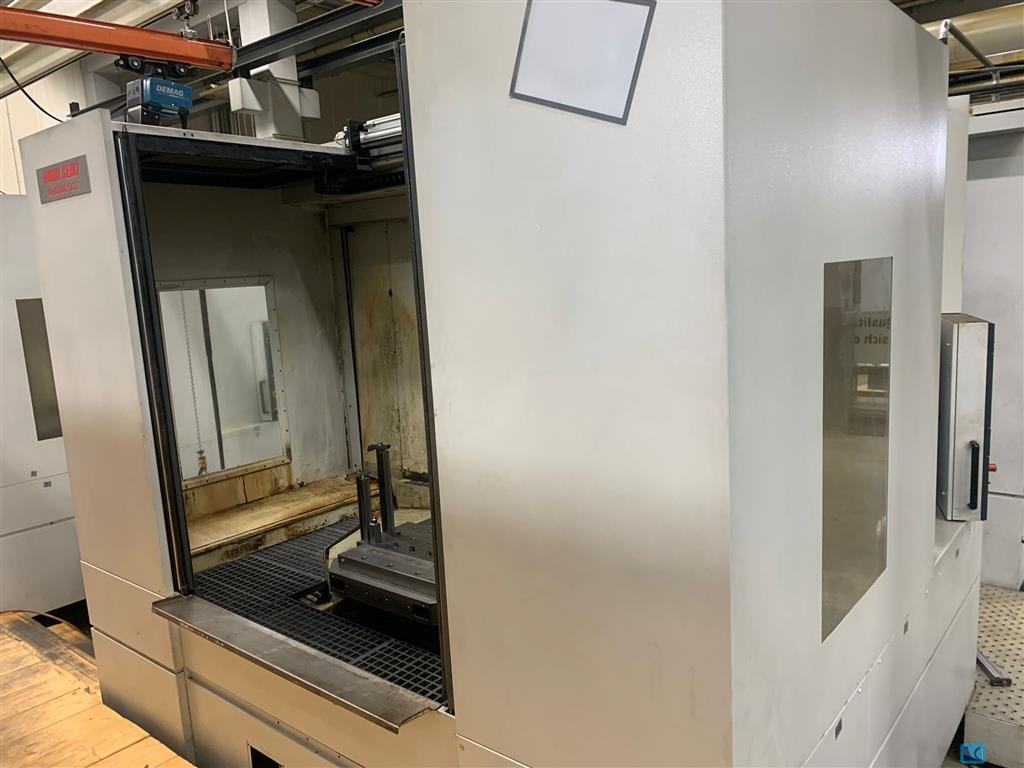

With double pallet, Mori Seiki M730BM control Excluding machining and tooling supports AVAILABILITY END OF JANUARY/BEGINNING OF FEBRUARY 2027 Auction-ID: A7-50204-7

MITSUBISHI Control Excluding machining and tooling supports AVAILABILITY END OF OCTOBER 2026 Auction-ID: A7-50204-12

Fast tool change, FANUC Series Oi-MC control Excluding machining supports, magnetic tables and tools AVAILABILITY NOVEMBER 2026 Auction-ID: A7-50204-17

Usable working area: X: 4970 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head Electro-chuck 8 kW – ISO30 Frequency inverter 8 kW Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 8-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups Pneumatic locking table 2 stops per bar 8 × suction cups 114 × 140 mm – H 100 (to be confirmed) 8 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) 8 × suction cups 120 × 50 mm – H 100 longitudinal (to be confirmed) 8 front stops + 2 additional side stops Equipment: Vacuum pump 250 m³/h CN on external PC (PC included) 17\"PC TFT display and instructions in English Mastercabinet Level 1 Power supply: 400 V – 50 Hz Compliance: CE safety standards version L Dimensions: Estimated height: approx. 2400 mm (to  ...

Machine: MASTERWOOD PROJECT DOORS Machining Center Year: 2001 Machining range: X 2500 mm, Y 1360 mm, Z 100 mm (passage 120 mm) Front Position: 2.2 kW horizontal unit, 8 kW ISO30 solenoid spindle, 8 pos. ISO30 Rear Position: 2.2 kW horizontal group, 14 pos. ISO30, manual tilting X/Y index head Table: belt with vacuum pump 100 m³/h Belt: chip evacuation Order: Windows PC + SINCRO software Standards: CE Auction-ID: A1-50215-34

Machining Strokes: X-Axis: 3,400 mm | Y-Axis: 600 mm | Z-Axis: 150 mm Tool System: 8-Position Tool Holder Holding parts: Equipped with a vacuum pump Auction-ID: A1-50215-44

Machine Type: TEK.2004F Serial Number: 99050024 Country of Origin: Italy Power: 10 kW Voltage: 380 V Frequency: 50 Hz Amperage: 19.9 A Maximum distance between the 2 external anuba plugs: 2,700 mm Maximum height with head positioned at 0°: 200 mm Maximum thickness with head positioned at 90°: 120 mm Drilling Engine: 1 HP Screwdriving motor: 1 HP X-axis speed: 40 m/min Y-axis speed: 7 m/min Z-axis speed: 7 m/min Overall dimensions: 3,550 x 2,623 x 2,200 mm Machine weight: 1,600 kg Weight of electrical panel: 145 kg Auction-ID: A1-50215-52

Machine: MASTERWOOD PROJECT DOORS Machining Center Year: 2001 Machining range: X 2500 mm, Y 1360 mm, Z 100 mm (passage 120 mm) Front Position: 2.2 kW horizontal unit, 8 kW ISO30 solenoid spindle, 8 pos. ISO30 Rear Position: 2.2 kW horizontal group, 14 pos. ISO30, manual tilting X/Y index head Table: belt-driven, vacuum pump 100 m³/h Belt: chip evacuation Order: Windows PC + SINCRO software Standards: CE Auction-ID: A1-50215-41

FANUC Series 21i-T Control Excluding machining and tooling supports AVAILABILITY NOVEMBER 2026 Auction-ID: A7-50204-24

Project 323 (tubeless) with drill head Usable stroke in x 6000 mm Power supply 400v 50hz europower supply Position 1 ( forward ) Please choose the electrochuck Electrochuck 8 kw - ISO30 Tool magazine 8 pos. On the head iso30 8 kw frequency inverter Adapter support plate for index heads Tubeless table 8 supports 24 suction cups Positioning 8 bars + suction cups on display Pre-arranged 08-bar table For locking with vices (plus kit) CE safety standards for 6000 mm frame 40-core drill head Saw for longitudinal incisions Waste disposal belt 6000 mm Remote control (hold-start override) 100 m3/h std vacuum pump CN on external pc (pc included) 17\" tft display Auction-ID: A1-50215-50

With double pallet, FANUC Series 18i-MB control Excluding machining and tooling supports AVAILABILITY END OF JANUARY/BEGINNING OF FEBRUARY 2027 Auction-ID: A7-50204-10

Machine: CNC machining center MASTERWOOD 4 WIN Year: 2010 Axle stroke: X 4960 mm, Y 1930 mm, Z 650 mm Digital axes: 4 + C-axis Electrospindle: 17 kW HSK63E with dimmer, dedicated cooling Tool magazines: 10 in. head, 16 in. rear carriage, 18 in. side Fixed heads: blade holder Ø220 + Ø350 mm HSK63F Table: 7 bar auto Belt: chip evacuation Control: Multilingual PC + Masterwindows software, mobile console, portable remote control Safety: CE Dimensions: 6800 x 2450 x 2450 mm Weight: 4300 kg Available from the beginning of November. Auction-ID: A1-50215-15

MITSUBISHI Control Excluding machining and tooling supports COLLECTION BY SEPTEMBER 2026 Auction-ID: A7-50204-11

Driller project 323 Power supply 400v 50hz Europower supply frequency inverter 11 kW CE safety standards for std frame saw for longitudinal incisions belts waste disposal std frame booklet instructions in Italian special execution Posiz.1-c.u. Hsk 8 posizioni indexato Special execution Posiz.2-c.u. Hsk 8 posizioni Special execution Piano di lavoro tipo schmalz in sostituzione del piano std. Auction-ID: A1-50215-48

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain TNC 640 Year of Make: 2015 Internal machine number: 76 Travels: X-axis 600 mm Y-axis 400 mm Z-Axis 400 mm Z-Axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm

X-axis 1250/420 mm Y-axis 510/315 mm Z-axis 480 mm B-axis 220° C-axis 360° Drive power 19 kW Max. spindle speed 12000 rpm Tool holder SK40 33 tool positions

Incl. tool changer and the tool holders located inside, with chip conveyor and coolant system. Attention: The machine can be transported on a standard truck! Additional technical specifications: • Nominal current: 80 A • Table: with 9 slots • attached clamping plate, dimensions: 1200 x 810 mm • with three ALLMATIC machine vices, jaw widths: 160 mm

Incl. chip conveyor, incl. 3-D touch probe and incl. the tool holders located in the tool changer! Attention: without the machine vises seen in the photos! Attention: the machine can be transported on a standard truck!

Attention: The machine can be transported on a truck up to 3000 mm wide! Additional technical specifications: • table with 5 slots • with mounted plate, plate dimensions: 900 x 550 mm • incl. vise, jaw width: 125 mm

Attention: the machine can be transported on a truck up to 3000 mm width! Additional technical specifications: • Feed rate in X/Y/Z: 20 - 15,000 mm/min • Setup mode X/Y/Z: 20 - 2000 mm/min • with in total 32-station tool changer (2 x 16 places) • max. tool diameter when all slots in magazine 1 are occupied: 130 mm • max. tool diameter when all slots in magazine 2 are occupied: 80 mm • max. tool length from spindle nose: 315 mm • max. tool weight at automatic tool changing: 8 kg • max. total tool weight in magazine: 160 kg • T-slot spacing: 63 mm

Year of construction: 2011 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat compe ...

Controlled Axes 4 axes (X, Y, Z, and electrospindle continuous rotation A-axis) Axis Strokes X-axis (Longitudinal): 7,700 mm Y-axis (Cross): 270 mm Z-axis (Vertical): 420 mm A-Axis Travel 0° to 180° continuous rotation (allows machining on 3 sides directly, up to 5 sides with angular units) Working Modes Single-piece (up to 7.7 m), multi-piece, and pendular/dynamic pendular (two independent work zones) Electrospindle Power 7.0 kW (S1 continuous duty) Spindle Speed Up to 16,500 RPM Tool Holder / Cone HSK-50F Tool Magazine 8-slot automatic tool changer mounted directly on the X-axis carriage Tool Compatibility Accommodates milling bits, 1 angular unit, and saw/disc blades up to Ø 180 mm

WFL M 35 G MILLTURN ist ein CNC Dreh-Fräs-Bohrcenter hoher Präzision, Genauigkeit und Zuverlässigkeit. Leistungsdaten: Spitzenweite 2000 mm, Dreh-Ø max 520 mm, Spindelbohrung 77 mm; Verfahrwege Z1 1500 mm/X1 550 mm, Z2 1355 mm/X2 230 mm, Y 250(-100/+150), B 220°. Technische Daten: Hauptspindeln bis 4000 min-1, 29/33 kW (551/630 Nm), angetriebene Werkzeuge 6/13 kW, Frässpindel 9000 min-1 15/20 kW (165 Nm); Eilgänge Z 40 m/min X 30/10 m/min; Gewicht ~20000 kg; Abmessungen 7900×5700×3250 mm. Ausstattung: Lampe, Kühleinrichtung, Papierfilter, Ölnebelabsaugung, Späneförderer, automatische Be-/Entladung, Messsystem Renishaw. Für enge Toleranzen, Anwendungen in Automotive, Luftfahrt, Medizintechnik, Uhrenfertigung und Maschinenbau. Technische Daten ohne Gewähr

Year of construction: 2010 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat comp ...

Manufacturer KONDIA Model A-6 Year 2015 CNC HEIDENHAIN TNC 530 HSCI Table Table surface 800 x 400 mm. Number of T-Slots 3 T-slots (width, distance) 18.125 mm. Table-floor distance 885 mm. Table distance – spindle nose (min/max) 140 / 650 mm. Maximum weight allowed on table 450 kg. Routes and advances Longitudinal travel (X) 600 mm. Cross travel (Y) 410 mm. Vertical travel (Z) 500 mm. Fast forward X/Y/Z axes 30,000 mm./min. Head Spindle taper ISO 40 DIN 69871 Maximum spindle speed 12,000 rpm Spindle power 10 / 17 kW Autoloader Tools Chain Type Random Change Warehouse Positions 20 Maximum tool width with adjacent free positionsq 135 mm. Maximum tool width without adjacent free positionsq 85 mm. Maximum tool length 250 mm. Maximum tool weight 6 kg Equipment Internal cooling 20 BAR INCLUDED Chip evacuator INCLUDED Water gun cleaning parts INC ...

FEATURES: • Longitudinal travel 1020 mm • Cross travel Y 510 mm • Vertical travel Z 575 mm • SIEMENS CNC Type • Table length 1200 mm • Table width 500 mm • Max. Authorized weight 800 kg • Number of tools 30 • ISO 40 spindle taper • Max spindle speed 8000 rpm • Spindle motor power 15 kW • Length x width x height 3275 × 2948 × 2996 • Weight 7500 kg

CONTROLS   CNC controls FANUC 310 IS WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 5   X-axis travel: 600 mm   Y-axis travel: 410 mm   Z-axis travel: 460 mm   rotating range A-axis from: -30 °   rotating range A-axis up to: 120 ° TABLE   clamping surface diameter: 350 mm SPINDLE / HEAD   spindle revolutions (max): 12000 /min   drive power: 18 kW AXIS DRIVES   rapid traverse: 4800 mm/min TOOL MAGAZINE   number of positions: 30 DIMENSIONS / WEIGHTS   space requirements -left/right-: 3000 mm   space requirements -front/back-: 2400 mm   total height: 1980 mm   total weight approx.: 7500 kg Operating hours: 35`000h Inklusieve: Vices see picture

Key data: 760 mm, 640 mm, 760 mm

X-axis travel:760 mm Y-axis travel:640 mm Travel Z-axis:760 mm Control manufacturer:FANUC Control Model:Series 18i-MB Workpiece height (max.):800 mm Workpiece weight (max.):500 kg Spindle speed (max.):6,000 rpm Number of slots in tool magazine:120 horizontal machining center with patette changer, two pallets 500x500, 120 tool holders, touch probe Tool length:400 mm Tool weight:15 g Equipment:Chip conveyor, documentation/manual

X=3700mm Y=1440mm, Z=150mm Moving speed: X: 80 m/min, Y: 80 m/min, Z: 20 m/min 8 supports with vacuum cups, pneumatic clamping 8 fences at the rear 8 fences in front 2 left fences and 2 right fences 6 rails for panel loading with pneumatic lifting Positioning the vacuum cups using a laser 1 connection for templates Vacuum pump with flow rate 100 m3/h Configuration V25,H8X/6Y, N1 X-Y 90?, F1-HSK63-15KW,F1-HSK63-9KW, C axis, W14 rear Main motor 15 kW, 1250-24000 rpm, air-cooled, 360? C-axis, C-axis interpolation axis, HSK 63 mounting C axis extension for flex-5 aggregate Main motor 9 kW, 1250-24000 rpm, air cooled, HSK 63 mounting Tool changer operating in X direction with 14 positions, rear mounted 2 x 4 vertical X drilling pins, 2 x 3 vertical Y drilling pins 14 horizontal drilling spindles 90? groove saw X-Y direction PC 85 power control software with: Woodwop: workshop-oriented program ...

Working area: X 5200 x Y 1260 mm Heading of main spindle: X 5709 mm, Y 1650 mm 8 workpiece consoles Equipment: Drilling unit with 18 spindles, 12 vertical sp?ndles, 6 horizontal spindles (4 in direction X , 2 in direction Y ) Grooving saw Milling motor 11 kW, 20000 rpm max, HSK-F 63 take-up, liquid-cooled, 5-axis controlled Tool changer with 16 positions Laterally positioned changer with 8 positions PC control

Working field: axis x: 2310 mm, axis y: 628 mm, axis z: 90mm Max programmable speed: axis x: 100 m/min, axis y: 75 m/min, axis z: 15 m/min Drill chuck: diameter 10 mm Spindle speeds: 4000 rpm Grooving saw: diameter 120 mm Drill spindles: 4 horizontal spindles in X, 12vertical spindles in X line Working air pressure: 6 bar Max consumption of compressed air: 0,75 NL/cycle Installed power: max 7.5 kW Capacity of vacuum tools: 40 m?/h CNC: screen: monochromatic 9? Floppy disk unit PLC for control of the machine cycle

Working field: axis x: 3200 mm, axis y: 944 mm, axis z: 110mm Max programmable speed: axis x: 100 m/min, axis y: 75 m/min, axis z: 15 m/min Drill holder: diameter 10 mm Spindle speeds: 4000 rpm Grooving saw: diameter 120 mm Drill spindles: 24 horizontal spindles in X, 10 vertical spindles in X line Working pressure air pressure: 6 bar Installed power: max 25 kW Capacity of vacuum tools: 40 m?/h CNC: screen: monochromatic 9? Floppy disk unit

Working area: X 5005 x Y 1520 mm x Z 200 mm Main spindle travel: X 5910 mm, Y 1815 mm, Z 655 mm. Travel speed: X 80 m/min, Y 80 m/min, Z 25 m/min 8 workpiece consoles with automatically positioning vacuum cups Equipment: Drilling unit with 19 spindles, 7 vertical spindles in X, 6 vertical spindles in Y, 2 double horizontal spindles in X, 1 double horizontal spindle in Y Slotting saw Milling motor 12 kW, 1000?24,000 rpm, HSK-F 63 mounting, liquid-cooled, 5-axis controlled Tool changer with 22 positions Vacuum pumps with 2 x 100 m?/h capacity PC control Masterwork software Integrated waste conveyor
